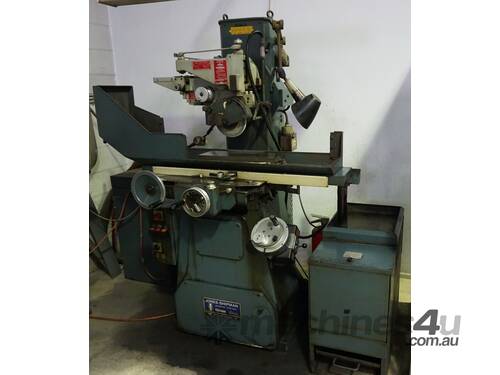

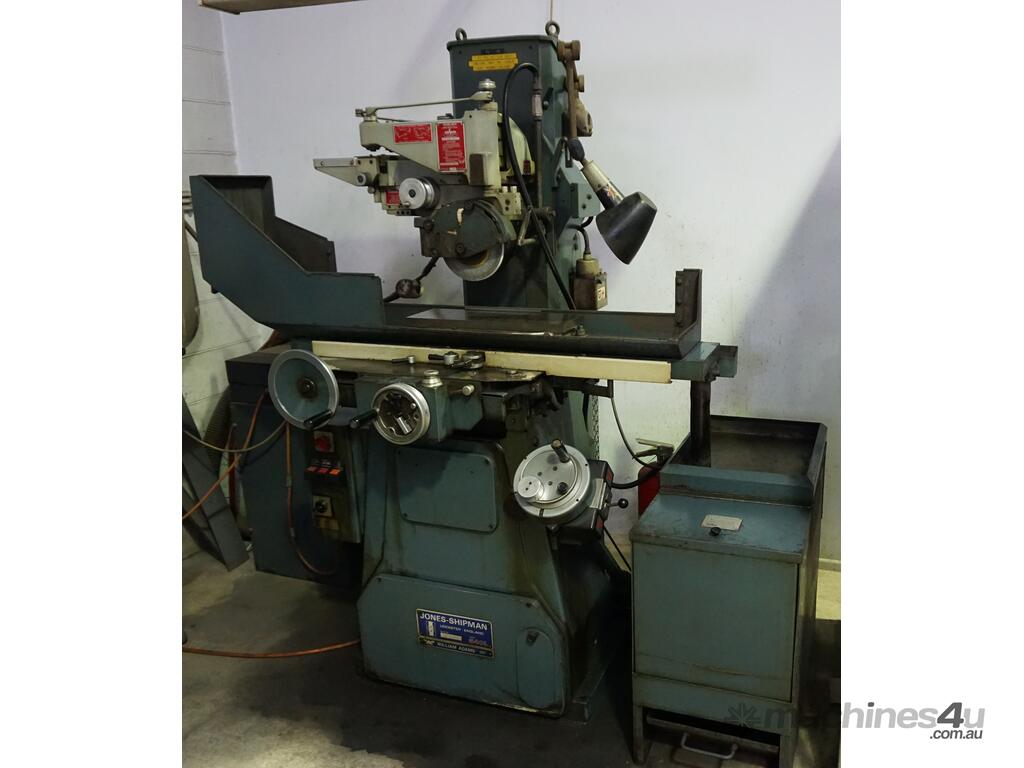

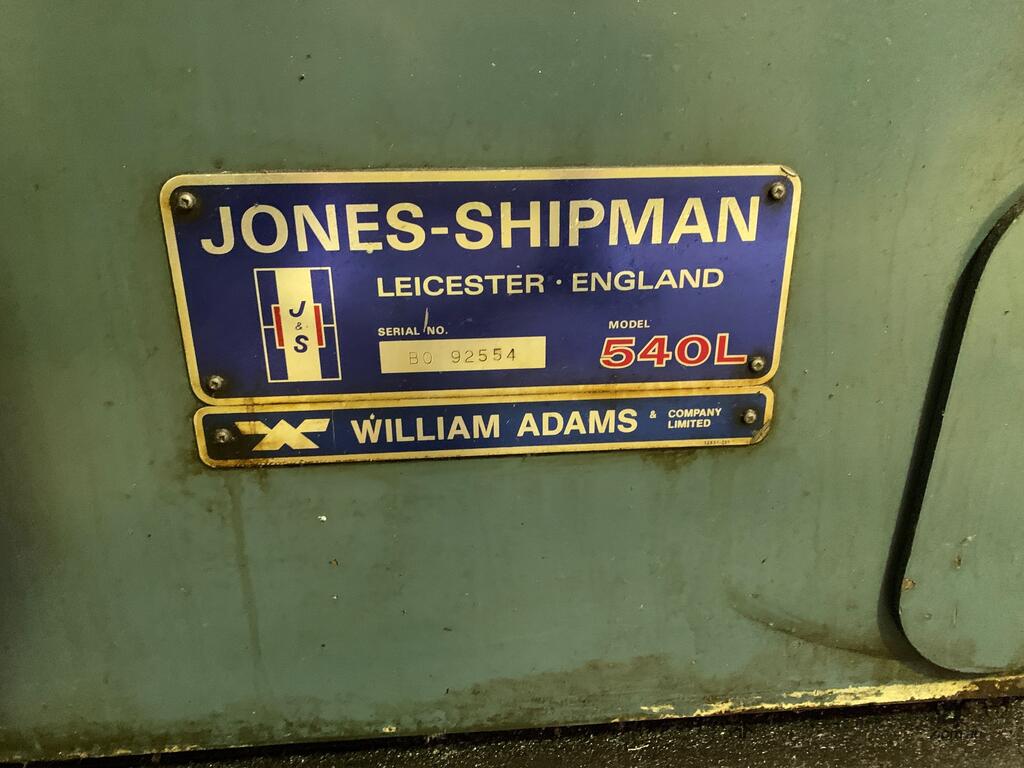

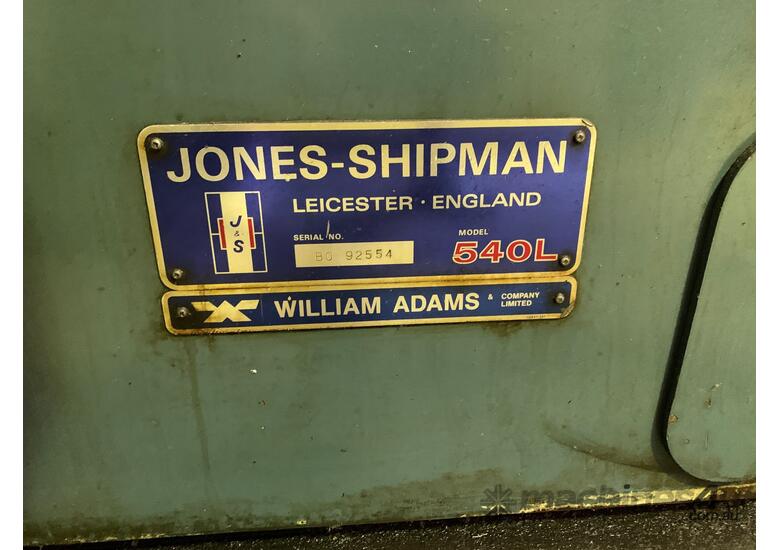

Jones & Shipman 540L Hydraulic Surface Grinder with Magnetic Chuck

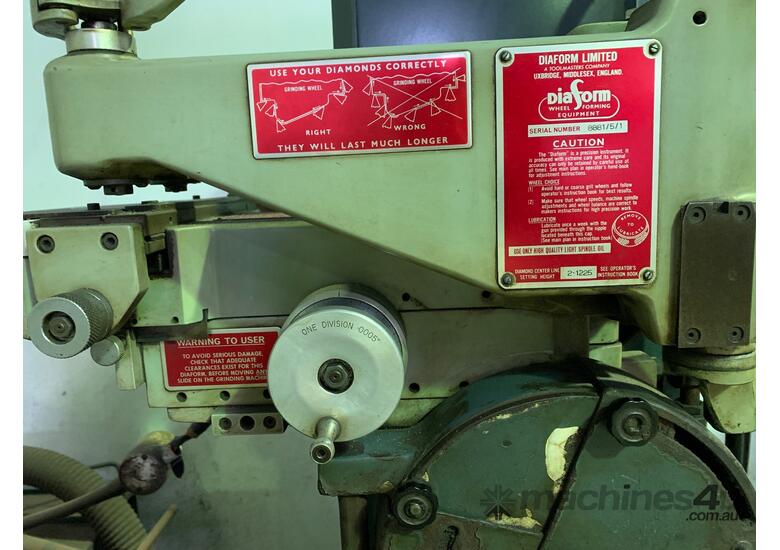

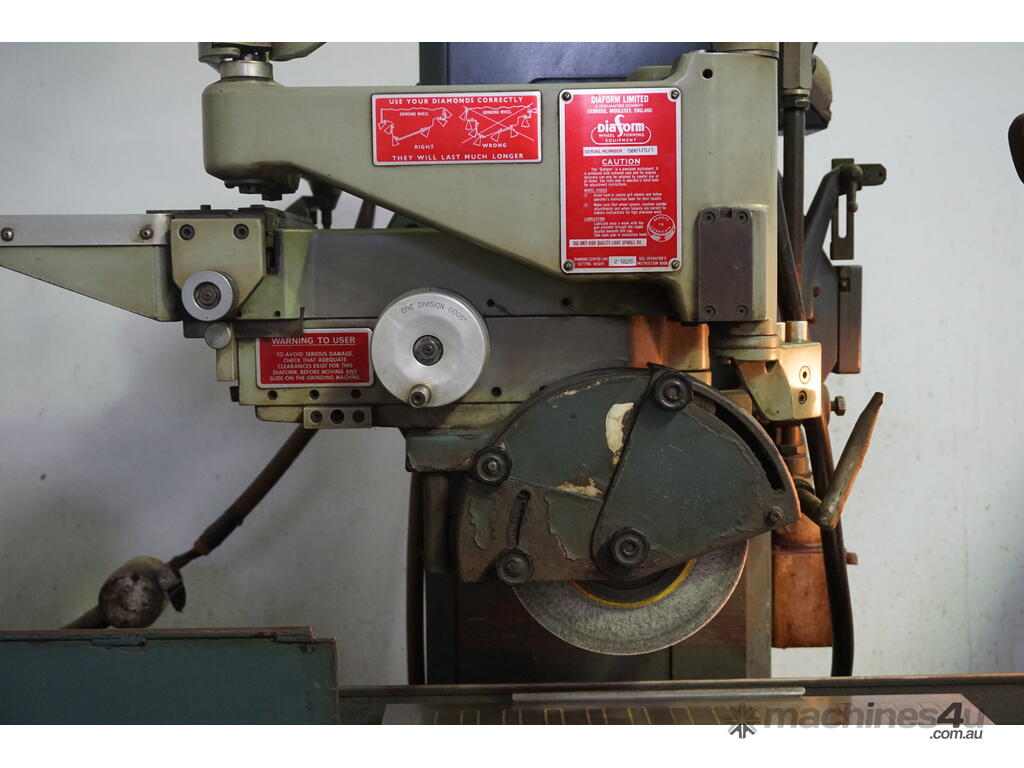

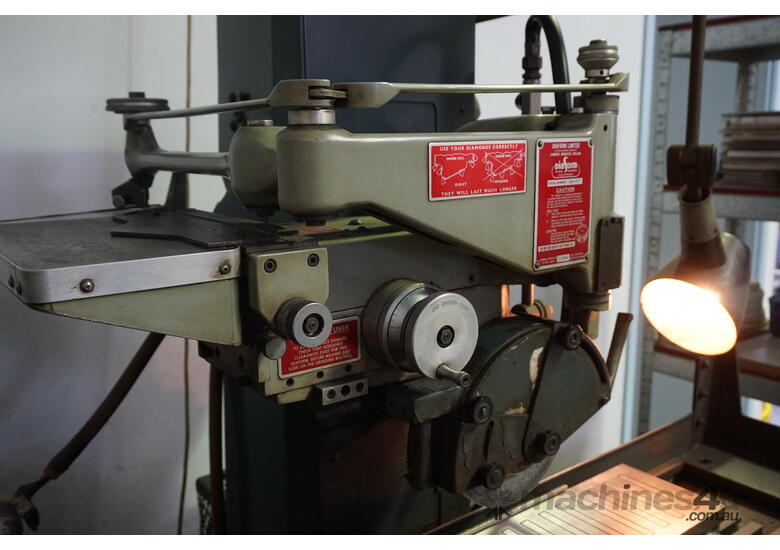

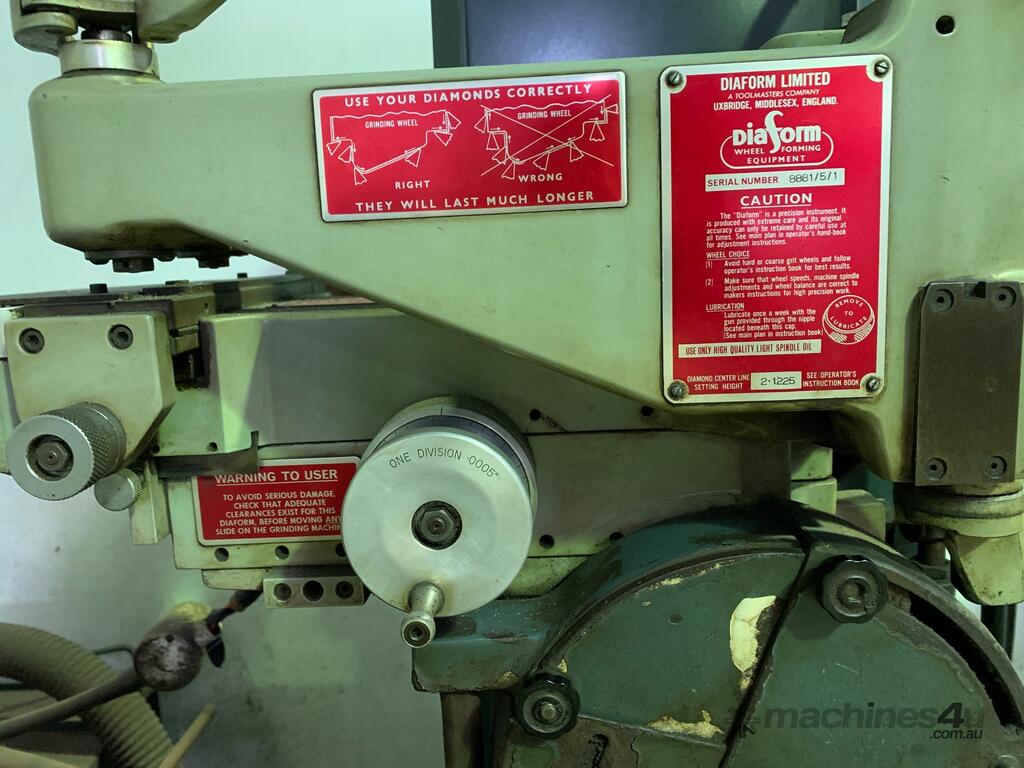

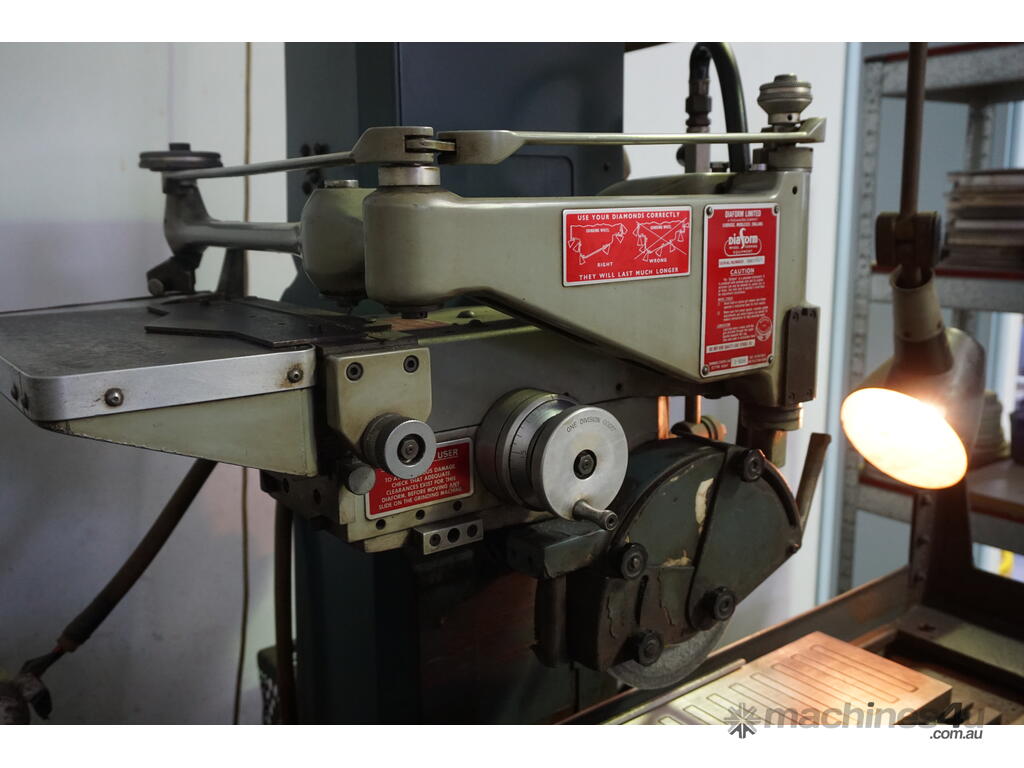

Dia-Form Wheel Forming attachment Diamond Pantograph for precision Form Grinding.

Graduations vertical 0.001mm
Graduations Cross 0.002mm

In excellent condition, ensuring it can meet exacting grinding requirements.
This machine’s robust construction makes it a valuable addition to any precision machining workshop.

Table size 457 x 153mm
Longitudinal travel of table 483mm
Total cross traverse of table 168mm
Traverse speed range per min 1.5 – 18m
Table traverse per revolution of handwheel 60mm
Grinding wheel size (standard) 180 x 13 x 31mm. 75mm bore
Grinding wheel size (max) 180 x 25 x 31mm. 75mm bore
Speed of grinding wheel 3000rpm

Wheel-head motor 1.5kW
Hydraulic pump motor 0.55kW
Hydraulic tank capacity 15.5 litres
Manual rise & fall to Wheel-head

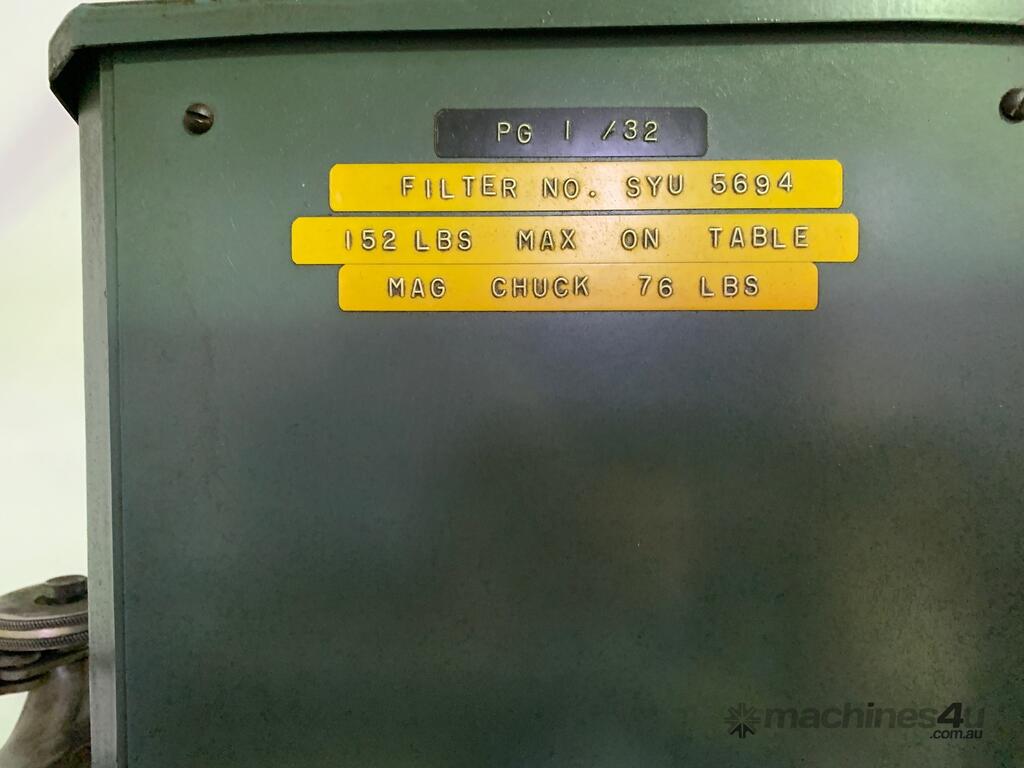

Machine fitted with 355mm x 152mm Magnetic Chuck

Coolant & Dust Extraction
Approximate weight 915 kg

Accessories:

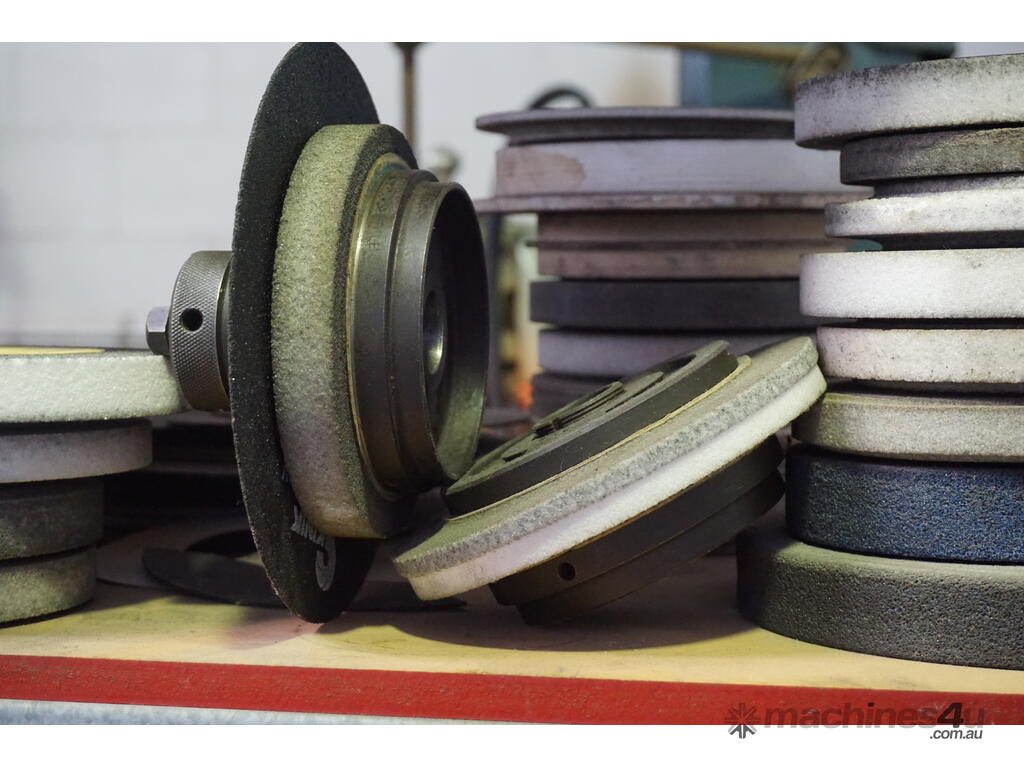

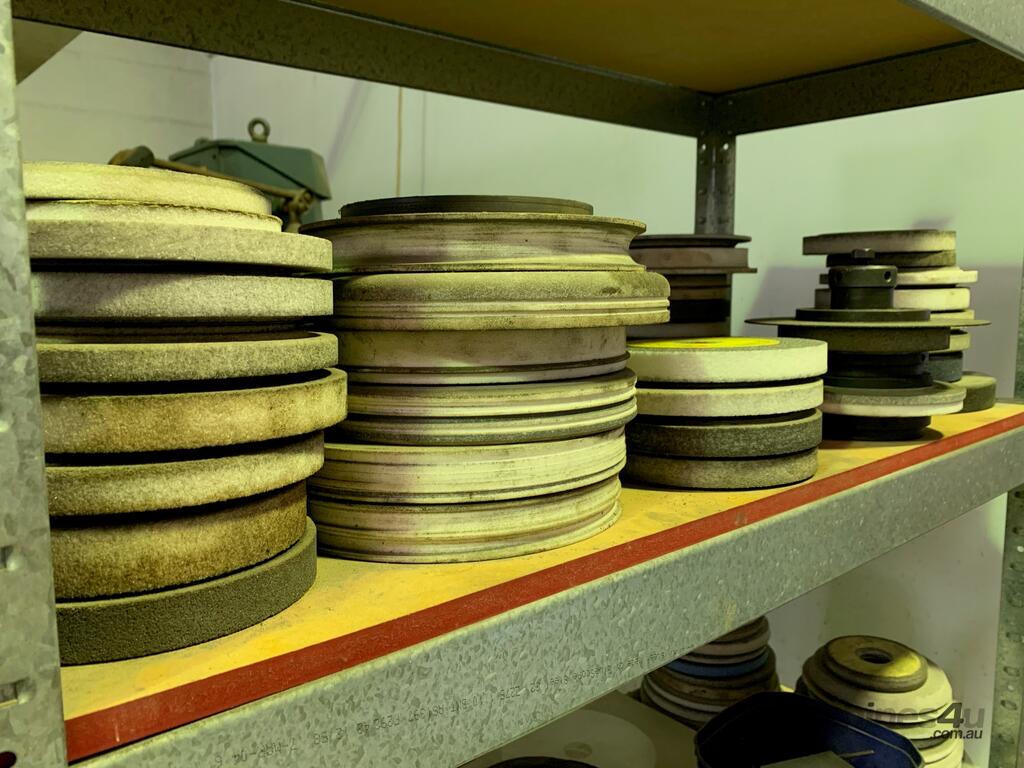

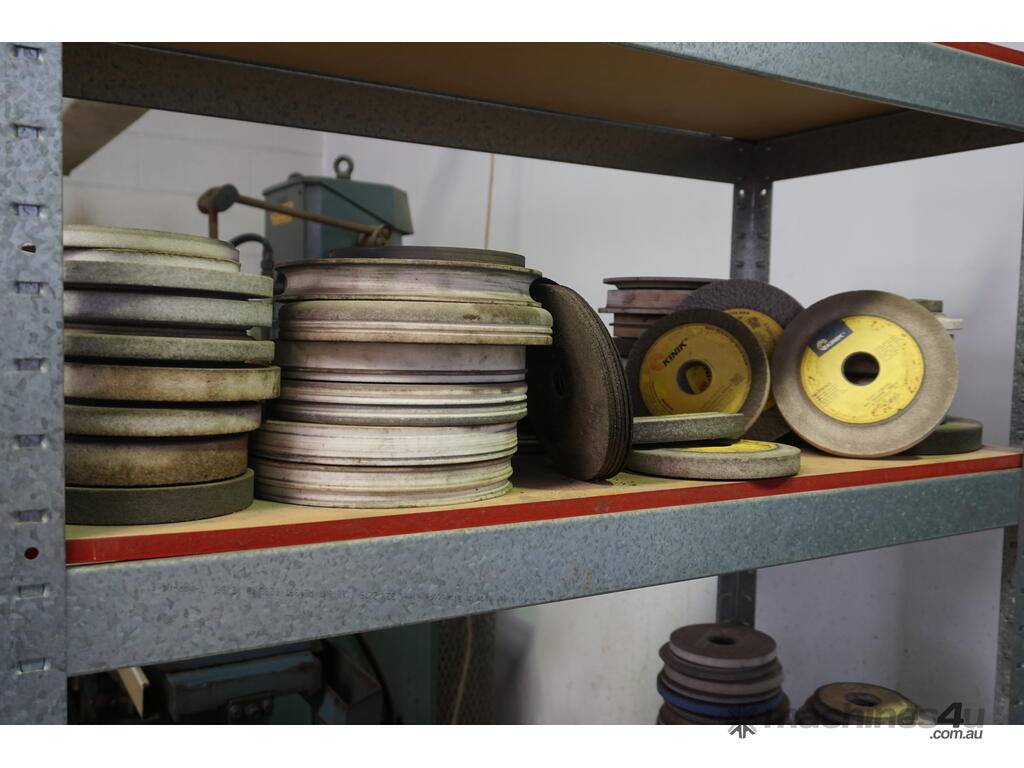

Grinding Wheels – Approx 50 Form Wheels (see photographs)

PRICE: $7,500.00 EX WORKS BRISBANE NO GST

A receipt will be issued, payment by bank deposit please.
Contact Gordon Wingate Toolmaker with any questions, and inspection of machine.
This item may be inspected by appointment at our premises in Brendale, Queensland, Australia.
Buyer to organise Freight and Insurance.
