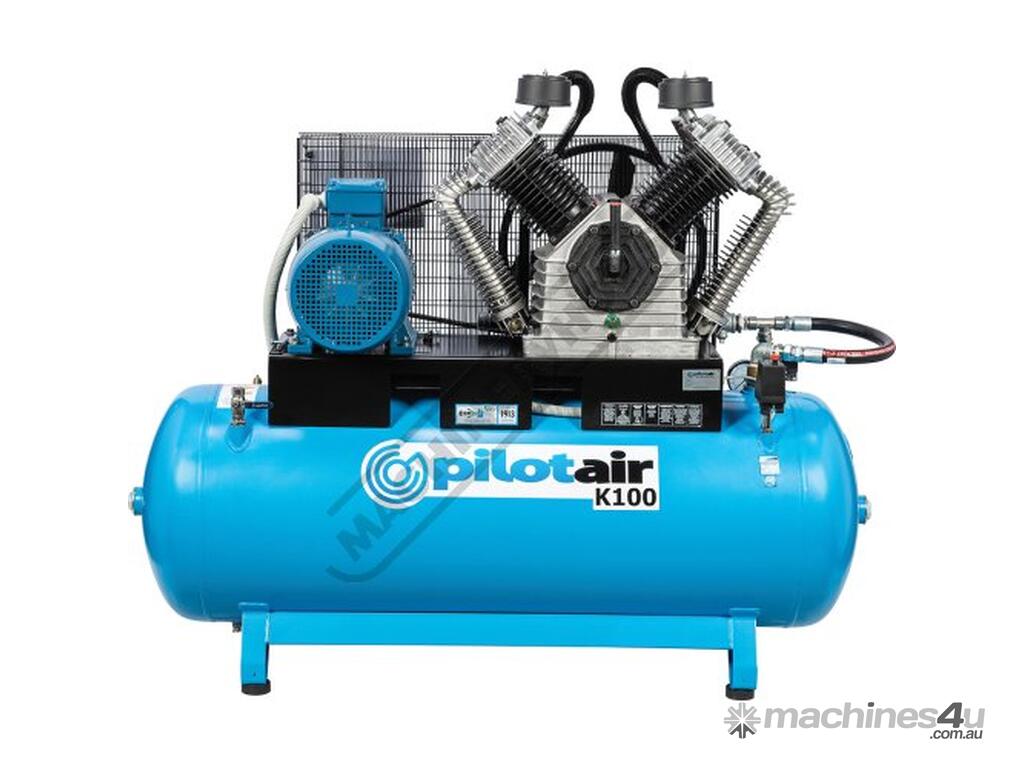

K100 Classic Industrial Series 3 Phase Reciprocating - Pilot Air Compressor 500 Litre / 20hp 81.6cfm

PILOT AIR COMPRESSORS K100 Classic Industrial Series 3 Phase Reciprocating - Pilot Air Compressor 500 Litre / 20hp 81.6cfm / 2311.4lpm Piston Displacement
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C535

Part of the Three Phase series, the K100 Classic Industrial Series 3 Phase Reciprocating air compressor is Australian built with Pilot Air’s seal of quality. Ideal for workshops and factories, it features an energy efficient MEPS approved electric motor to minimise energy costs.

The K100 Classic Industrial Series 3 Phase Reciprocating air compressor is built with high performance and heavy-duty componentry, twin cast iron cylinder and Italian made pump to ensure reliability and longevity. Suitable for workplace use with an air receiver to AS1210, these systems come with a five-year compressor pump warranty. Custom built compressors available to meet your exact requirements.

The K series pump features include:
Low vibration
Low speed
From 2 to 20 HP
Max 11 BAR
500L receiver
1913L/min free air delivery
15kW motor

Features:
Two stage Italian made compressor pumps with after-cooler and intercooler for greater free air delivery and higher pressure
Cast iron cylinders and stainless steel valves give long life high efficiency & reliability
Supplied with high pressure high temp resistant hoses for durability
TEFC motors with auto stop/start control
Made to Australian Standard AS1210
Custom built compressors available on request
Performance Measured to AS4637
Technical data conforms to +/- 5%. Pilot Air reserves the right to modification without notice for design and technical improvements
Warranty: 5 Years on compressor pump 5 Years on build 1 Year on all other components
For over 40 years Pilot Air Compressors has been meeting the needs of industry. Ask us about your requirements


Specifications:
ORDER CODE: C535
MODEL: K100
Type: Horizontal
Piston Displacement (CFM / LPM): 81.6 / 2311.4
Free Air Delivery (CFM / LPM): 67.6 / 1913
Cylinders (Type): V4
Stages (No.): 2
Max. Pressure (PSI): 160
Max. Pressure (kPa): 1100
Tank Capacity (Litre): 500
Motor Power (kW / hp): 15 / 20
Voltage (V): 415
Nett Weight (kg): 480
