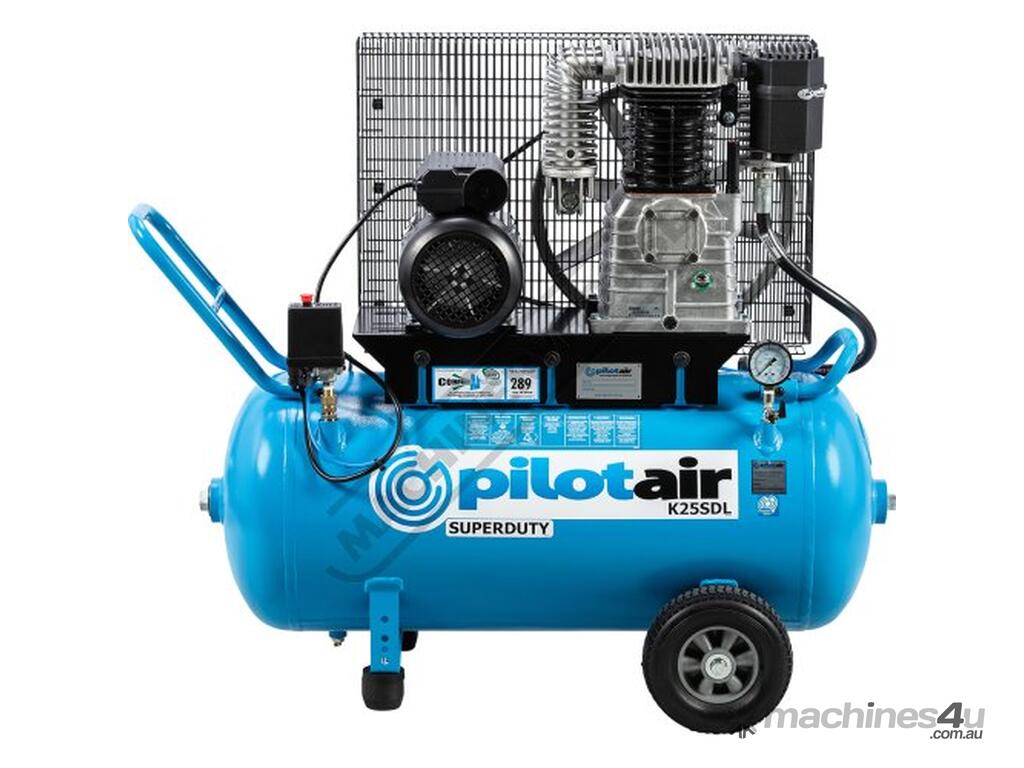

K25SDL Pilot Super Duty Air Compressor 100 Litre Tank / 3hp 13.1cfm / 371lpm Piston Displacement

PILOT AIR COMPRESSORS K25SDL Pilot Super Duty Air Compressor 100 Litre Tank / 3hp 13.1cfm / 371lpm Piston Displacement
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C511

Part of the Classic “K” series, the K25SDL Classic Industrial Series 240V Reciprocating air compressor is Australian built with Pilot Air’s seal of quality. Designed and built for heavy duty use, it features electric motor overload to help protect against motor damage and an oversized pump for extra efficiency and reliability.

The K25SDL Classic Industrial Series 240V Reciprocating air compressor is built with high performance and heavy-duty componentry, twin cast iron cylinder, and Italian made pump to ensure reliability and longevity. Suitable for workplace use with an air receiver to AS1210, this system comes with a five-year compressor pump warranty. Custom built compressors available to meet your exact requirements.

Features:
Australian designed and built
Industrial grade hammer-tone enamel finish
Oversize twin cylinder pump de-rated for ultra long life & reliability
Cast iron cylinder 2-stage pump
Electric motor overload

Performance measured to AS4637
Technical data conforms to +/- 5%. Pilot Air reserves the right to modification without notice for design and technical improvements.
Warranty: 5 Years on compressor pump 5 Years on build 1 Year on all other components.
For over 40 years Pilot Air Compressors has been meeting the needs of industry. Ask us about your requirements.


Specifications:
ORDER CODE: C511
MODEL: K25SDL
Drive Type: V-Belt
Piston Displacement (CFM / LPM): 13.1 / 371
Free Air Delivery (CFM / LPM): 10.2 / 289
Cylinders (Type): Twin
Max. Pressure (kPa): 1100
Max. Pressure (PSI): 160
Air Receiver Tank Size (Litre): 100
Motor Speed (rpm): 2800
Motor Power (kW / hp): 2.25 / 3
Voltage / Amperage (V / amp): 240 / 15
Nett Weight (kg): 100
