K30 Classic Industrial Series 3 Phase Reciprocating - Pilot Air Compressor & TFD-10 Refrigerated Air

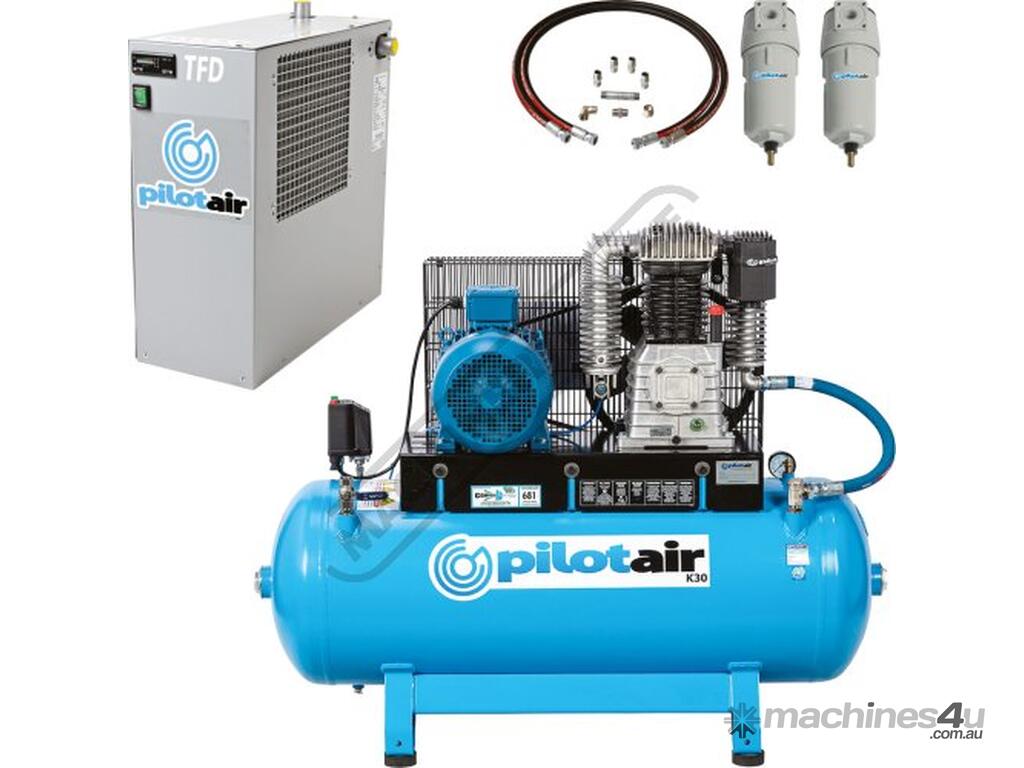

PILOT AIR COMPRESSORS K30 Classic Industrial Series 3 Phase Reciprocating - Pilot Air Compressor & TFD-10 Refrigerated Air Dryer Package Deal 200 Litre / 7.5hp 30.8cfm / 871.8lpm Piston Displacement
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K0201

Part of the Three Phase series, the K30 Classic Industrial Series 3 Phase Reciprocating air compressor is Australian built with Pilot Air’s seal of quality. Ideal for workshops and factories, it features an energy efficient MEPS approved electric motor to minimise energy costs.

The K30 Classic Industrial Series 3 Phase Reciprocating air compressor is built with high performance and heavy-duty componentry, twin cast iron cylinder and Italian made pump to ensure reliability and longevity. Suitable for workplace use with an air receiver to AS1210, these systems come with a five-year compressor pump warranty. Custom built compressors available to meet your exact requirements.

The K series pump features include:
Low vibration
Low speed
From 2 to 20 HP
Max 11 BAR
200L receiver
681L/min free air delivery
5.5kW motor

Features:

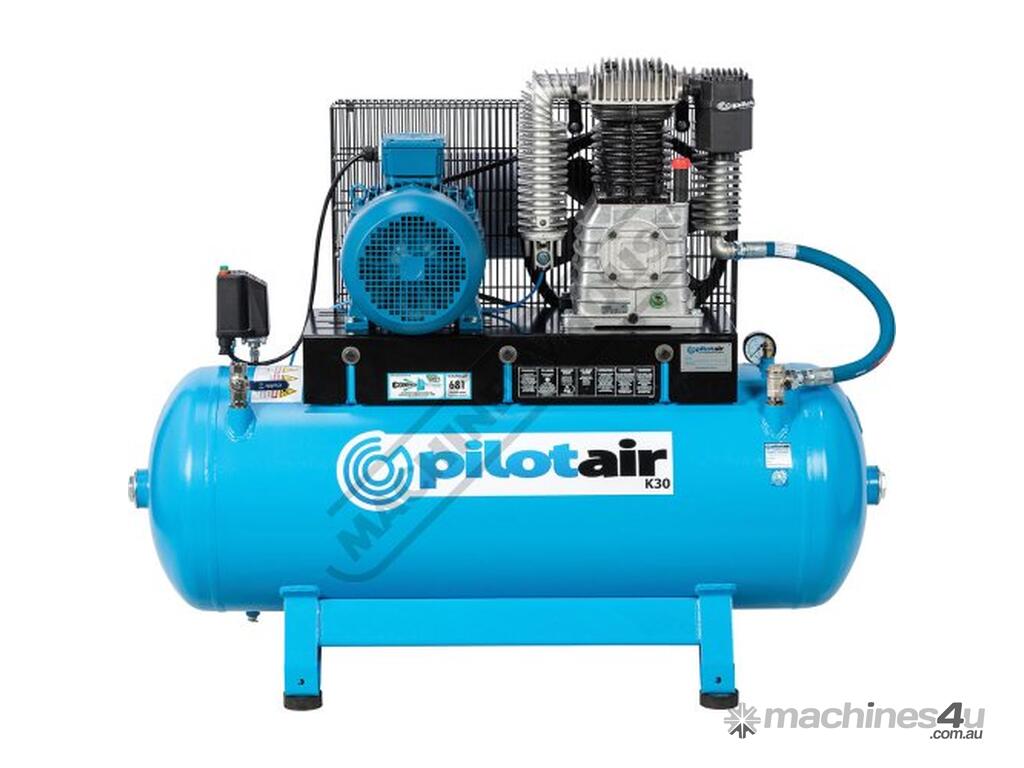

K30 - Industrial Air Compressor - (C525)
Two stage Italian made compressor pumps with after-cooler and intercooler for greater free air delivery and higher pressure
Cast iron cylinders and stainless steel valves give long life high efficiency & reliability
Supplied with high pressure high temp resistant hoses for durability
TEFC motors with auto stop/start control
Made to Australian Standard AS1210
Custom built compressors available on request
Performance Measured to AS4637
Technical data conforms to +/- 5%. Pilot Air reserves the right to modification without notice for design and technical improvements.
Warranty: 5 Years on compressor pump 5 Years on build 1 Year on all other components.
For over 40 years Pilot Air Compressors has been meeting the needs of industry. Ask us about your requirements.

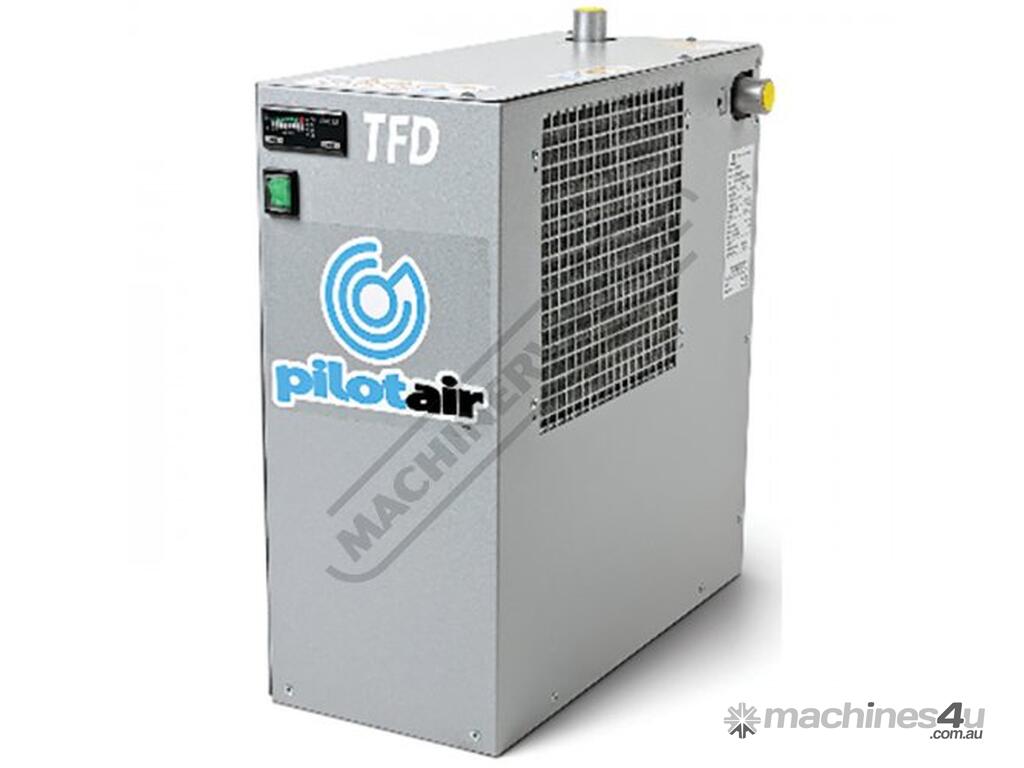

TFD-10 - Refrigerated Compressed Air Dryer - (C5451)
Flow Rate - L/min - cfm 990L/min - (35cfm)
Flow Rate - L/sec - 16.5 L/sec
The New TFD Series supersedes the ACT Dryer Series
Manufactured by the same supplier as the ACT Dryer
Price competitive –savings of up to 18.2% versus the ACT Dryer
Up to 30.9% higher flow rate versus the ACT Dryer
Upgraded Electronic Control Panel –DMC35
Operation of the dryer is monitored by a digital thermometer in the control panel
Upgrade available for alarm monitoring
Three new models added to the range making it easier for you to size the best option for the right application
Tested and Rated at 35oC
Full range of spare parts available
Warranty: 12 months on all new dryers

ALU-DRY MODULE:
The counter flows of compressed air in the air to air heat exchanger ensure maximum heat transfer.
Generous dimensions of the air to refrigerant heat exchanger plus the counter flow gas streams allow full and complete evaporation of the refrigerant (preventing liquid returning to the compressor).
The high efficiency condensate separator is located within the heat exchange module.
The large capacity separator is designed to operate even with high humidity levels in compressed inlet air.
The large cross section of flow channels within the heat exchanger module aids flow rates and leads to reduced power requirements.

PLEASE NOTE:
It is mandatory to install a dryer pre-filter with a grade of a least 3 microns before the dryer to prevent rust scale or other pollutants clogging the Alu-Dry module and the condensate drain. Failure to do so will void warranty on the dryer

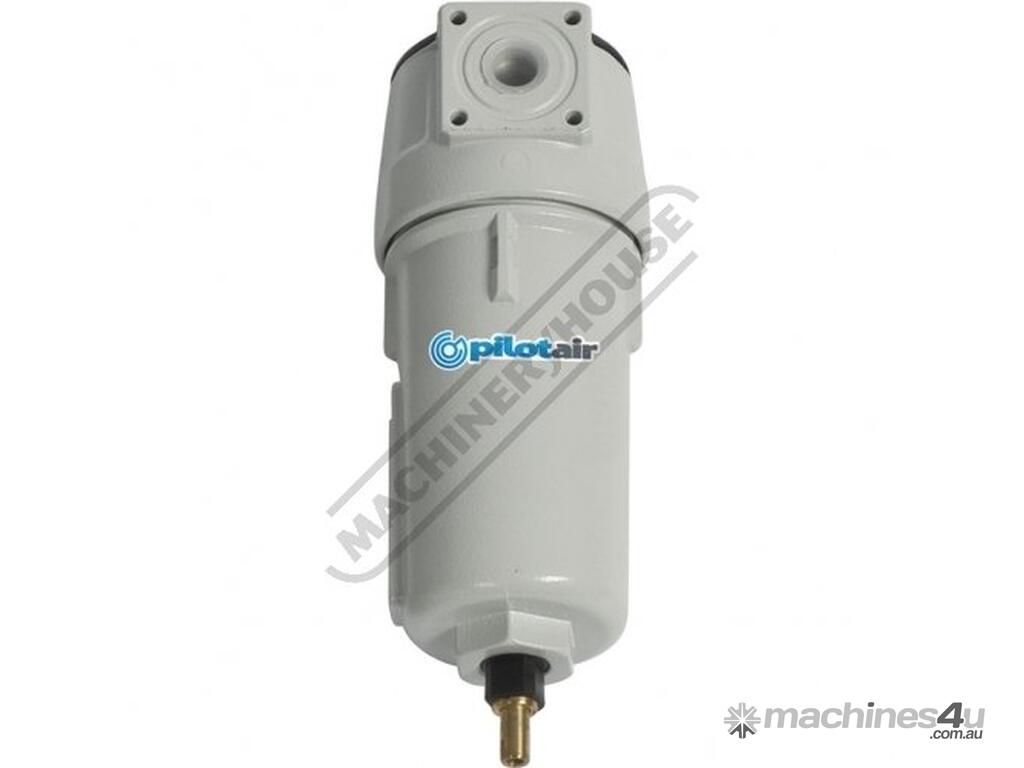

FTP012 - Refrigerated Air Dryer - Pre-Filter 3 Micron - (C546A)

FTS012 - Refrigerated Air Dryer - Post-Filter 1 Micron - (C546B)

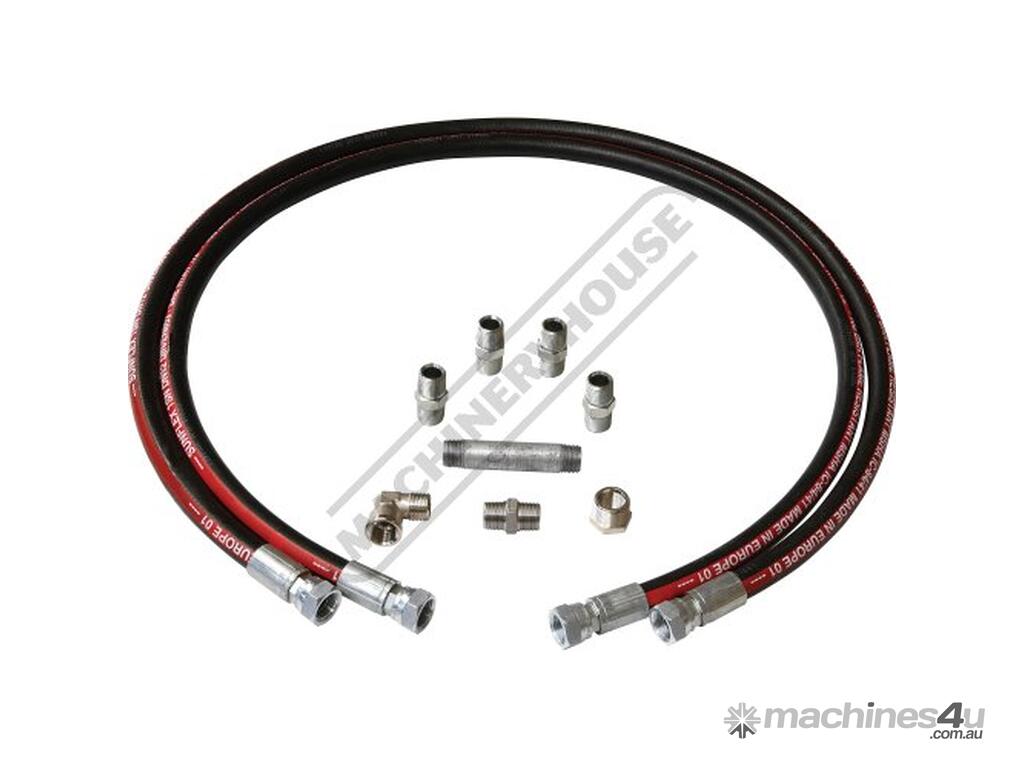

HH-12 - 2 x Connector Hoses With Fittings 1500mm Length (each) - (A218)


Specifications:
ORDER CODE: K0201
MODEL: K30 Package Deal
Type: Horizontal
Piston Displacement (CFM / LPM): 30.8 / 871.8
Free Air Delivery (CFM / LPM): 24.1 / 681
Cylinders (Type): 2
Stages (No.): 2
Max. Pressure (PSI): 160
Max. Pressure (kPa): 1100
Tank Capacity (Litre): 200
Motor Power (kW / hp): 5.5 / 7.5
Voltage (V): 415
Nett Weight (kg): 220
