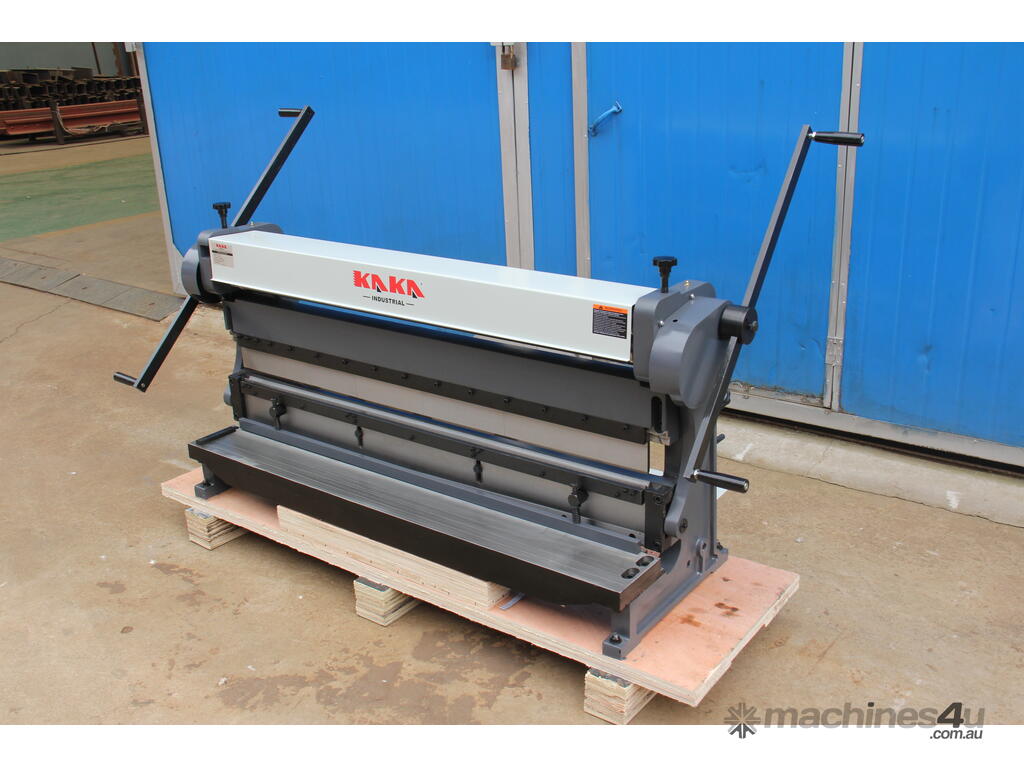

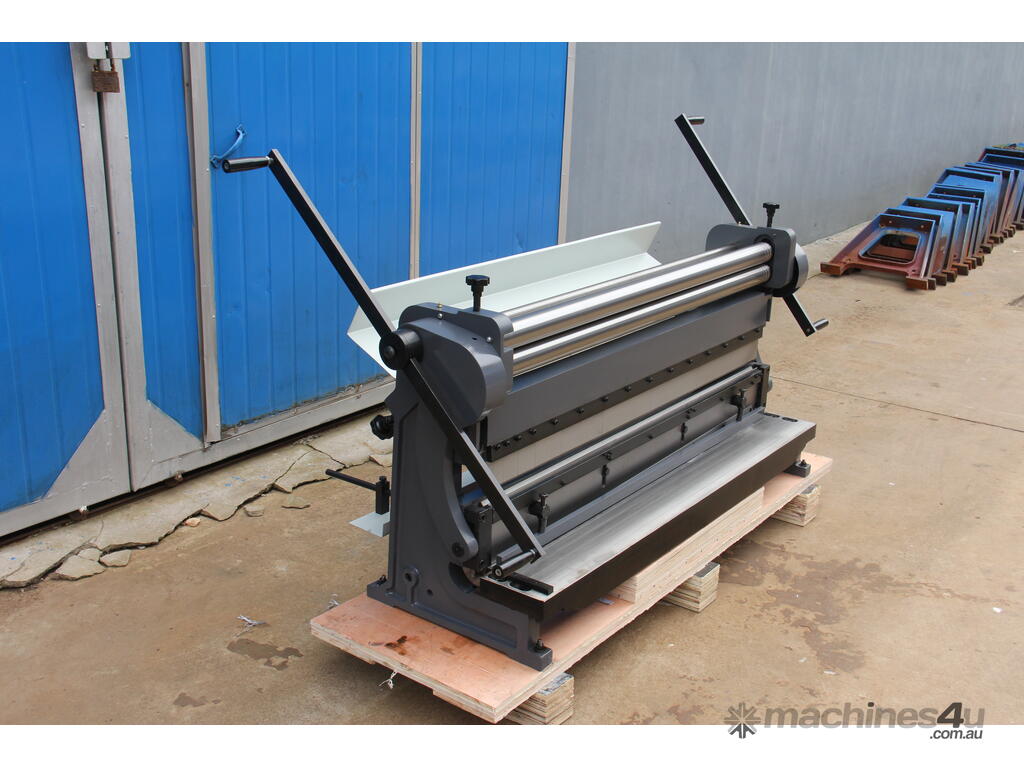

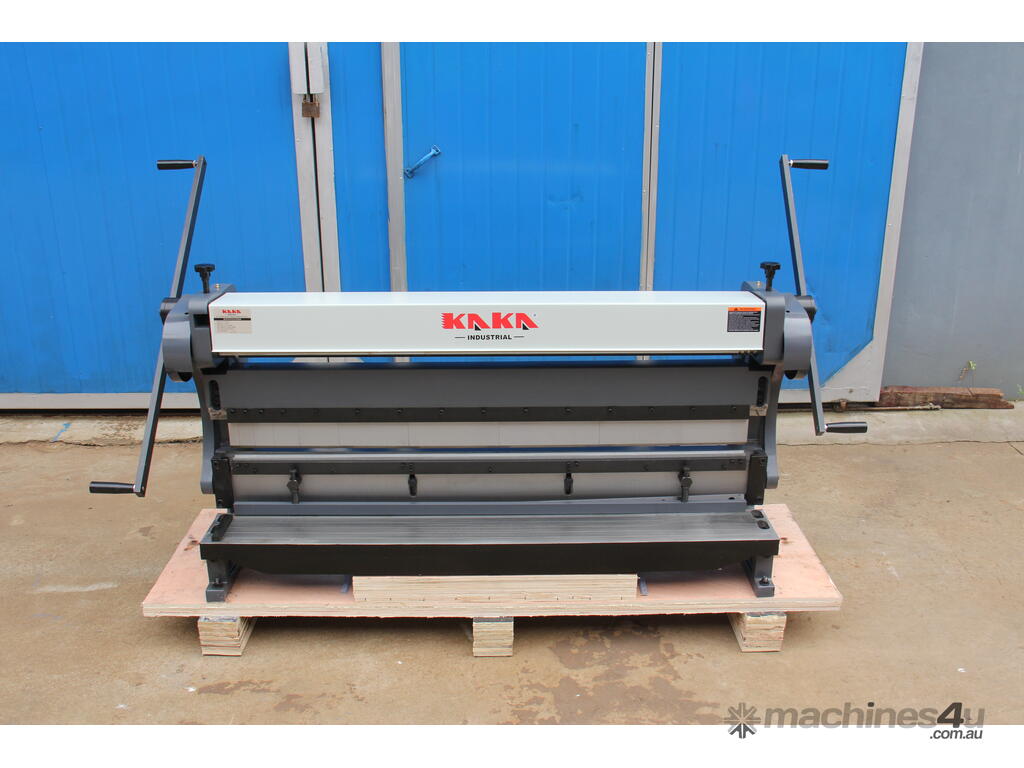

52"/ 1320mm width of roll, bend, and shear sheet.
16Ga/ 1.5mm thickness heavy-duty 3-IN-1 machines

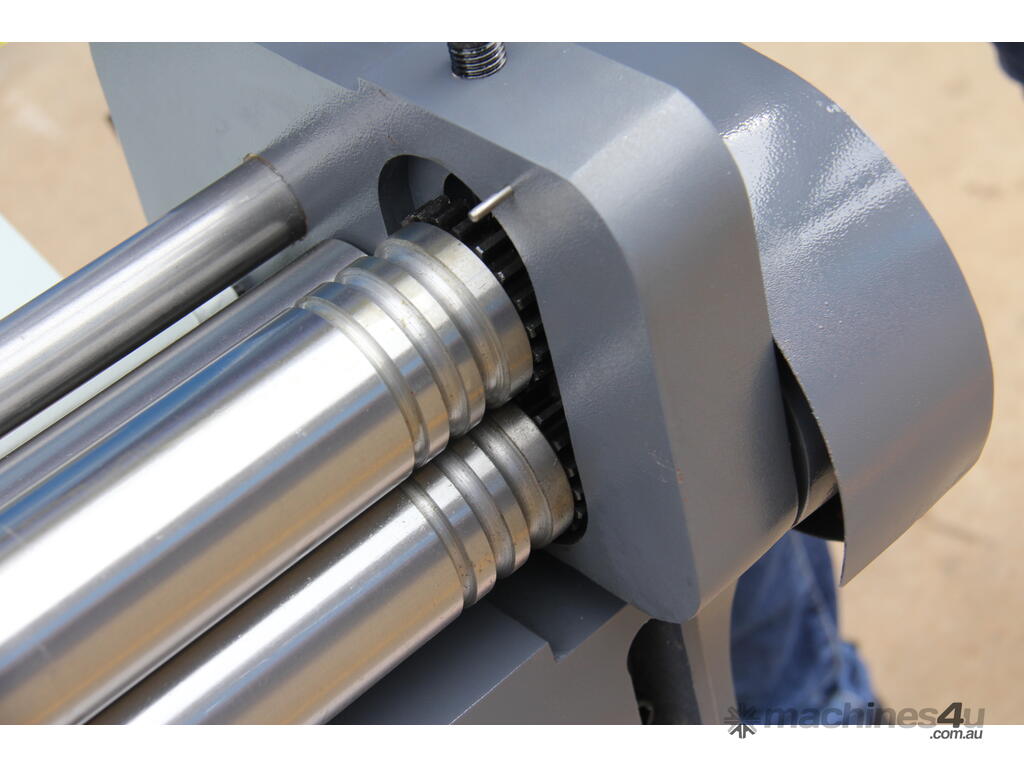

2.36" minimum rolling dia. and 3 grooves on the roll can form wire or round rod

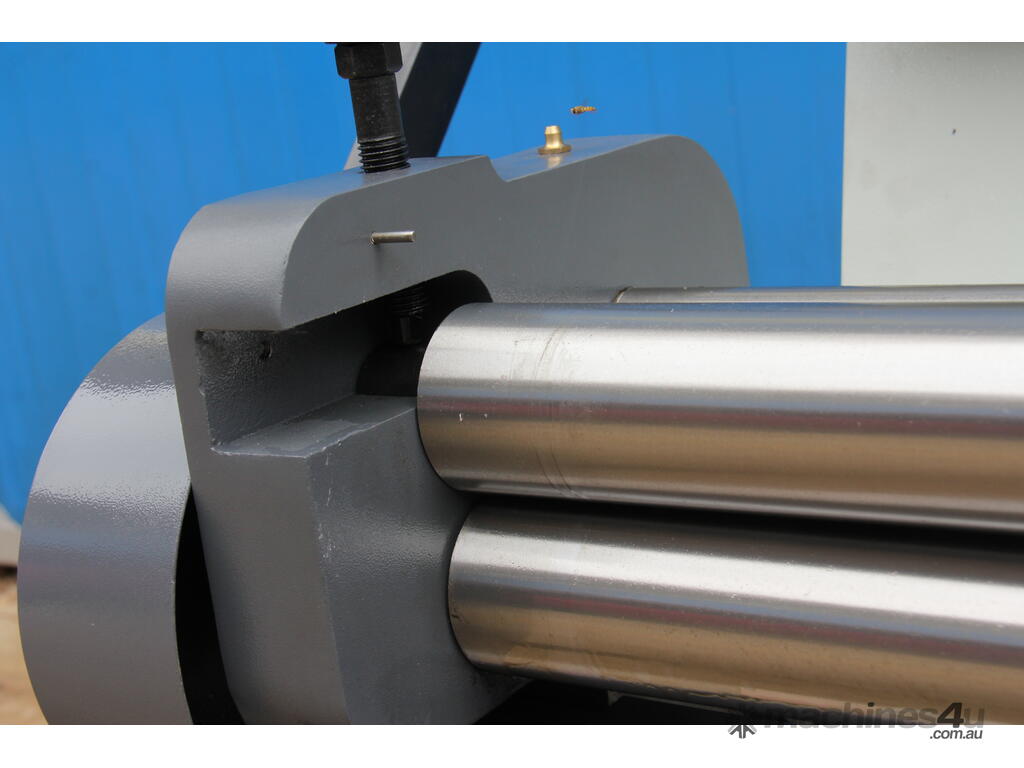

Top Roll swing out for easy take out the material

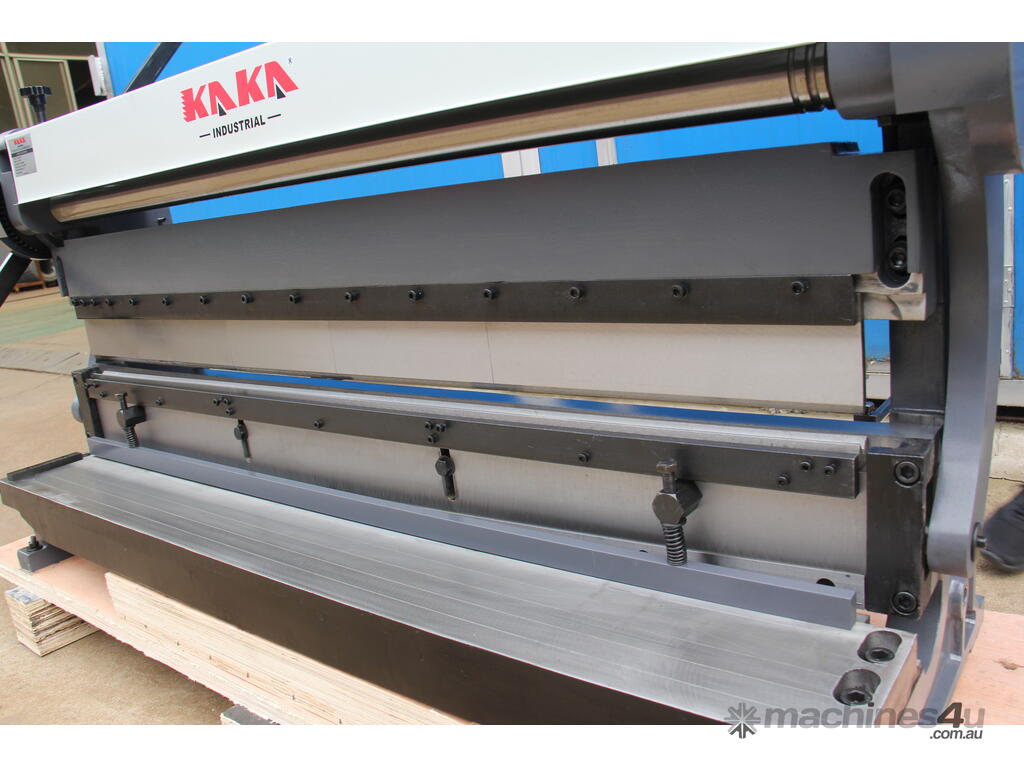

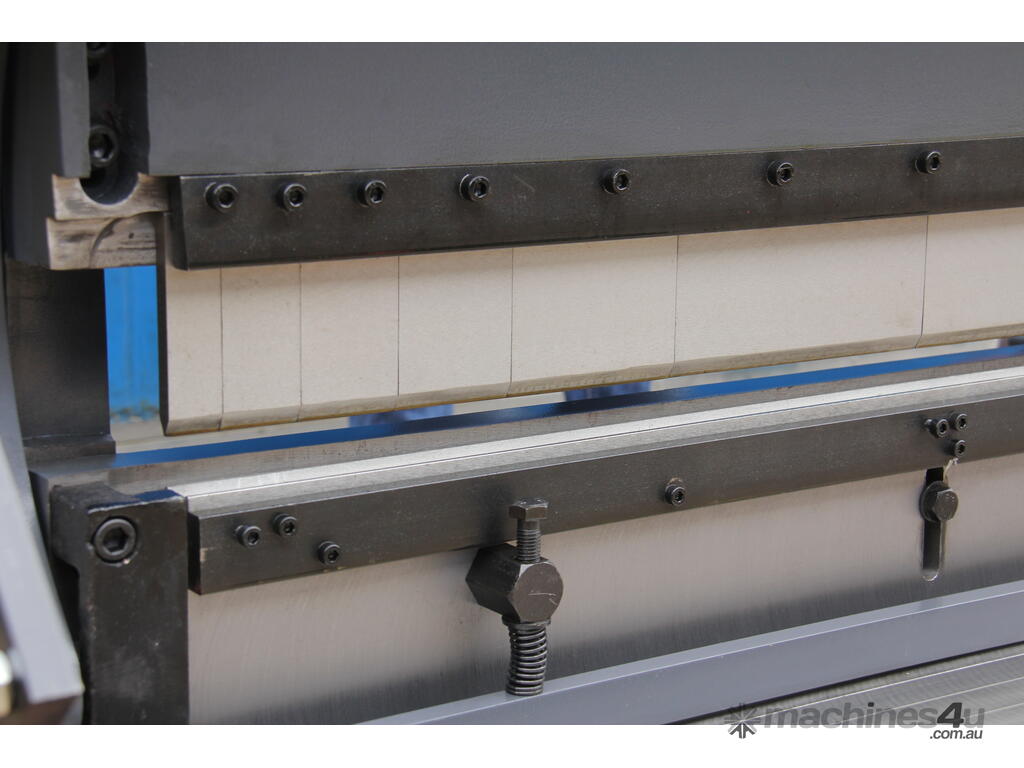

Bend sheet metal to 90°, with 9 pcs of segment bending finger for box and pan brake

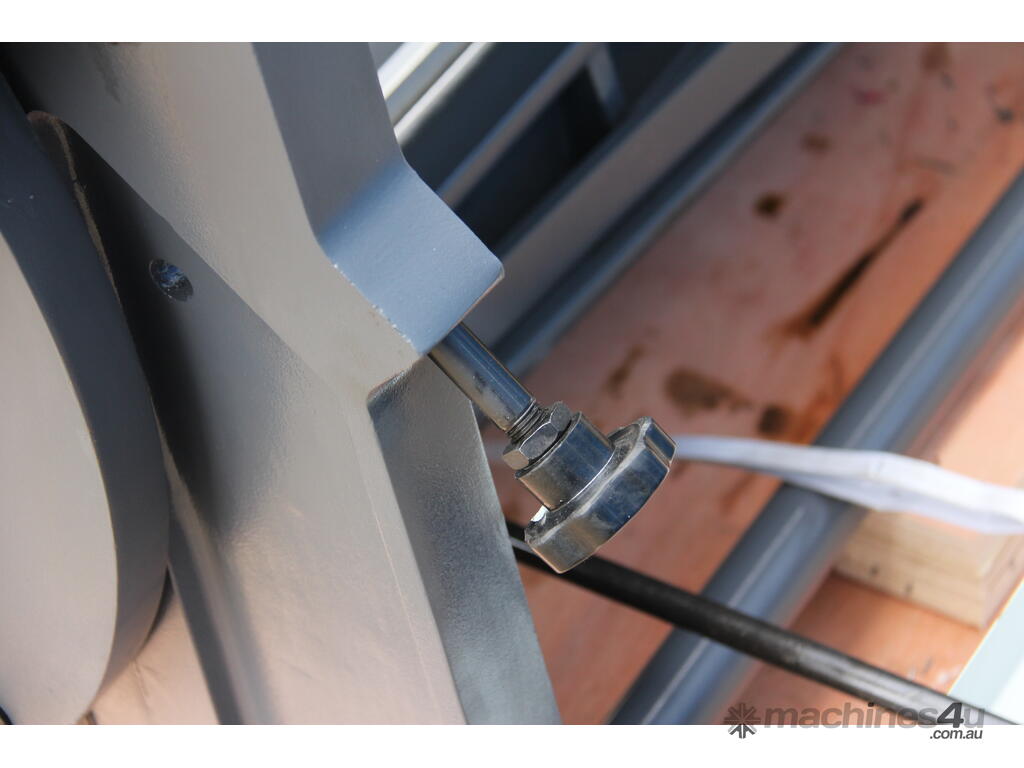

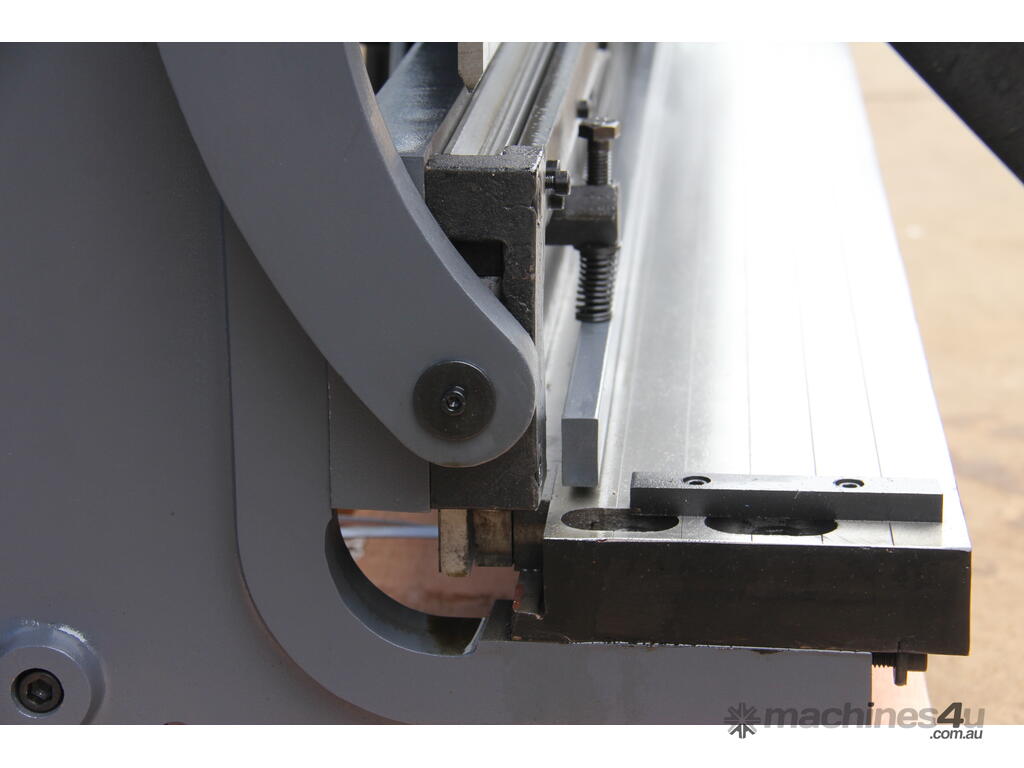

Blade gap could be adjustable to suit cutting different thickness sheet metal plate and hold down the device to keep the material from moving, improve the cut quality.
The Main specifications are as follows
SKU 171008
Model 3-IN-1/5216
Bed Width 52"/1320mm
Shearing thickness 16 Ga /1.5mm
Bending Thickness 16 Ga /1.5mm
Bending angle 90°
Rolling thickness 16 Ga /1.5mm
Min. Rolling dia. 2.36"/60mm
Packing size 181x59x94 cm
N.W./G.W. 471/531 kg
