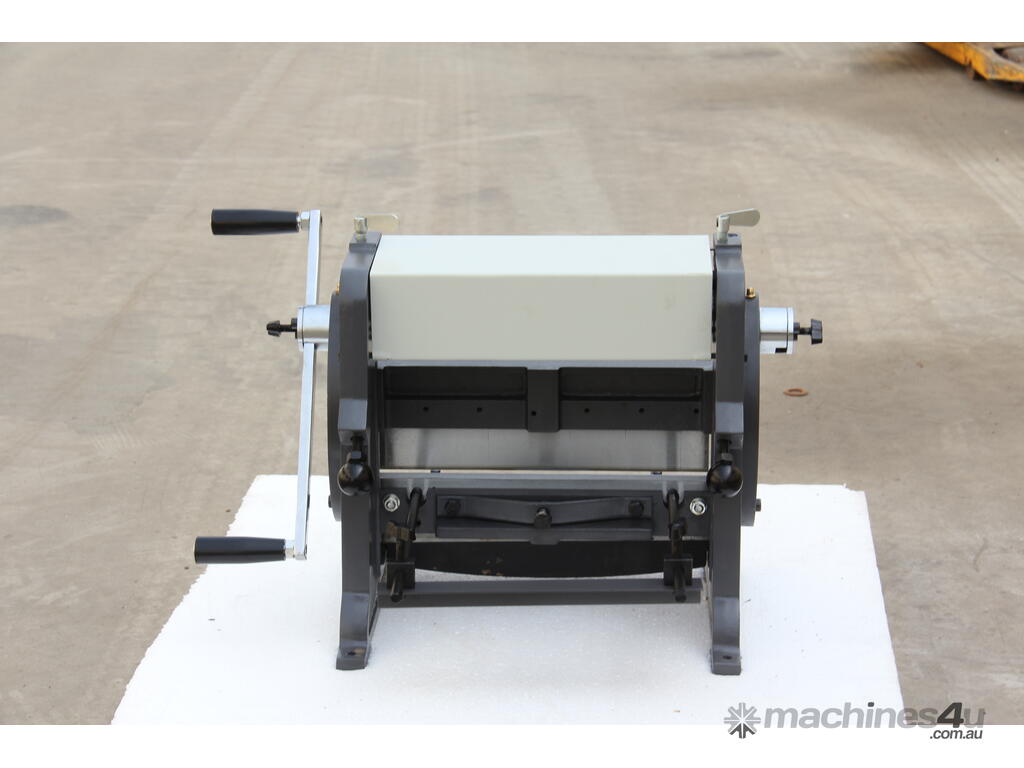

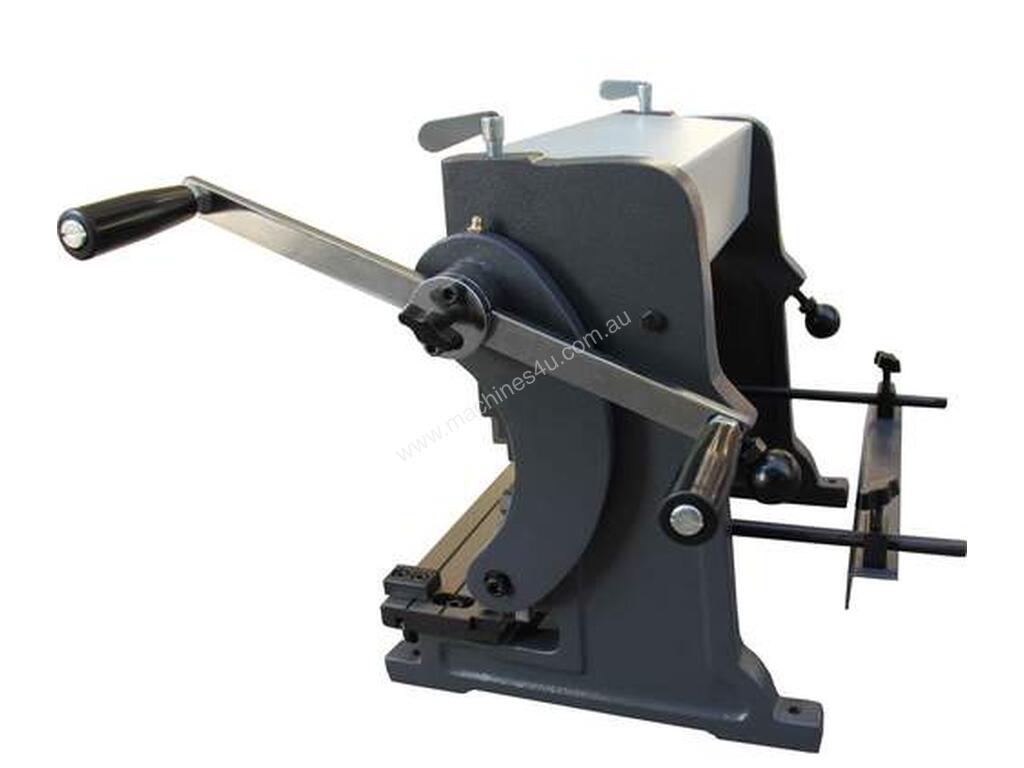

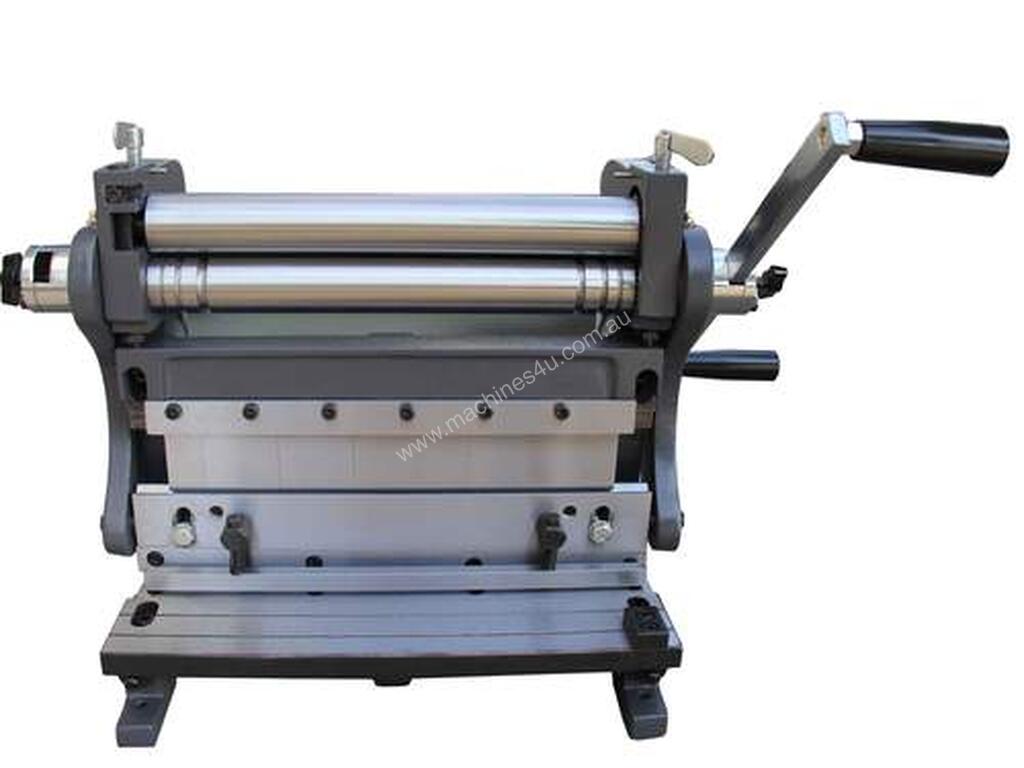

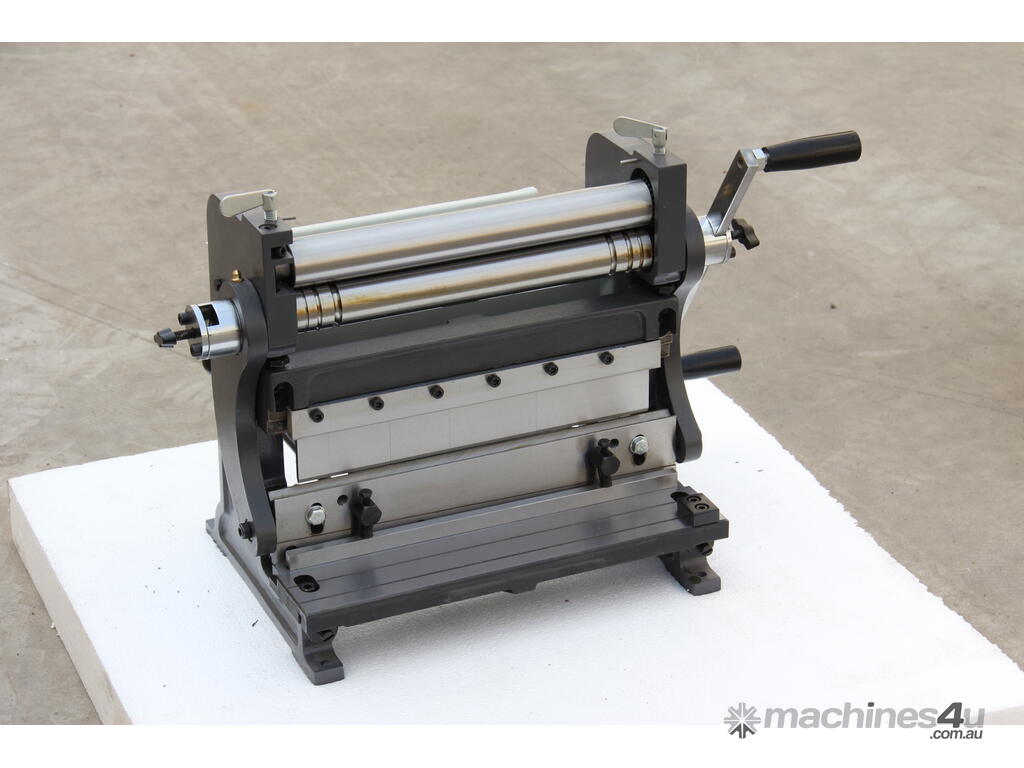

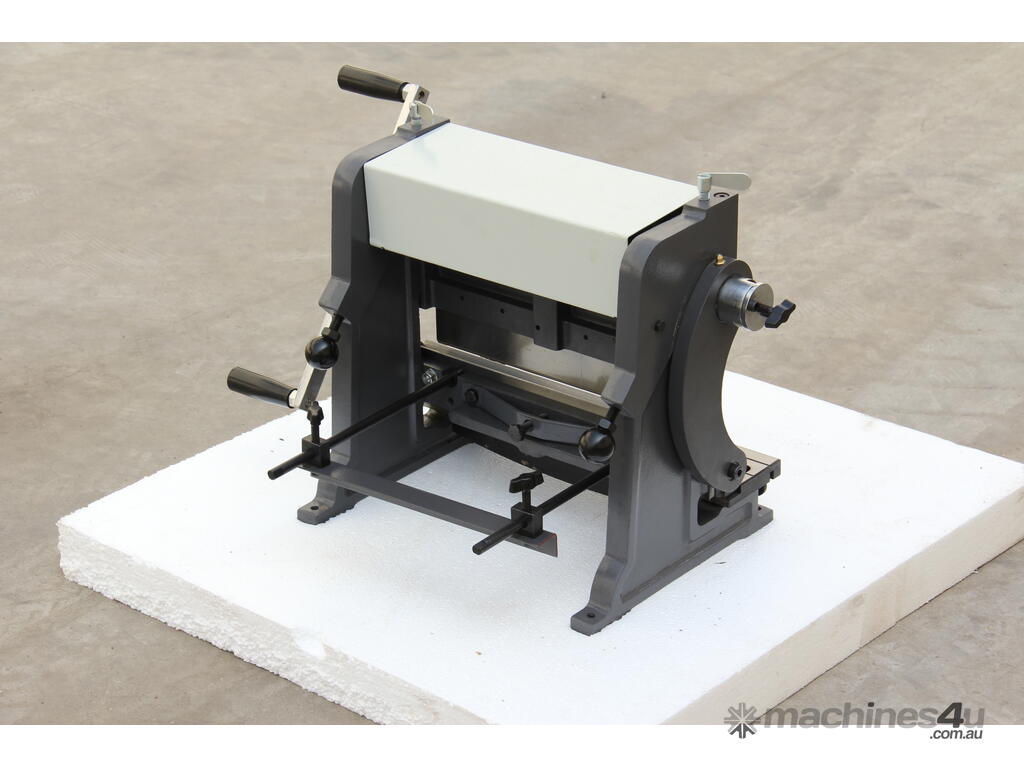

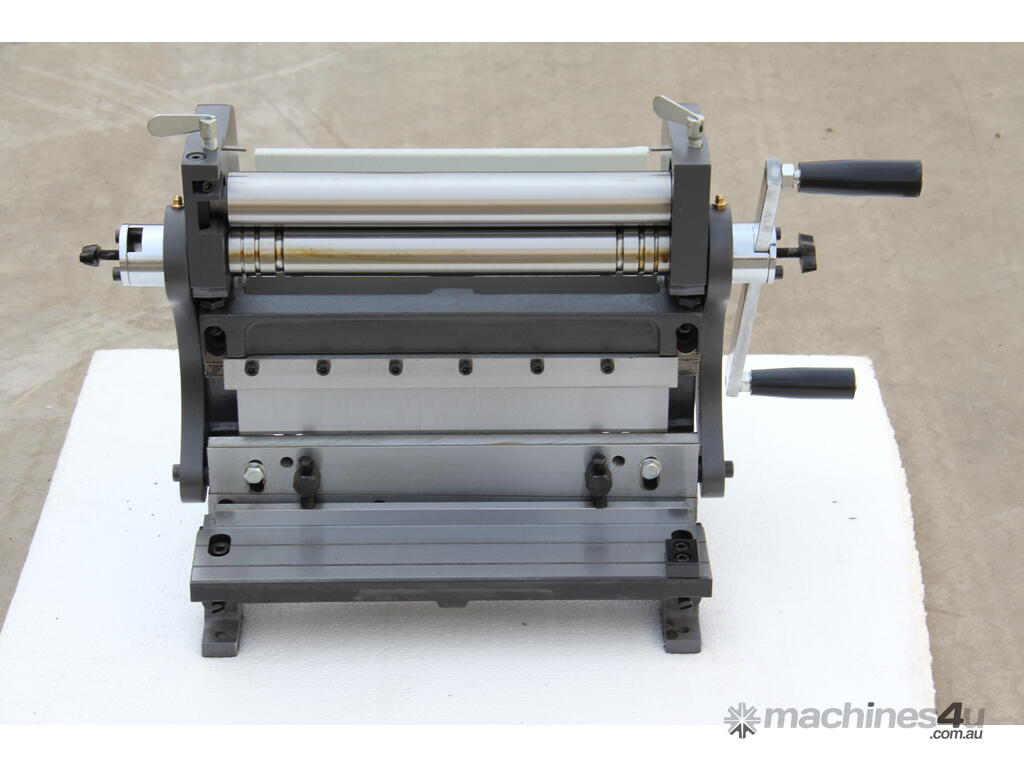

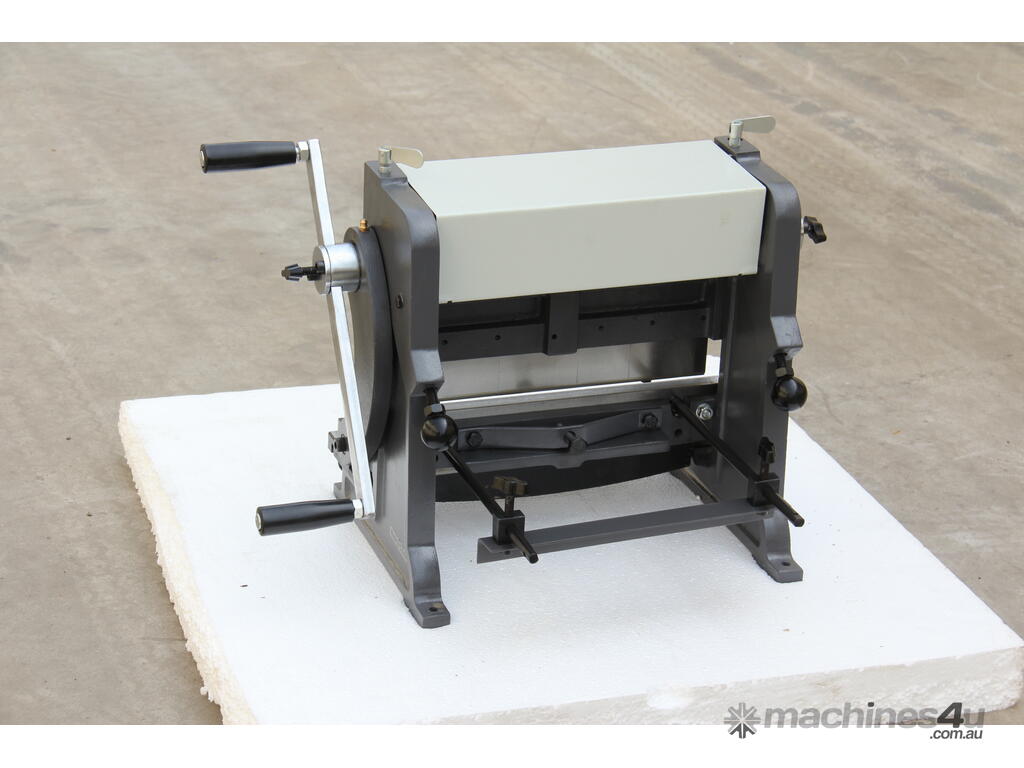

Kang Industrial 3-IN-1/12, Shear Brake Roll Machine
300x1 mm mild steel capacity, guillotine, press brake and slip roll
=
Handles material up to 305mm wide, for small jobs

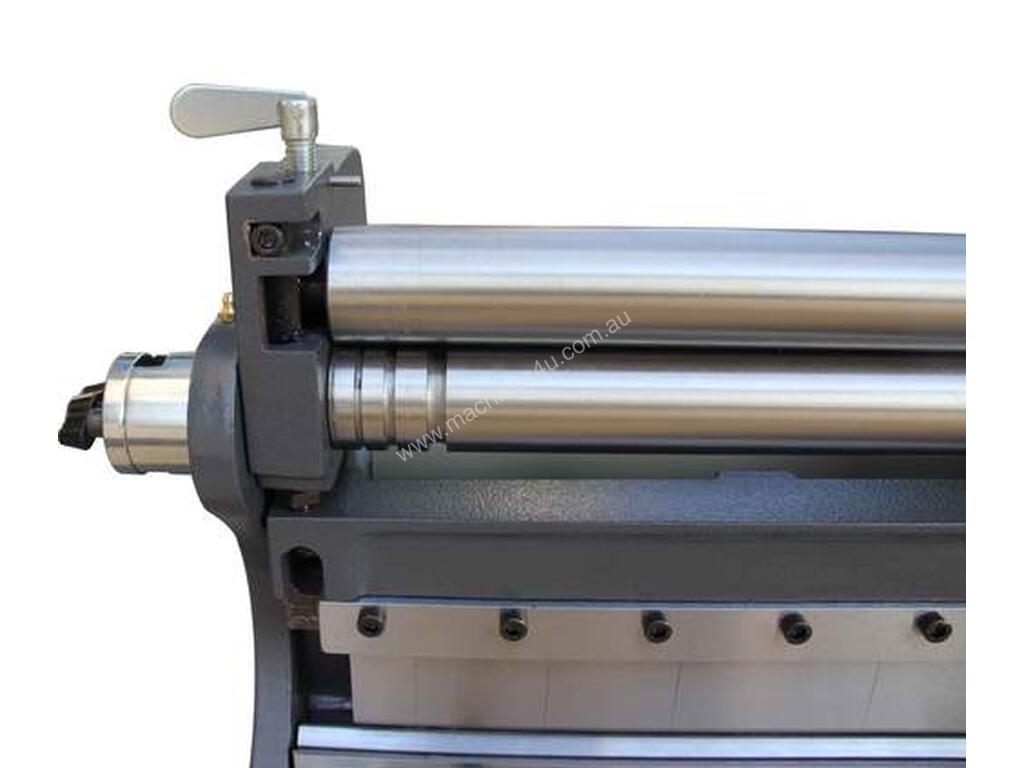

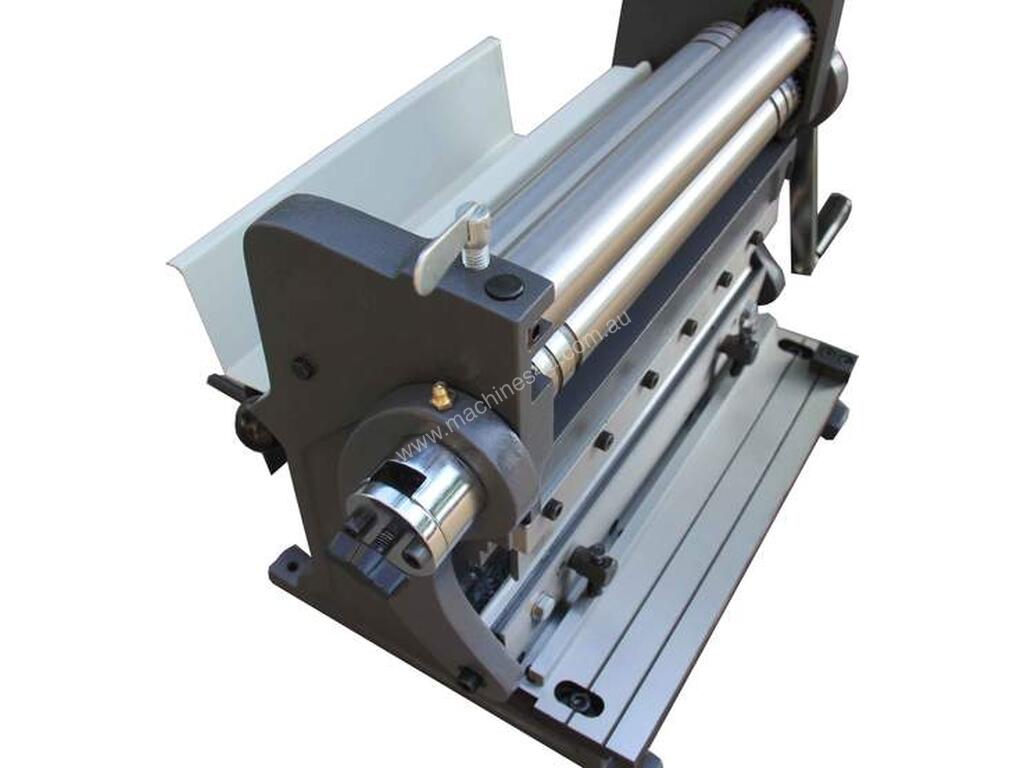

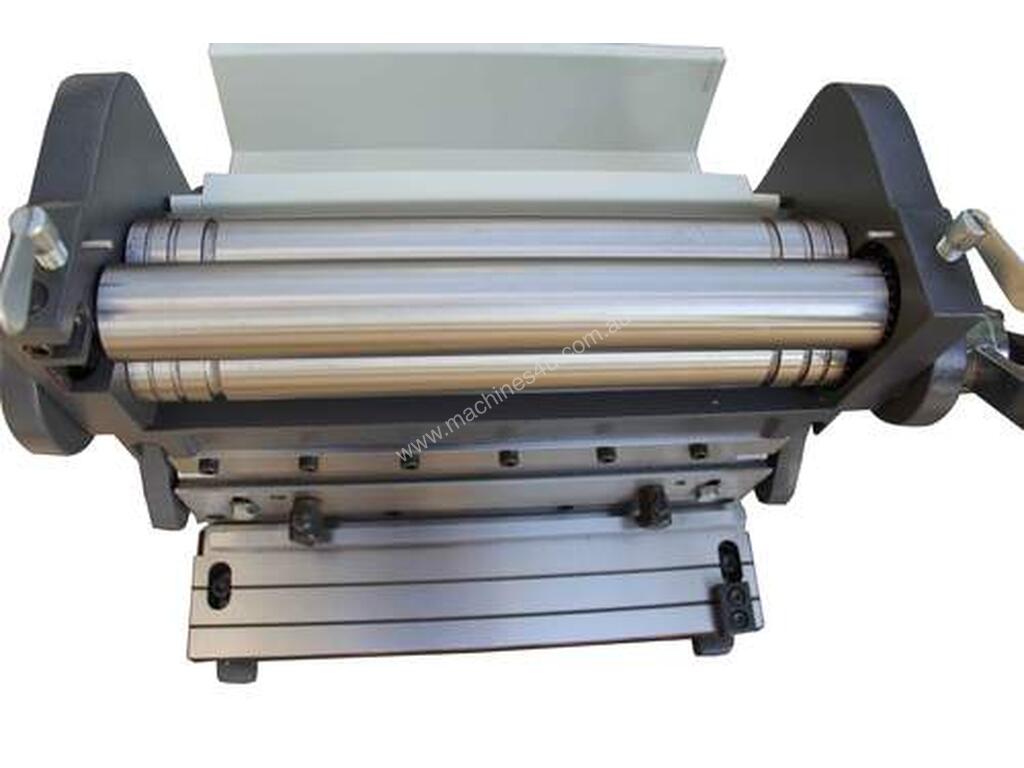

The slip roll portion on top has hardened and polished shafts for long life
Min. roll dia. of 39 mm
3 grooves in the roll let you form wire
Adjustable fingers on the top beam could make boxes varying size
Press brake portion in the middle, max. bend angle of 90°
Shear Station used hardened, reversible blades that stay sharp for a long time
Spring-loaded hold down will hold the material when cutting
Specifications
SKU 171001
Model 3-IN-1/12
Bed width 305 mm
Max. shearing thickness 1.0 mm
Max. bending thickness 1.0 mm
Max. bending angle 90°
Max. rolling thickness 1.0 mm
Min. rolling dia. 39 mm
Packing size 49x33x42 cm
N.W./G.W. 43/45 kg
