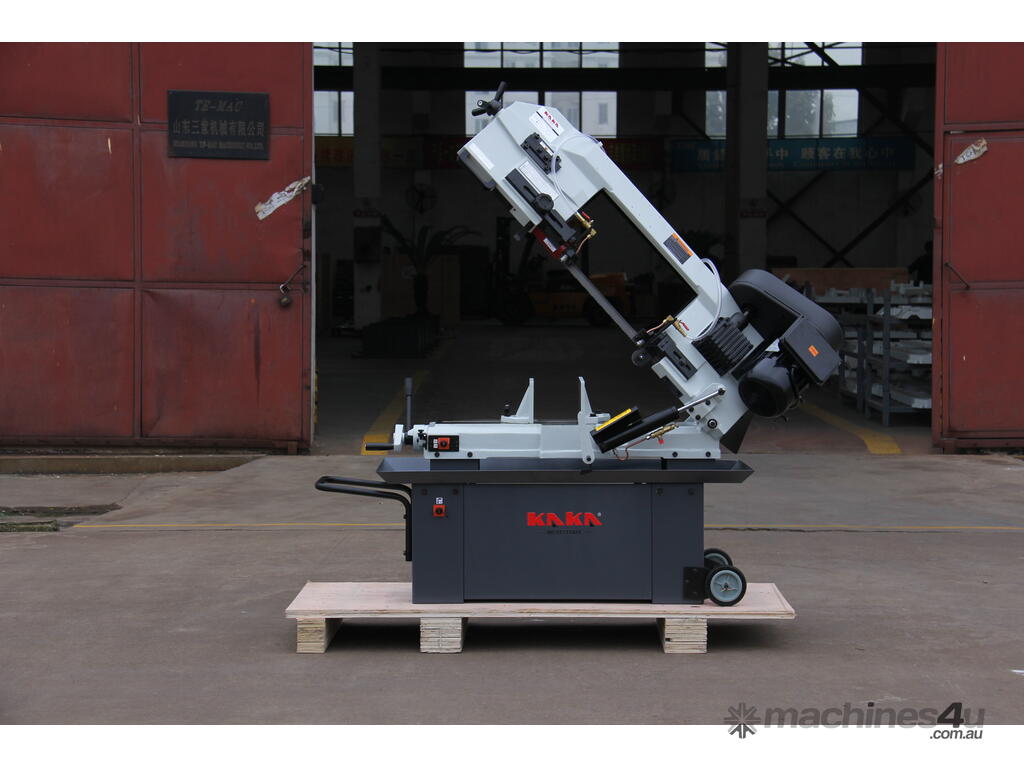

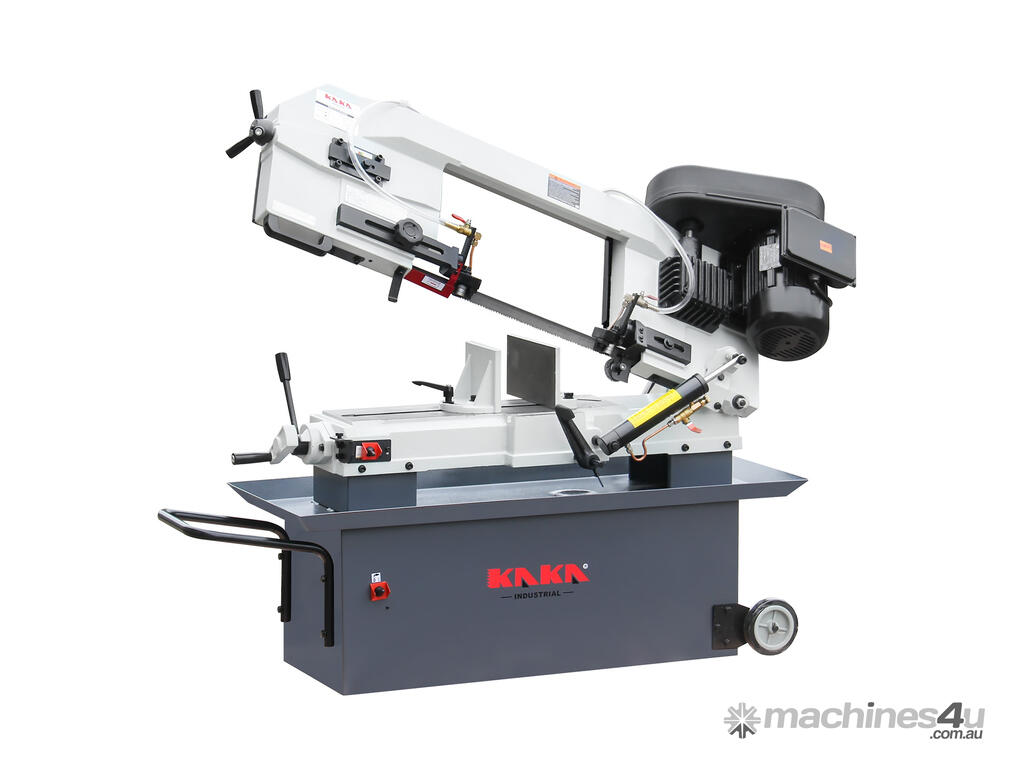

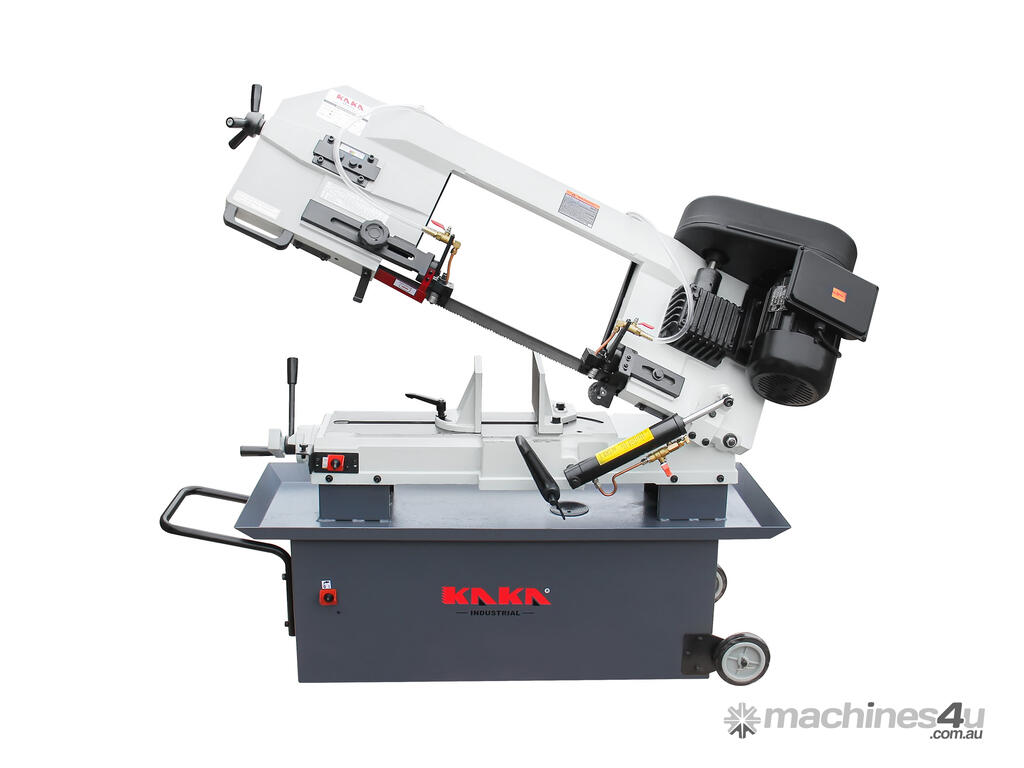

KANG Industrial Horizontal Metal Band Saw BS-912B
The KANG's 9-inch Step Pulley Metal Band Saw BS-912B is a versatile, medium-sized workshop bandsaw designed for efficient cutting of various types of metal pipes and bars. It offers reliable performance with downfeed control and is available in two models: the BS-912B with belt drive for smoother operation and the BS-912GR with gear drive & Swivel frame for added durability. This machine is ideal for hobbyists, small workshops, or professional fabricators who are looking for a compact yet powerful tool that handles straight and angled cuts with ease
Versatility for Workshops. Handles a wide range of metal cutting tasks with angle adjustments up to 45°, making it suitable for custom fabrication, repairs, or prototyping in garages or small industrial settings.
Efficiency and Precision Metal Cutting. Multiple speed settings and hydraulic downfeed enable optimised cutting on various materials, reducing waste and improving cut quality while saving time.
Durability and Longevity. Cast iron construction and carbide guides ensure the machine withstands regular use, with extended blade life minimising replacement costs.
User-Friendly Setup. Includes essential accessories out of the box, making it easy to integrate into existing workflows without additional purchases.

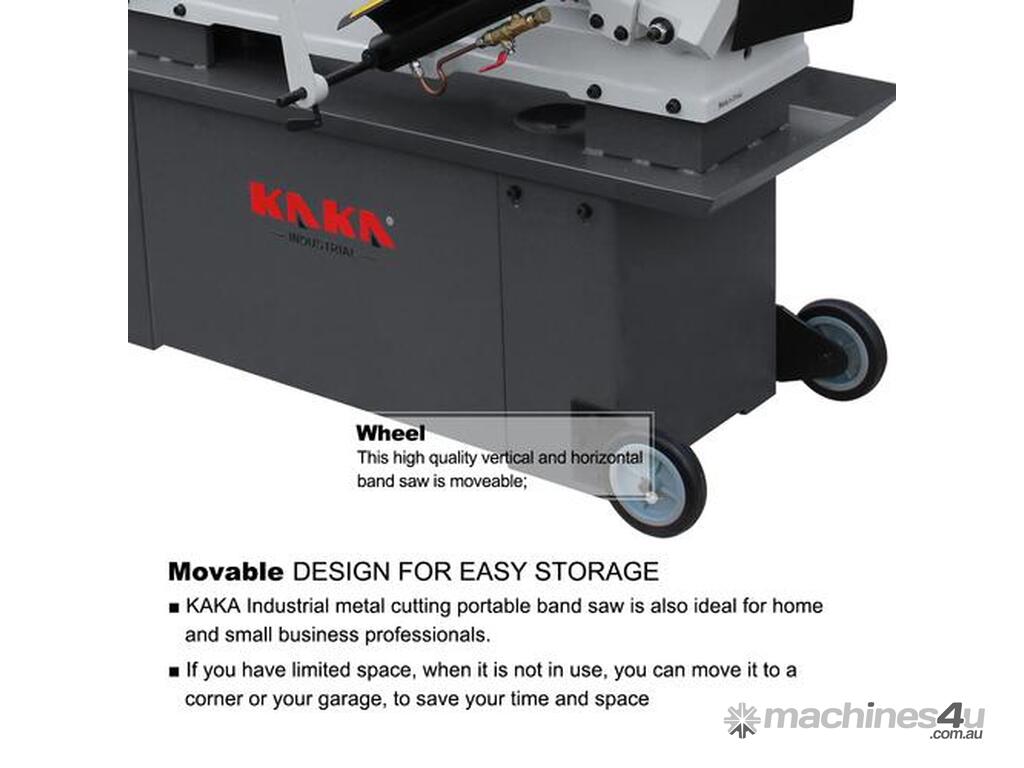

Compact Footprint Bandsaw. Its medium size fits well in space-constrained sheds or workshops, while still delivering professional-grade performance.
Features
Runs on 240V single-phase power, suitable for home use or small fabrication shops
Max. cut 229mm round or 178x305mm rectangular at 90 degrees

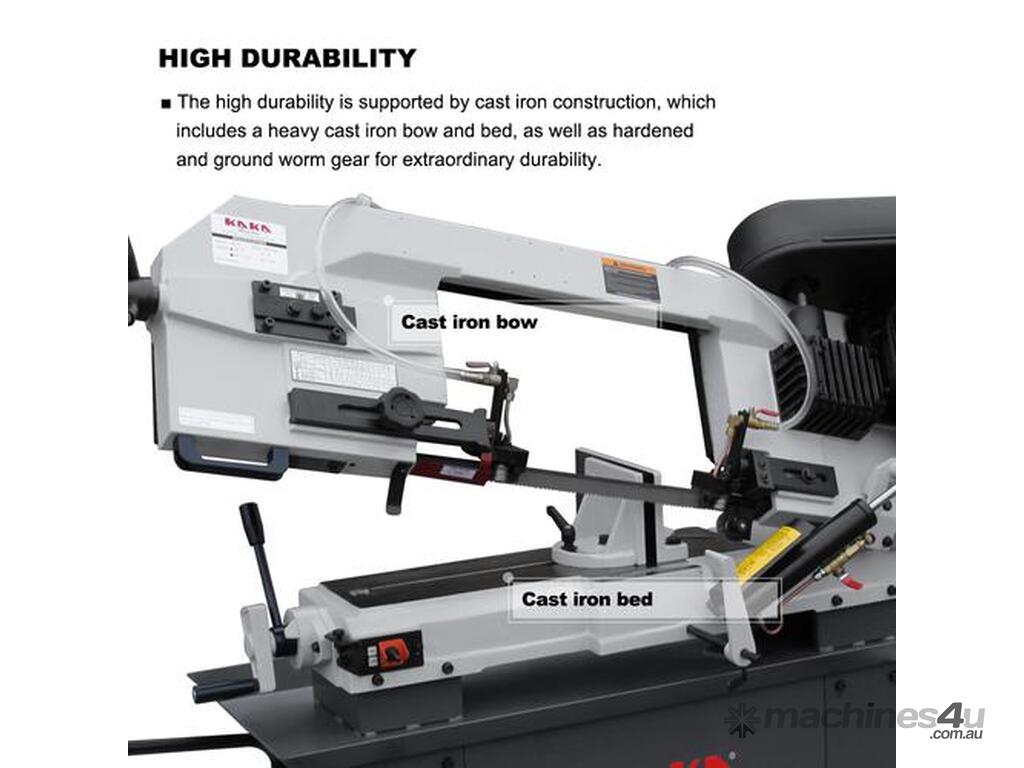

Cast iron structure for enhanced mechanical strength and stability.

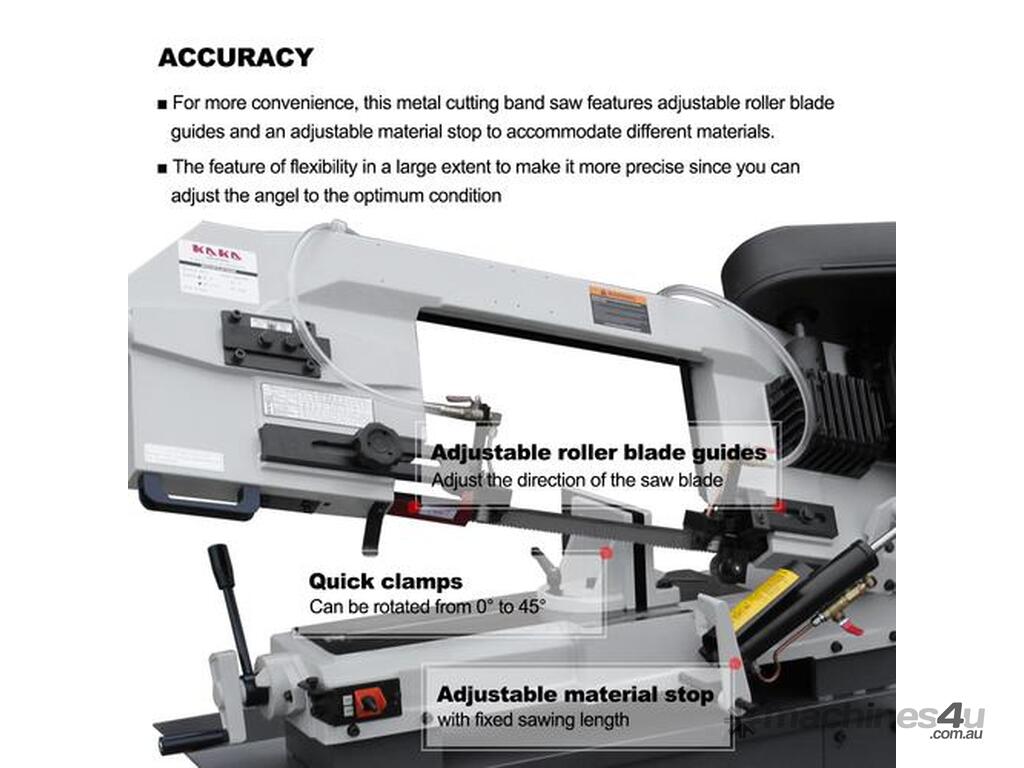

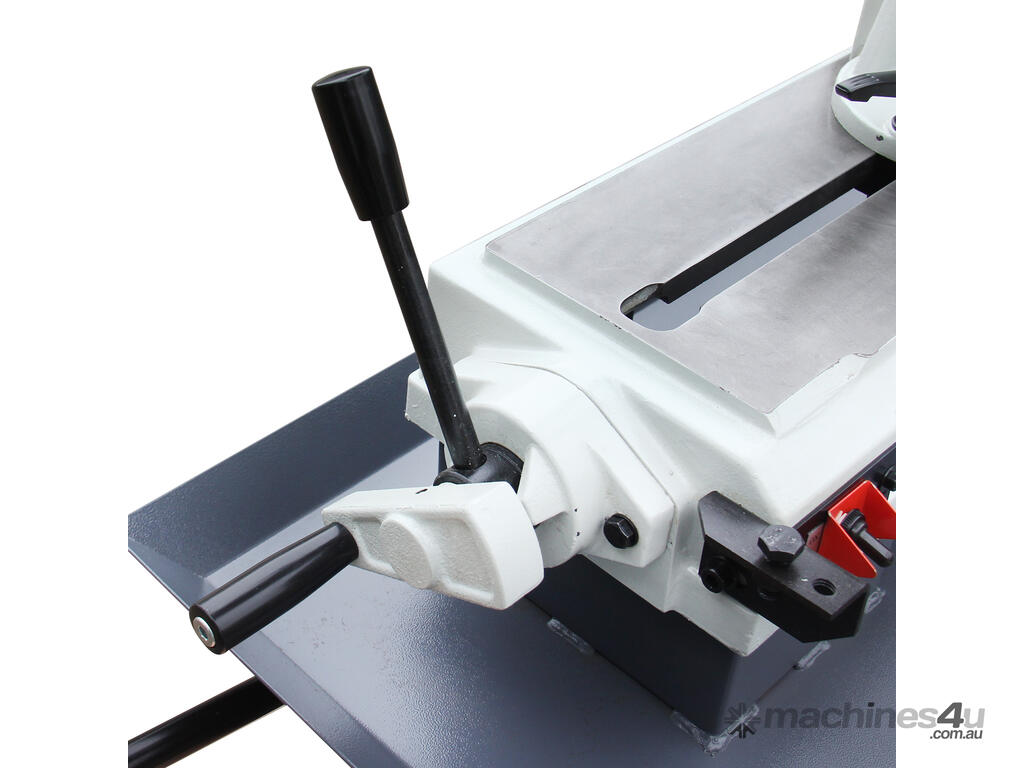

Tru-Lock quick-action vice for secure material clamping.

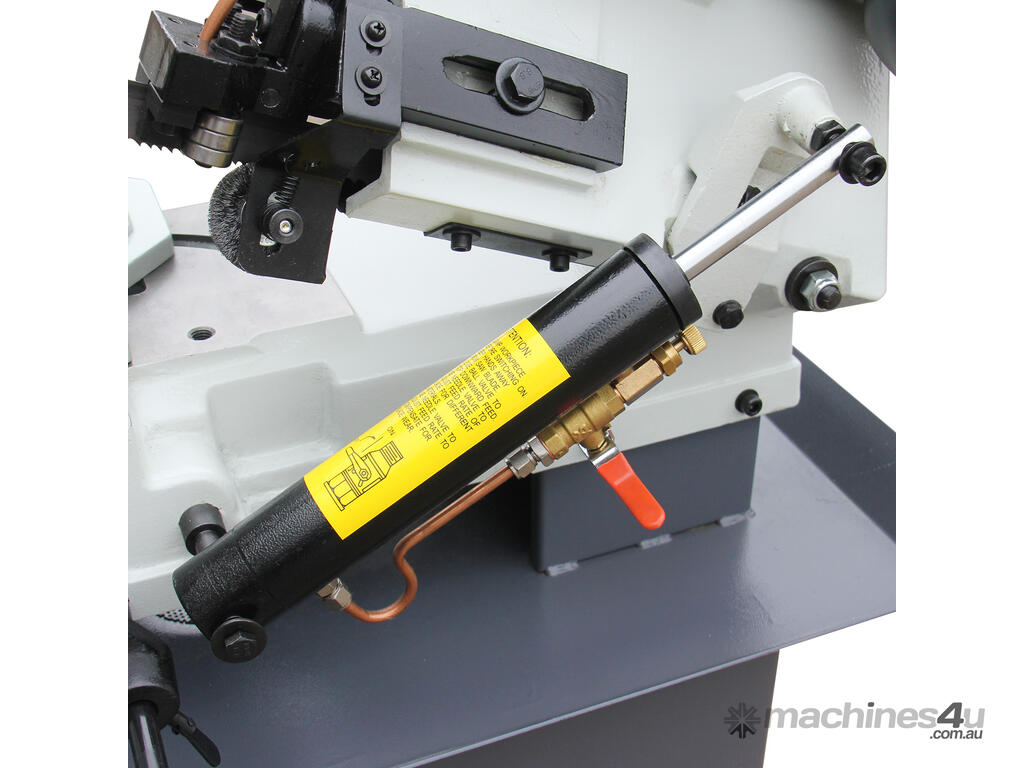

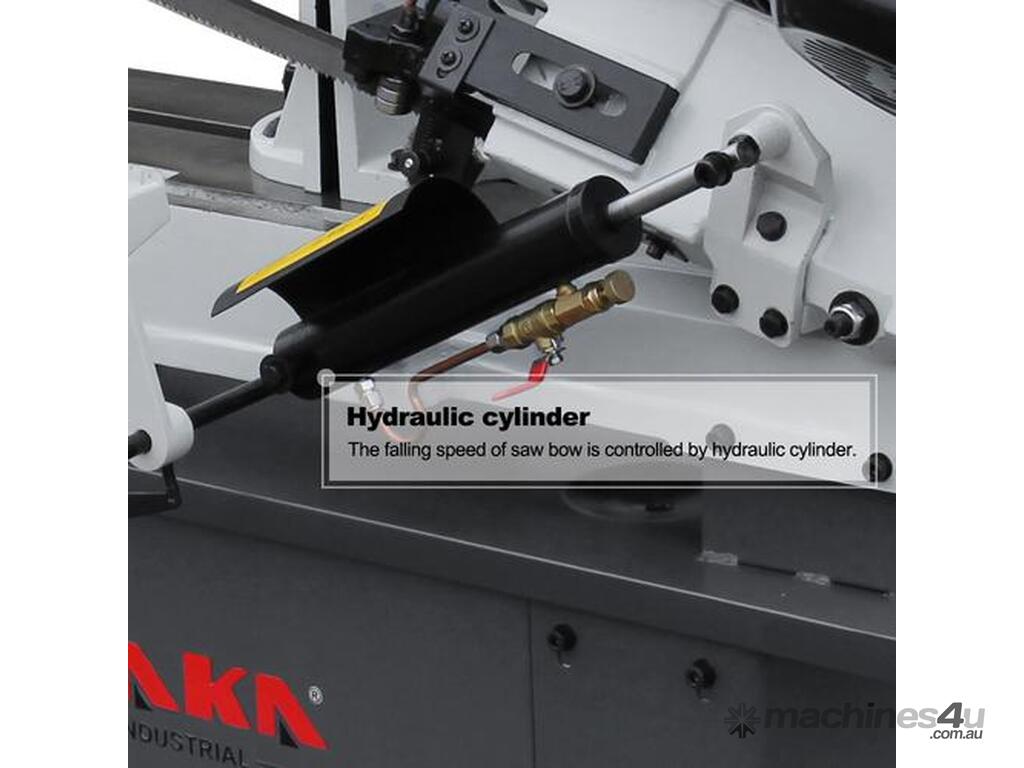

Fully adjustable hydraulic downfeed control to regulate cutting speed and pressure.
Full blade cover and toggle switch for improved operator safety.

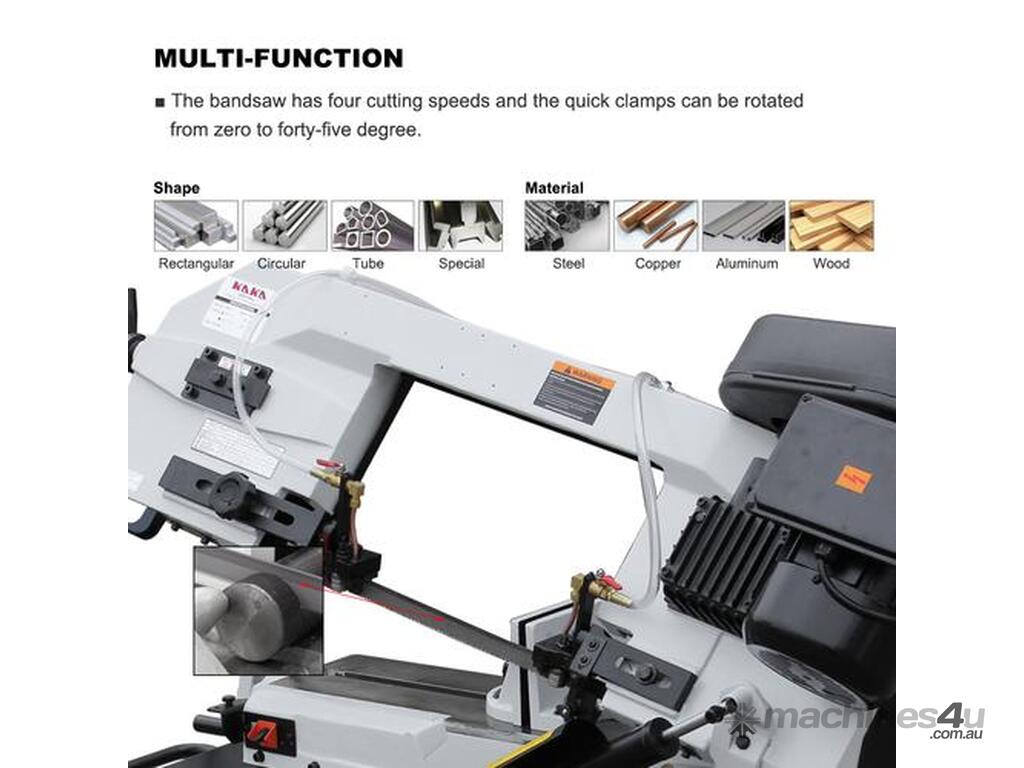

Multiple speed options: 4-step belt speeds on BS-912B, allowing adaptation to different materials.

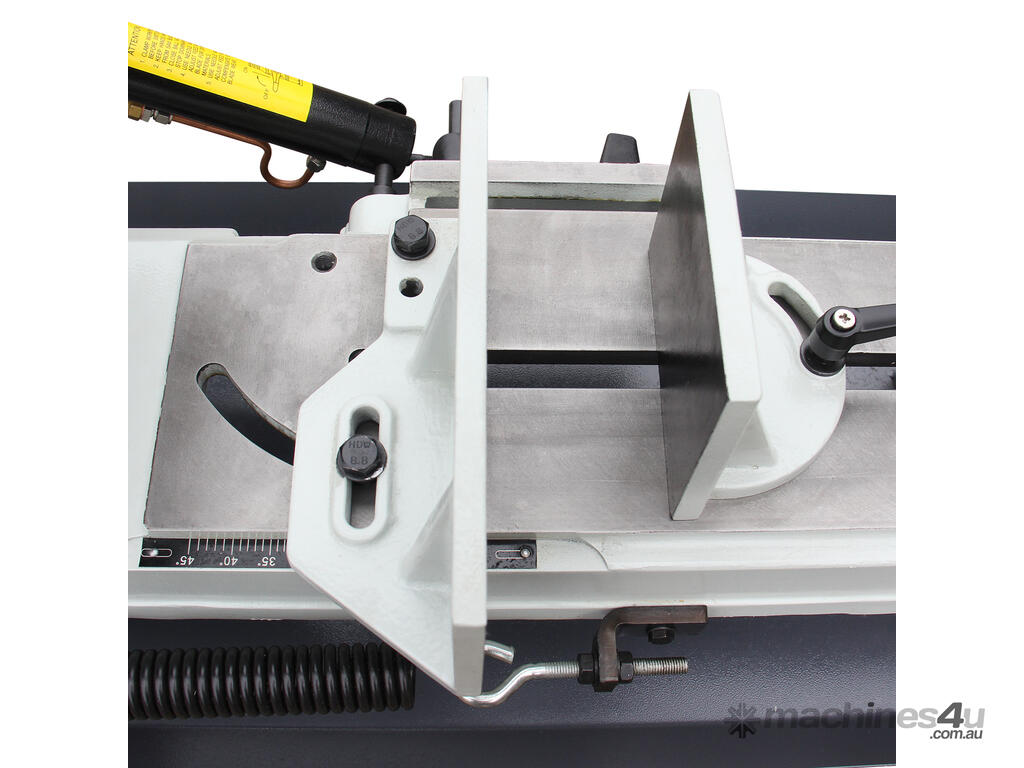

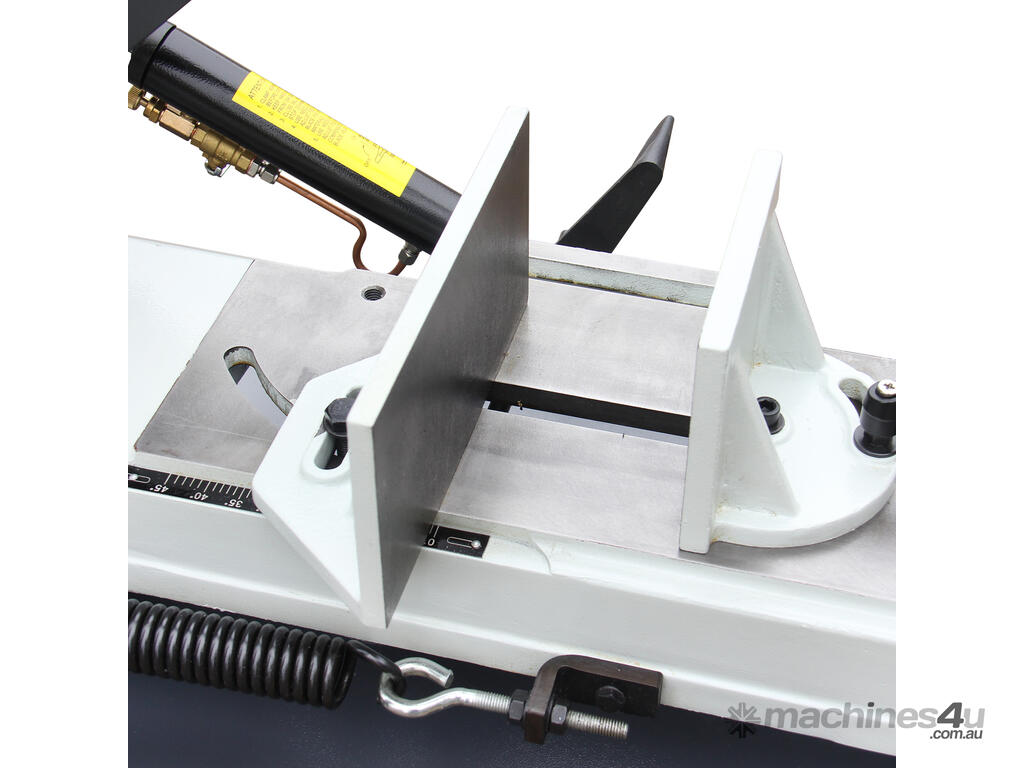

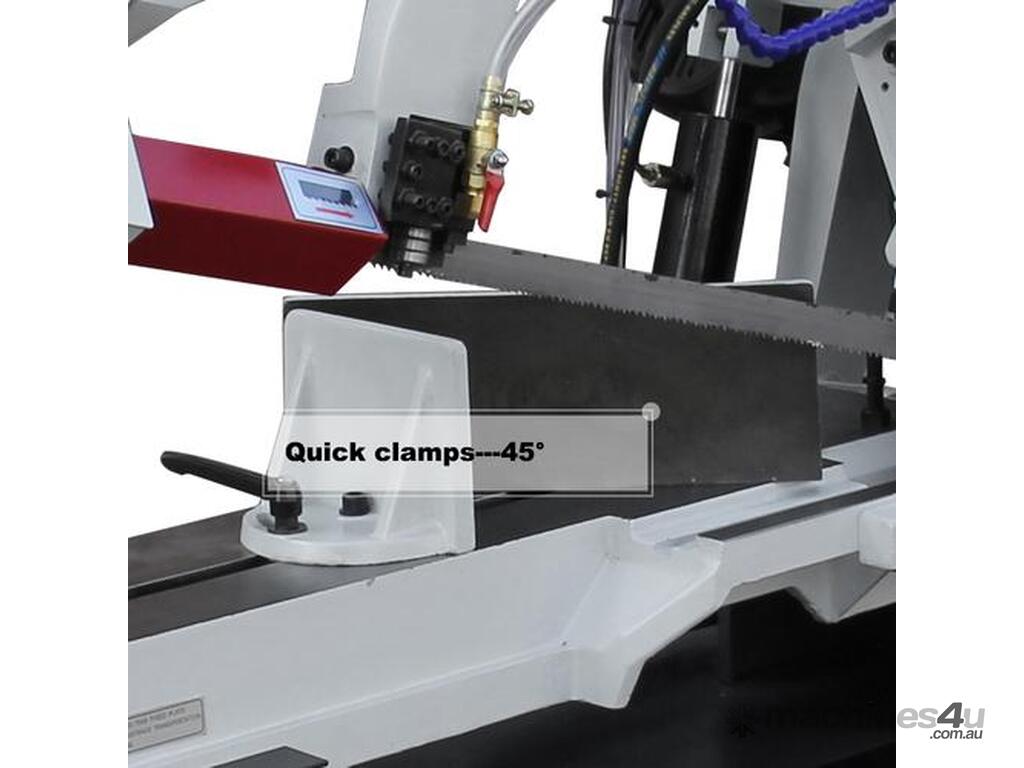

Angle cutting capability from 0° to 45° with the swivel vice

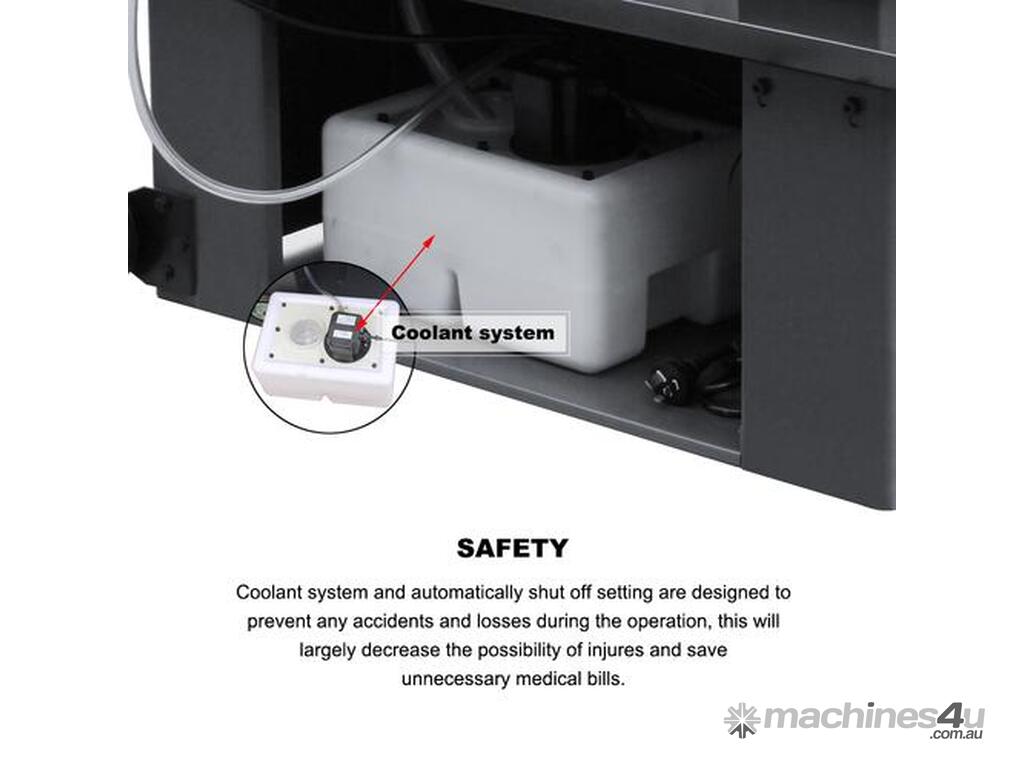

Integrated coolant system for wet cutting to reduce heat and extend tool life.
Comes standard with a bi-metal blade, chip brush, and length stop set for immediate setup.
Standard Included:

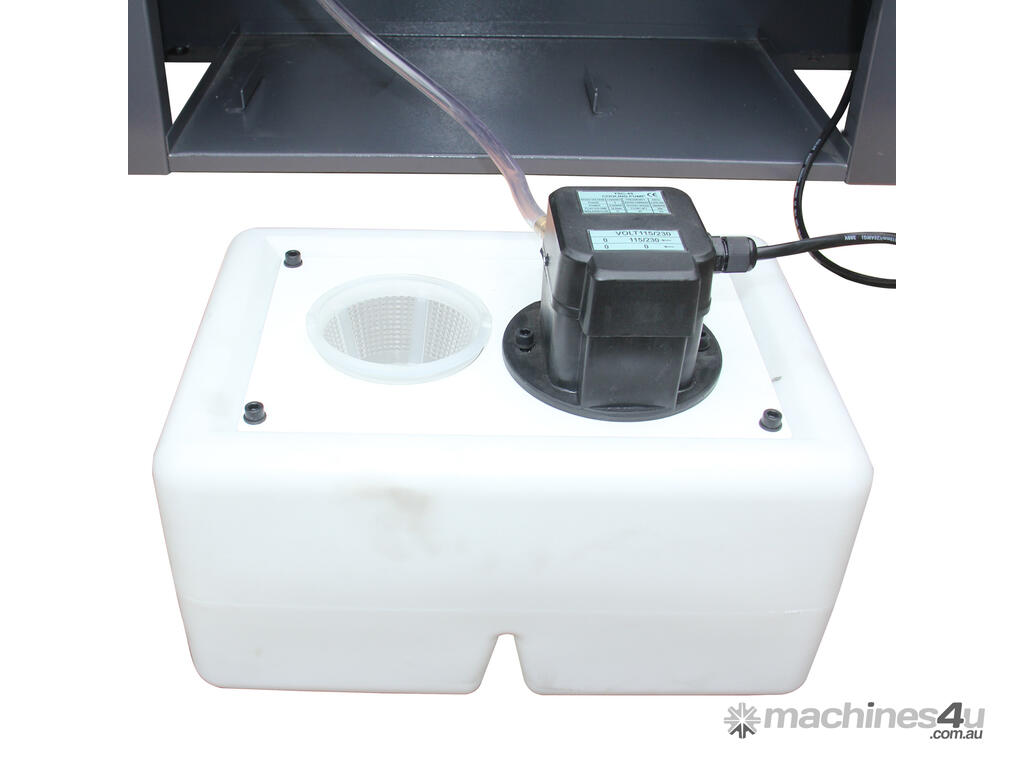

Coolant System (coolant XDP-2000 is available at extra cost)
Bi-Metal Band Saw Blade TPI 4/6 (Installed on the band saw)
Optional Coolant XDP2000
Optional Bi-Metal Band Saw Blade TPI 5/8
Optional Bi-Metal Band Saw Blade TPI 6/10
Optional Bi-Metal Band Saw Blade TPI 10/14

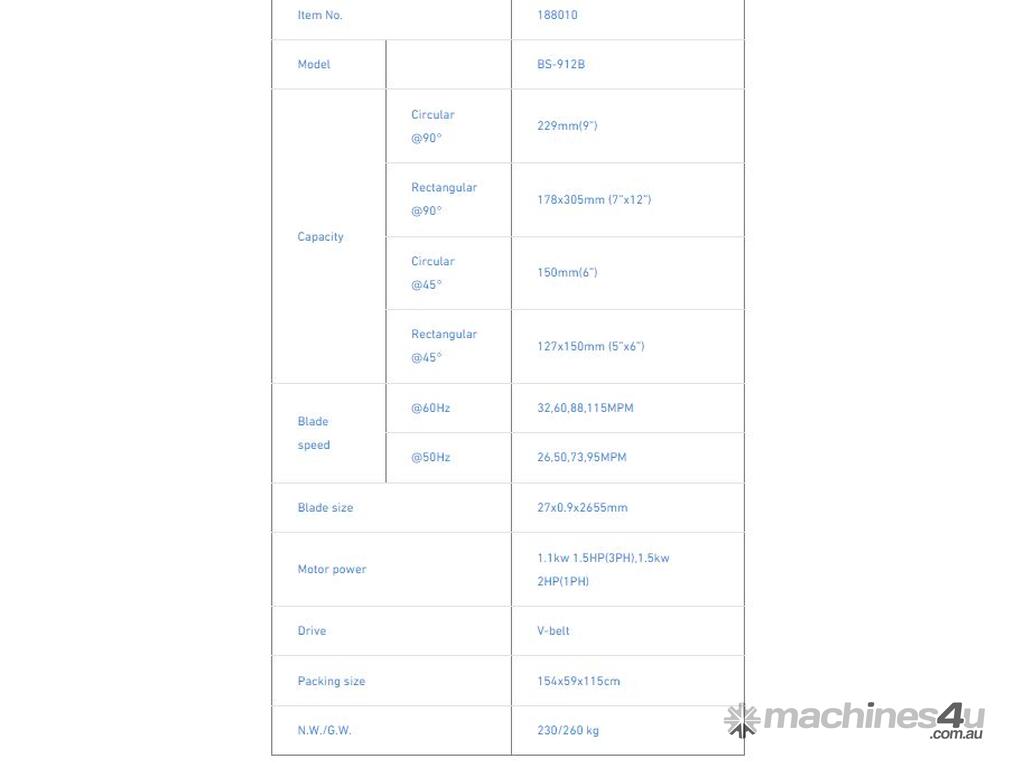

Specifications
SKU 188010
Model BS-912B
Cut circular 90° 229 mm
Cut rectangular 90° 178x305 mm
Cut circular 45° 150 mm
Cutrectangular 45° 127x150 mm
Blade speed 26,50,73,95 MPM
Blade size 27x0.9x2655 mm

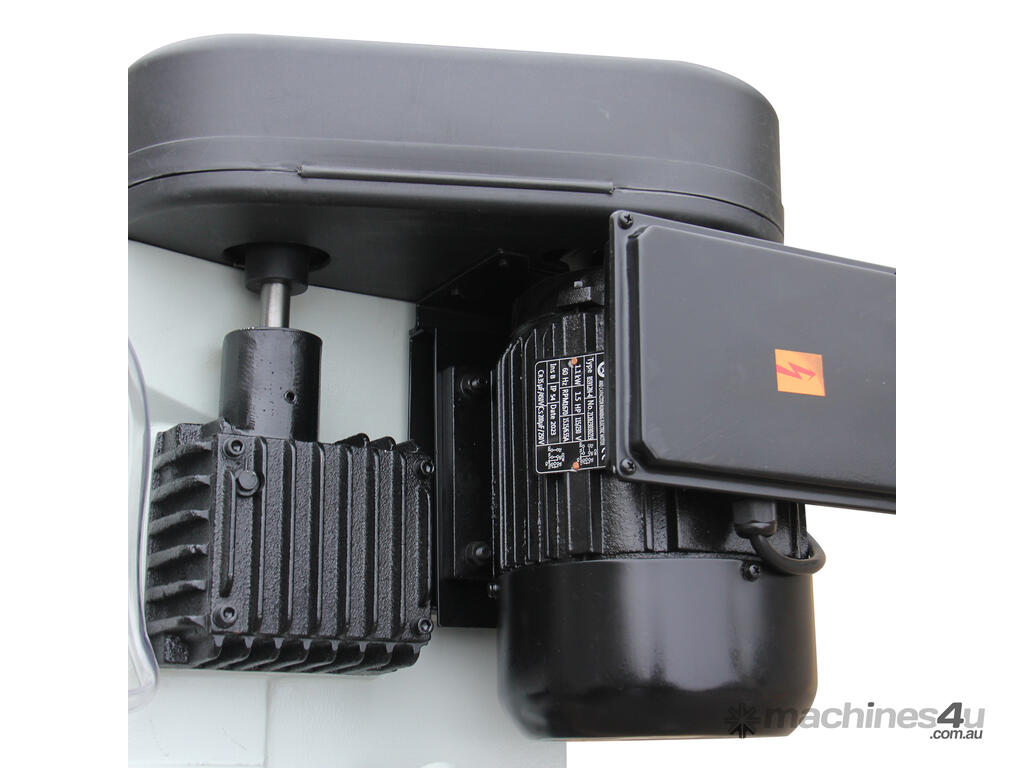

Motor power 1.1 kW
Drive Belt
Packing size 154x59x115 cm
N.W./G.W. 190/252 kg
