1250mm Magnetic Panbrake EB-4816, 1250 x 1.6mm Magna Bender Sheet Metal Folding Machine 240V

Magnetic Panbrake 1250

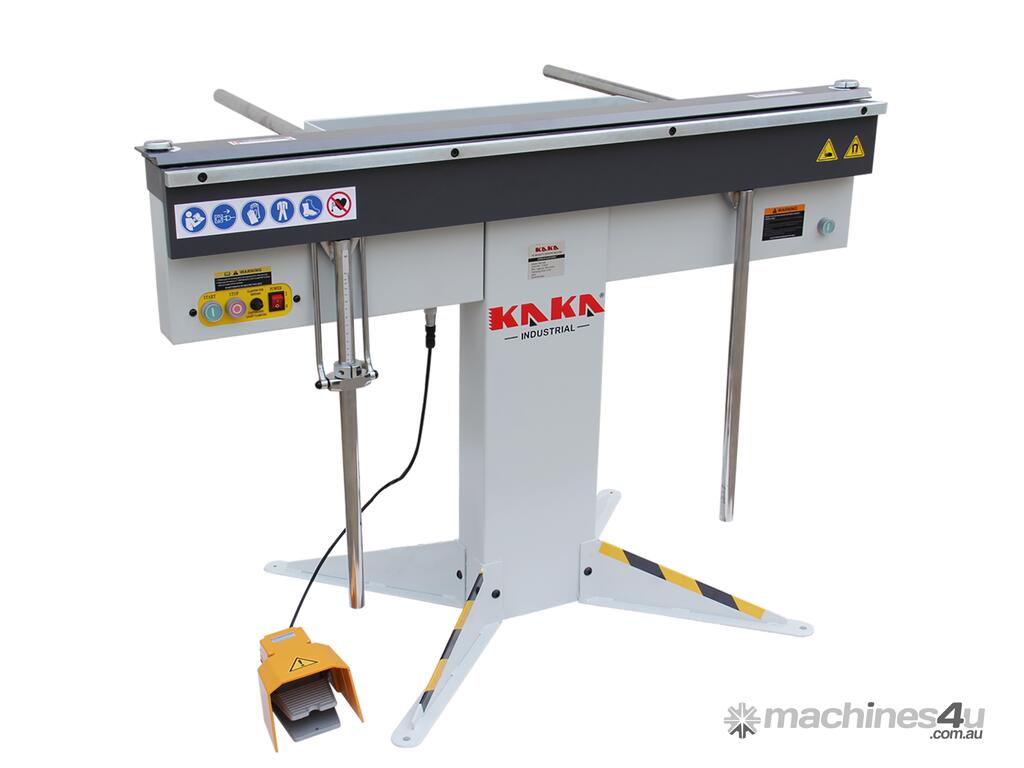

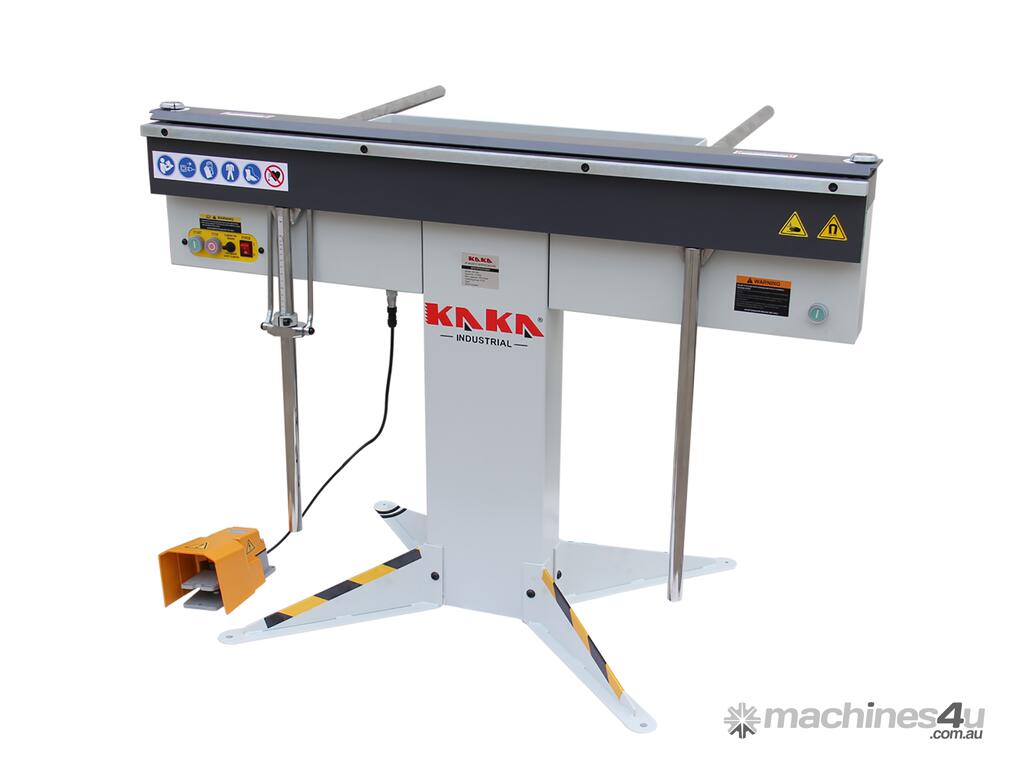

Revolutionise your sheet metal fabrication with the KANG EB-4816 1250mm Magnetic Panbrake – a powerful electromagnetic Magna Bender designed for Australian workshops. Delivering 6 tonnes of instant clamping force and truly unlimited box depth, this machine outperforms traditional panbrakes in flexibility, speed, and finish quality.

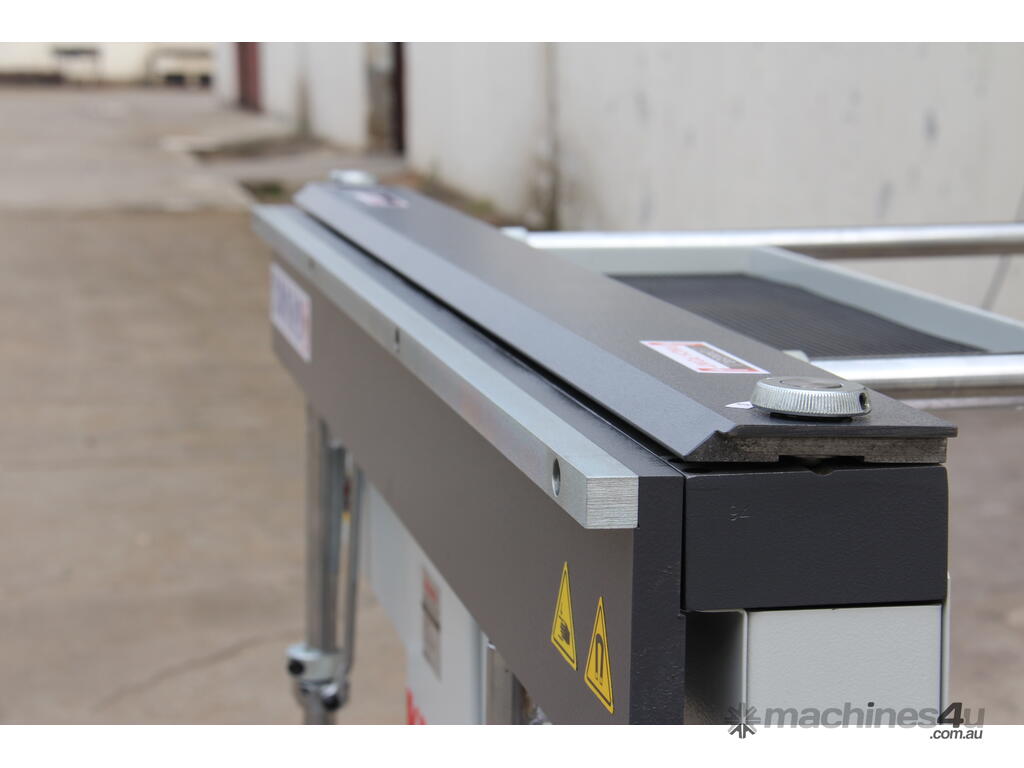

The EB-4816 Magnetic Panbrake features a robust electromagnetic system that clamps the workpiece instantly without mechanical fingers or marks – perfect for delicate materials like aluminium, brass, stainless steel, and mild steel up to 1.6mm thick over 1250mm wide.

Unlimited Box Depth. Open-span design lets you form deep channels, closed sections, triangles and complex pans that conventional panbrakes simply cannot handle.

6 Tonne Clamping Force. Even pressure across the entire beam ensures distortion-free bends every time.

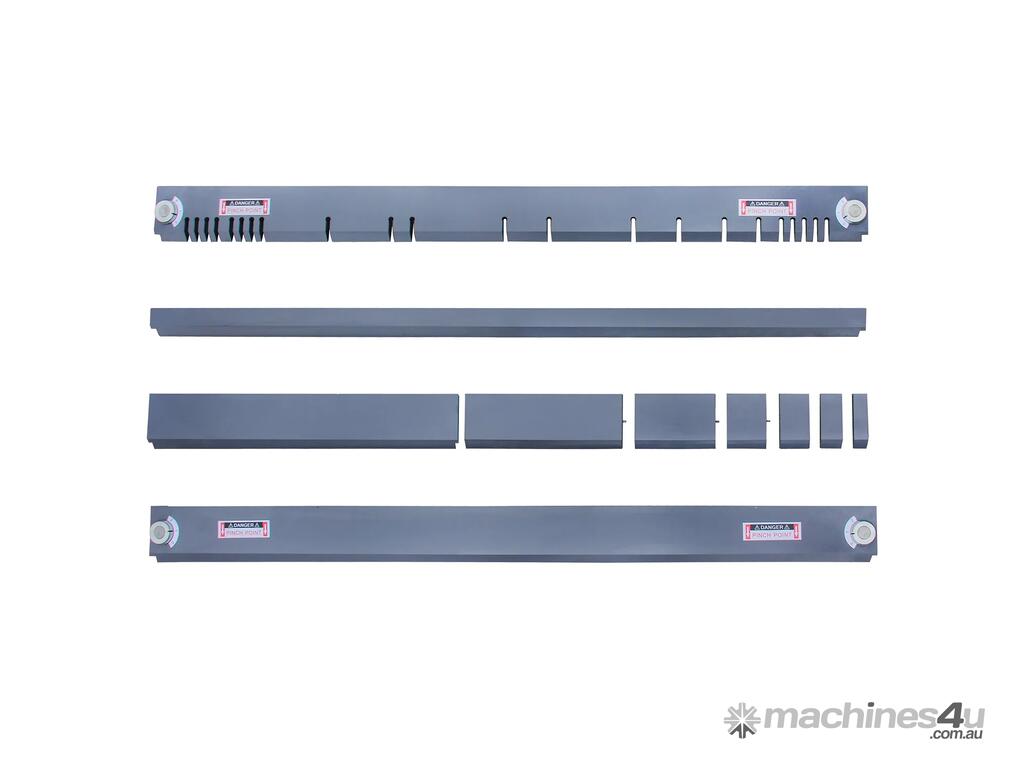

Versatile Clamping Bars. Includes replaceable and segmented bars for round, square or custom profiles.

Hands-Free Operation. Foot pedal control allows safe, fast loading and unloading – ideal for solo operators.

Compact & Durable. Only ~200kg with centreless hinges for even load distribution and long-term reliability in tough Aussie conditions.

Features

Runs on 240V single-phase power

1250 mm length magnetic panbrake, max. 1.6 mm mild steel bending capacity

No limitation to the depth of the box, open-end design

6-tonne pressure across the entire beam

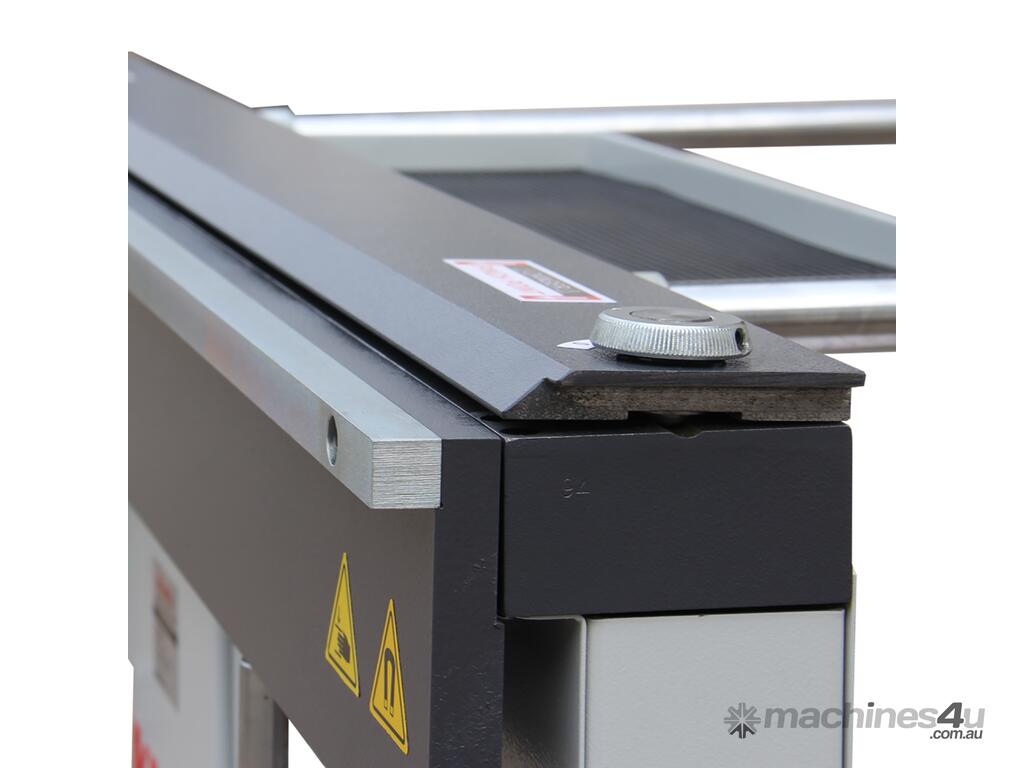

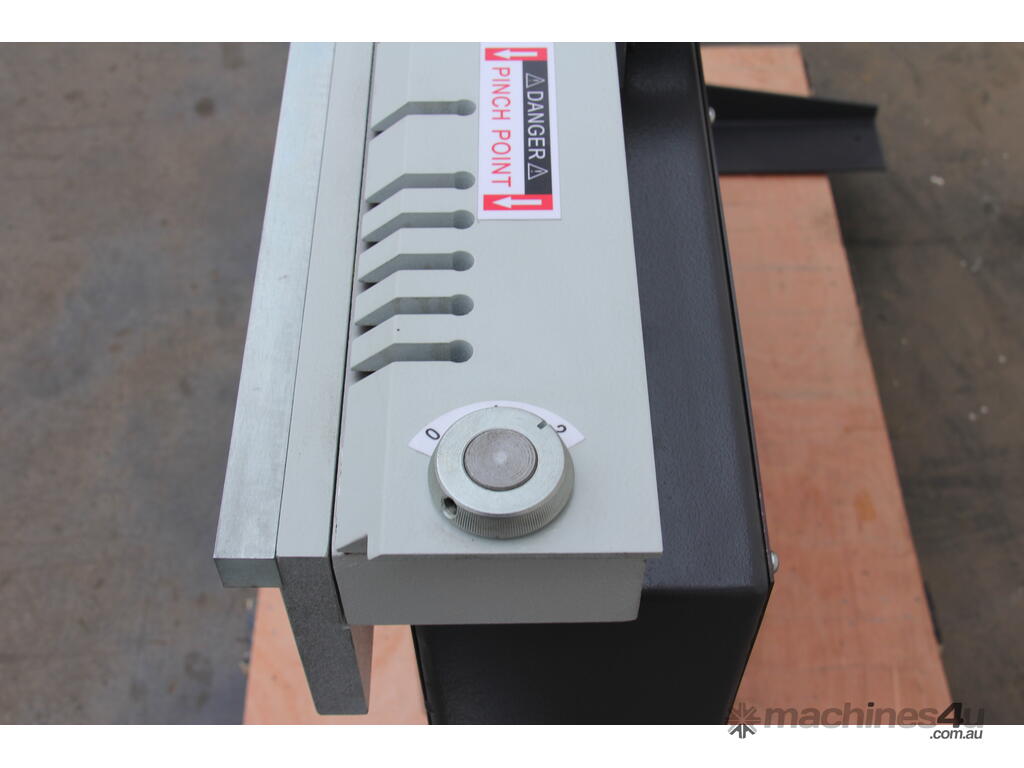

Blade gap adjustment on clamping bars

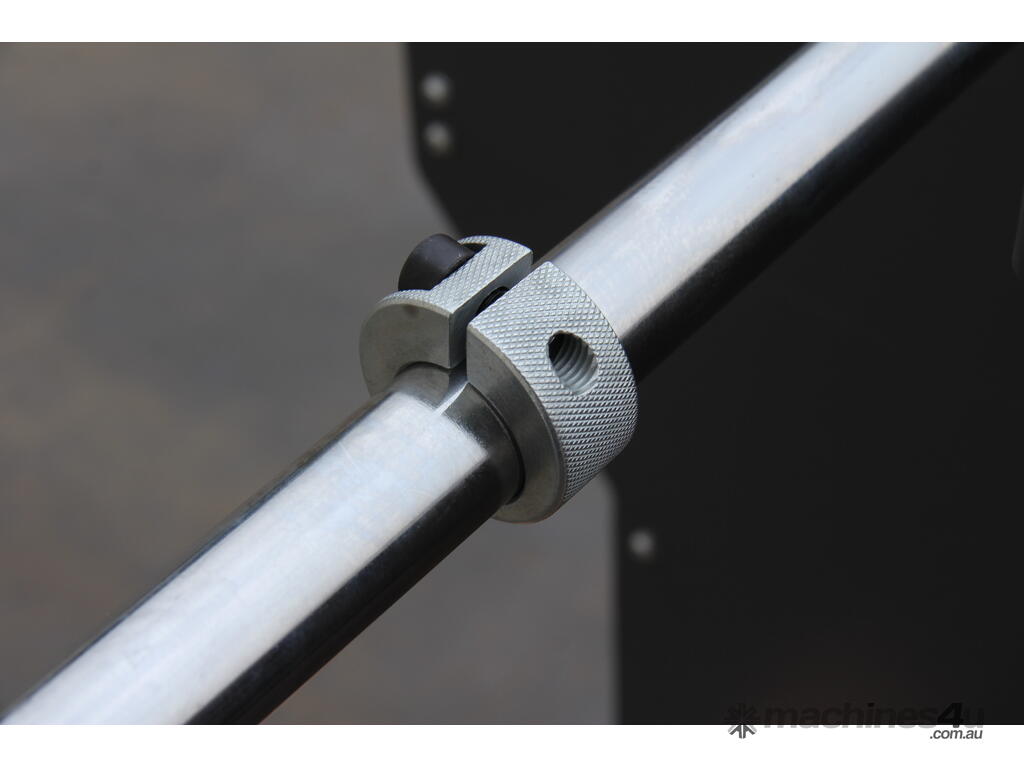

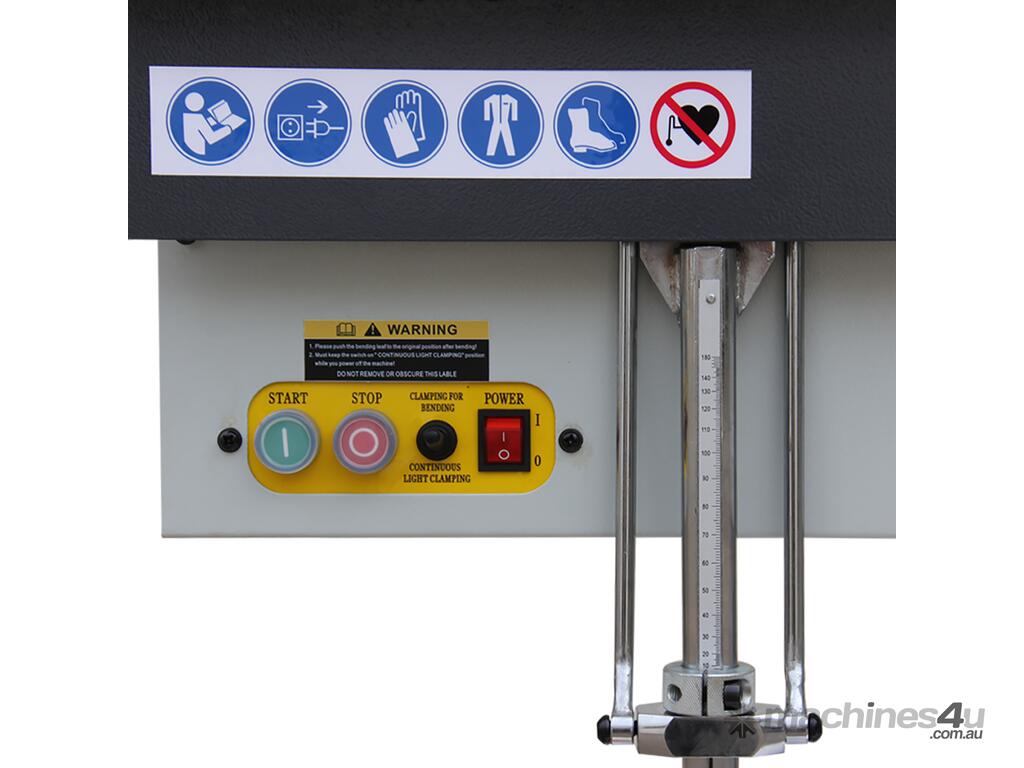

Scaled stroke angle control lets you make repeatable bends

Different clamping bars

Could make enclosed boxes, triangles, etc.

Could bend a variety of materials, such as mild steel, stainless steel, aluminium plate, etc.

Perfect For:
HVAC ducting, roofing flashings, signage, automotive panels, industrial art, and general sheet metal fabrication.

Different Sizes of Mag Benders are available

EB5216, 1320mm Magnetic Panbrake

EB6116, 1550mm Magnetic Panbrake

EB9816, 2500mm Magnetic Panbrake

EB-4816B, with a special stand, could hold the different bending bars

Specifications
SKU 173403
Model EB-4816
Max. capacity (mild steel) 1250x1.6 mm
Clamping force 6 Ton
Duty cycle 30%

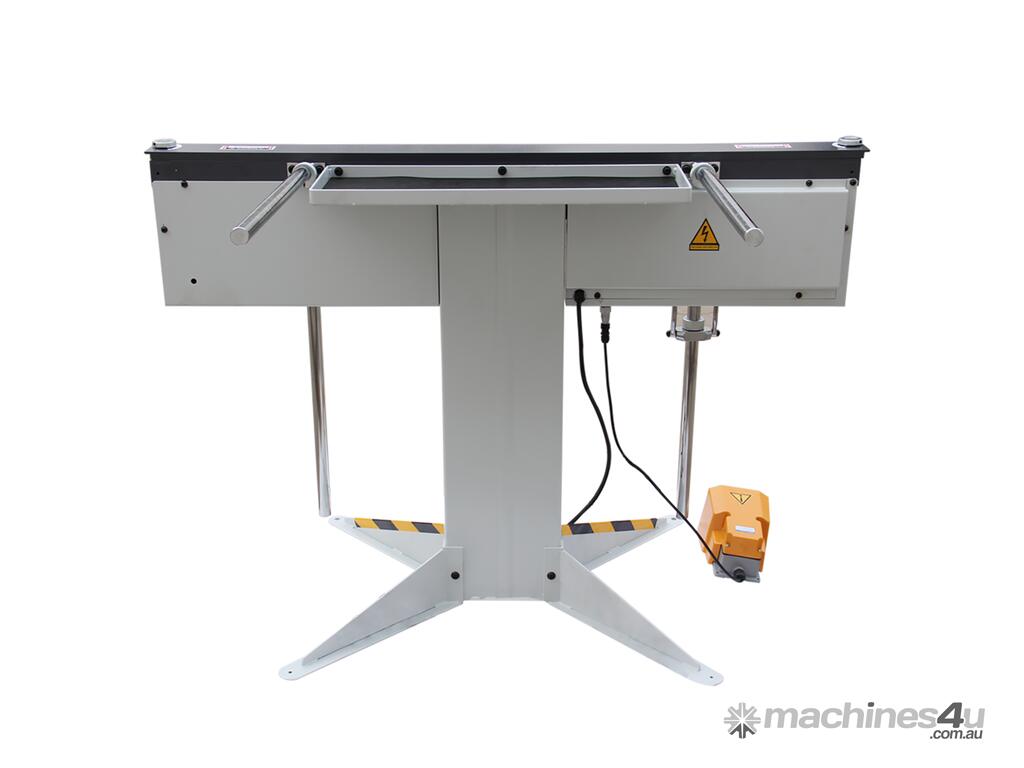

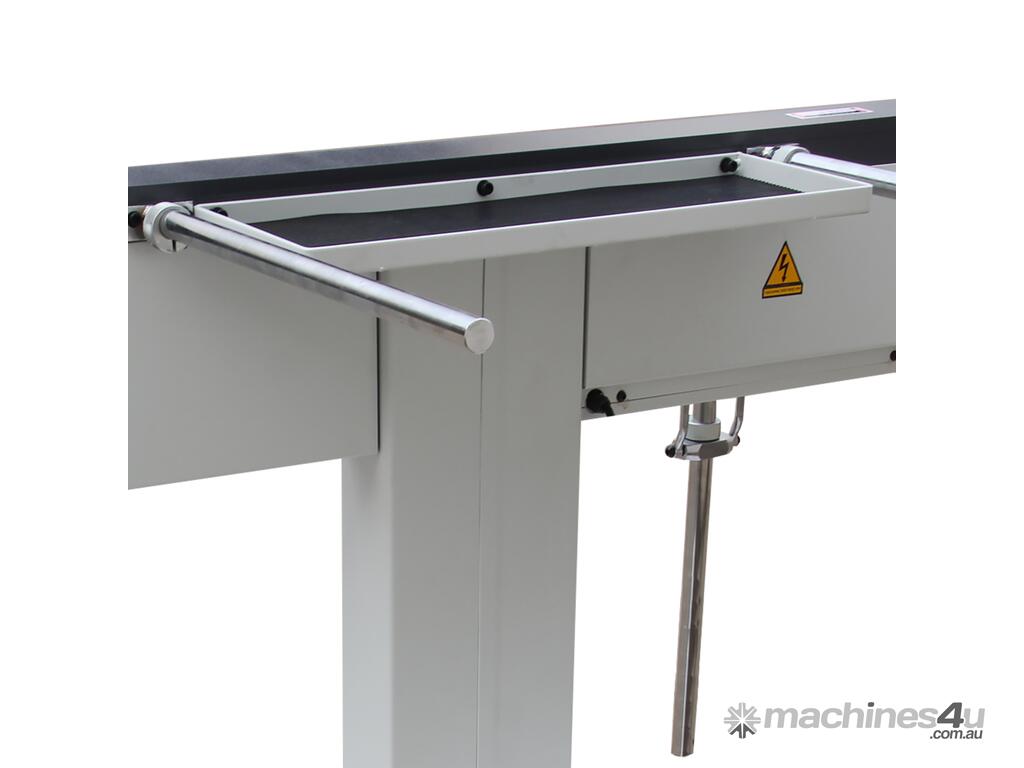

Back gauge 640 mm
Nominal current 6 Amp
Power motor 2.2 kW
Protection Thermal cut-out 70?
Bending edge length 1300 mm
Distance between lifters 1260 mm
Packing size 145x112x38 cm
N.W./G.W. 200/260 kg
