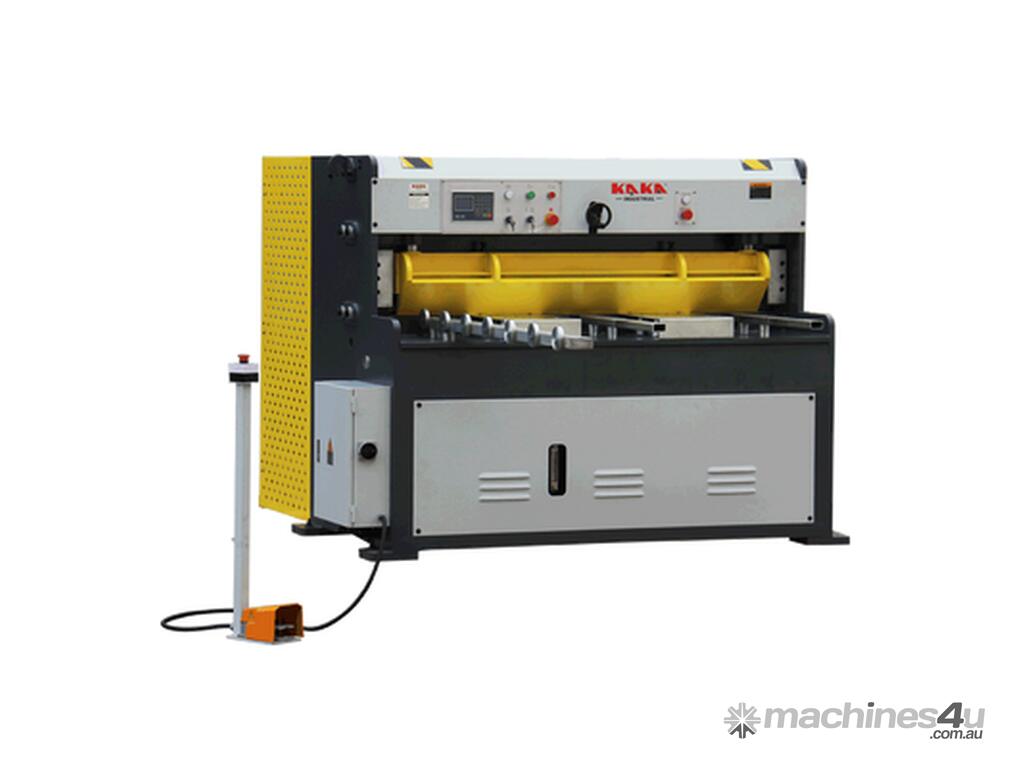

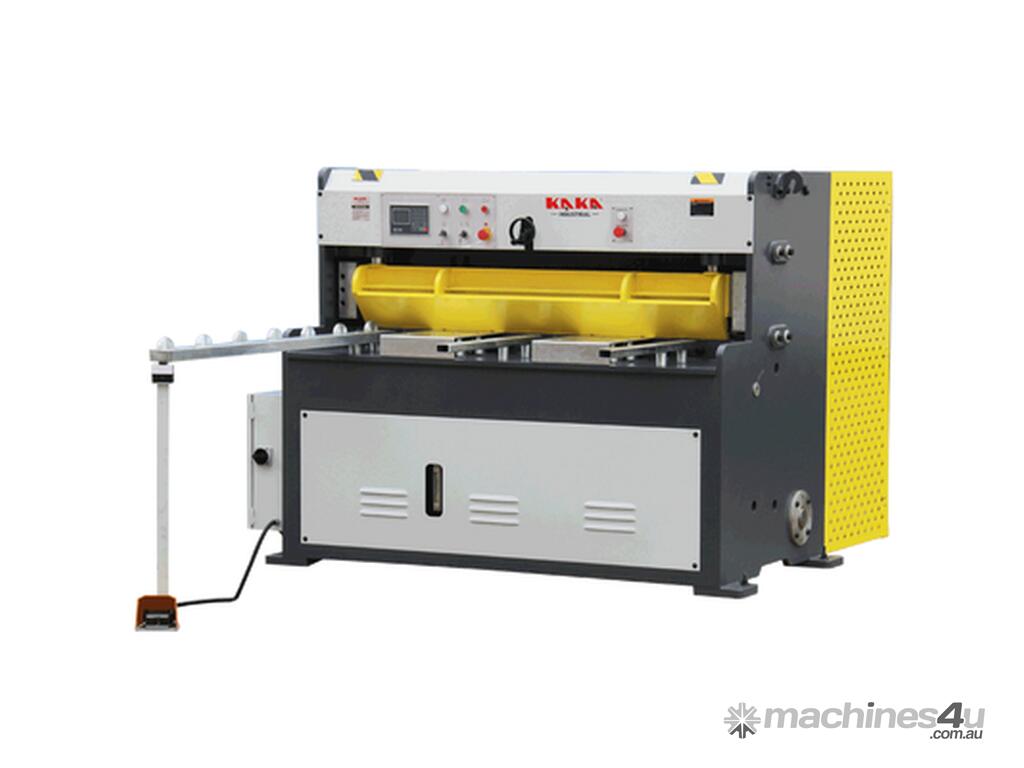

KAKA Industrial Hydraulic Guillotine Shear
1300X6.5 mm mild steel cutting capacity

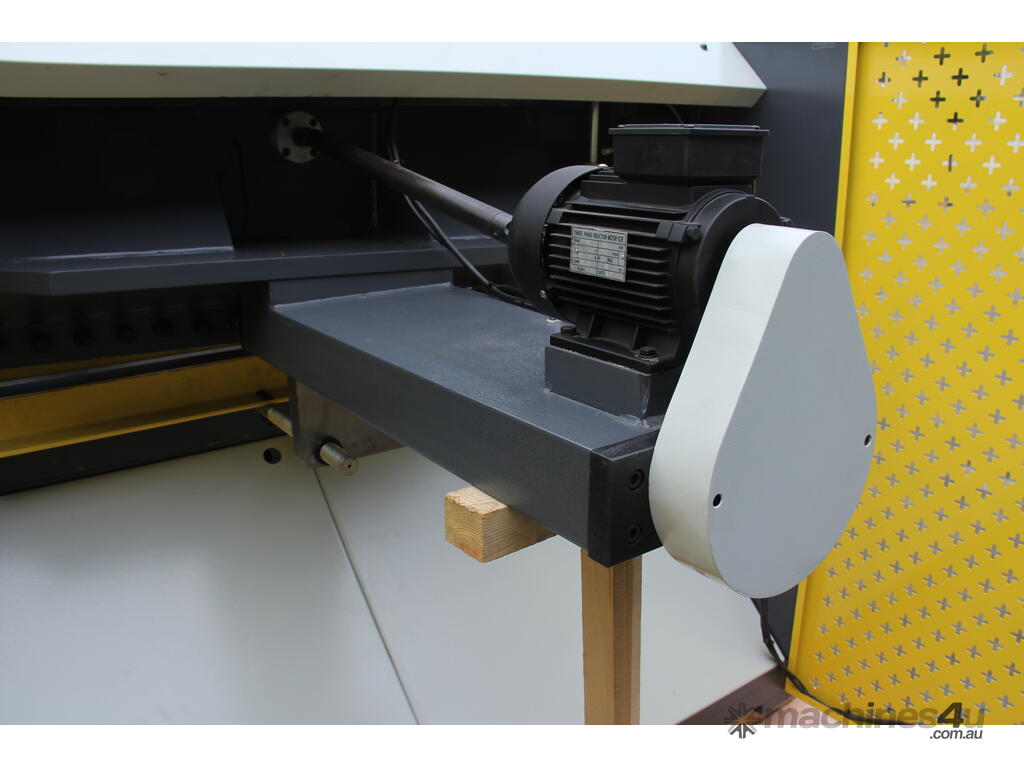

5.5 kW powerful motor runs on 415V power
Quick action blade clearance adjustment

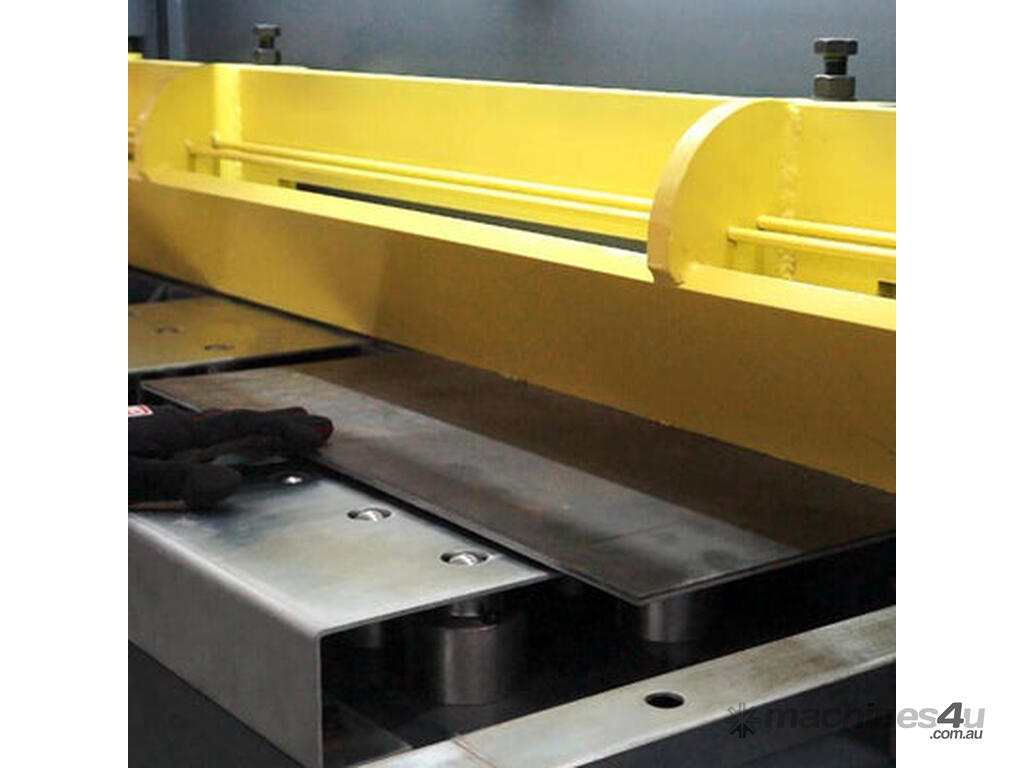

Full-length plate clamping bar

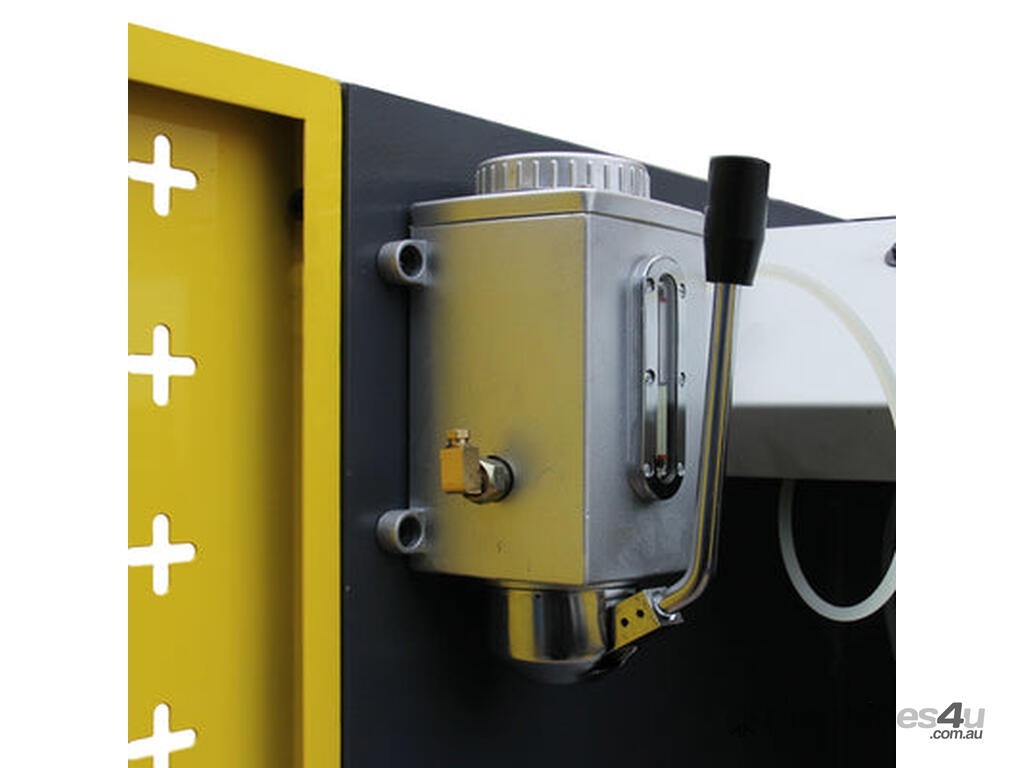

Manual lubrication pump for all sideway
Standard with shadow line light-alignment device
Clamping beam allows clear vie to the shadow line on the material
Standard Electric back gauge
Specifications
SKU 186201
Model HQ11-5103B
Max. cutting length 6.5 mm
Max. cutting width 1300 mm
Shearing angle 2.5 °
No. of stroke (per min.) 20
Motor power 5.5 kW
Back gauge 630 mm (manual)
Packing size 215x175x185 cm
N.W./G.W. 2470/2670 kg
