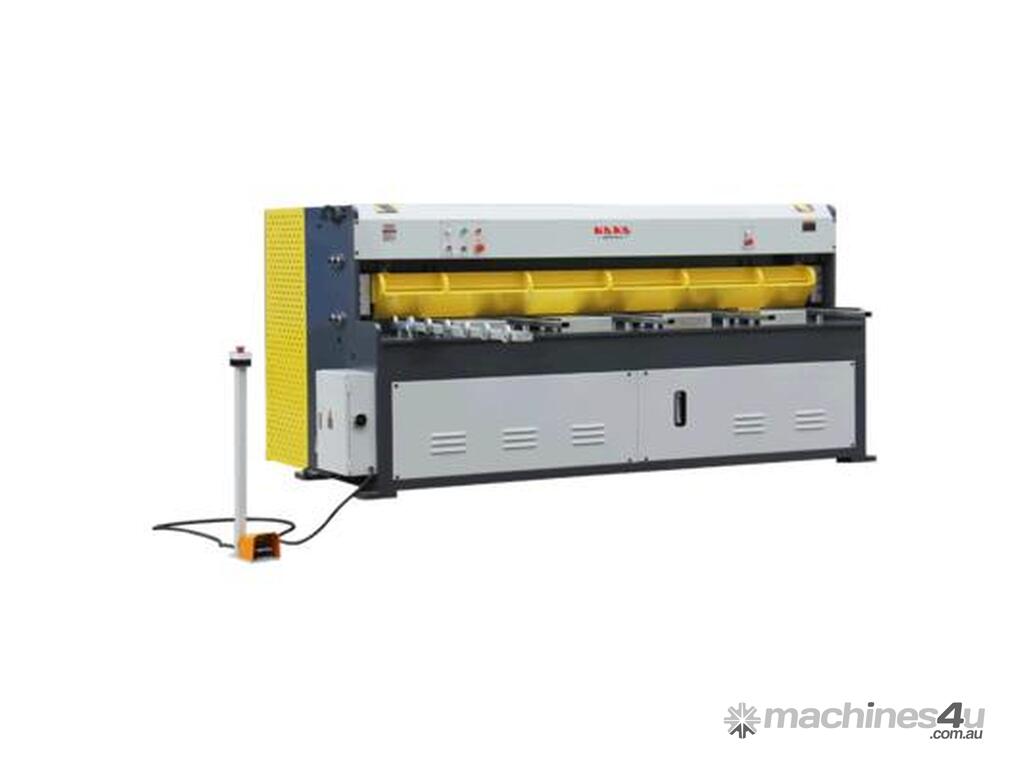

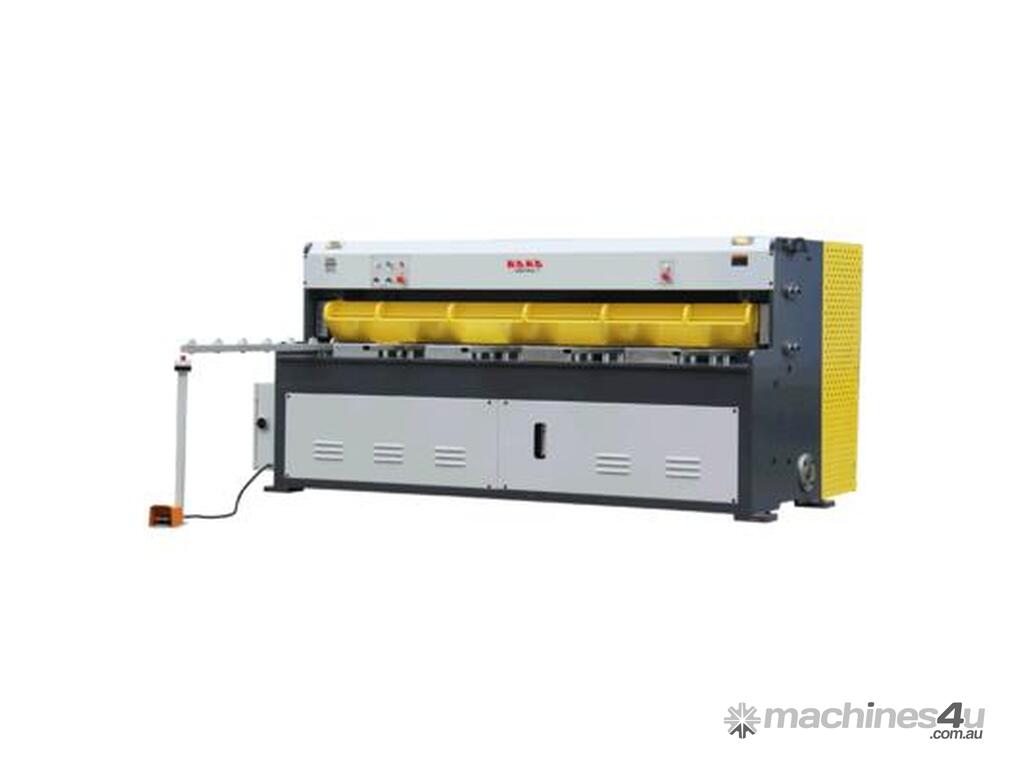

KAKA Industrial Hydraulic Guillotine Shear
2500x4 mm mild steel cutting capacity
7.5 kW powerful motor runs on 415V power
Quick action blade clearance adjustment

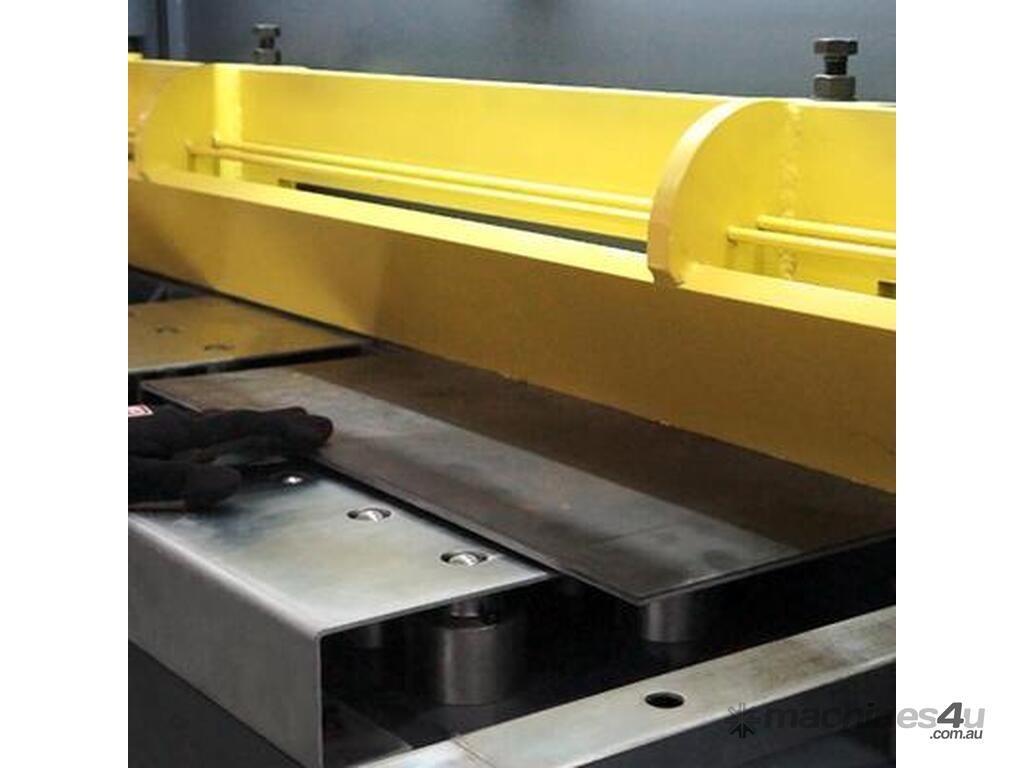

Full-length plate clamping bar

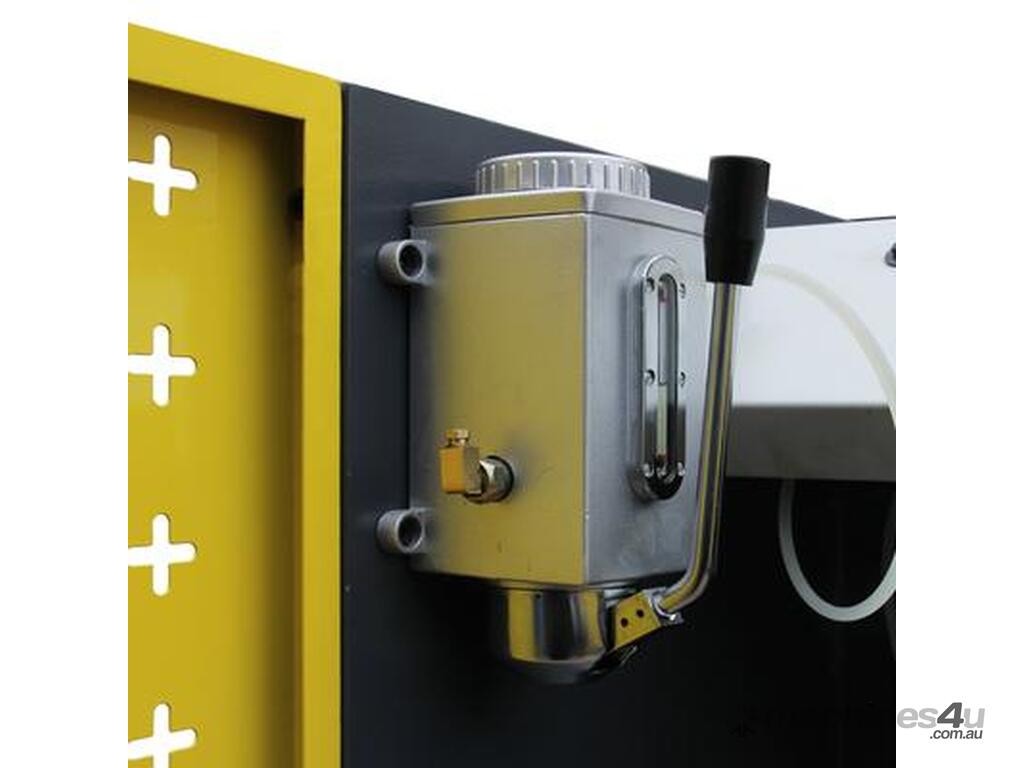

Manual lubrication pump for all sideway
Standard with shadow line light-alignment device
Clamping beam allows clear vie to the shadow line on the material
Optional: Electric back gauge
Specifications
SKU 186203
Model HQ11-9809
Max. cutting length 4.0 mm
Max. cutting width 2500 mm
Shearing angle 1.7°
No. of stroke (per min.) 16
Motor power 7.5 kW

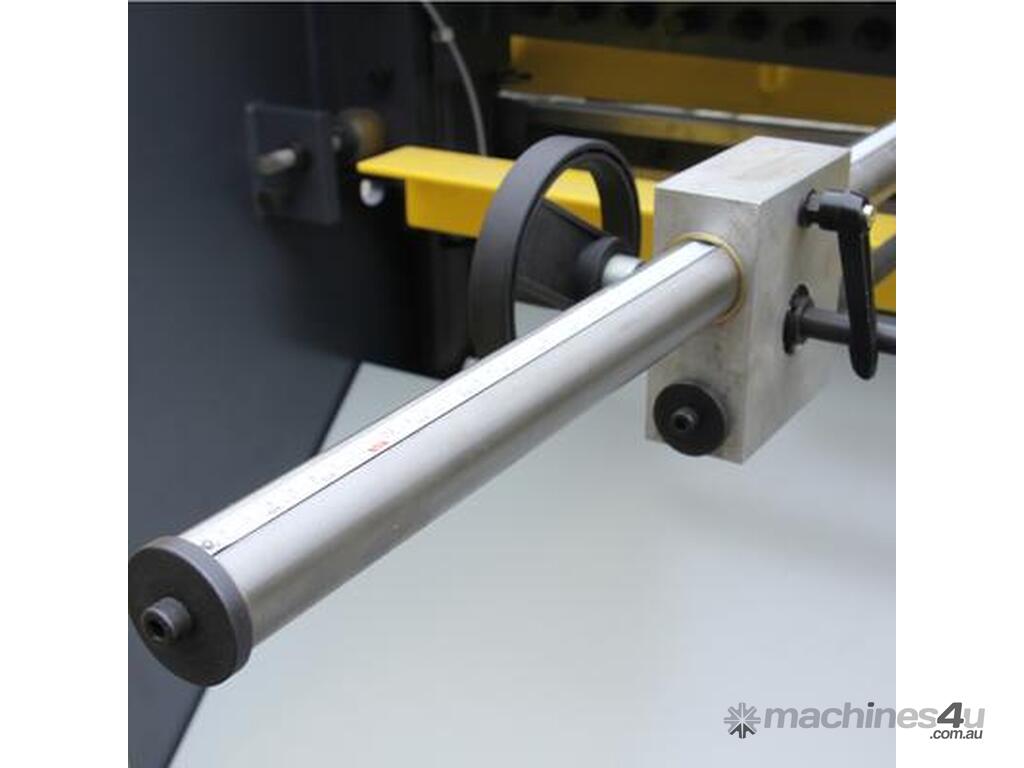

Back gauge 630 mm (manual)
Packing size 335x116x185 cm
N.W./G.W. 3330/3360 kg
