KAKA Industrial TX-X3 End Mill Sharpener with SDC Grinding Wheel

KANG Industrial End Mill Grinder TX-X3

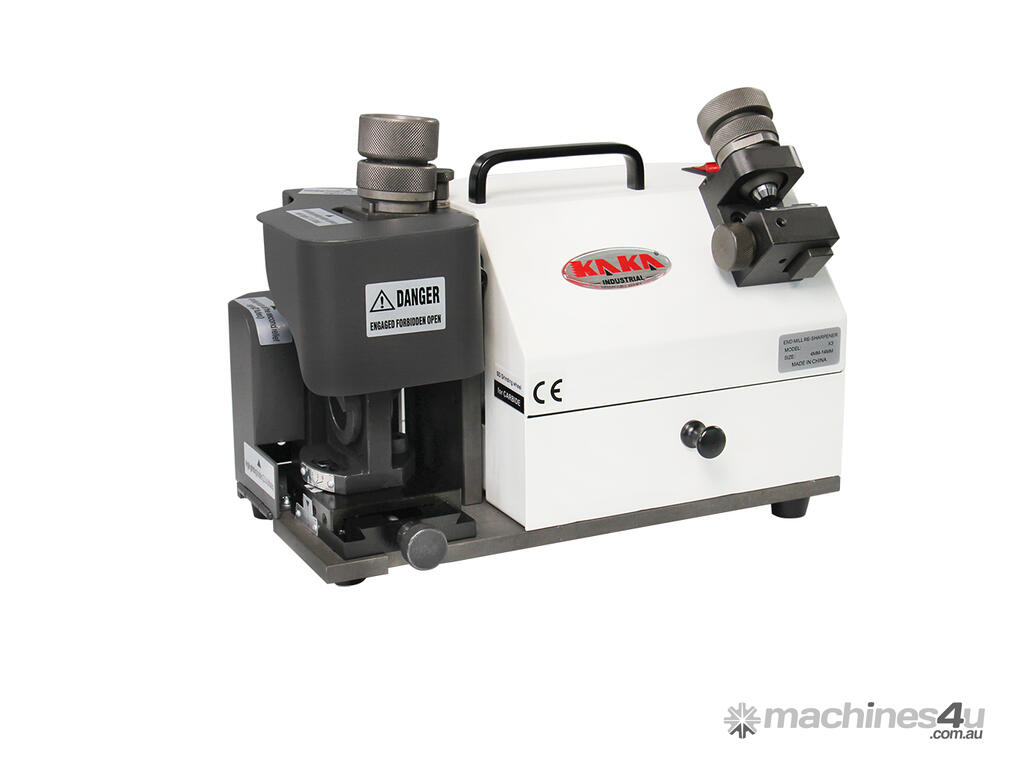

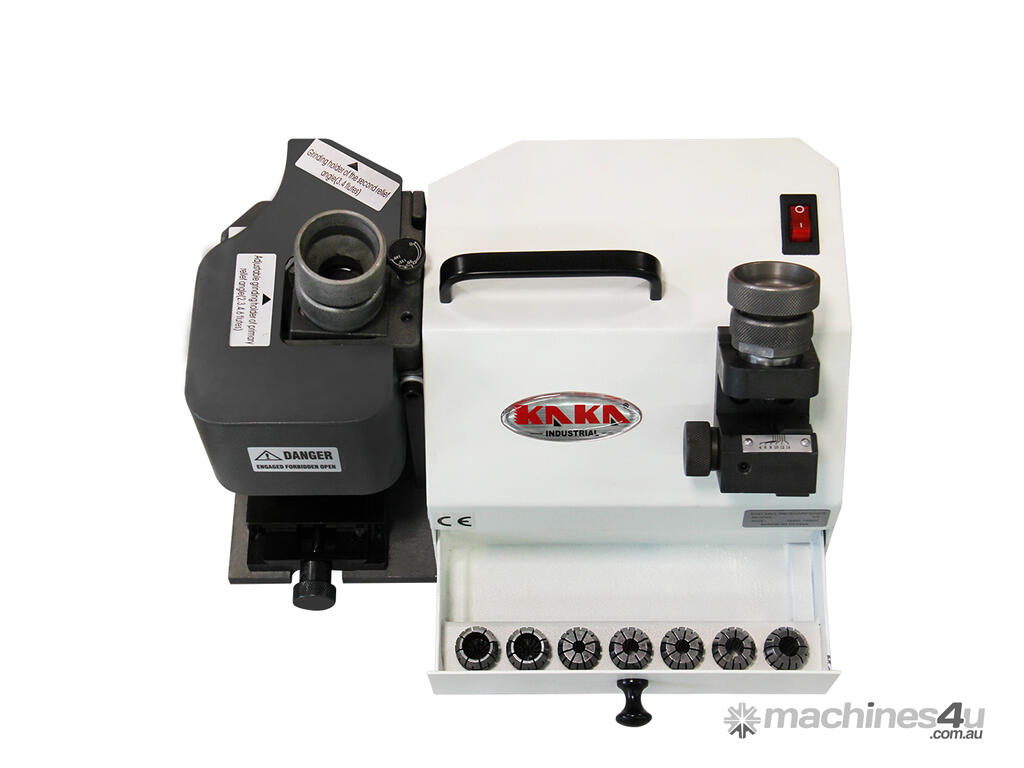

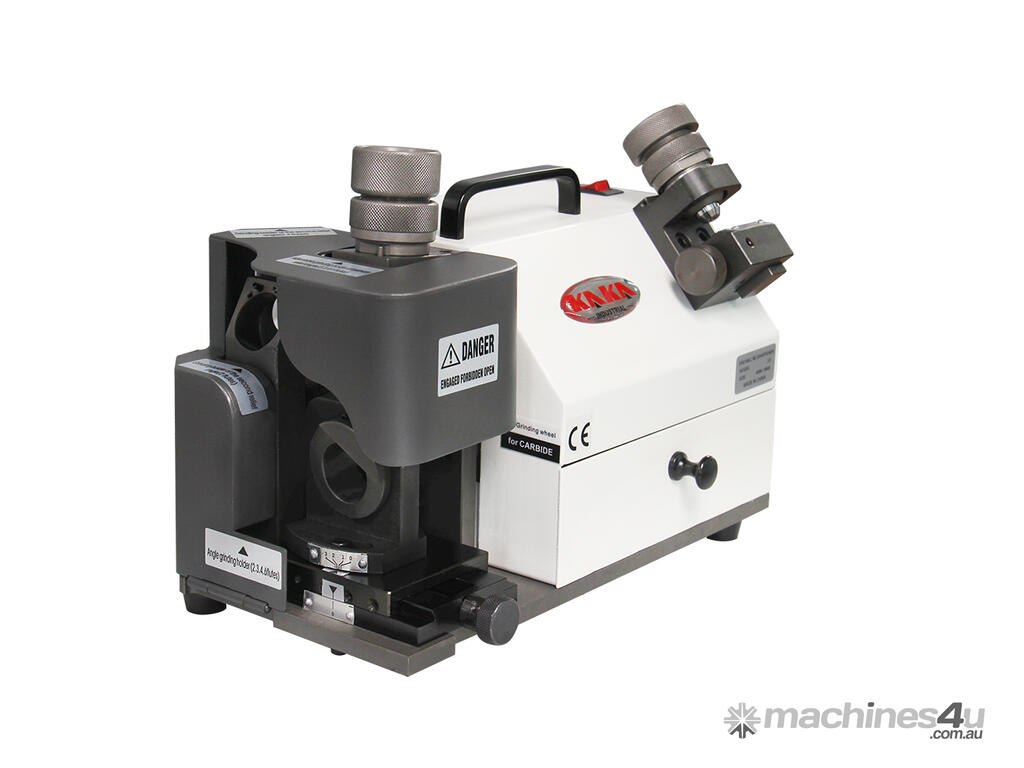

The KANG Tool Grinder / End Mill Sharpener TX-X3 is a compact, bench-top dedicated sharpener for precise and cost-effective re-sharpening of HSS and carbide end mills/milling cutters. Designed for simple, user-friendly operation in tool rooms, workshops, maintenance shops, or small fabrication setups, it excels at face grinding the end teeth plus an additional station for grinding the outer circumferential spiral cutting edges (flutes). It handles cutters with diameters from 4 mm to 14 mm, supporting 2-, 3-, and 4-flute cutters fully. The sharpener machine uses a high-quality SDC grinding wheel for efficient, cool grinding with minimal heat buildup to preserve tool hardness. It includes rapid setup with quick collet changes and indexing for consistent results across multiple flutes. Powered by a low-draw 160W main drive motor, it's lightweight at 22 kg with compact dimensions,  perfect for bench mounting in space-limited sheds, garages, or mobile setups.

Targeted for Re-Sharpening End Mills 4–14 mm Diameter. Sharpens the most common small-to-medium end mill sizes used in workshops — perfect for precision milling in aluminium, steel, plastics, or composites without needing oversized industrial sharpeners.

Supports 2–4 Flute Cutters' Grinder. Versatile for standard 2/3/4-flute, covers HSS and carbide tools common in fabrication, prototyping, mould-making, or CNC retrofits.

SDC Grinding Wheel Included. High-performance wheel grinds hard materials efficiently with low heat/wear; delivers sharp, burr-minimised edges that outperform hand methods or basic bench grinders.

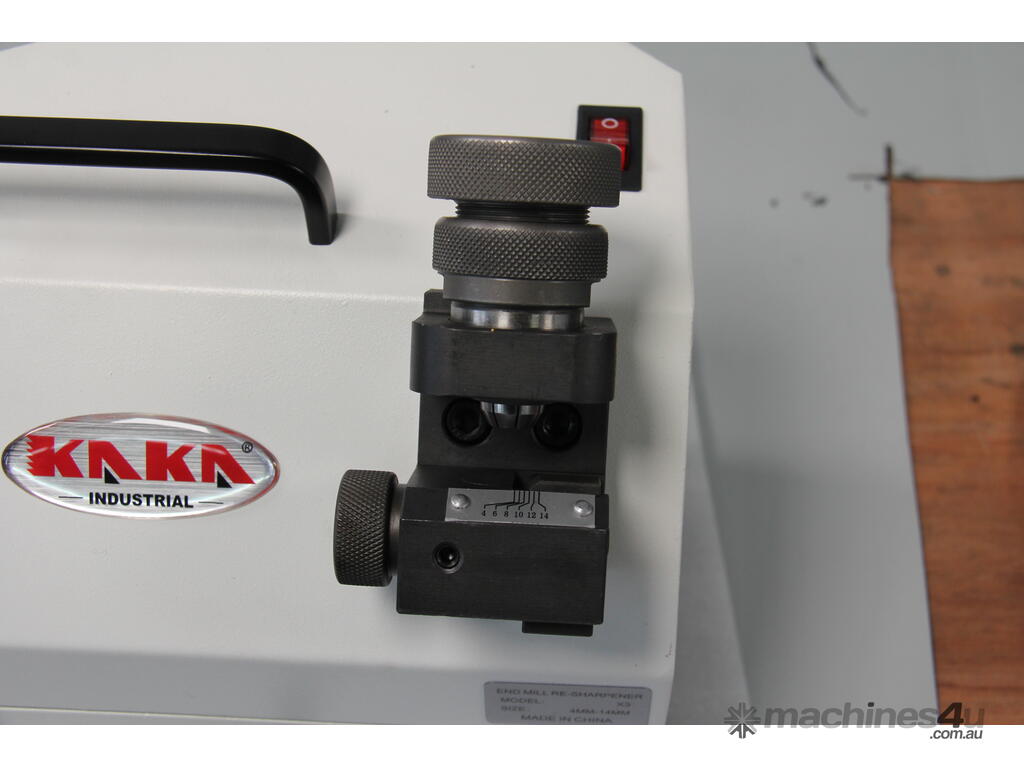

Rapid Setup & Simple Operation Tool Grinder. Quick collet indexing and easy adjustments — low learning curve for hobbyists, apprentices, or busy tradies; short tooling times boost workflow in high-turnover tool cribs.

Compact & Lightweight End Mill Re-Sharpener. Tiny footprint fits any workbench or shelf; easy to store/move in typical suburban garages, rural sheds, or job-site vans — no heavy lifting required.

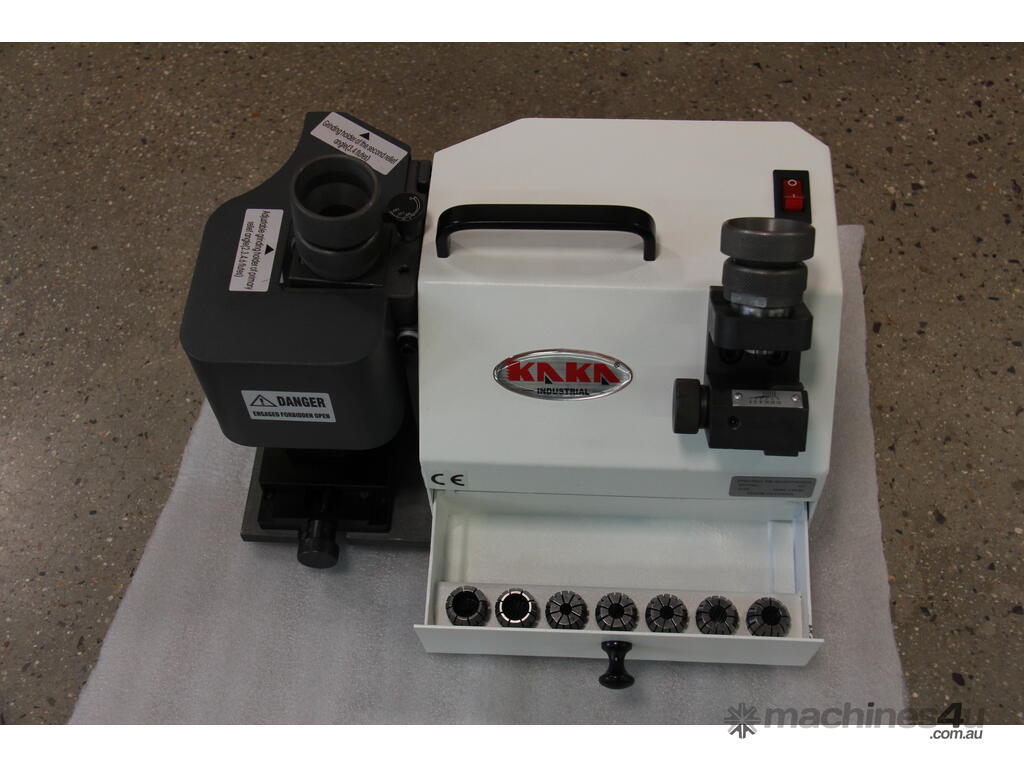

Complete Ready-to-Use Package. The sharpener comes with SDC Grinding Wheels + 6 collets, minimal extras needed to start sharpening immediately, great value for budget-conscious buyers.


Features

It runs on 240V power

A portable end mill sharpener can grind 2-flute, 3-flute, and 4-flute end mills

Grinding is accurate and rapid, easy to operate

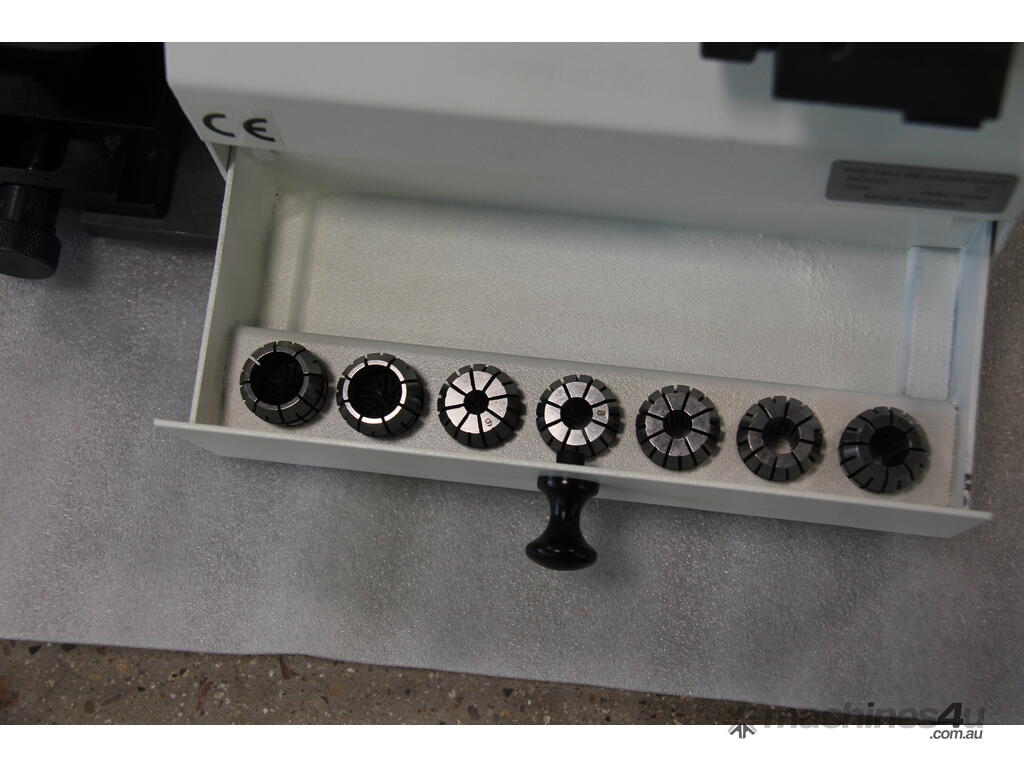

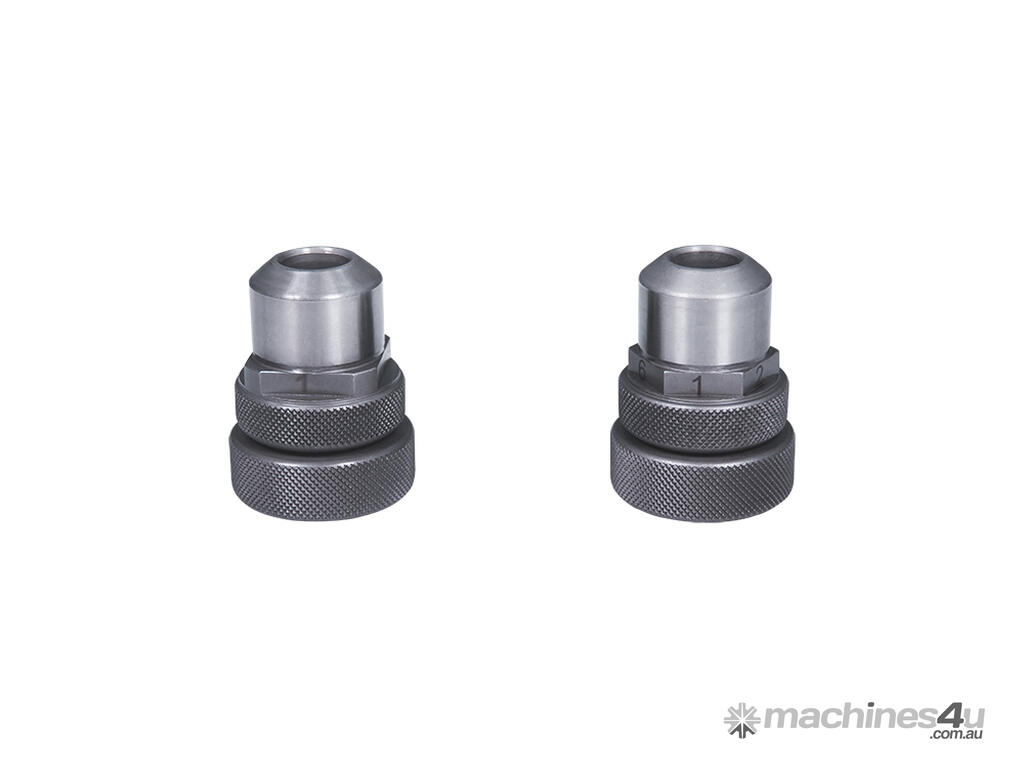

Standard with 6 pcs of collect (ø4mm, ø6mm, ø8mm, ø10mm, ø12mm, ø14mm)

Specifications

SKU 161902
Model TX-X3
Diameter ø4-ø14 mm
Input voltage 240V
Motor 160W
Speed 4400 rpm
Point angle 0°-5°
Packing size 36x26x26 cm
N.W./G.W. 22/24 kg
