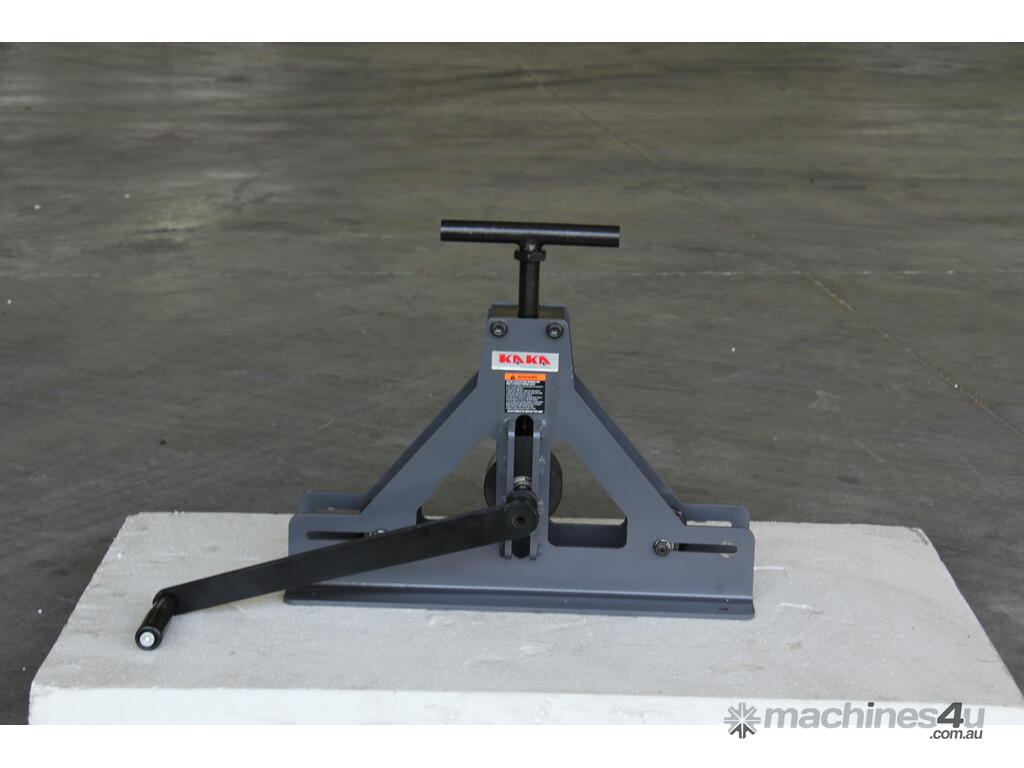

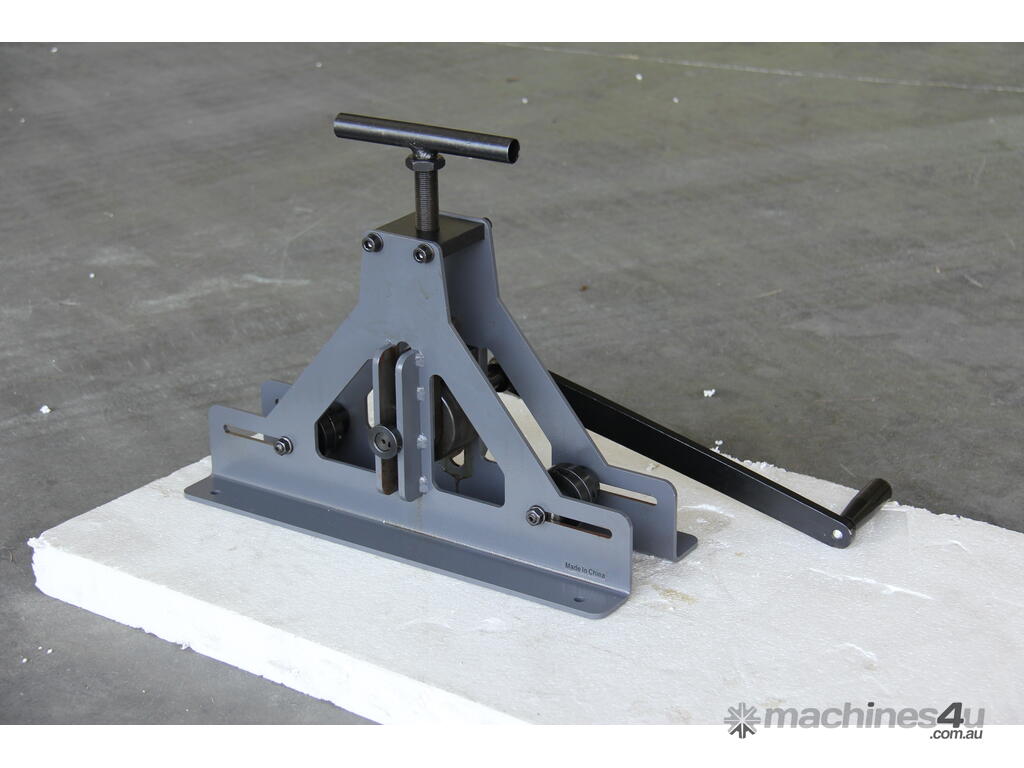

KAKA Industrial Square Tube Bender TR-40
Max. 40mm square tube roller

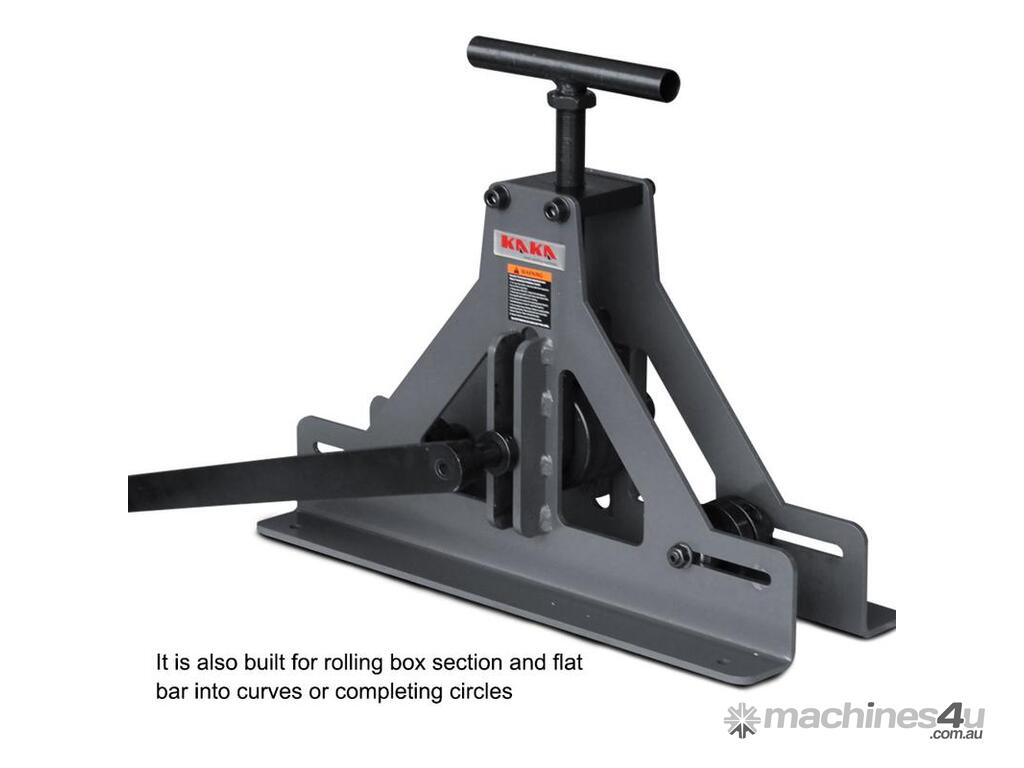

Ideal for bending flat, square, or rectangular tubes of small or large diameter.
Roll up to 6x 45 mm solids
Roll up to 40x40x1.5 mm square tube

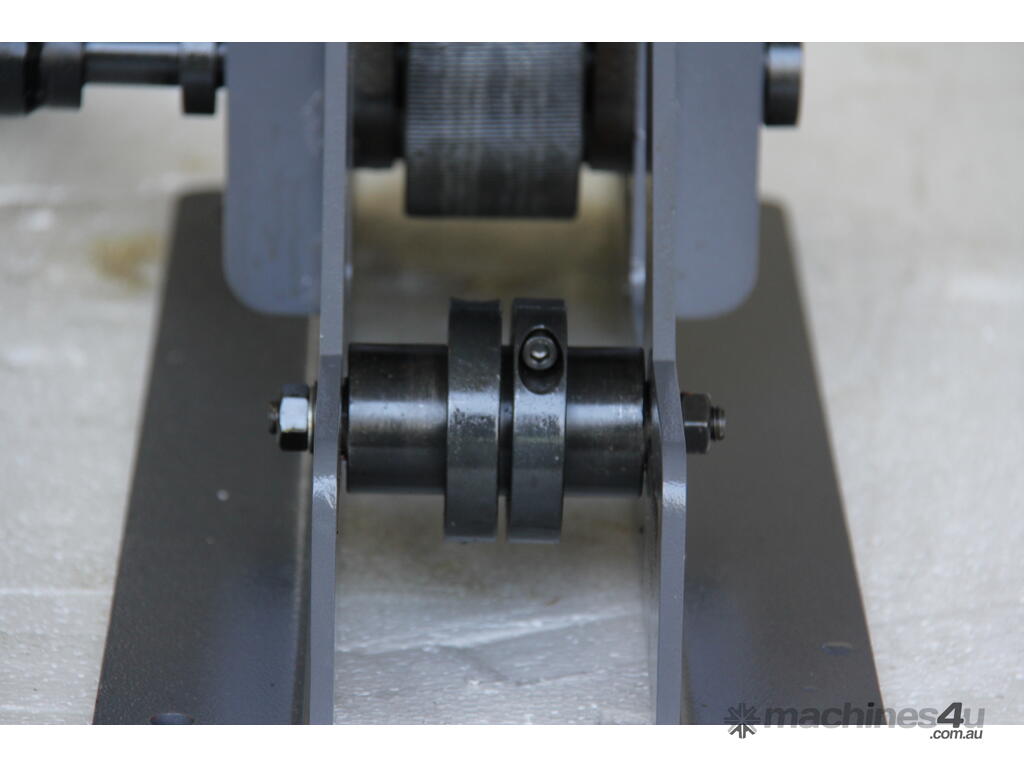

Adjustable square tube dies, from 6mm to 40 mm

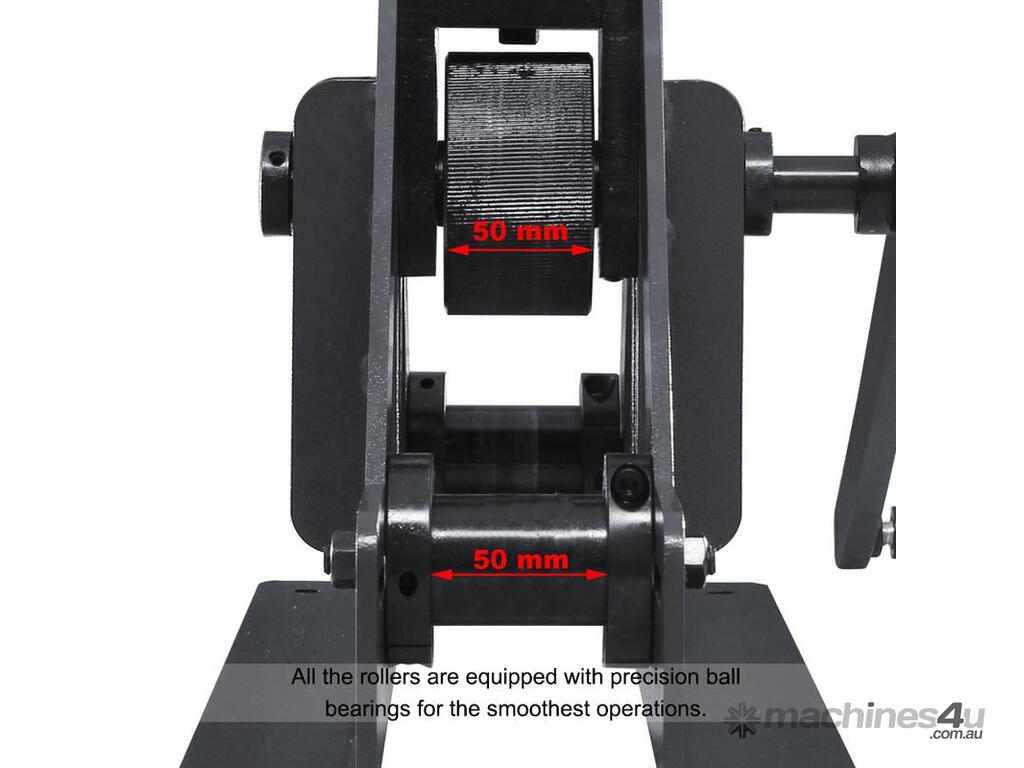

Top die rotates 1:1 ratio with the crank handle

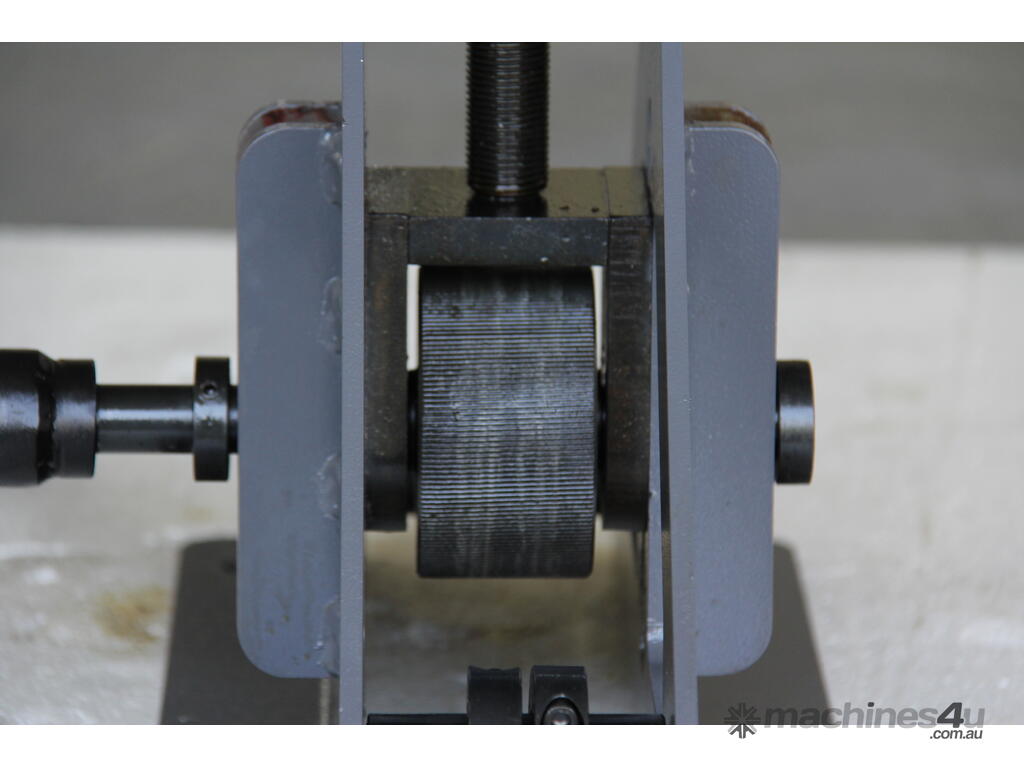

Top dies with small grooves to increase the friction during the rolling

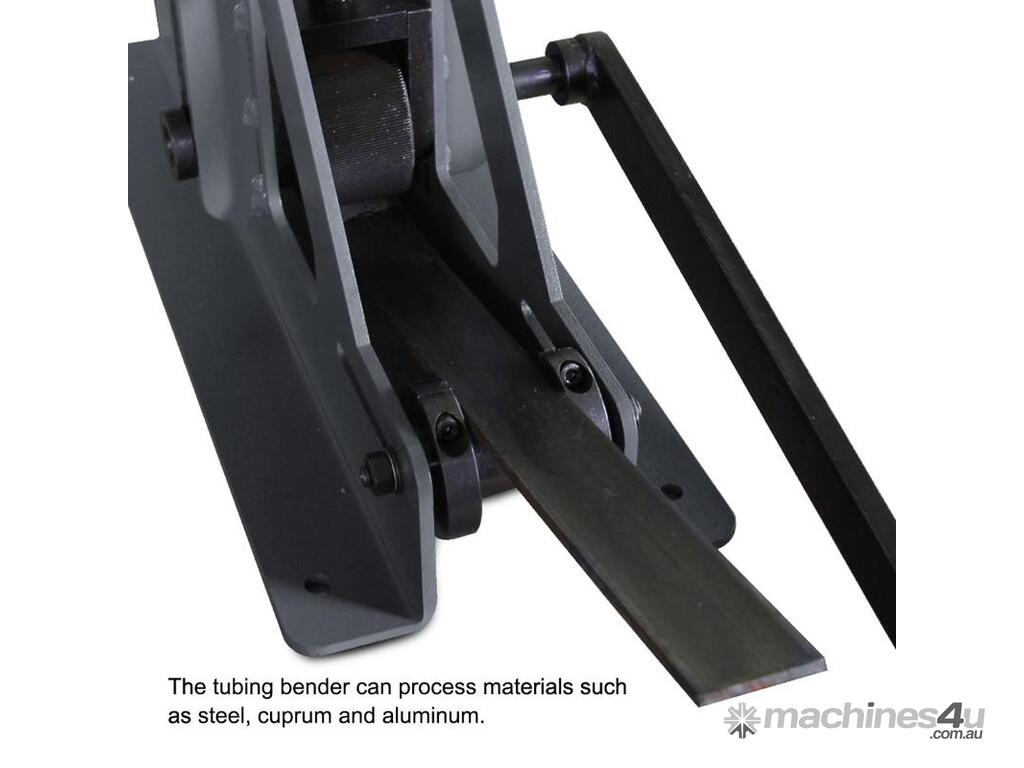

Working capacity
Mild steel 20x20x1.2 mm 25x25x1.2 mm 30x30x1.5 mm 40x40x1.5 mm
Copper 20x20x1.5 mm 25x25x1.5 mm 30x30x1.75 mm 40x40x1.75 mm
Aluminum 20x20x1.75 mm 25x25x1.75 mm 30x30x2 mm 40x40x1.75 mm
Min. length 180 mm 170 mm 200 mm 220 mm
Min. Dia. 450 mm 500 mm 550 mm 600 mm
