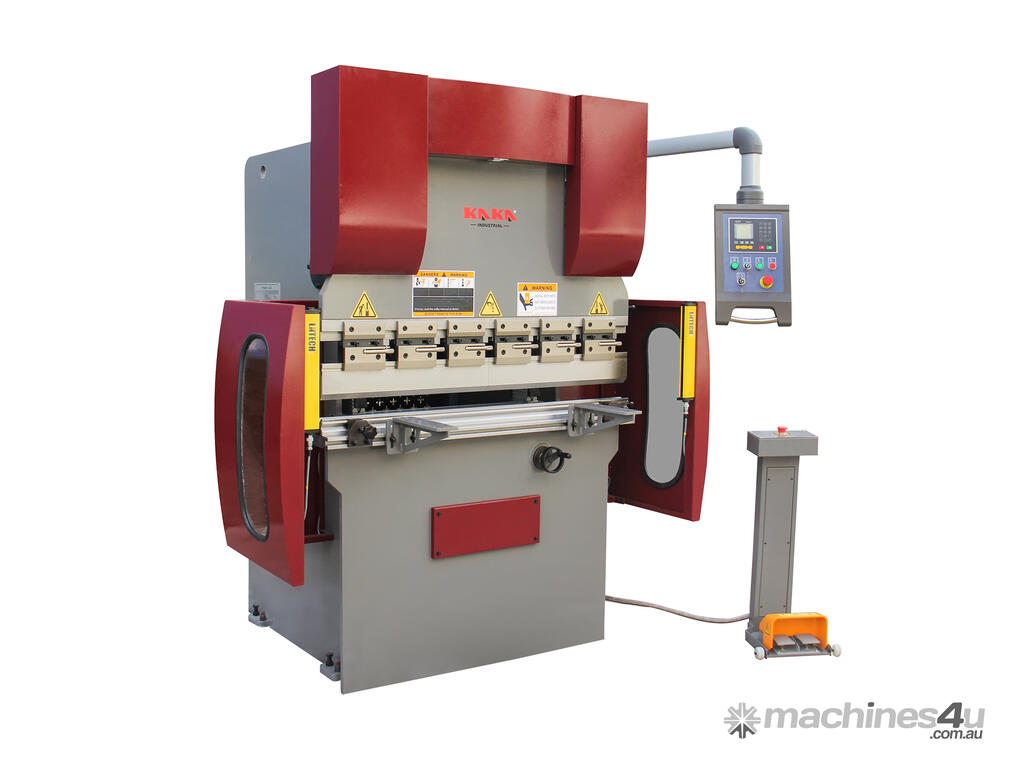

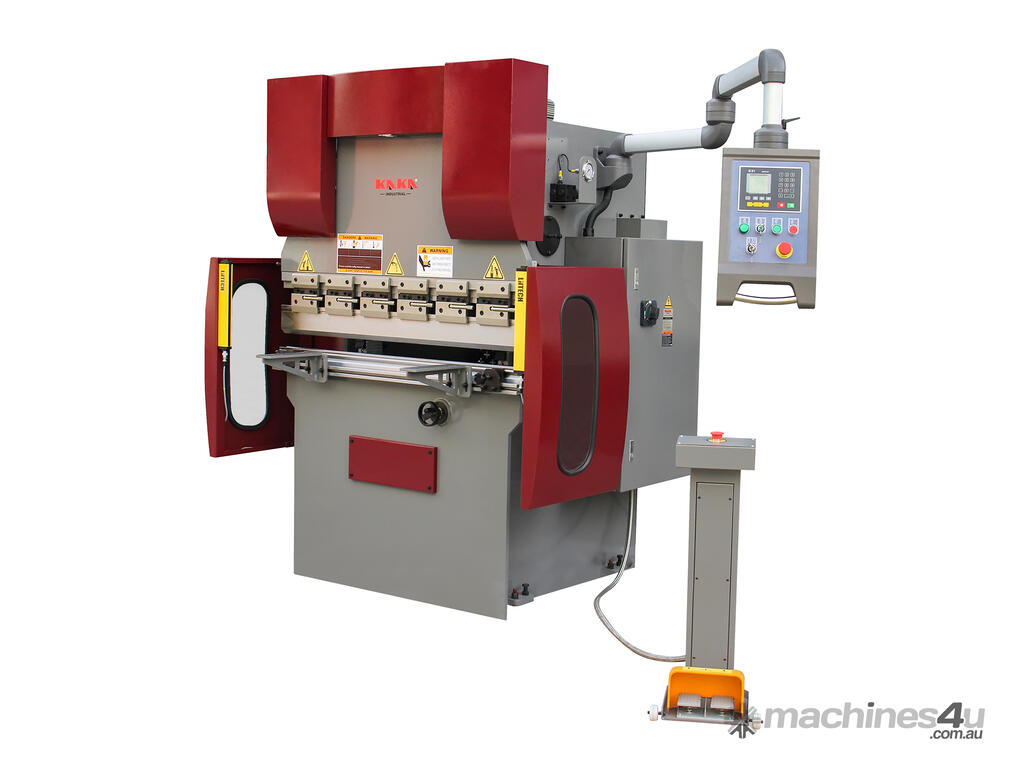

Kang Industrial Hydraulic Vertical Press Brake
E21 System NC type easy operation 2-Axis press brake, 30T Pressure, and 1300mm table width,
WC67Y-30/1300 delivers 30 Ton pressure across the full width 1300mm table

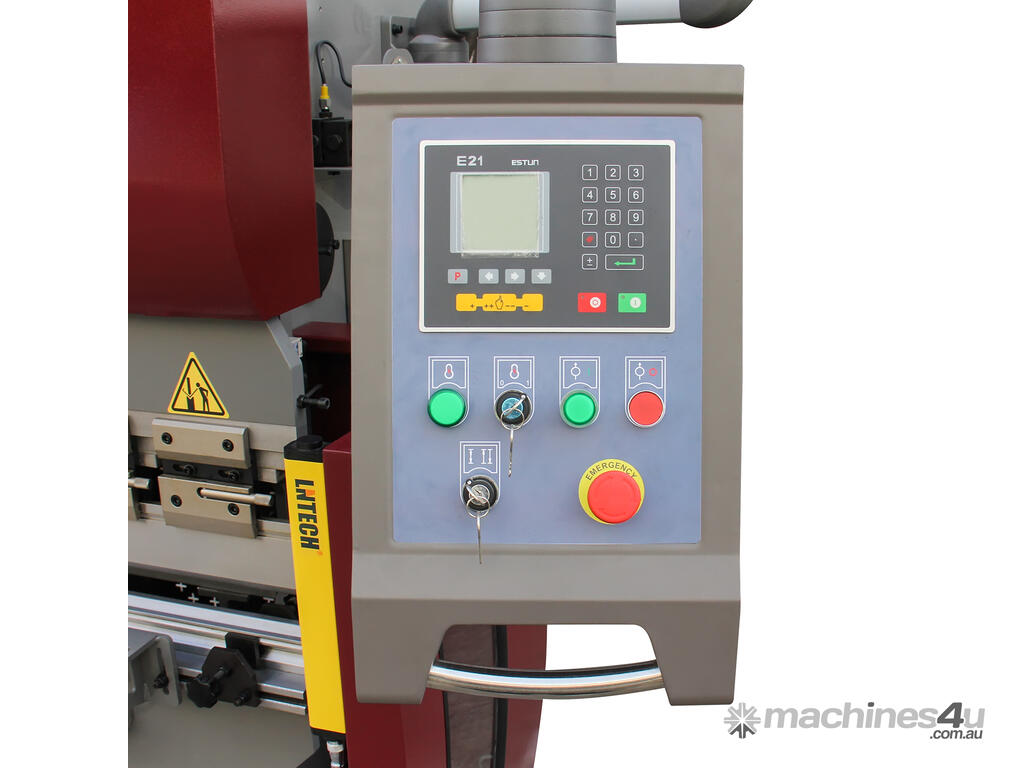

Easy to use programmable 2-axis Estun E21 controller, internal memory could hold 40 programs.
The controller will keep a piece count for large projects
Integrated safety light curtains help to prevent the accidents
The moveable foot pedal leaves your hands free to position the material
Motorized back gauge could show the position on the DRO

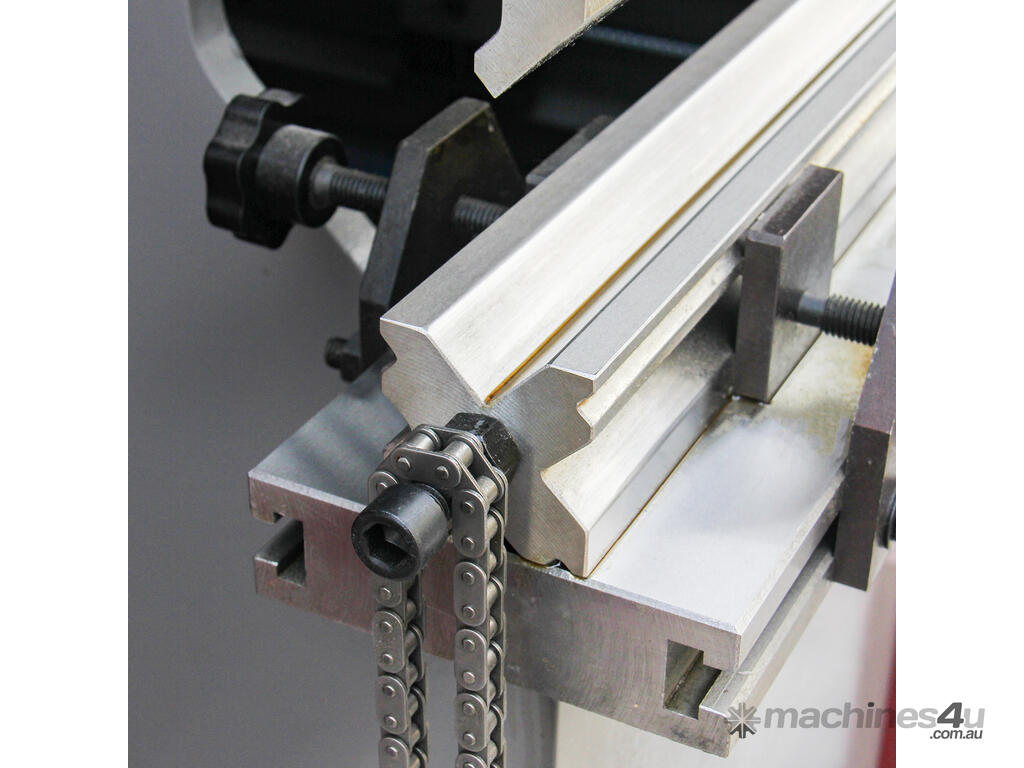

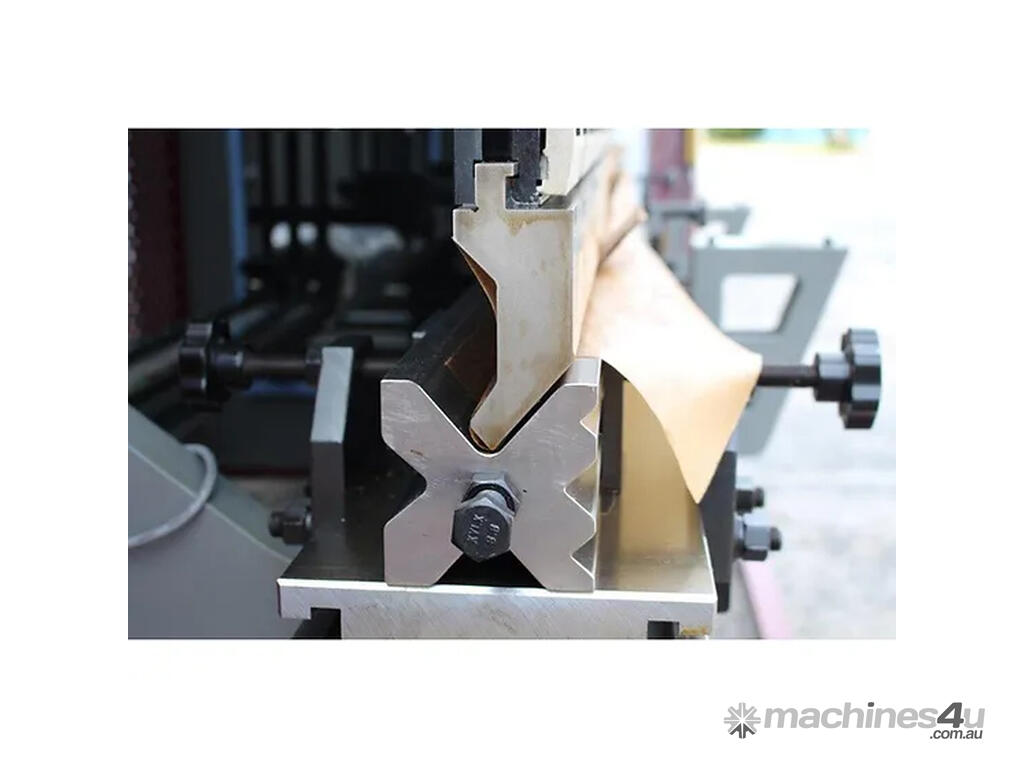

Multi V-groove bottom dies on four sides
Item No. 161201
Model WC67Y-30x1300A
Normal pressure 300 KN
Max. working length 1300 mm
Distance between uprights 940 mm
Open height 320 mm
Throat depth 190 mm
Stroke 100 mm
Worktable height 900 mm
Main motor 4
Hydraulic oil 70 L
Dimension 180x130x230 cm
Weight 2000 kg
KAKA Industrial LLC, direct distributor of metalworking machinery store. Our products include band saws, pan box brakes, shearing machines, and much more.
