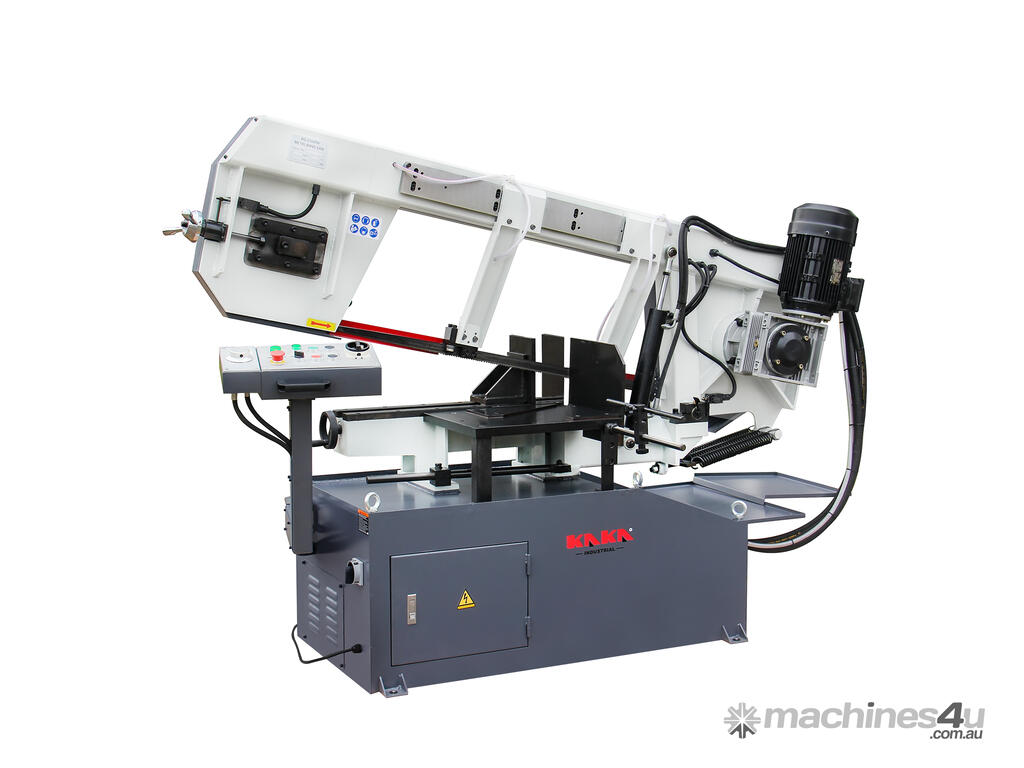

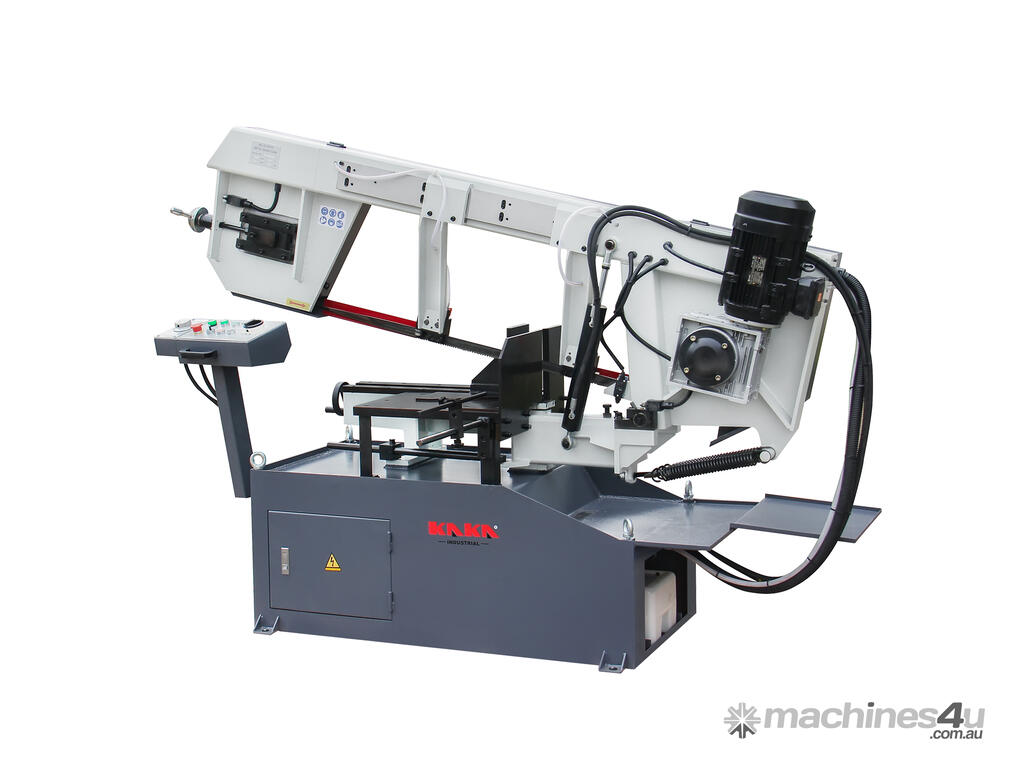

KANG Industrial BS-2114TH
Max. cut 400mm round at 90°
Features
Runs on 415V-3PH power, double-speed motor

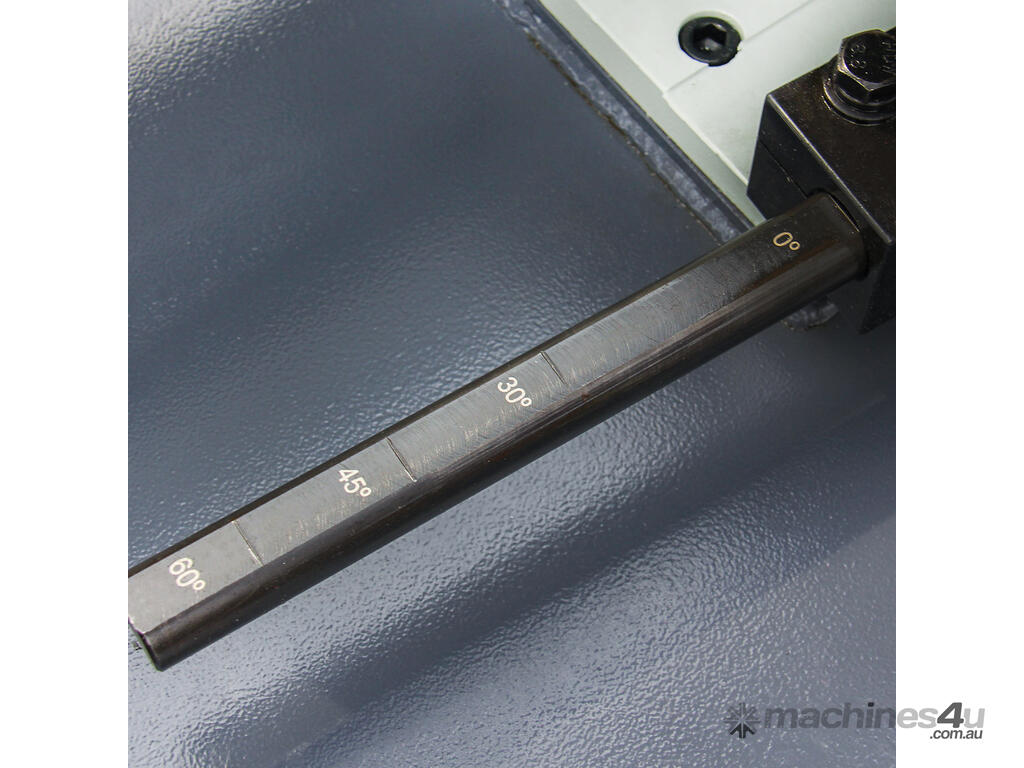

Swivel saw frame, miters up to 60°

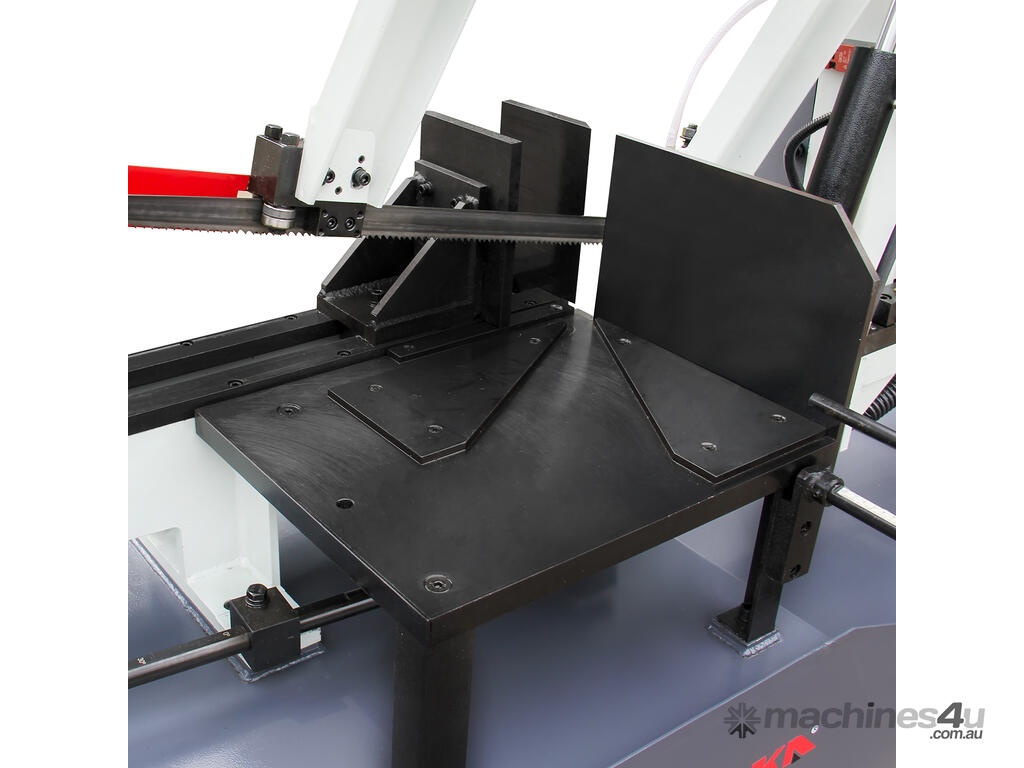

Sliding vice with quick clamp

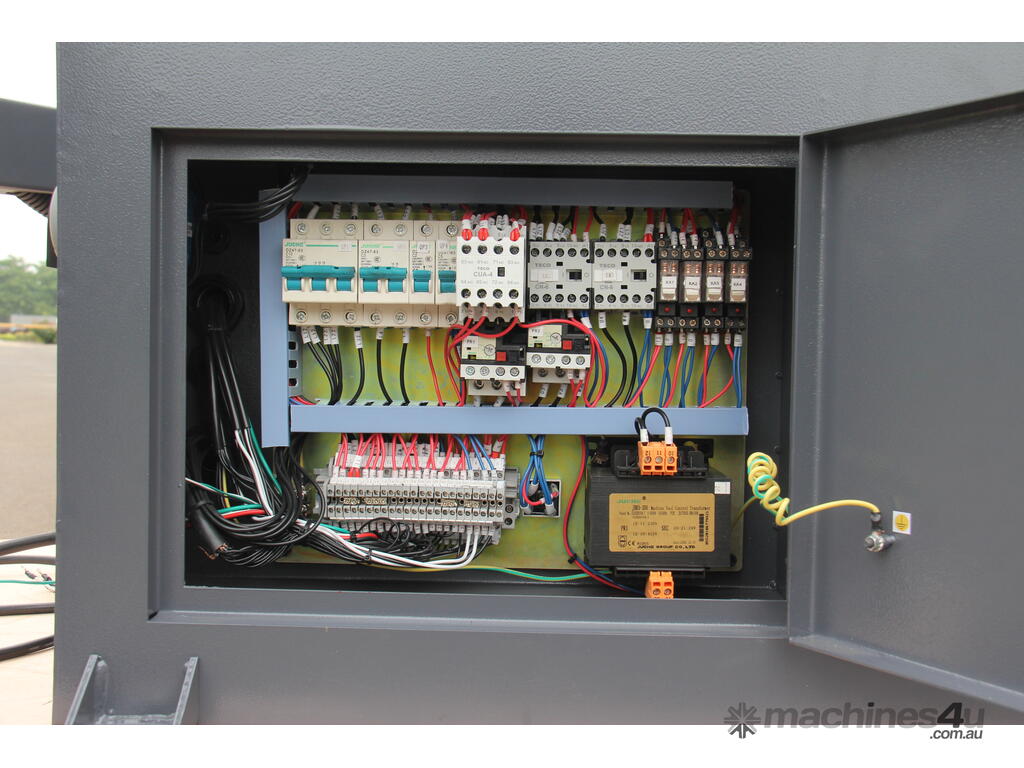

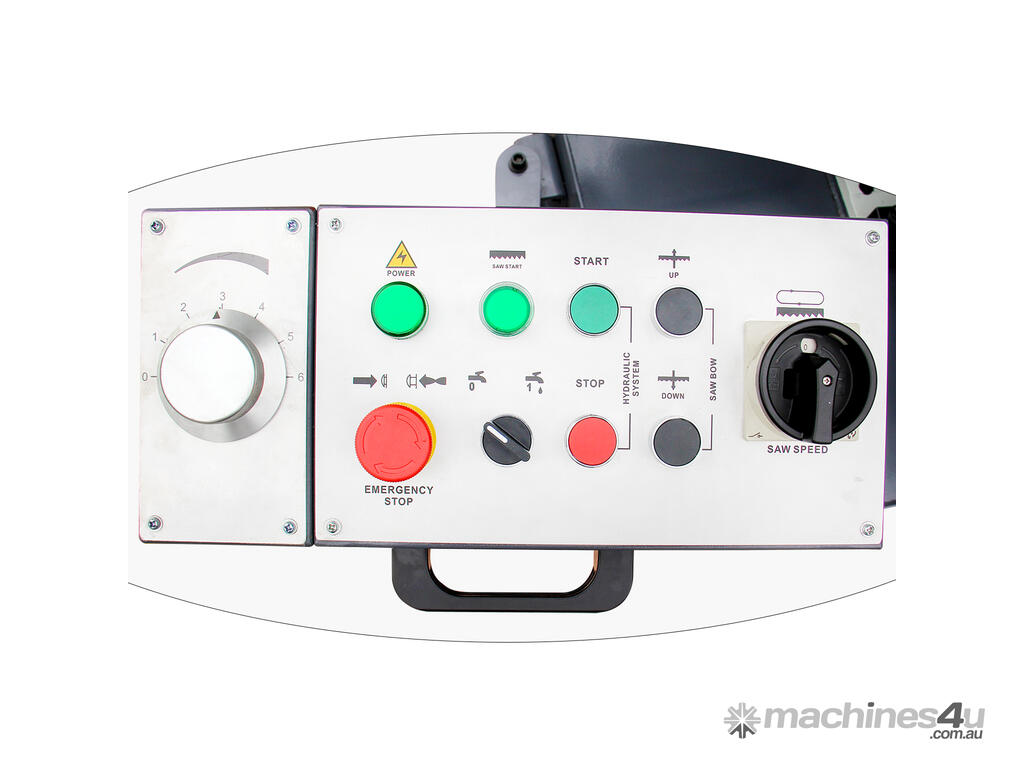

The control box is fixed on a swivel arm and is easy to operate.
2 cutting speed
Build-in coolant system extending the life of the blade

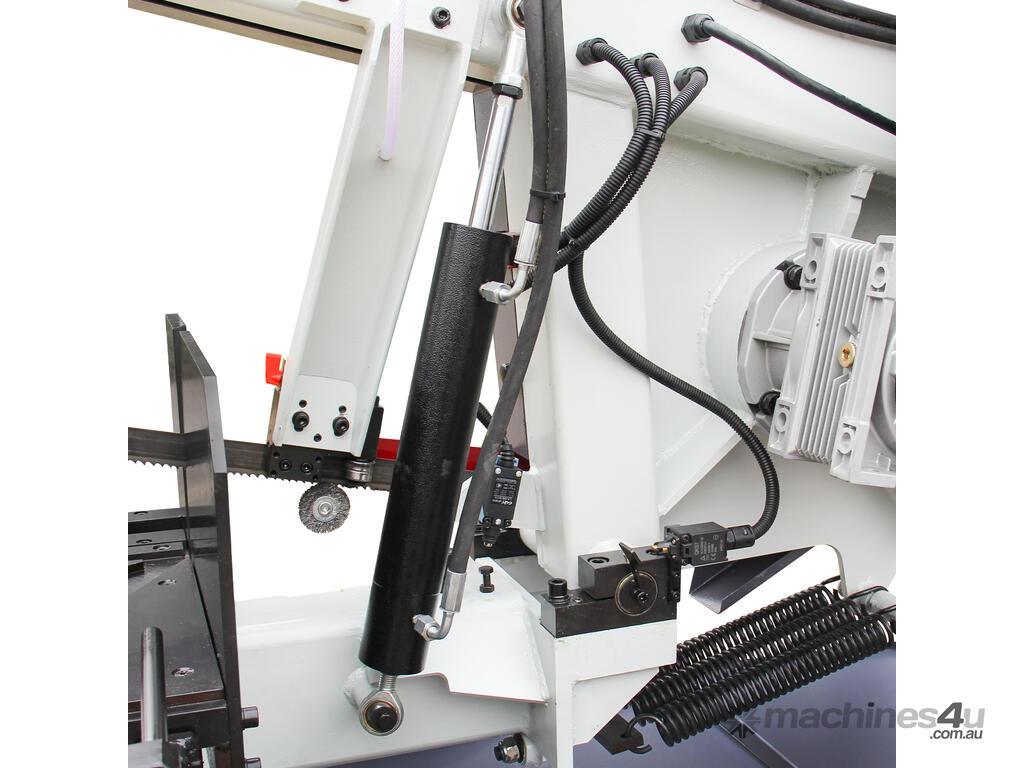

Hydraulic saw frame up and down
Specifications
SKU 188066
Model BS-2114TH
Cut circular 90° ø 400 mm
Cut rectangular 90° 500x360 mm
Cut circular 60° ø150 mm
Cut rectangular 60° 250x200 mm
Cut circular 45° ø 340 mm
Cut rectangular 45° 400x340 mm
Blade speed 48/70 MPM
Balde size 4405x34x1.1 mm
Motor power 2.2/2.8 kW
Drive Gear
Packing size 230x83x158 cm
N.W./G.W. 630/760 kg
