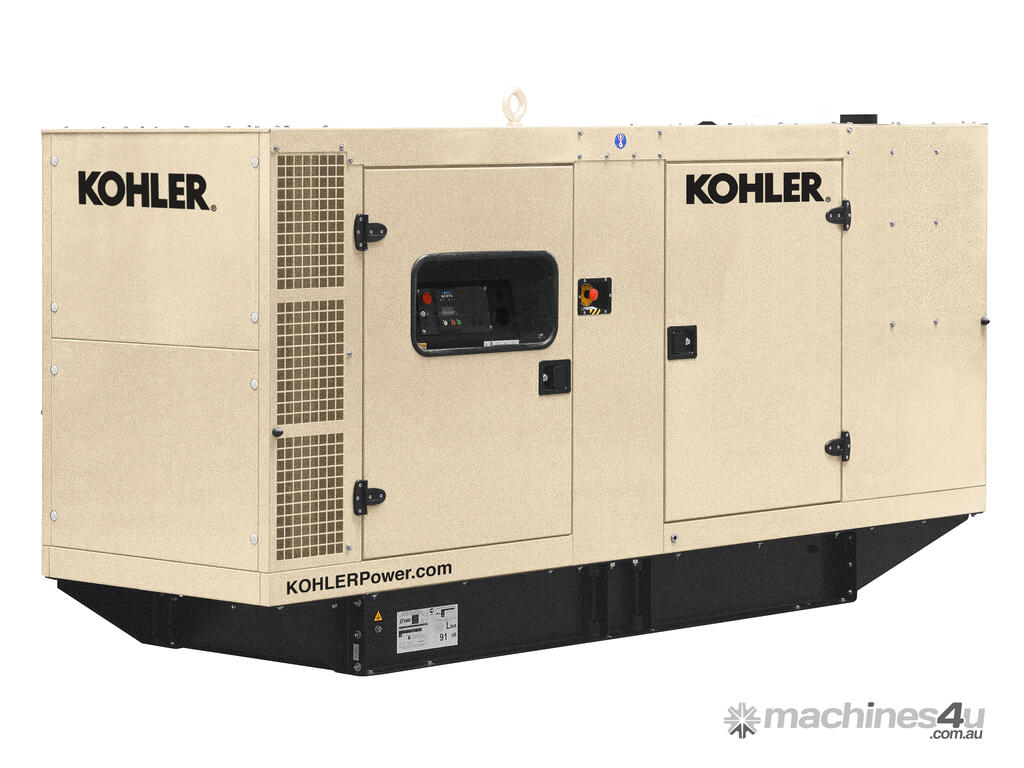

KJ250+FD02 Diesel Generator – 250 kVA Silent Performer

KJ250+FD02 Diesel Generator – 250 kVA Silent Performer
High Capacity, Long Autonomy, Built for Harsh Australian Environments

The KJ250+FD02 Diesel Generator is a powerful 250 kVA unit designed for demanding standby and prime power applications. Featuring a rugged M139 acoustic canopy and finished in RAL1014 Beige, it combines John Deere reliability with Kohler alternator performance, housed in a corrosion-resistant steel frame engineered for Australia’s toughest conditions.

Key Specifications
• Max Power Output: 250.0 kVA
• Voltage: 415/240 V (Three Phase)
• Frequency: 50 Hz
• Control Panel: APM403 with auto-start prewiring
• Fuel Tank Capacity: 868L (extended autonomy)
• Max Current: 368.0 A
• Engine Type: John Deere 6068HFS55-228, water-cooled diesel
• Alternator: KH01221T, single bearing, IP23
• Governor Type: Electronic
• Aux Voltage: 12V DC

Built Tough for Australia
• RAL1014 Beige Canopy – Silent Version IV_F for noise compliance with 2000/14/CE standards
• Heavy-Duty Steel Frame – Welded base with 85% vibration attenuation and forklift-friendly design
• QUALICOAT Epoxy Paint – Enhanced corrosion resistance, tested by the French Corrosion Institute
• IP64 Stainless Locks – Secure and weather-resistant enclosure
• Centre Point Lift – Integrated lifting bar included

Sustainability & Emissions
• Fluids secondary containment bund included
• Retention bund alarm for spill protection
• Enclosure and base frame tested for corrosion resistance
• 100% of tanks tested for permeability
• ISO 8528-13 heat hand protection compliance

Standard Features
• Emergency stop button
• Fuel level gauge with display
• Flexible fuel lines & oil drain cock
• Delivered with oil & antifreeze
• User manuals (paper & USB)
• Schneider or ABB circuit breaker
• Charged DC starting battery
• Oil pressure & coolant temperature gauges
• Drip-proof alternator with analog voltage regulator

Optional Upgrades
• Remote Management – RTU Modbus over RS485
• AUTO Pack – Battery charger + engine resistor
• REPORT Pack – Status alarms, sound alerts, and fuel level monitoring
• Advanced Monitoring – Integrated current transformers for power and current display
• Circuit Breaker – 400 A 4P compact option
• Audible Alarm – Panel-mounted with remote fault contacts

Rehlko Engineering Advantages
• Optimised sound levels certified by CETIM
• Extended fuel autonomy for remote operations
• Compact footprint with high power density
• Total system integration for seamless operation

Looking for a generator that delivers high output, long runtime, and peace of mind?
The KJ250+FD02 is ideal for mining, infrastructure, and remote installations where performance and reliability are non-negotiable.
