KOHLER J250+FD02 Diesel Generator – 250 kVA Silent Performer
250 kVA Standby and 227 kVA Prime Power
The Kohler J250 plus FD02 industrial diesel generator is a powerful and reliable solution for large scale standby and prime power applications. Supplied and supported by Clarke Energy, this generator delivers the quality and performance expected from the Kohler brand, combined with proven John Deere engine technology and strong local support.
Designed for demanding commercial and industrial environments, the J250 provides stable output, high load handling capability, and extended run time through the integrated FD02 fuel system. Its robust silent canopy and heavy duty construction make it well suited for continuous site installation.
Power ratings at 415 240 V, 50 Hz:
Standby rating ESP
250 kVA 200 kWe
348 A
Prime rating PRP
227 kVA 182 kWe
328 A
Typical applications include:
• Hospitals and healthcare facilities
• Data centres and critical infrastructure
• Industrial plants and manufacturing sites
• Mining, resources, and remote operations
• Large commercial buildings
• Construction and temporary high load power
Key specifications and features:

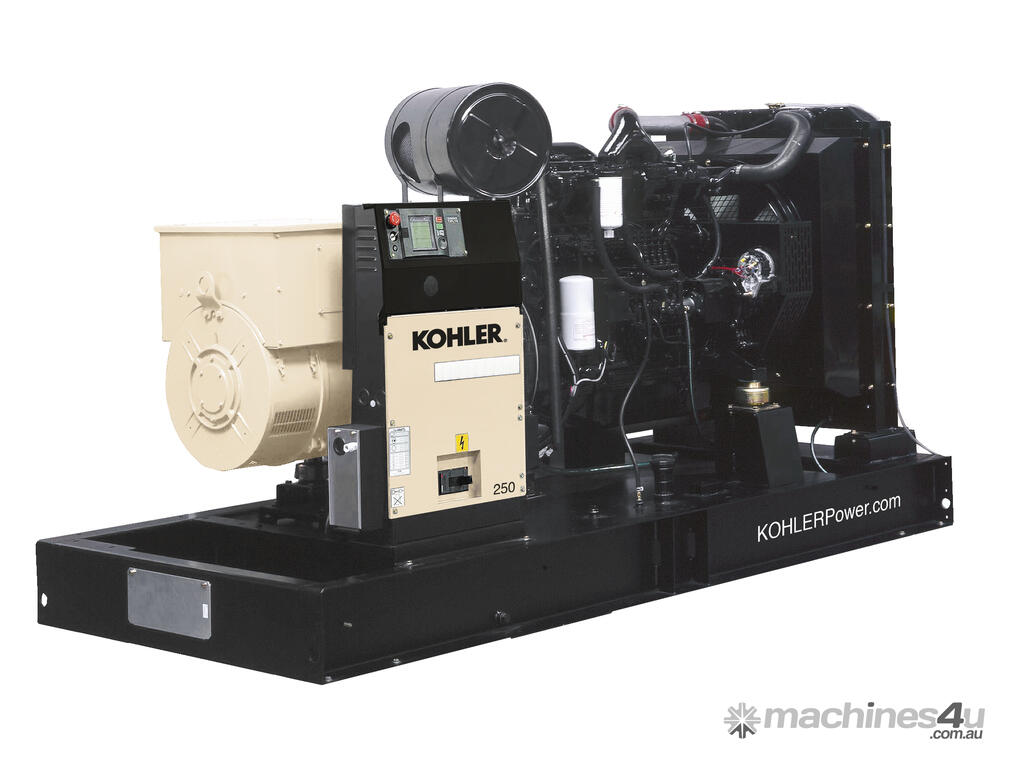

• John Deere 6068HFS55 industrial water cooled diesel engine
• Electronic governor for precise speed control and load response
• Kohler alternator KH01221T with Class H insulation and IP23 protection

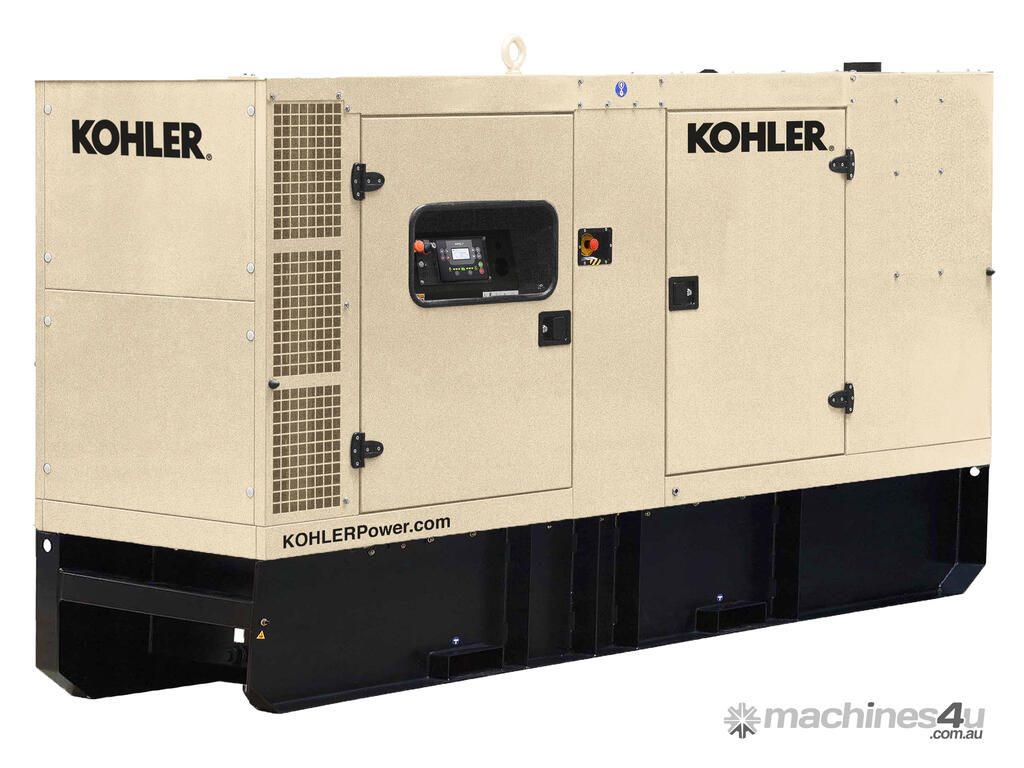

• Silent canopy manufactured from corrosion resistant European steel
• QUALICOAT certified epoxy paint finish in RAL1014 beige
• Integrated 868 L fuel tank with FD02 extended autonomy system
• FD02 fuel containment with secondary bund, drain plug, and retention bund alarm

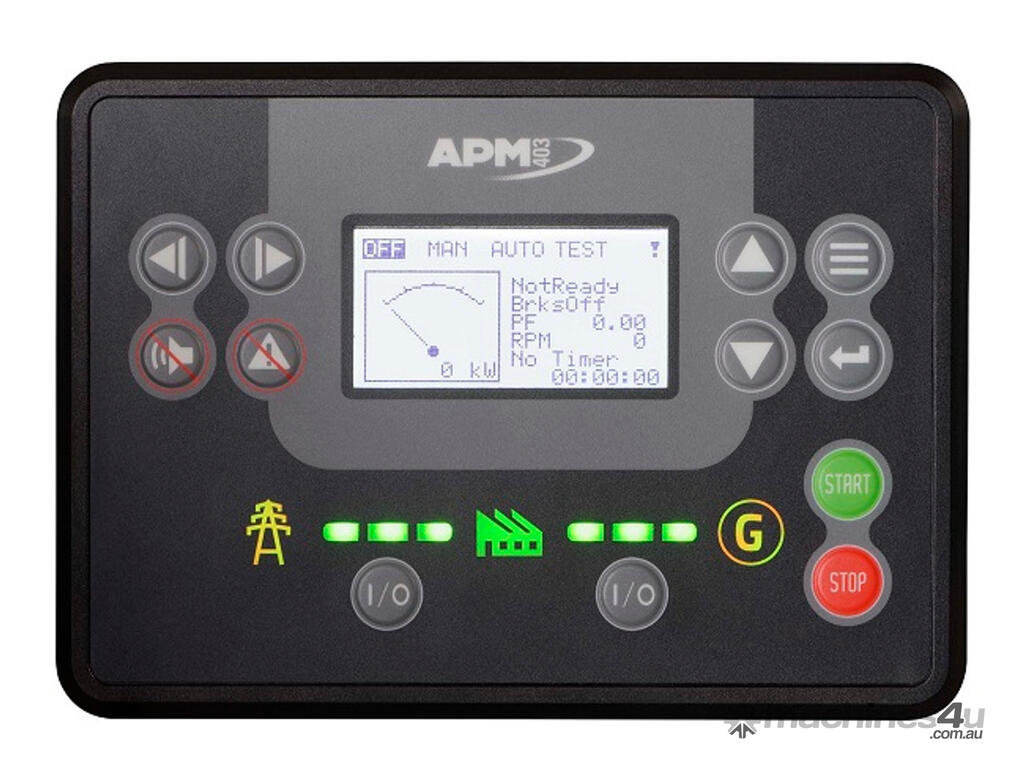

• APM403 control panel with full engine and electrical monitoring and protection
• Auto start prewiring with battery charger and engine preheating
• Schneider or ABB 400 A four pole circuit breaker
• Heavy duty welded steel base frame with vibration isolation mounts
• Central lifting point with integrated lifting bar and forklift friendly design
• External emergency stop button and stainless steel IP64 locking system
• Supplied filled with oil and antifreeze and complete with user manuals
Backed by Clarke Energy as the authorised Kohler distributor, the J250 plus FD02 offers a high quality, long run generator solution with dependable performance and nationwide service support.
Contact us for pricing, availability, ATS options, or installation and commissioning assistance.
