KOHLER - R220RC-1 Diesel Generator – 220 kVA

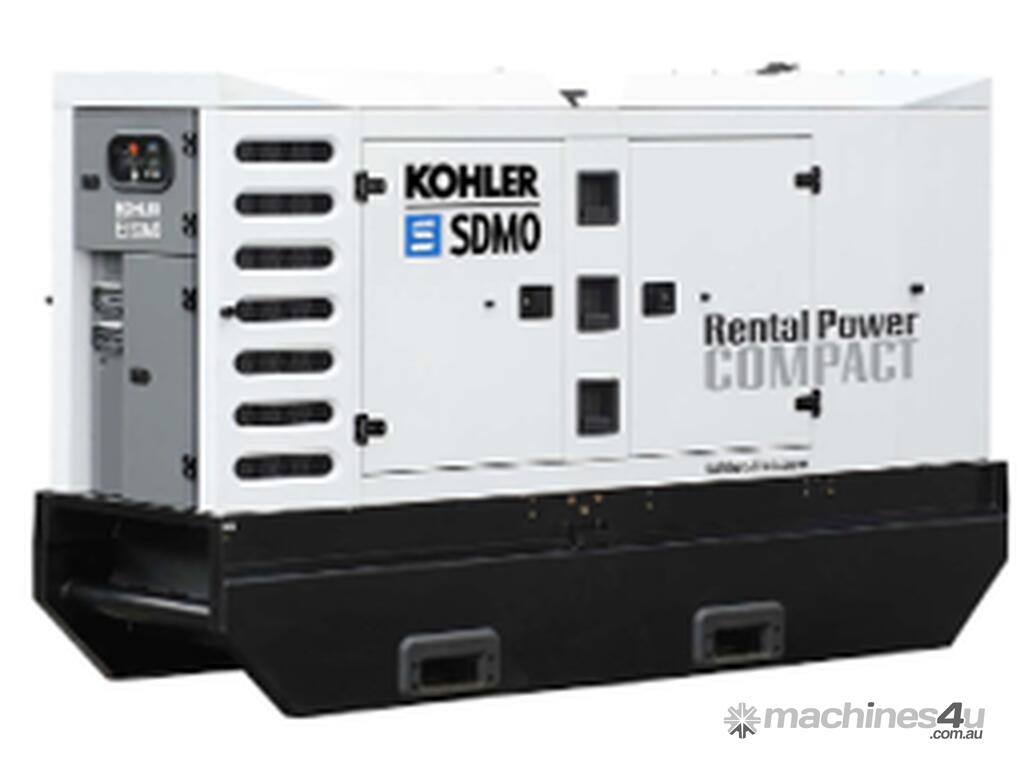

KOHLER R220RC-1 Diesel Generator

The R220RC-1 is a robust, rental-ready diesel generator designed for demanding industrial and commercial applications. Powered by a Stage IIIA-compliant John Deere engine, it delivers reliable performance with low noise emissions and extended autonomy.

Specifications
• Engine: John Deere 6068HFG82, 6-cylinder, turbocharged, 6.72L displacement
• Alternator: KH01220T, brushless, AVR-regulated, IP23 protection
• Control Panel: APM303 with manual/auto modes, Modbus RTU, and event logging
• Power Output: 220 kVA standby / 176 kW prime
• Voltage: 400/230V, 3-phase
• Frequency: 50 Hz
• Fuel Tank: 377L standard (24.6 hrs 100% load), 860L optional (35.1 hrs 75% load)
• Noise Level: 68 dBA 7m, 79 dBA 1m
• Dimensions: 3520 x 1190 x 2120 mm
• Weight: 2786 kg (large tank version)

Features
• Heavy-duty air filter with obstruction indicator
• Reinforced alternator protection
• Double-walled base frame with 110% fluid retention
• Forklift pockets, lifting eye, and shock-absorbing bumpers
• Oil drainage pump and radiator access door for easy maintenance
• Optional 3-way fuel valve and quick-connect fittings

Performance & Efficiency
• Fuel Consumption: 46 L/h 100% load, 37.6 L/h 75% load
• Cooling System: 27.6L capacity with 10 kW fan
• Emissions: PM: 0.10 g/kWh, CO: 1.15 g/kWh, HC+NOx: 3.68 g/kWh

Safety & Compliance
• Stage IIIA emissions compliant
• ISO 8528 certified
• Overspeed, oil pressure, coolant temp, voltage & frequency protections
• Emergency stop and battery isolator included

Applications
• Construction & mining sites
• Events & temporary power
• Industrial backup
• Utilities & infrastructure
