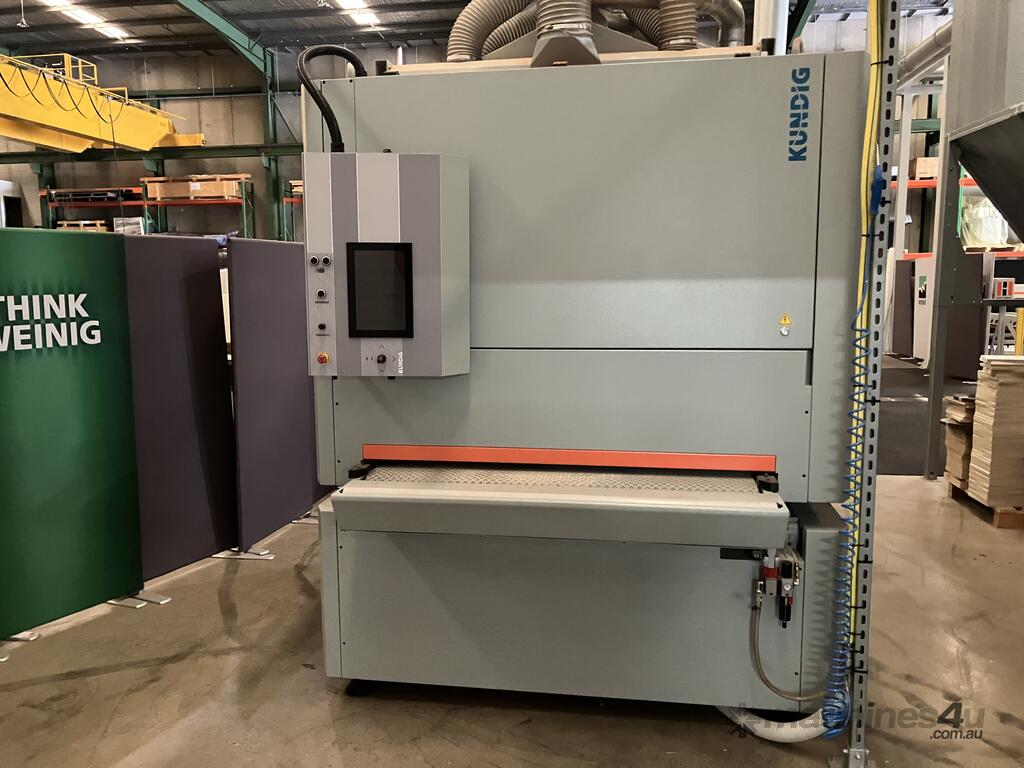

KUNDIG Brilliant Sander

Our Brilliant series of wide belt sanders are often found in joineries, interior fitting companies and the like. They offer the same features as the Premium series does, but contain at least one unit with our patented oblique sanding technology. Simply put, Kündig's exclusive oblique sanding technology does what experienced wood workers do instinctively: Through pivoting of the sanding unit, the sanding grit's cutting ability and belt life improves and undesirable sanding traces, that are so typical for almost all wide belt sanders, don't show on the work piece.

When sanding conventionally with oscillation, belt errors (grit outbreaks, belt wear marks) are running parallel to the conveyor direction along the workpiece. This leaves the operator with a very common problem: Oscillation traces. With the oblique sanding technology, these inevitable belt errors run slightly diagonally to the conveyor direction, thus the undesirable effect is evenly spread on the workpiece surface and has no visible impact on it anymore. This makes for much more homogeneous surfaces. In addition, raised wood fibers are being cut off much more efficiently thanks to the shearing cut effect.

The Advantages of Oblique Sanding

Absolutely homogeneous surfaces
No oscillation traces
No raised fibers
Significant reduction of scratches on cross grain workpieces
Reduction of sanding belt consumption of up to 35%
Less lacquer consumption due to less raised fibers
Greatly improved surface quality
Easy handling

Better surfaces, demonstrably
According to actual users, the oblique sanding technology is especially good for lacquer sanding. But it's also great to use on cross-grain surfaces.

In real life use, the improved cutting ability allows for smaller grit sanding belts. When sanding with an oblique unit, sanding traces on the workpiece cancel each other with every rotation of the belt and become pretty much invisible to the human eye.

These are scientifically sound facts: When Dr.-Ing. Ingrid Fuchs from the Wood Technology Institute in Dresden did Tests on surface roughness, she found: "The fact that roughness values are smaller when using the oblique sanding technology as opposed to the classic parallel sanding technology is clearly visible."

Easy handling
All operations and adjustments are easily attainable - depending on preference, Kündig Machines can be operated fully automatically, with custom automated sanding programmes, or manually, by adjusting all relevant parameters on the go. The user interface is very intuitive and motivates each user to explore advanced options and features and therefor using these precision sanders to their full potential without hesitation. Built in safety measures eliminate the risk of major accidental operating errors. Kündig sanders are well known and appreciated for their easy handling.

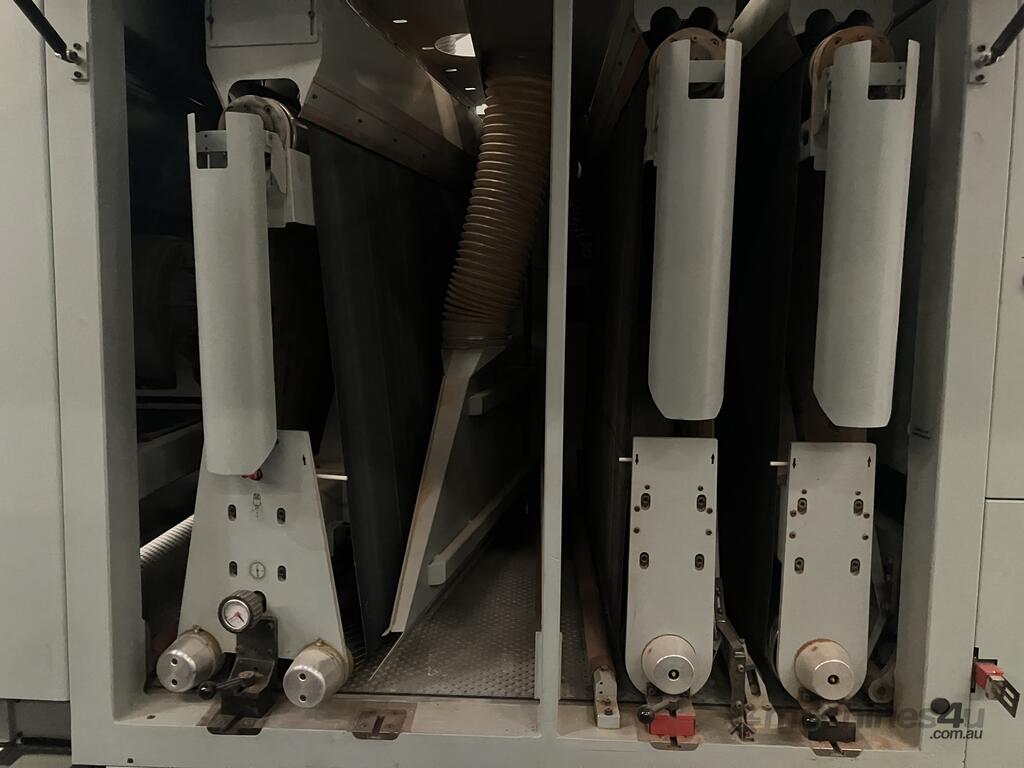

Oblique sanding units

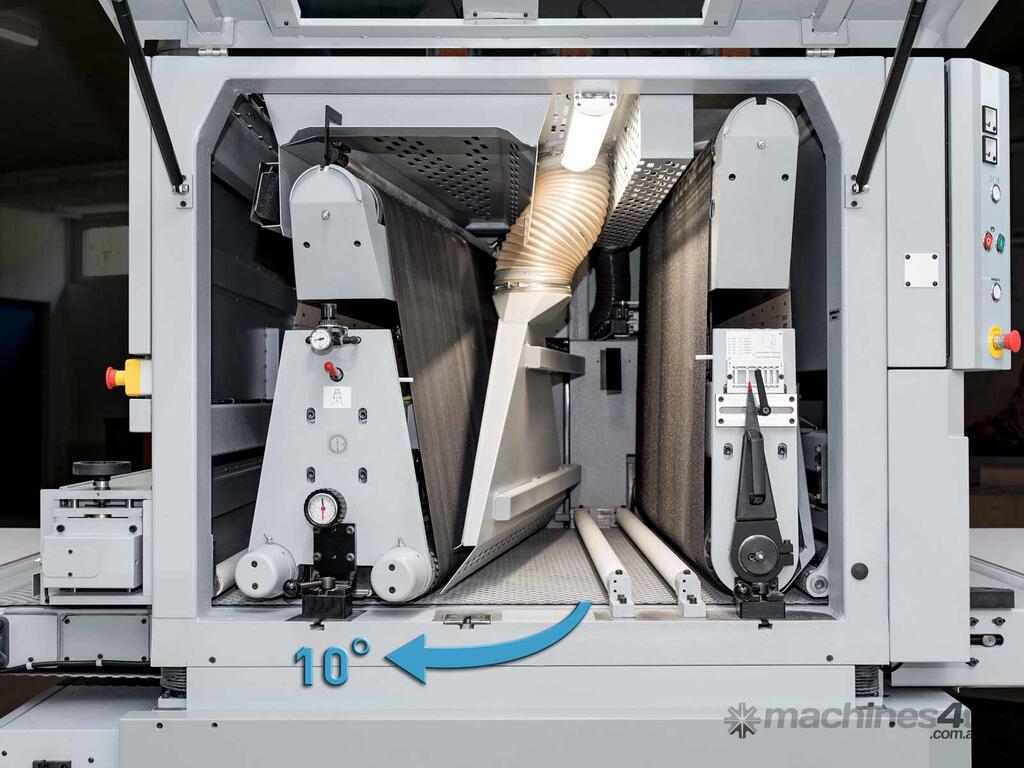

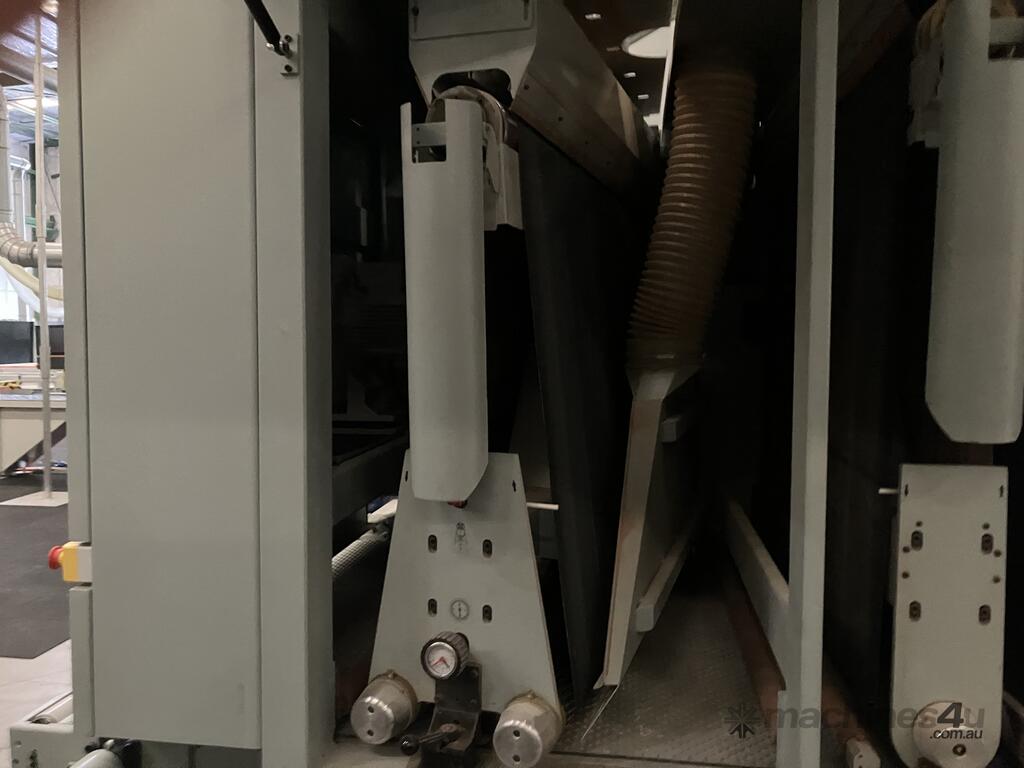

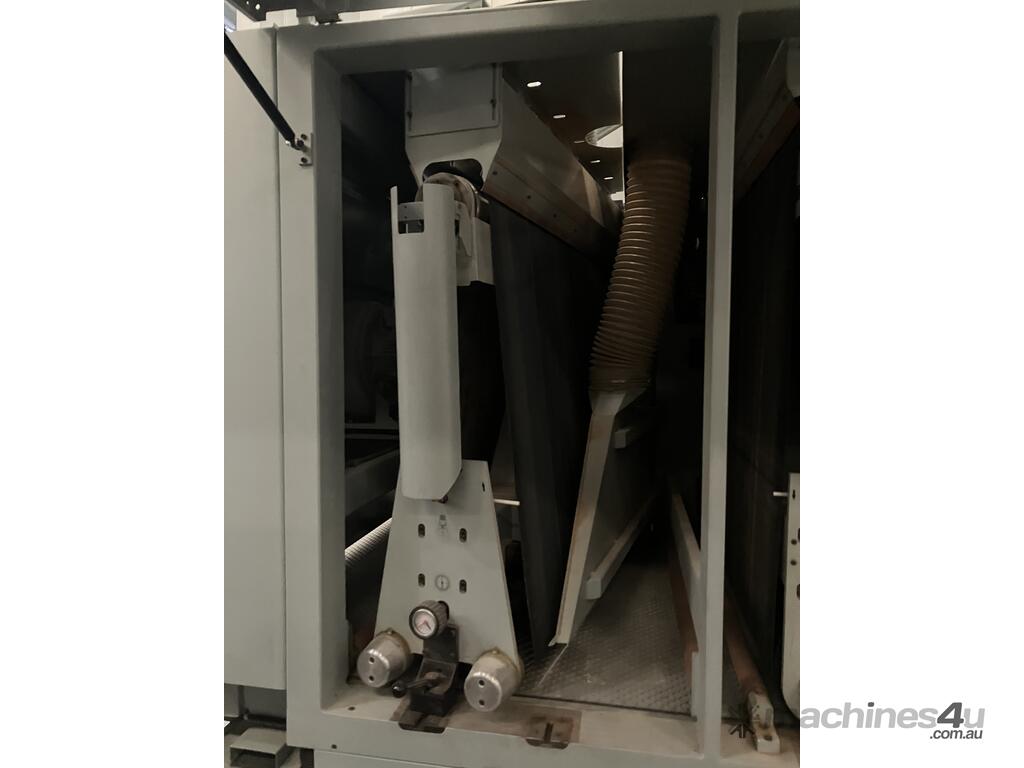

Kündig Brilliant sanders have at least one oblique sanding unit. With traditional, parallel sanding units, even after short use, sanding belts show small damages, grit outbreaks and irregularities due to wear and clogging. These imperfections negatively affect the sanding image, particularly on delicate surfaces like lacquer or veneer. This inherent flaw of the parallel sanding process can be avoided by pivoting the sanding unit by 10°. Further advantages are absence of oscillation marks, extended life of sanding belt due to this error tolerant procedure and significantly better sanding quality. For lacquer and veneer applications this technology is ground-breaking, but its great advantages are also very visible in window production or fine solid timber work.

Oblique sanding units are available as calibration rollers, pneumatic pads, electronically controlled segmented pads and combined solutions and offer the usual durability and reliability of Kündig products. They can be combined with our high gloss cross-belt unit and all the available dust removing devices.

Calibration Roller Rd
Calibration Roller oblique

Calibration Roller Gd
Large Calibration Roller oblique

Combined Unit Kd/Cd
Kd ?= ?Pneumatic,
Cd? =? Segmented, electronically controlled

Sanding Pad Pd
Sanding Pad Brilliant oblique pneumatic

Sanding Pad Ed
Sanding Pad Brilliant oblique segmented

Working Widths
1100mm 1350mm 1600mm 1900mm 2200mm Other working widths on request

Overview Unit Options
Cross Belt H/X
Cross-Belt standard
H?=?High Gloss Unit downstream
X?=?Cross Belt Unit upstream or in between

Carousel Brush Bk
Carousel Brush Unit
Sanding Discs with eccentric Oscillation

Brush Roller Bs
Brush Roller for Sanding

Brush Roller Bst
Brush Roller for Structuring

Brush Roller Bsb
Brush Roller with 3M Scotchbrite

Planer Unit F

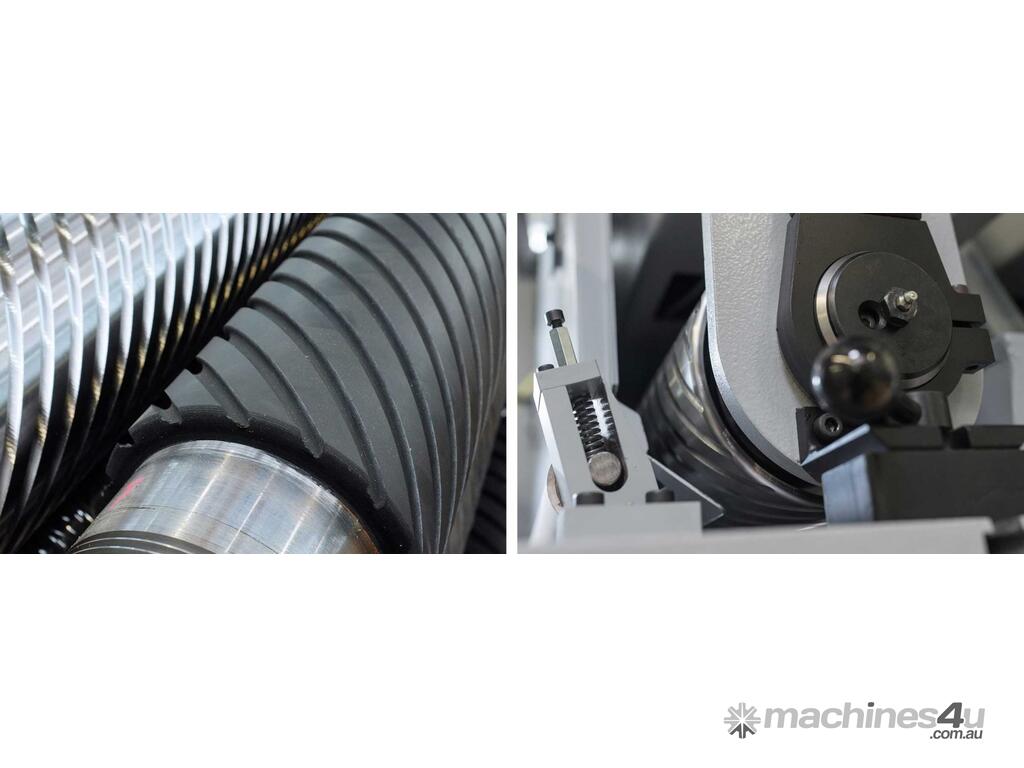

Planer Unit available with different cutters

Sanding pads
Pneumatic pad
Well proven sanding pad technology, especially for solid timber processing. A continuous air cell provides even pressure on the workpiece.

Segmented pad
The segmented pad is divided in segments either 35 or 22 mm wide. These segments are computer controlled and preferences can easily and thoroughly be adjusted by the operator. The electronically controlled, segmented pad is especially useful for taking care of those delicate workpiece edges on lacquered or veneered parts.

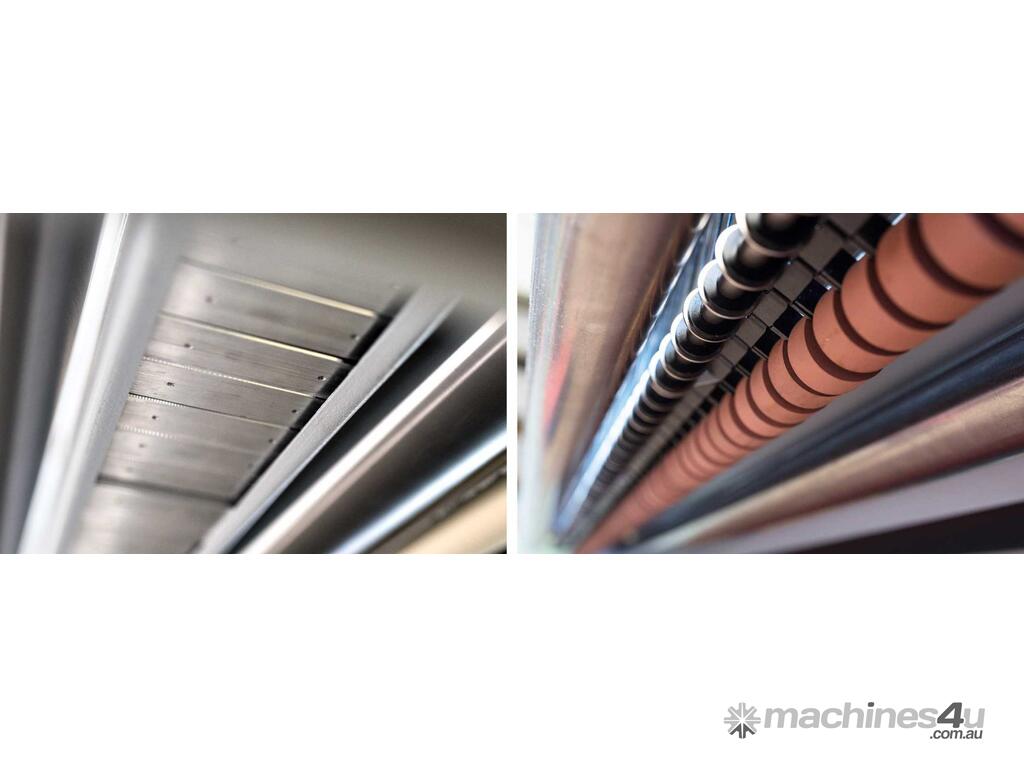

Pad options
Segments and therefore the sensing rollers at the machine entry are available in 35 or 22mm width. Depending on the material that needs to be sanded, a variety of sanding shoe hardnesses are available. Two different hardness shoes are included from the factory.

Segmented Pad Controls

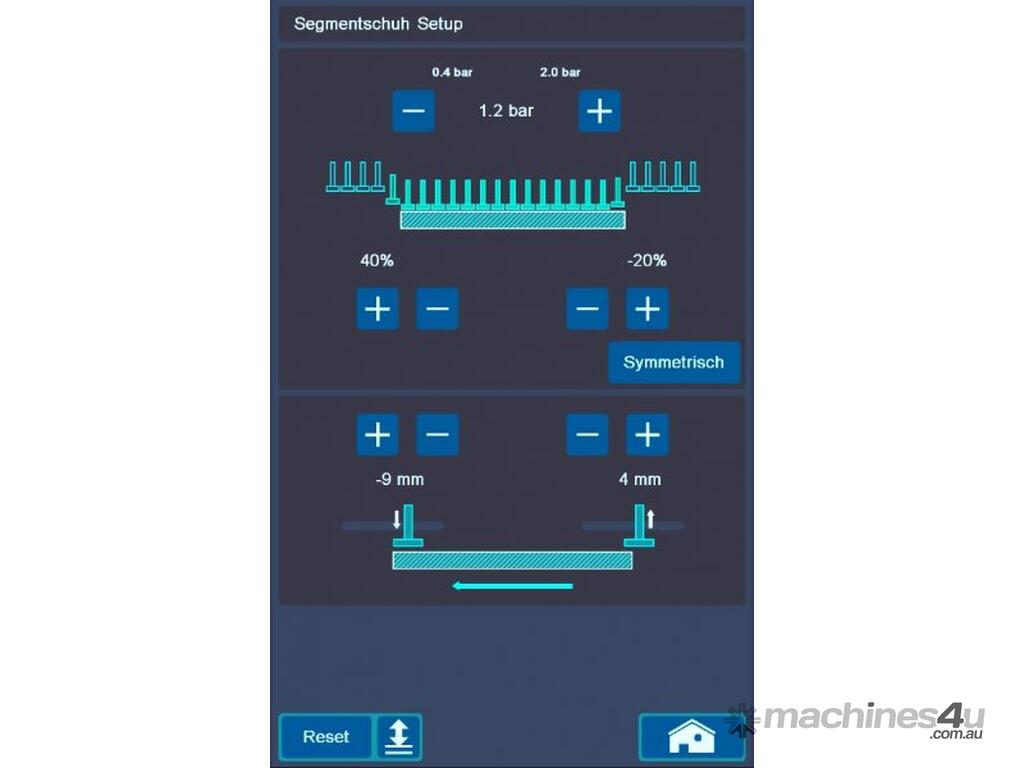

A segmented sanding pad is in an integral component of any lacquer wide belt sander. At Kundig, we do not only use 22mm (1 Inch) thin workpiece detecting rollers but the same small 22mm size sanding segments as well. Our software allows for easy and logical control of this complex precision-intrument. In the upper part of the screen the overall sanding pressure is adjusted. Below, the pressure on the workpiece edges can be regulated in percentage increments. Additional segments can even be added or subtracted on each side. Asymmetric adjustments, which means different edge pressure on each side, are possible as well. In order to specifically concentrate on either the front or rear end of the workpiece, the activation and retraction of the sanding segments can either be delayed or accelerated, which is easily controlled in the bottom window.

Behind this software is a refined control system that converts those user inputs with millisecond precision. This allows for accurate segment activation even at extremely high feed speeds (for example in furniture industry applications). This technology is available in our parallel, oblique and cross belt units.

Unit options

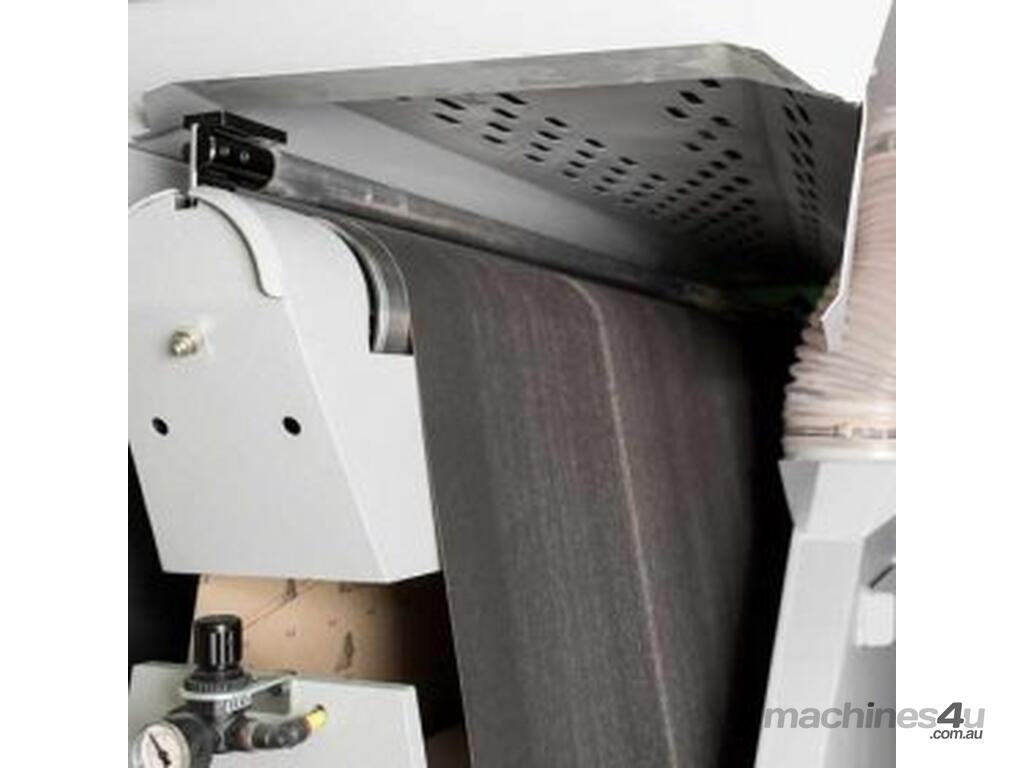

Calibration Roller

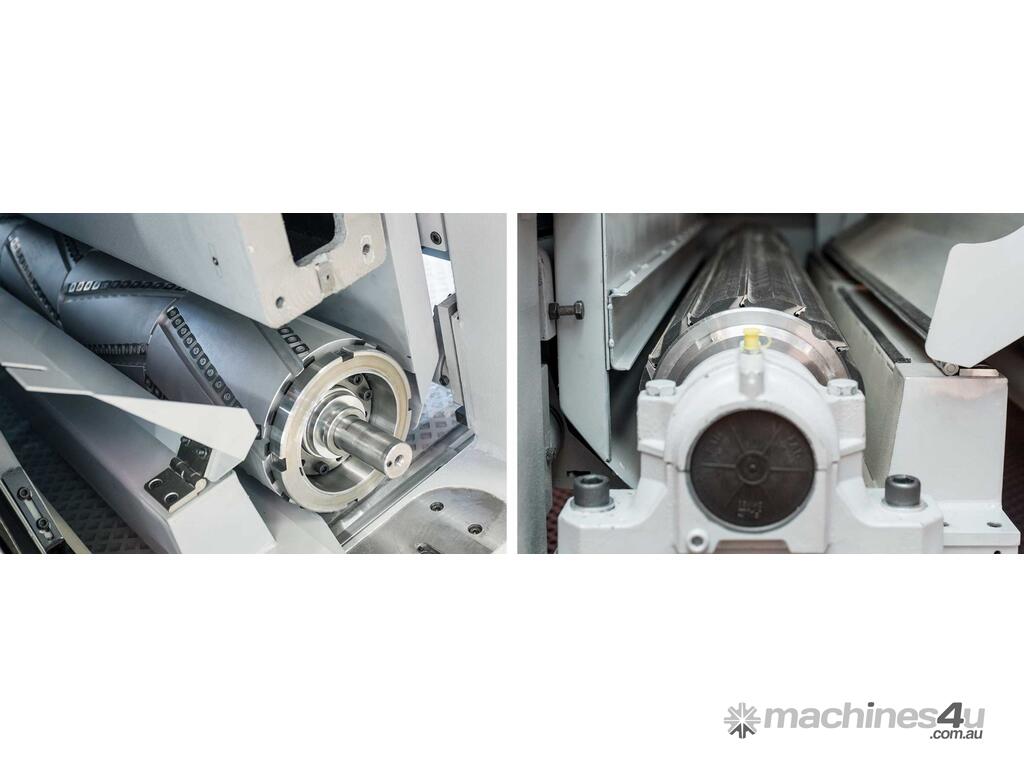

Steel or rubberised, in different diameters and with different belt lengths: 1900, 2000, 2620, 3250?mm.

Cross Belt Unit
Depending on application either at machine entry, in between the other units or at the exit.

Brushes
Either as add-on or as an integrated unit with a variety of brush roller types for sanding, structuring, cleaning from dust. With or without oscillation. A carousel unit for sanding of three dimensional workpiece surfaces or the rounding of edges.

Planer Unit
For planing or calibrating, usually before finishing the workpiece by sanding it. Different versions available for working widths: 650, 1100, 1350, 1600?mm.

Ausstattung
Enormatic
The machine measures workpiece thickness and starts the sanding process automatically.

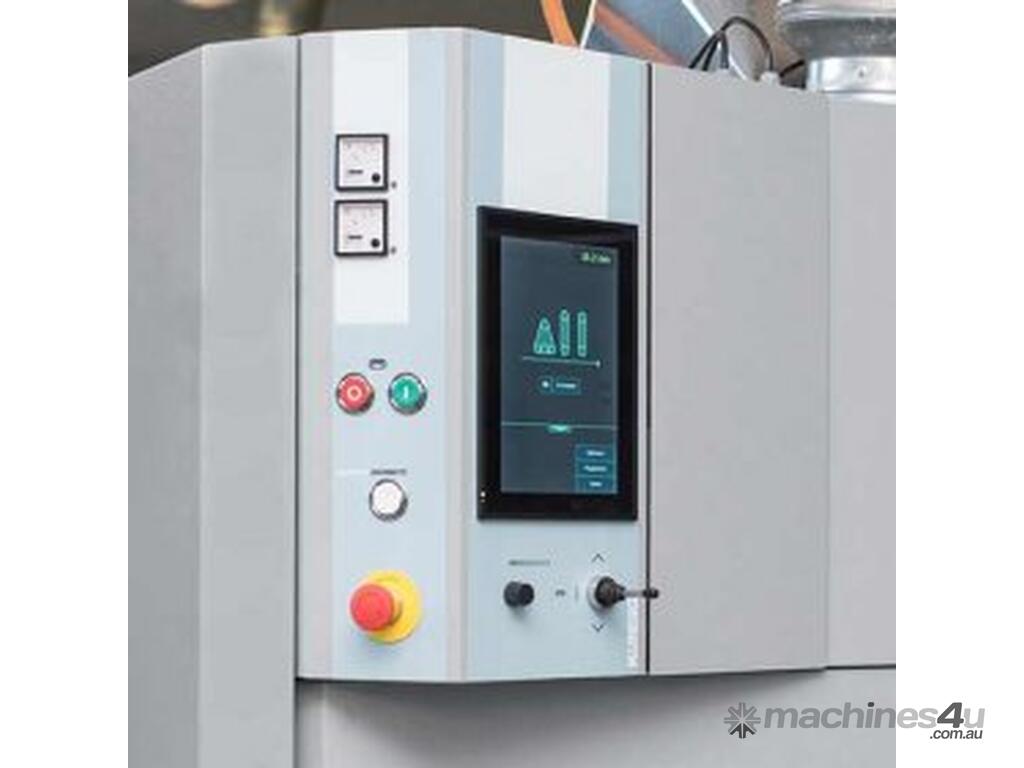

Touch Screen
The operator can choose between automated and customisable quick start programmes and manual operation adjusting all the relevant parameters.
Optionally available, large size industrial tableau without any analogue input options.

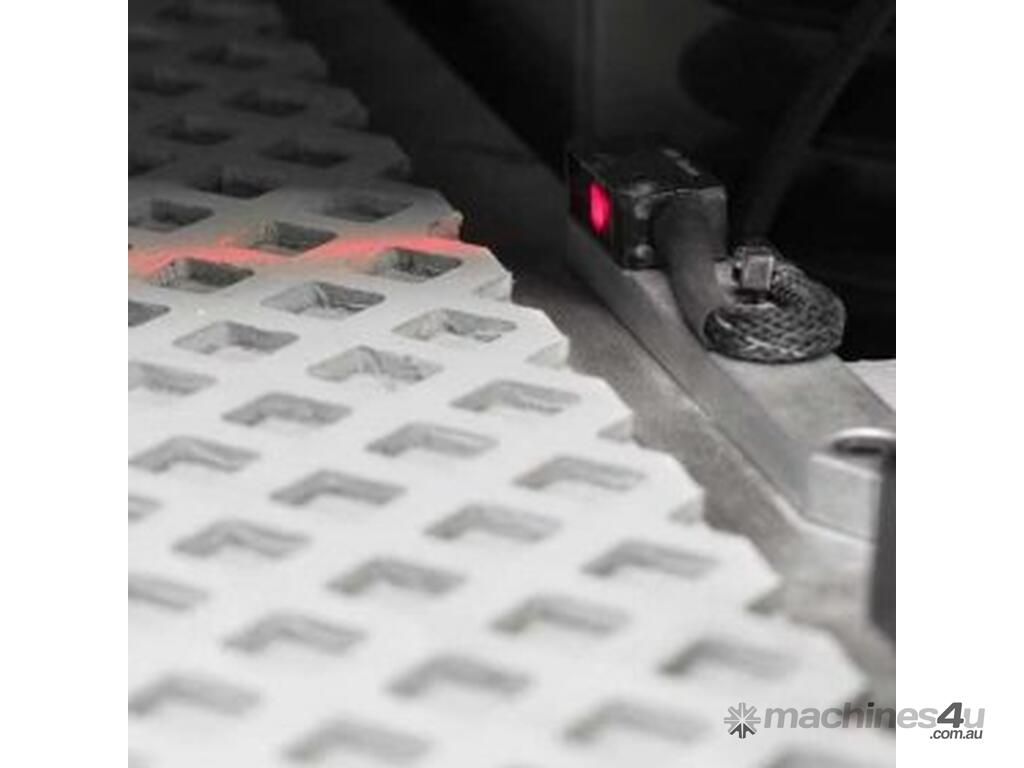

Conveyor Belts
Various types of conveyor belts available depending on application

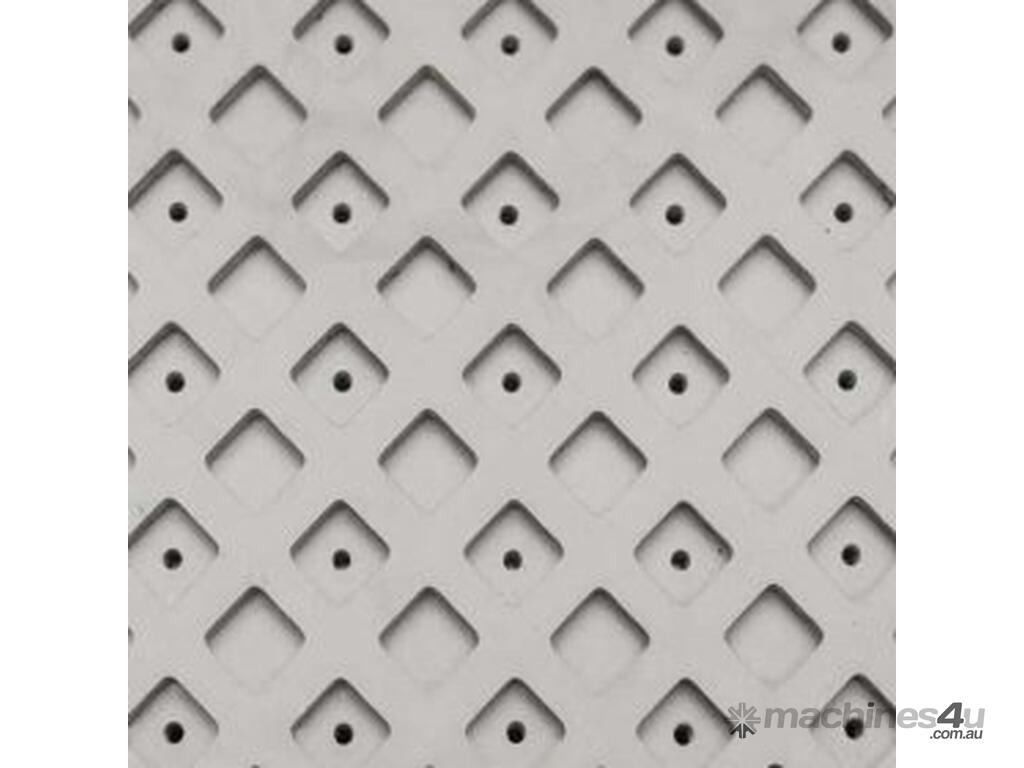

For particularly small parts a small parts vacuum can be ordered, which generates a significantly stronger vacuum effect.
For specific applications, a vacuum pump power upgrade is available

Lacquer Package
Steplessly adjustable sanding belt speed
Belt cleaning with air jets
Extraction ducts
22mm sanding pad segments instead of the usual 35mm ones
