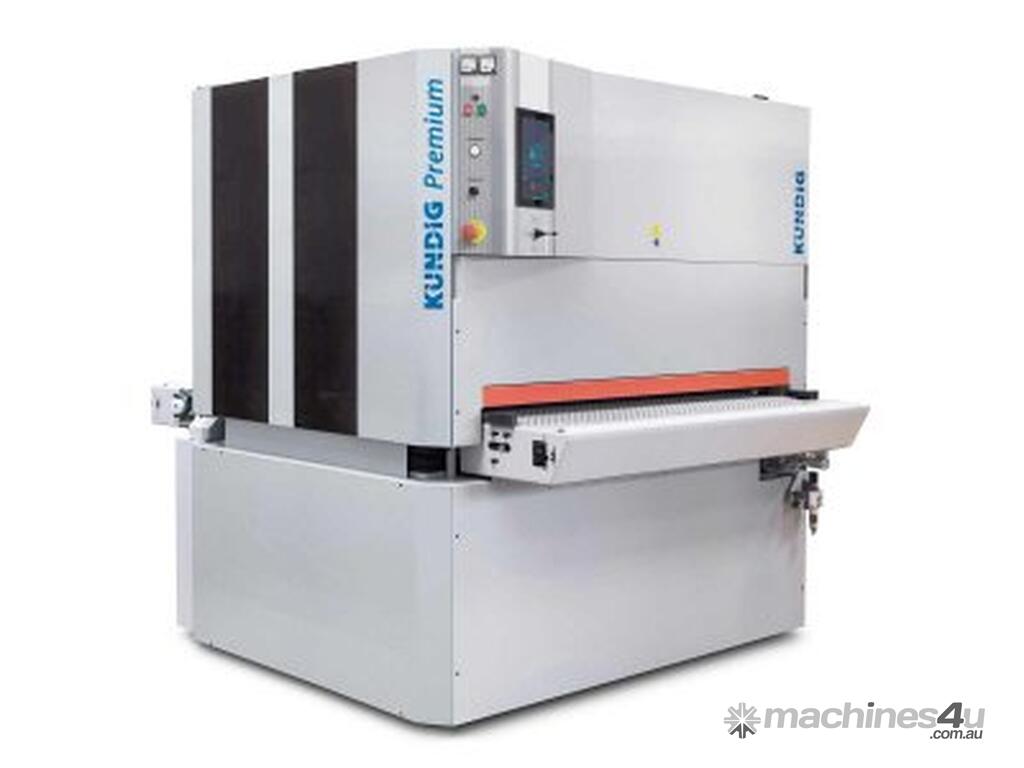

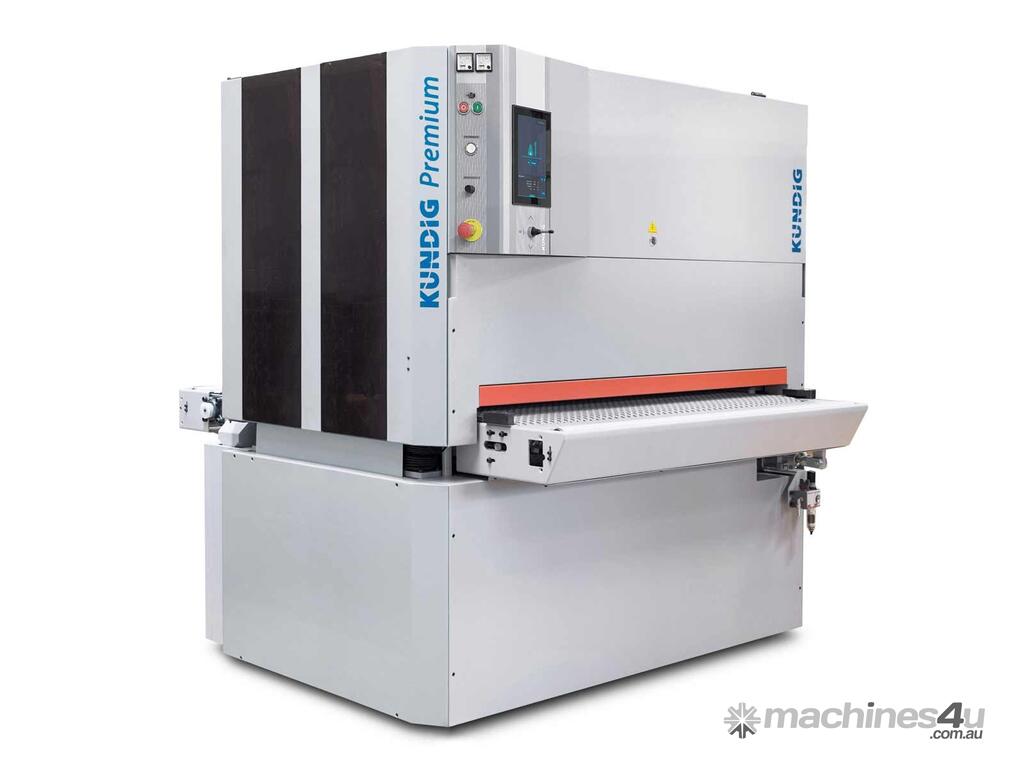

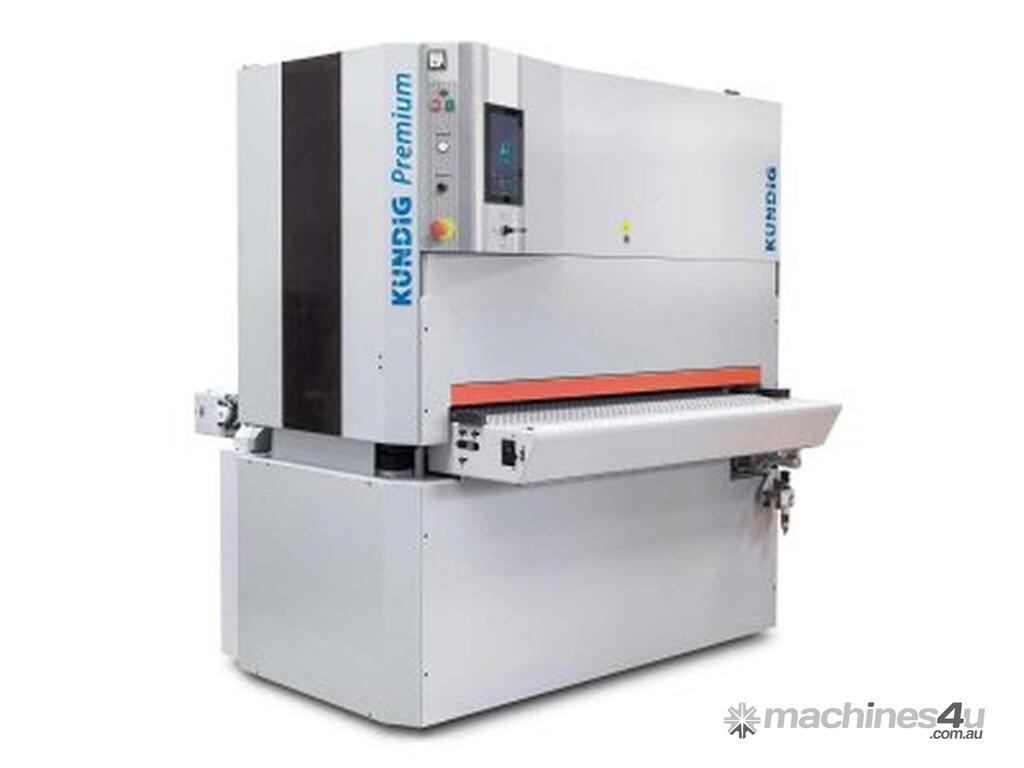

KUNDIG Premium Sander

The Premium model series of wide belt sanders uses customary, well-proven parallel sanding technology and delivers great results from solid timber sanding up to lacquer sanding applications, provided the requirements don't include high gloss.

Durable and reliable
The construction of our Premium series of wide belt sanders has been refined for decades and provides great sanding performance even after many years in service or under harsh conditions. The moving upper section of the machine allows for a fixed working height. The machine can bear processing workpieces of up to 1000 kg (2000 lb) without any modifications. Versions with inlet height of up to 500 mm (20 inch) are available.

Easy handling
All operations and adjustments are easily attainable - depending on preference, Kündig Machines can be operated fully automatically, with custom automated sanding programmes, or manually, by adjusting all relevant parameters on the go. The user interface is very intuitive and motivates each user to explore advanced options and features and therefor using these precision sanders to their full potential without hesitation. Built in safety measures eliminate the risk of major accidental operating errors. Kündig sanders are well known and appreciated for their easy handling.

Units

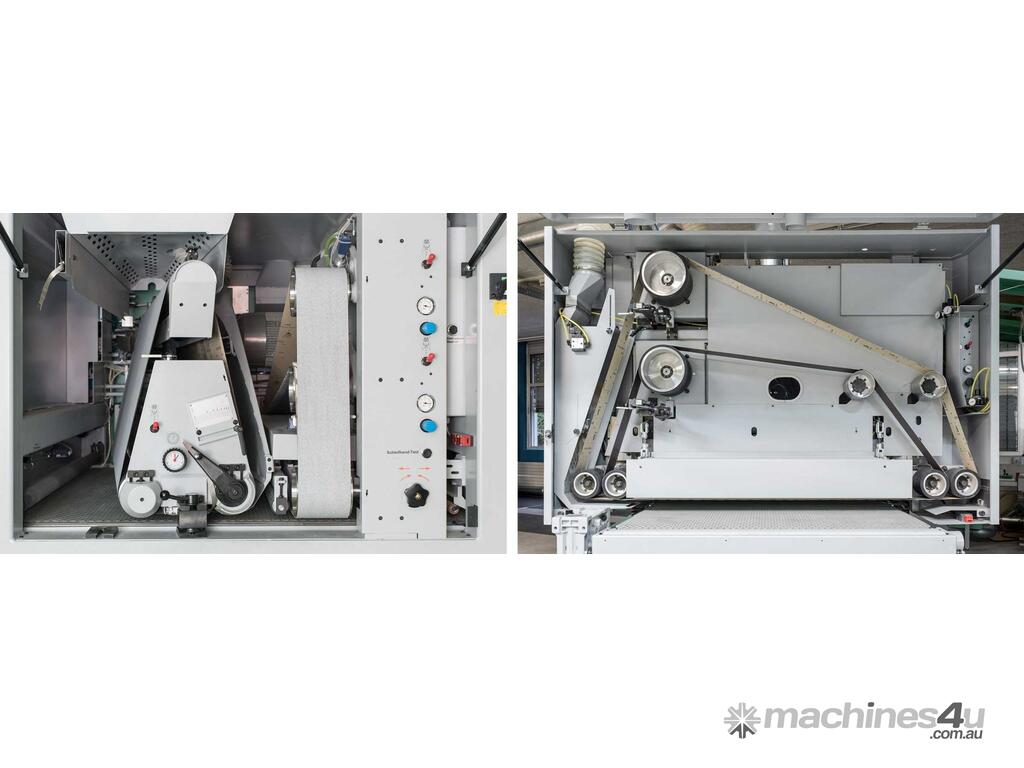

The units for our Premium series are available as steel or rubberised calibration rollers and pneumatic or electronically controlled, segmented pads. A variety of planer and brush rollers are also available. As in all of our machines, the units offer a very stable support and are made for above average lifespan. For high output applications and the belt life requirements that go with them, there are several unit heights for a variety of belt lengths (1900, 2000, 2620, 3250 mm) available.

Calibration Roller R
Calibration Roller

Calibration Roller G
Large Calibration Roller

Pneumatic Pad P
Pneumatic Pad

Segmented Pad E
Segmented Pad electronically controlled

Combined Unit K
Combined Unit Roller/Pneumatic Pad

Combined Unit C
Combined Unit Roller/Segmented Pad

Working Widths
650 mm 1100mm 1350mm 1600mm 1900mm 2200mm Other working widths on request

Sanding pads
Pneumatic pad
Well proven sanding pad technology, especially for solid timber processing. A continuous air cell provides even pressure on the workpiece.

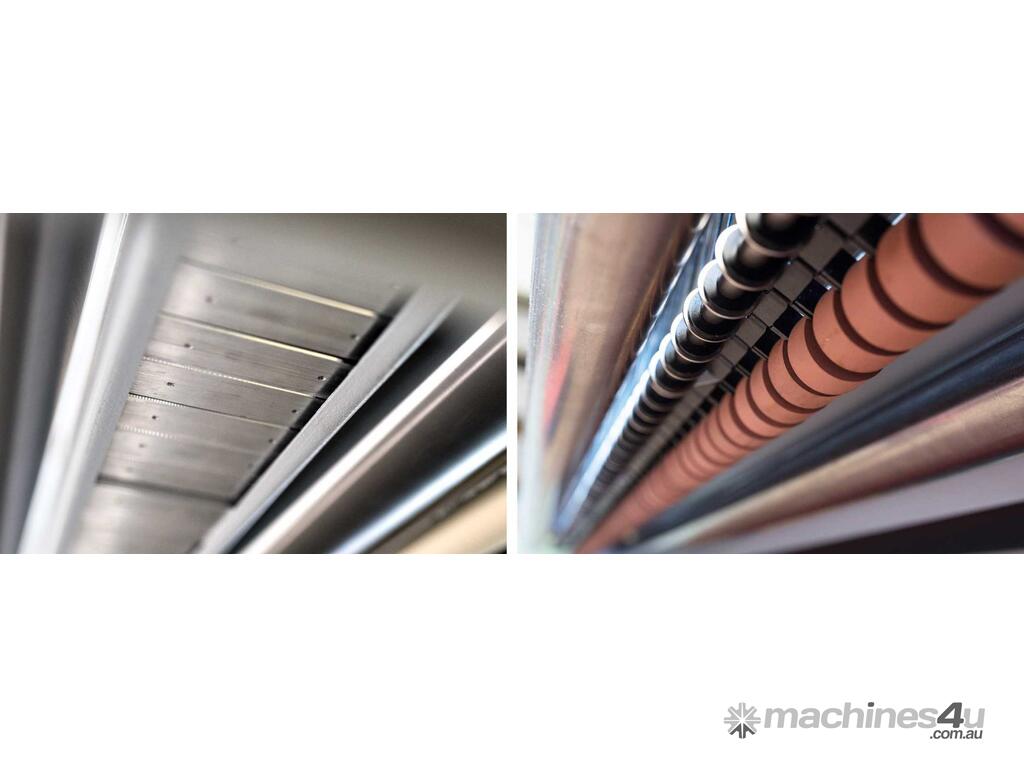

Segmented pad
The segmented pad is divided in segments either 35 or 22 mm wide. These segments are computer controlled and preferences can easily and thoroughly be adjusted by the operator. The electronically controlled, segmented pad is especially useful for taking care of those delicate workpiece edges on lacquered or veneered parts.

Pad options
Segments and therefore the sensing rollers at the machine entry are available in 35 or 22mm width. Depending on the material that needs to be sanded, a variety of sanding shoe hardnesses are available. Two different hardness shoes are included from the factory.

Features
Enormatic

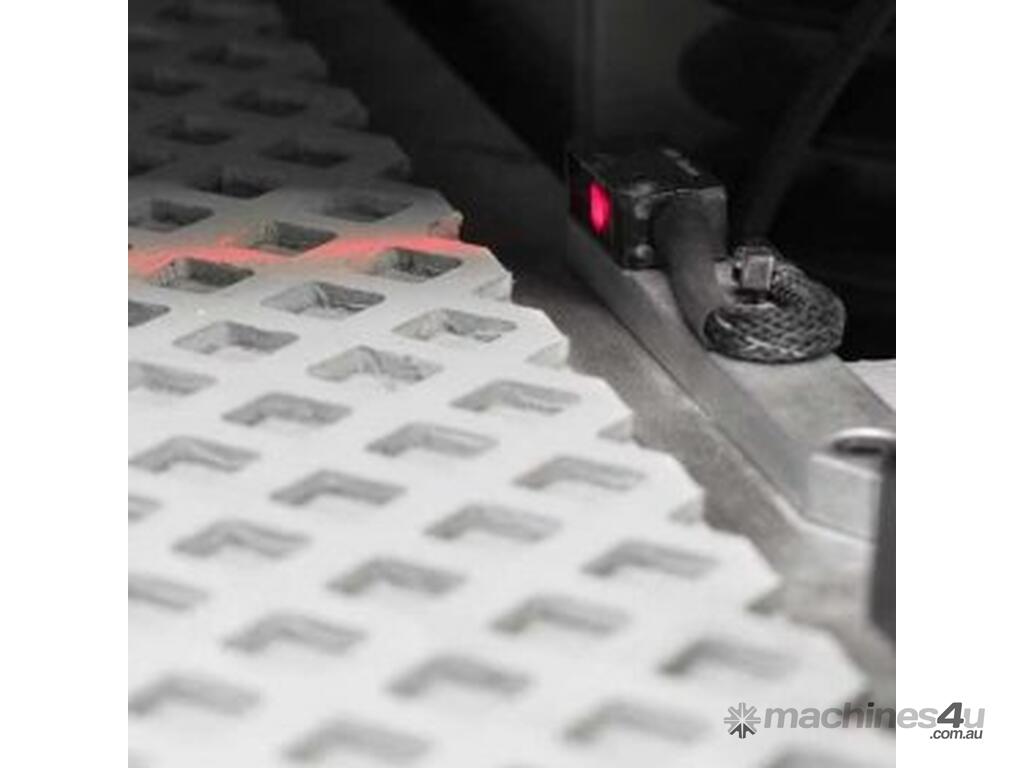

The machine measures workpiece thickness and starts the sanding process automatically.

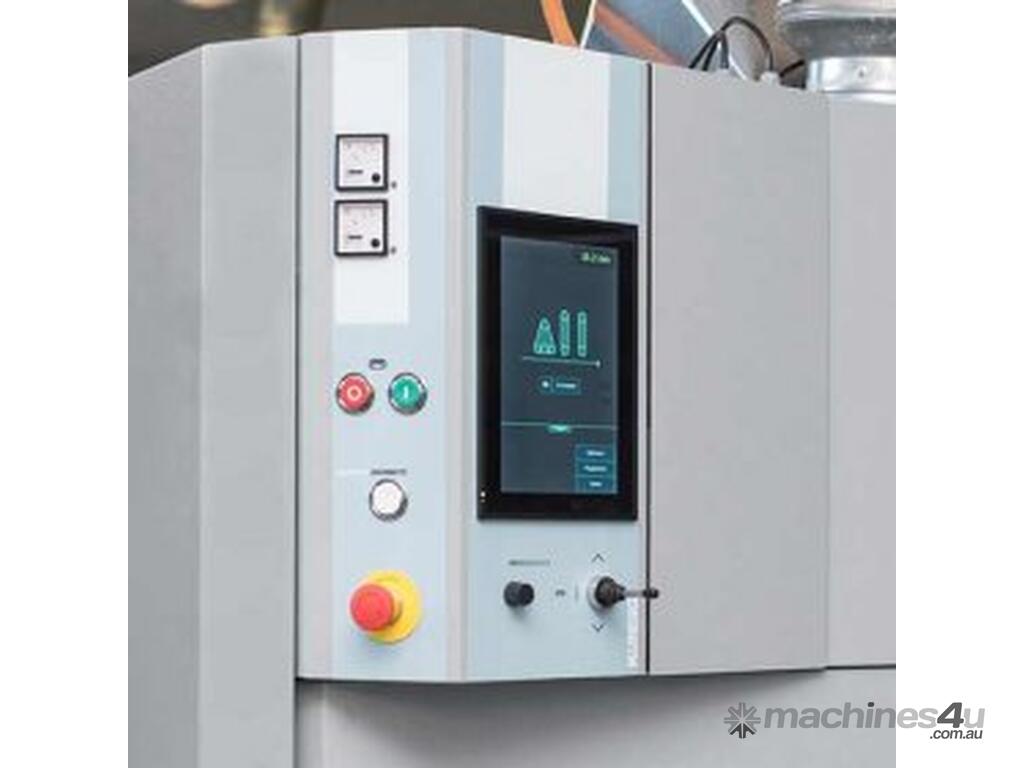

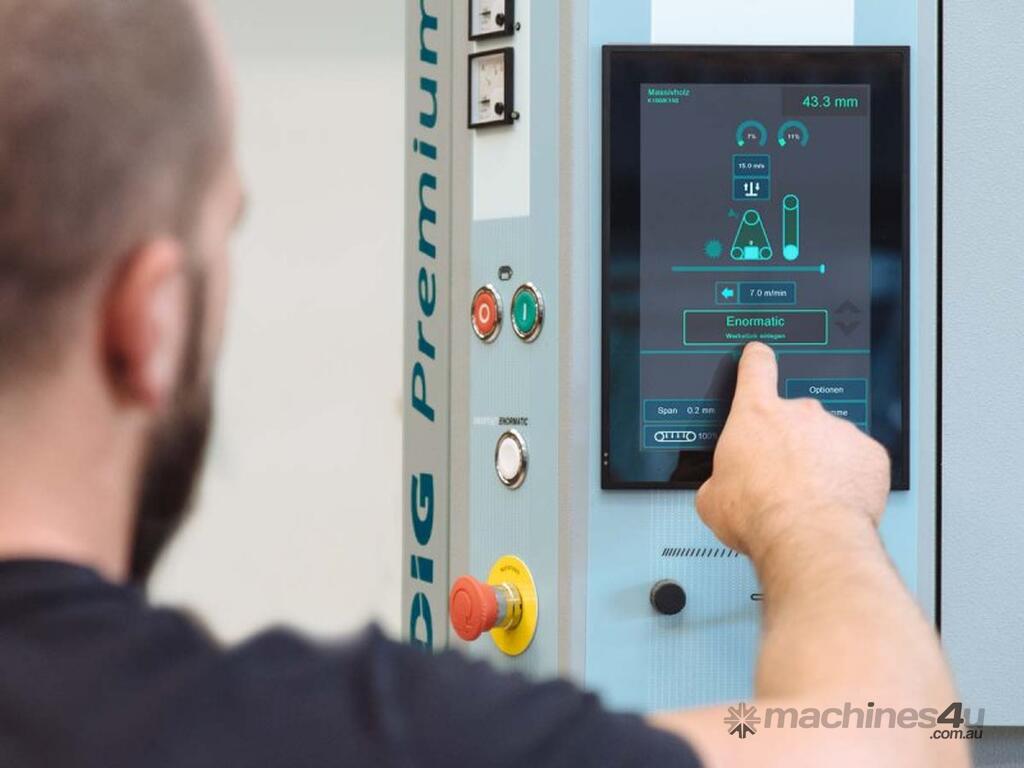

Touch Screen
The operator can choose between automated and customisable quick start programmes and manual operation adjusting all the relevant parameters.
Optionally available, large size industrial tableau without any analogue

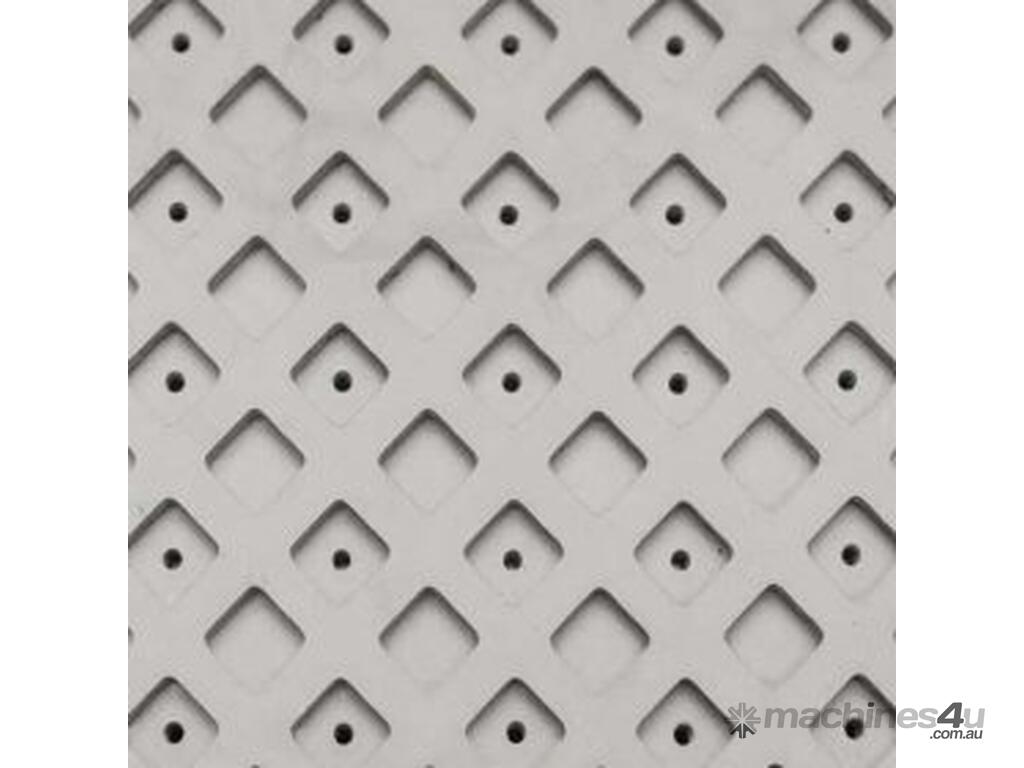

Conveyor Belts
Various types of conveyor belts available depending on application
For particularly small parts a small parts vacuum can be ordered, which generates a significantly stronger vacuum effect.
For specific applications, a vacuum pump power upgrade is available

Lacquer Package
Steplessly adjustable sanding belt speed

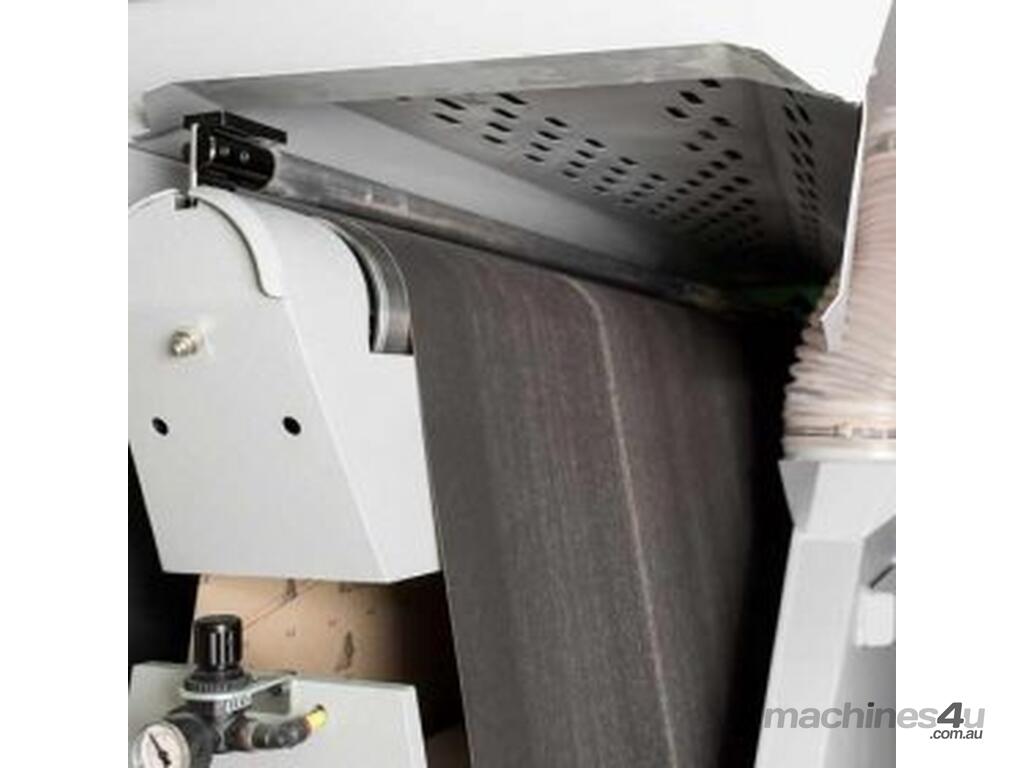

Belt cleaning with air jets
Extraction ducts
22mm sanding pad segments instead of the usual 35mm ones

Unit Options

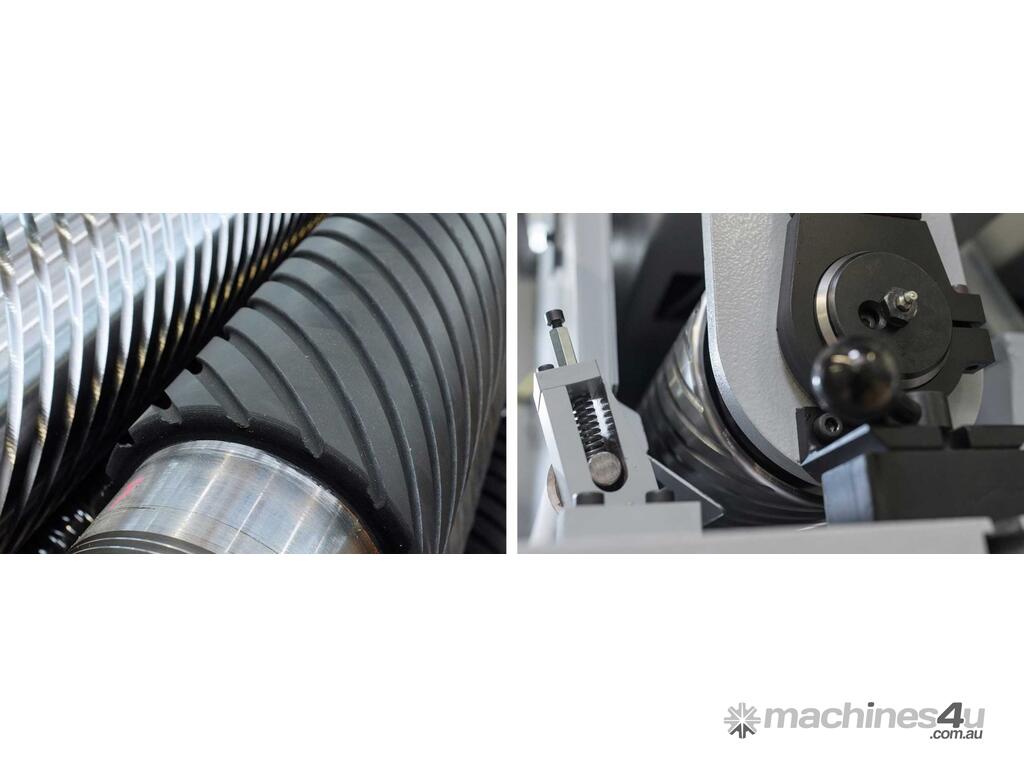

Calibration Roller
Steel or rubberised, in different diameters and with different belt lengths: 1900, 2000, 2620, 3250?mm.

Cross Belt Unit
Depending on application either at machine entry, in between the other units or at the exit.

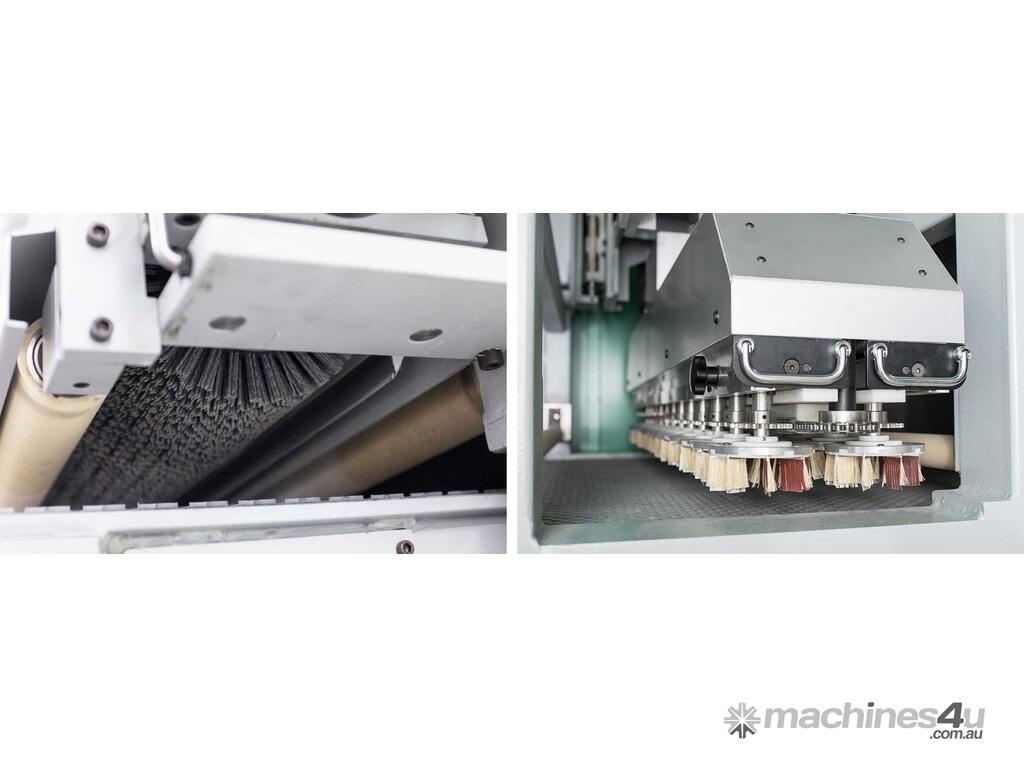

Brushes
Either as add-on or as an integrated unit with a variety of brush roller types for sanding, structuring, cleaning from dust. With or without oscillation. A carousel unit for sanding of three dimensional workpiece surfaces or the rounding of edges.

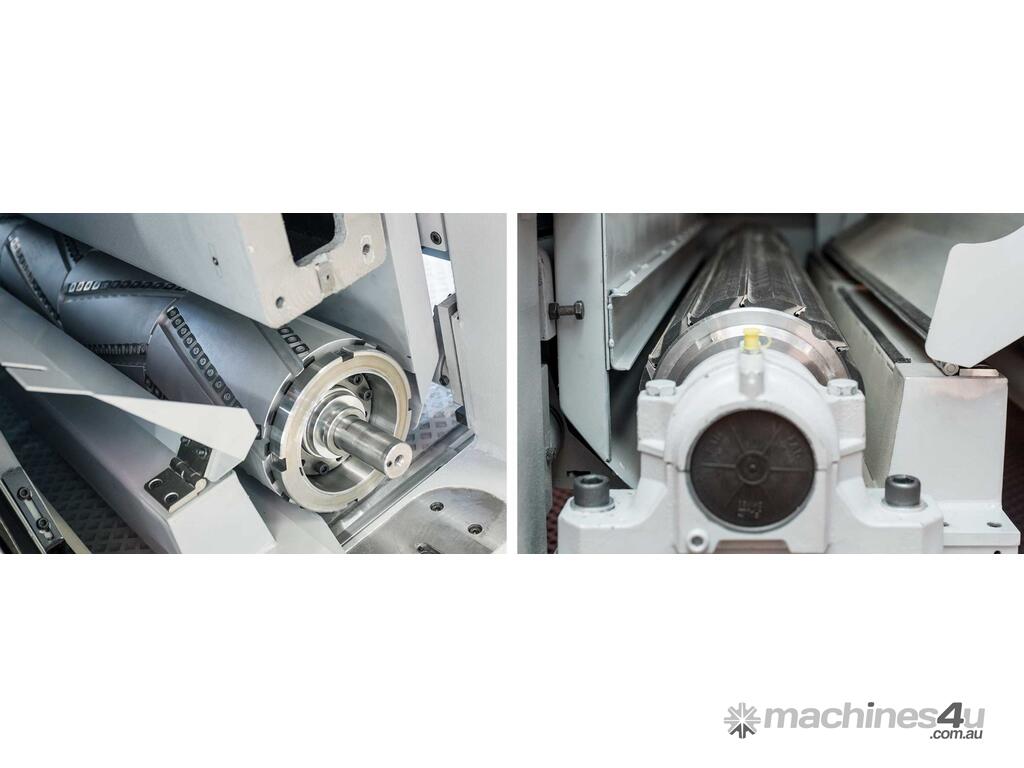

Planer Unit
For planing or calibrating, usually before finishing the workpiece by sanding it. Different versions available for working widths: 650, 1100, 1350, 1600?mm.

Overview Unit Options
Cross Belt H/X.
Cross-Belt Standard
H = High Gloss Unit downstream
X = Cross Belt Unit Upstream or in between

Carousel Brush Bk
Carousel Brush Unit
Sanding Discs with eccentric Oscillation

Brush Roller Bs
Brush Roller for Sanding

Brush Roller Bst
Brush Roller for Structuring

Brush Roller Bsb
Brush Roller with 3M Scotchbrite

Planer Unit F
Planer Unit available with different cutters
