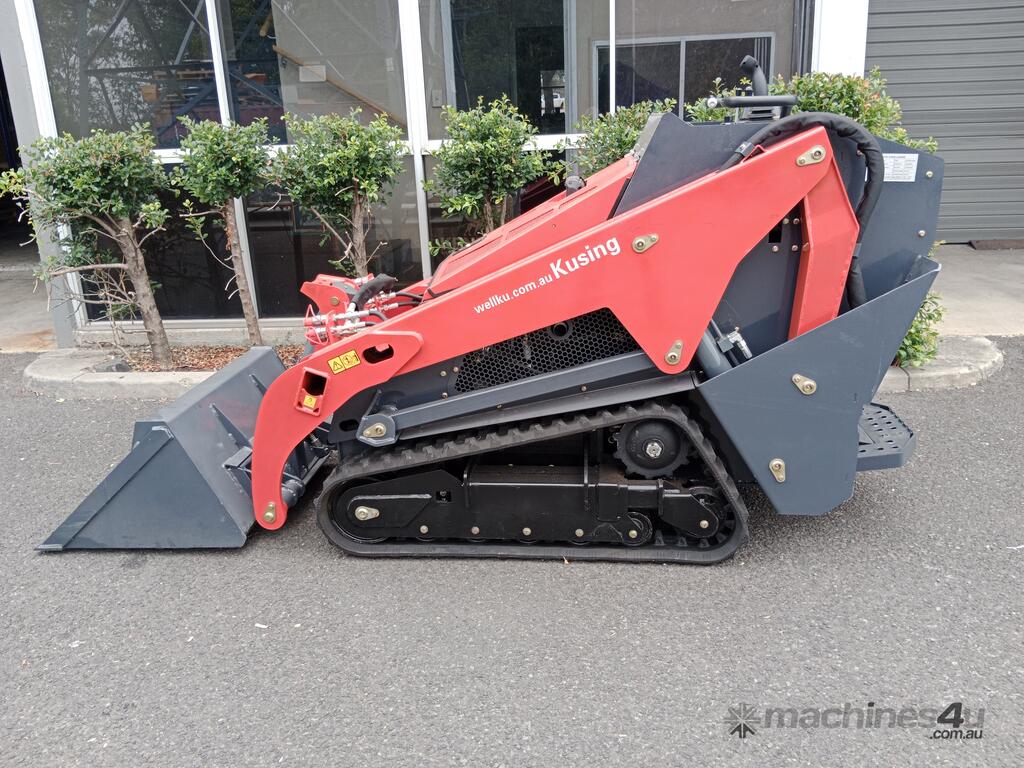

1. The body width is only 900mm, which allows you to freely enter and exit some small spaces (courtyard rear door).

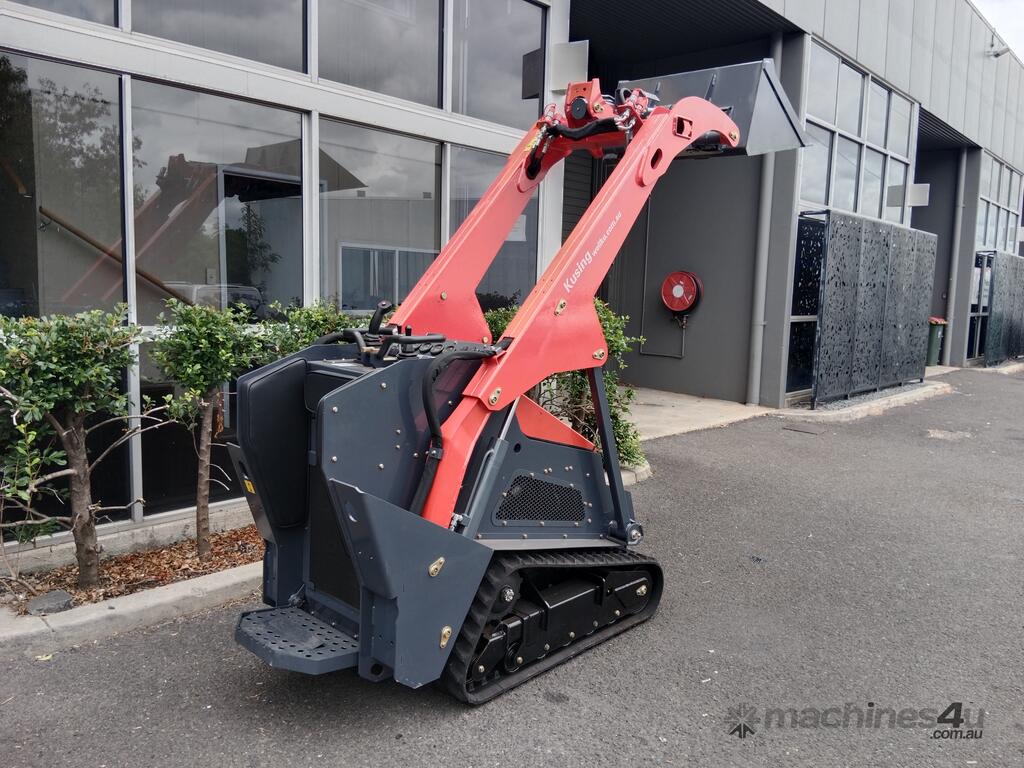

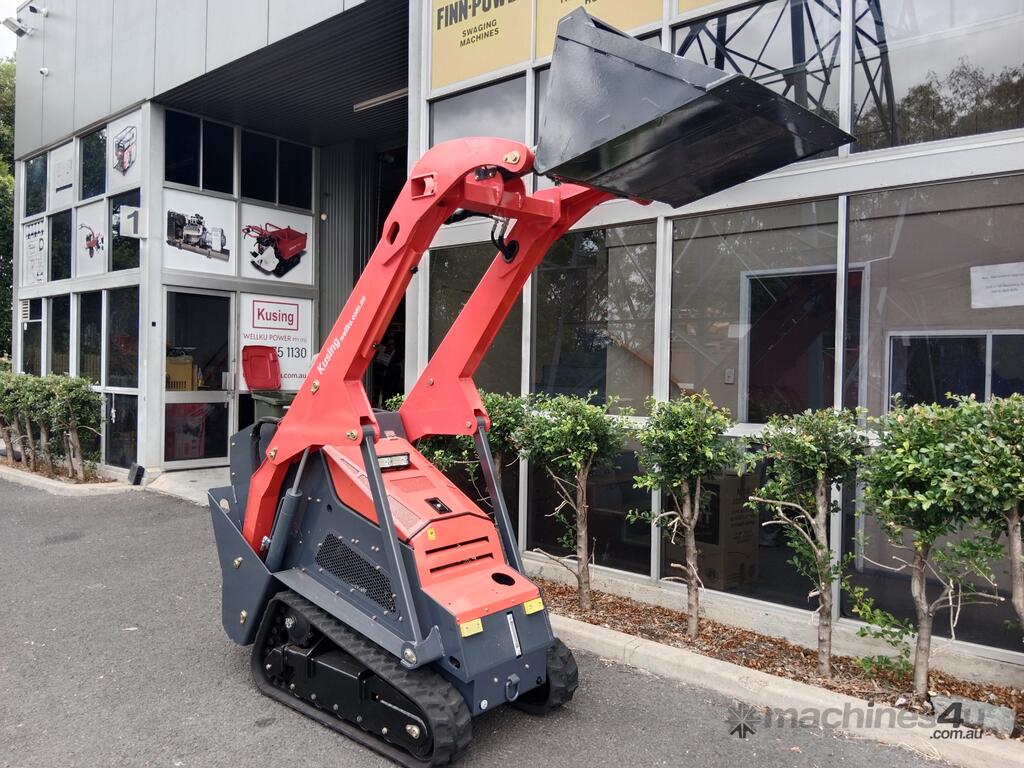

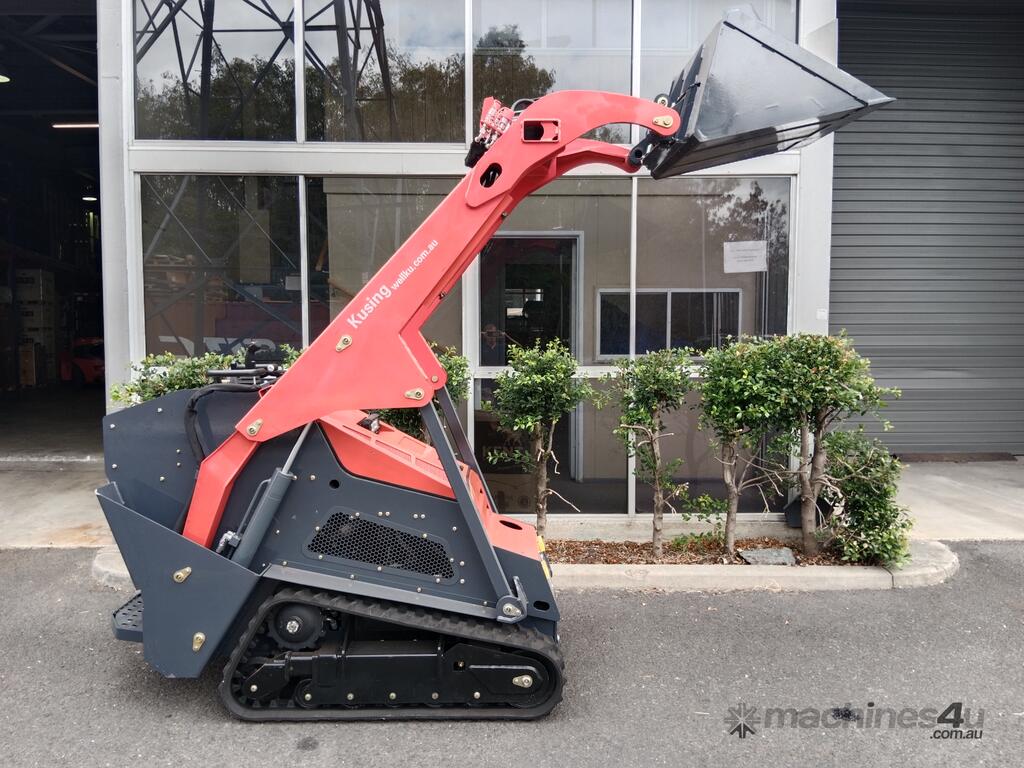

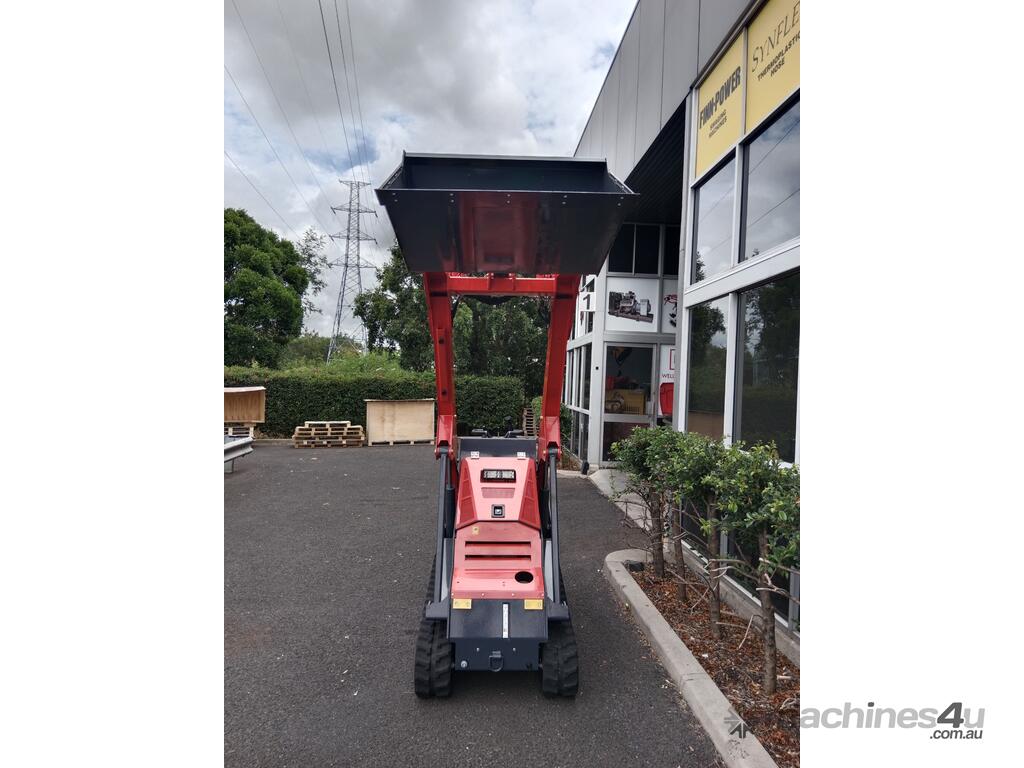

2. The vertical lifting design of the big arm, the maximum height of the bucket pin is 2350mm (comparable products are only 2100mm), and it can be installed on high-rail trucks.

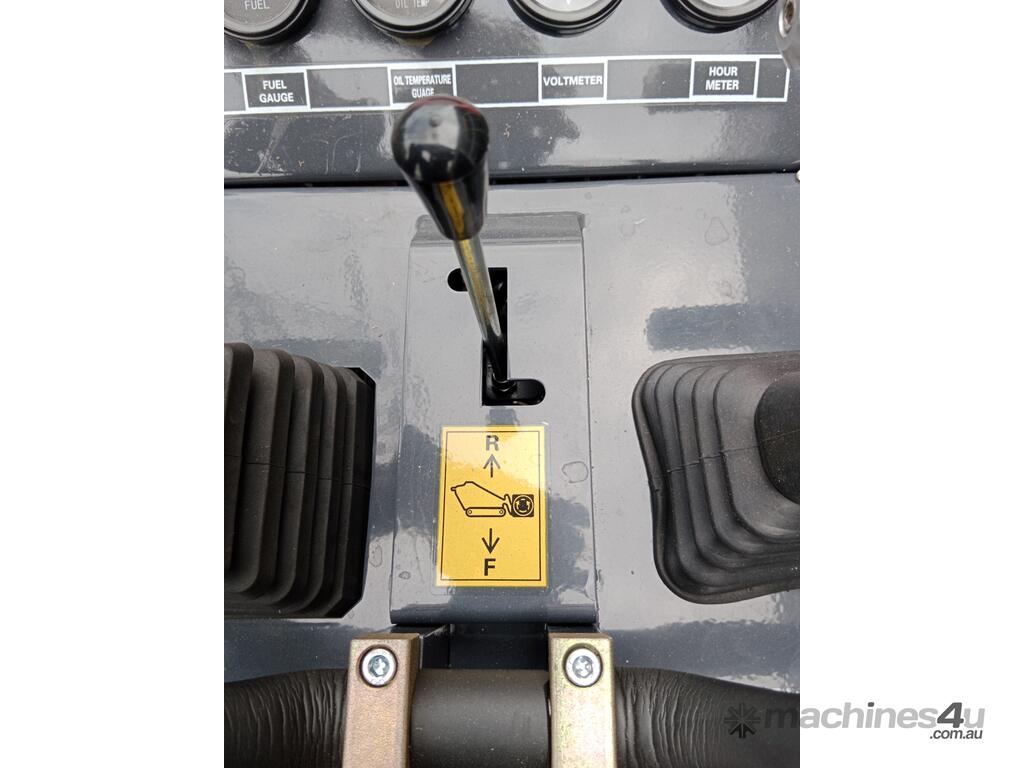

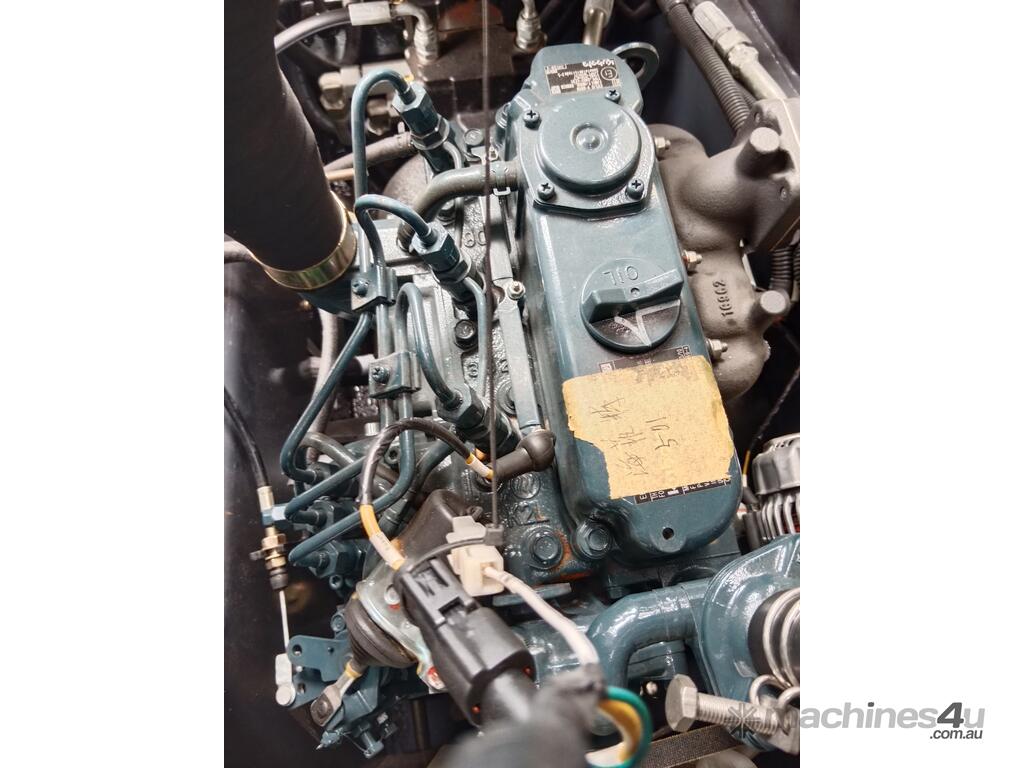

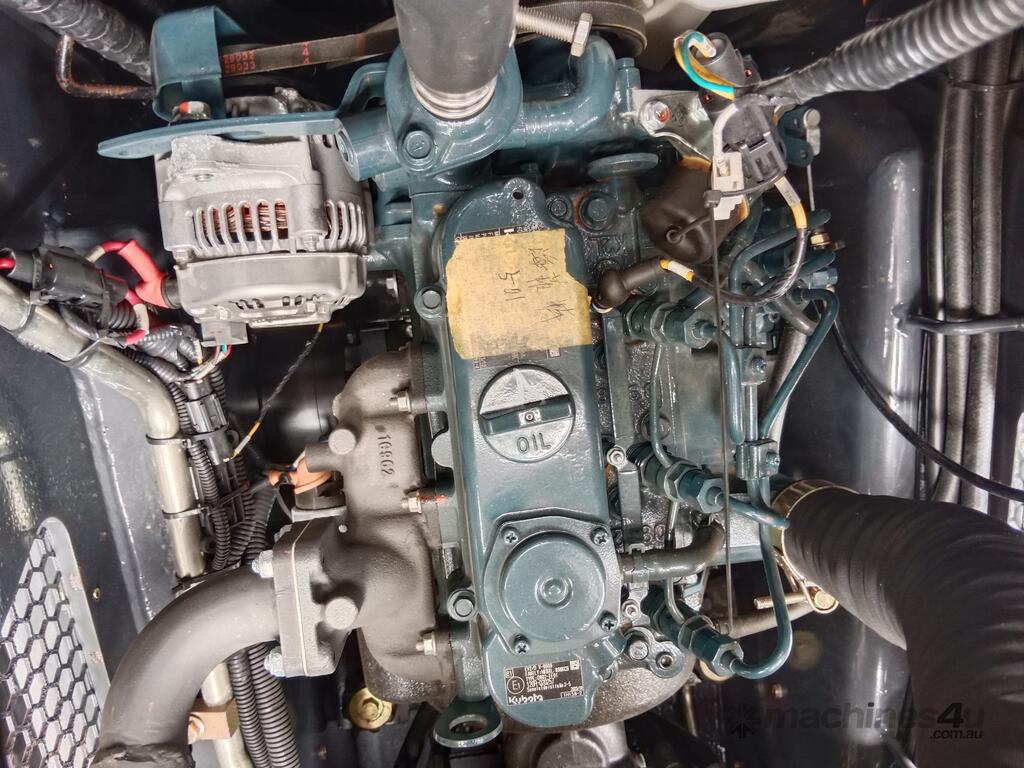

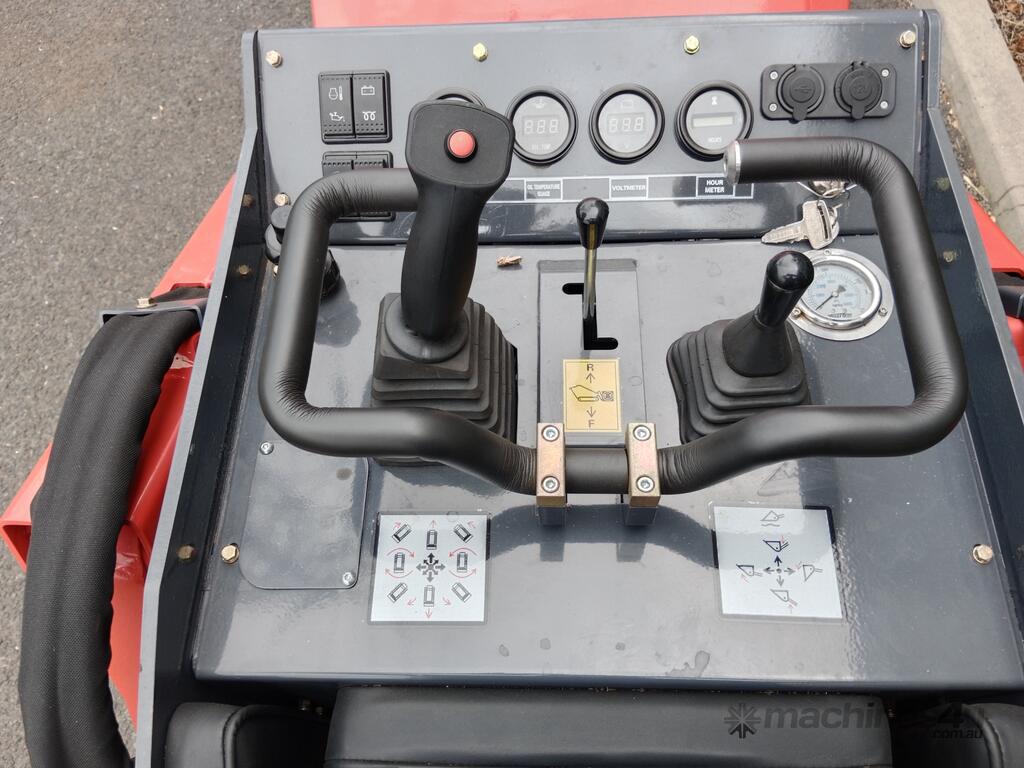

3. The engine uses Euro V certified diesel power (Kubota D902-18.5KW from Japan), and the hydraulic system uses the Italian Lufthansa closed system (the mainstream configuration of foreign brand skid steer loaders). Mode pilot handle (one-hand control of walking), the boom and bucket can be operated during walking.
4. The big arm comes standard with a suspension function (the sweeper can follow the ups and downs of the ground)

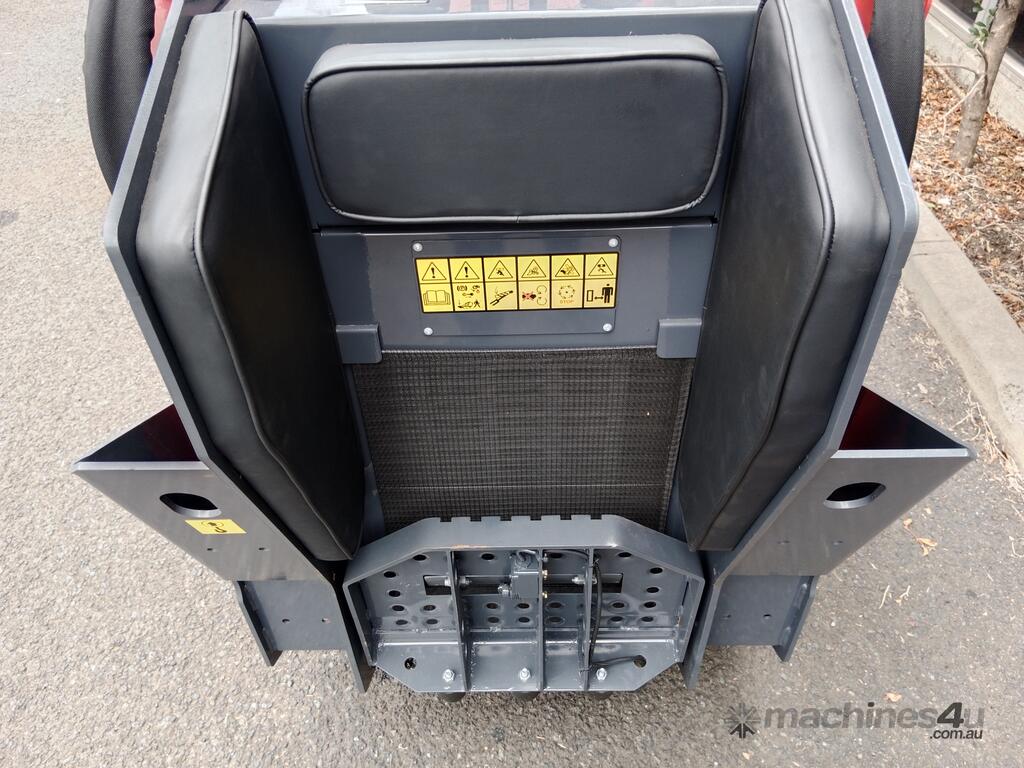

5. Install a sponge pad at the operating position
6. Chassis height from the ground 185mm
Specifications
Rated Power (KW) 17.5(23.5Hp)
Operating Weight 1538 Kg 3390 Lb
Rated Operating Capacity 454 kg 1000 Lb
Ground Pressure (Rubber) 2800 Kg/m 3.98 Psi
Auxiliary Std Flow 45 L/Min 12 Gal/Min
Rotating speed (Rpm) 2800
Noise (Db) ?95

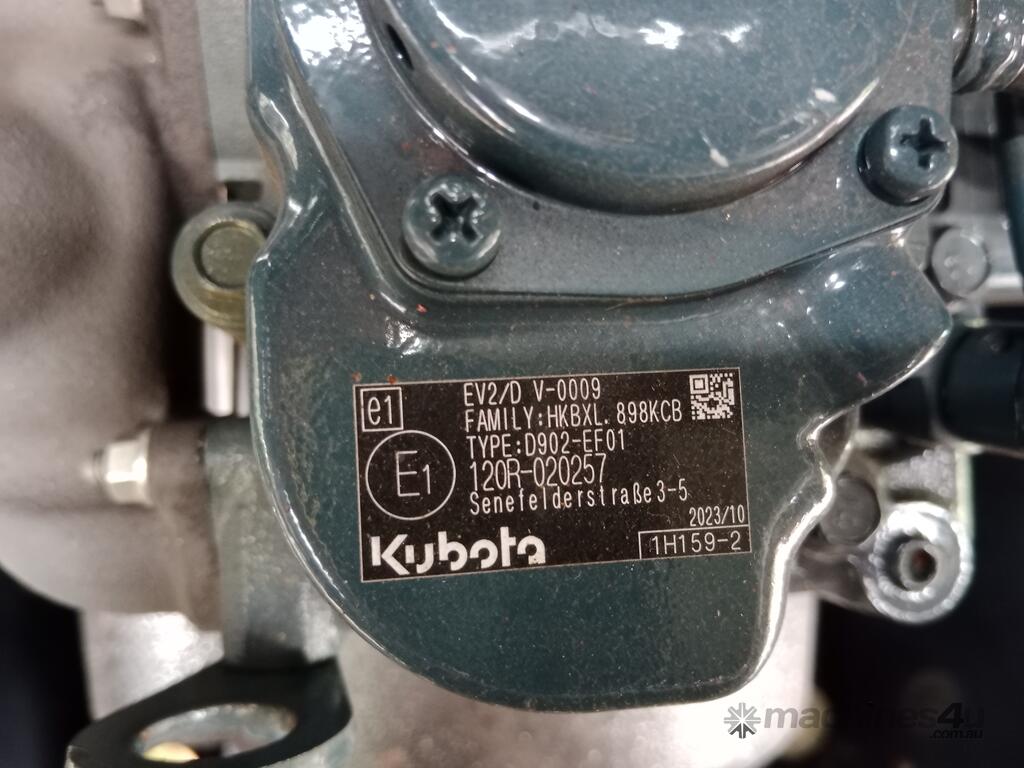

Engine Kubota D902-E4
Emissions Tier EU NRM 97/68/EC Stage 5
Engine Cooling Liquid
Engine Fuel Diesel
Displacement 898L 54.8Ci
Number of Cylinders 3
Tipping Load 1315 KG 2898 Lb
Travel Speed 5.8 Km/h 3.52 Mph
Travel Speed - Reverse 3.9 Km/h 2.4 Mph
Fuel Tank 25 L 6.6 Gal
Hydraulic oil tank capacity 22 L 5.8 Gal
Pump Capacity 45 L/Min 12 Gal/Min
System Relief Quick Couplers 200 Bar 2900 Psi
12 months / 1000hr warranty
