Kang Industrial Semi-Universal dividing head

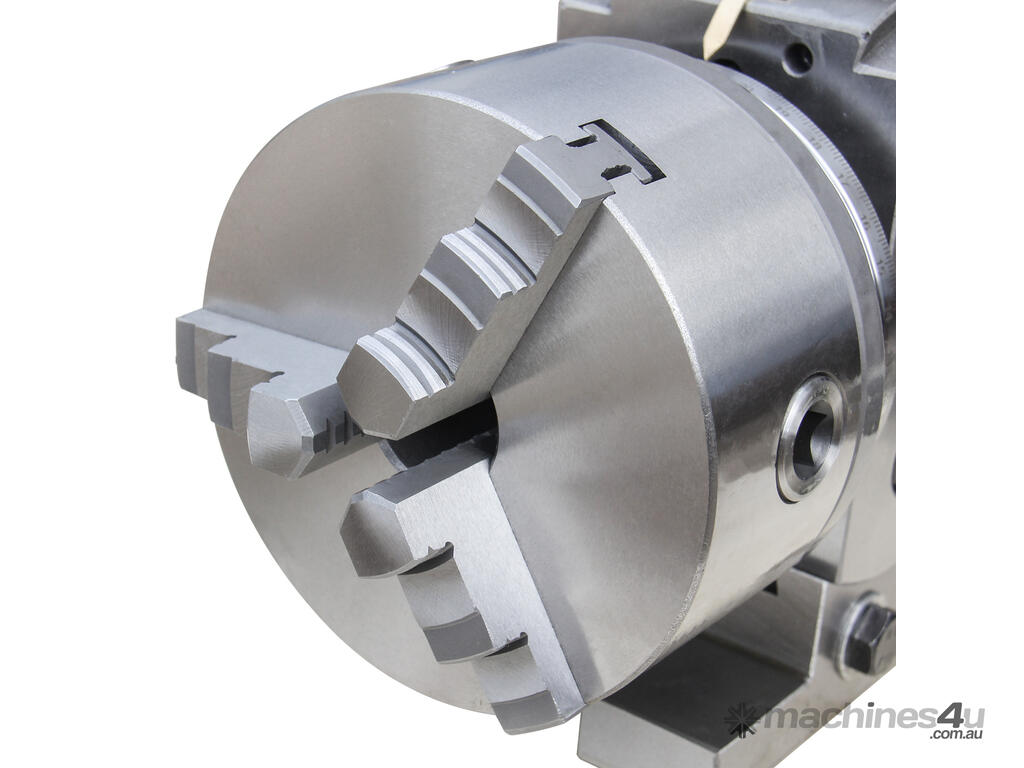

With 3 jaw chuck, 100mm center height
Features
BS-0 dividing head is suitable for direct and indirect indexing
MT2 spindle taper
The 24 quick-dividing holes can complete 2,3,4,6,8,12,24 division indexiding
Worm and worm wheel ratio 40:1
Tilt from horizontal to vertical (-10° to +90°)
Each divide from 2 to 50 and many divides from 51-380

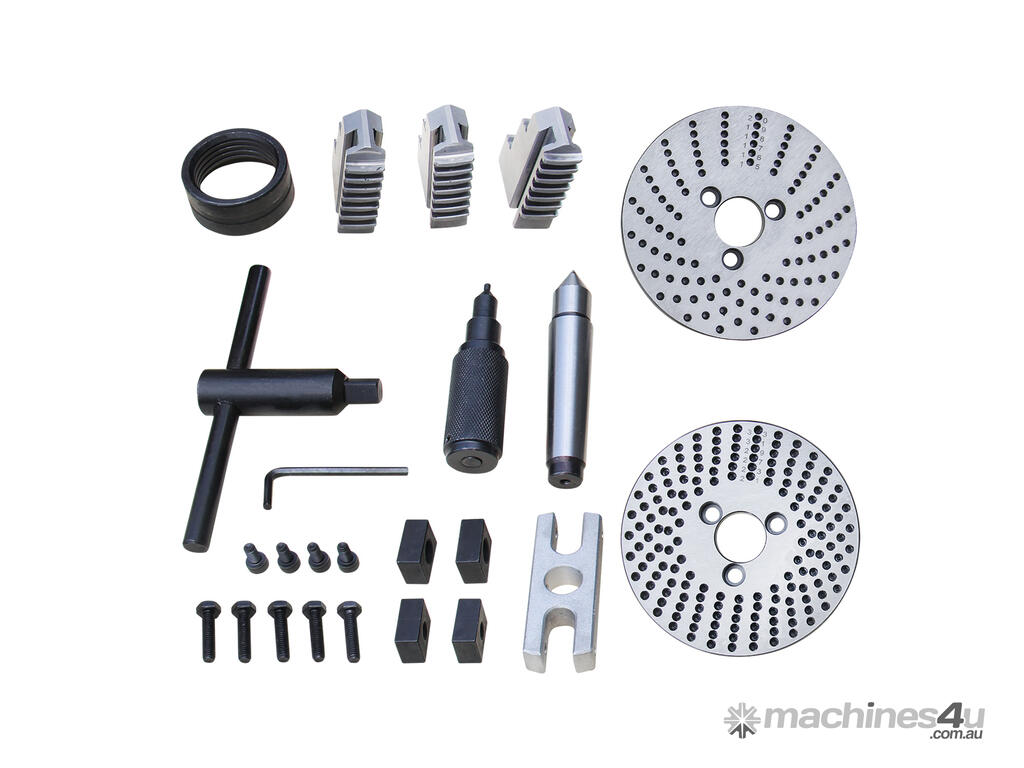

Standard Accessories
Tailstock, Dividing plate, Dead center
ABC dividing plate specifications
Plate A 15 mm 16 mm 17 mm 18 mm 19 mm 20 mm
Plate B 21 mm 23 mm 27 mm 29 mm 31 mm 33 mm
Plate C 37 mm 39 mm 41 mm 43 mm 47 mm 49 mm

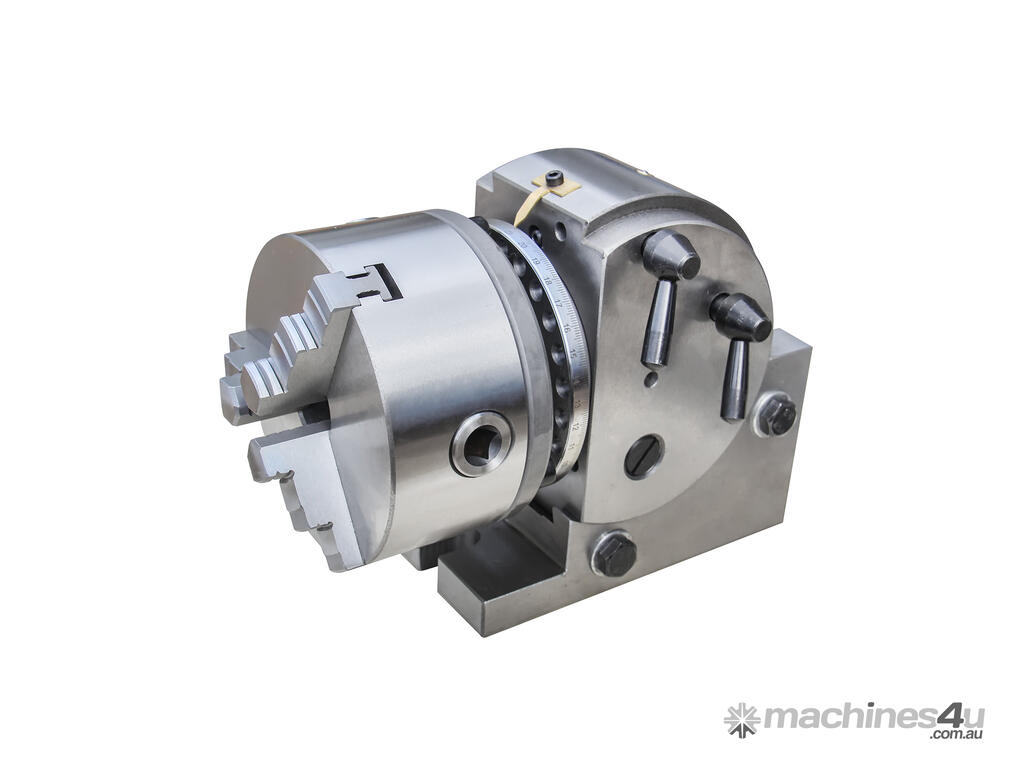

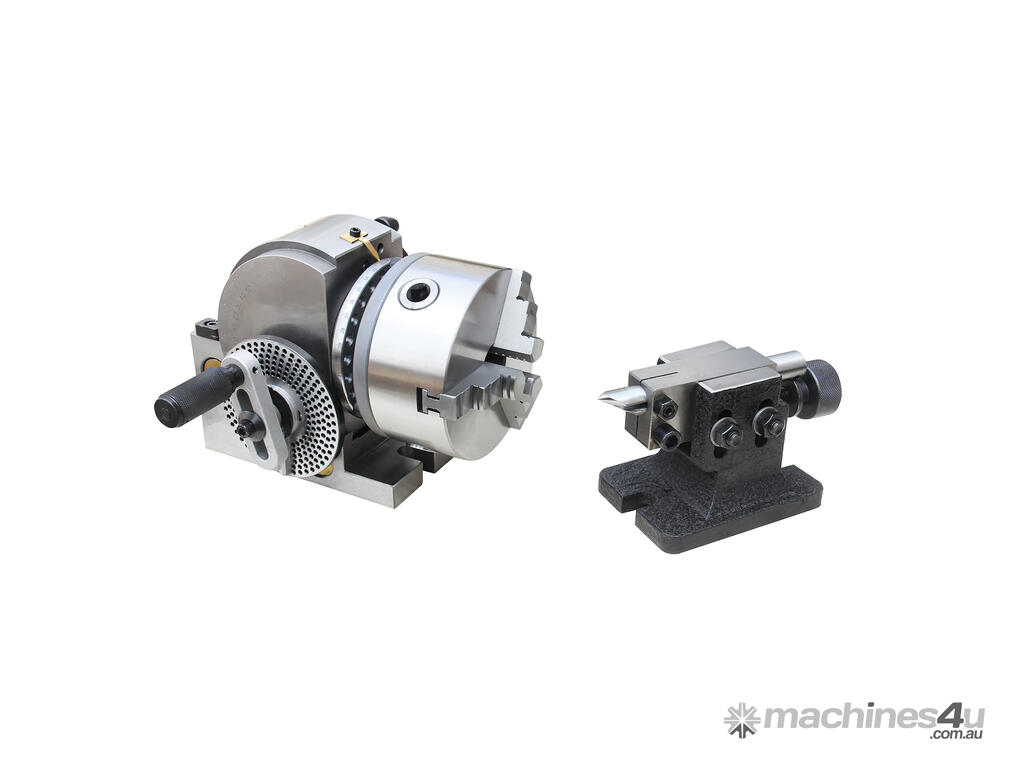

dividing head

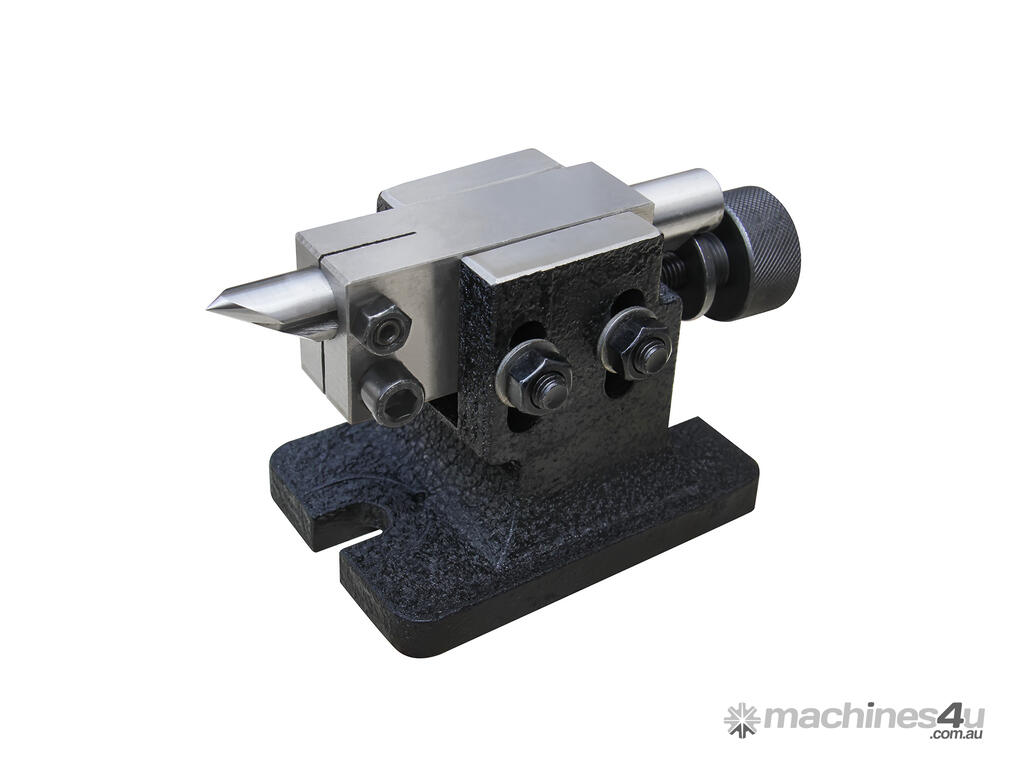

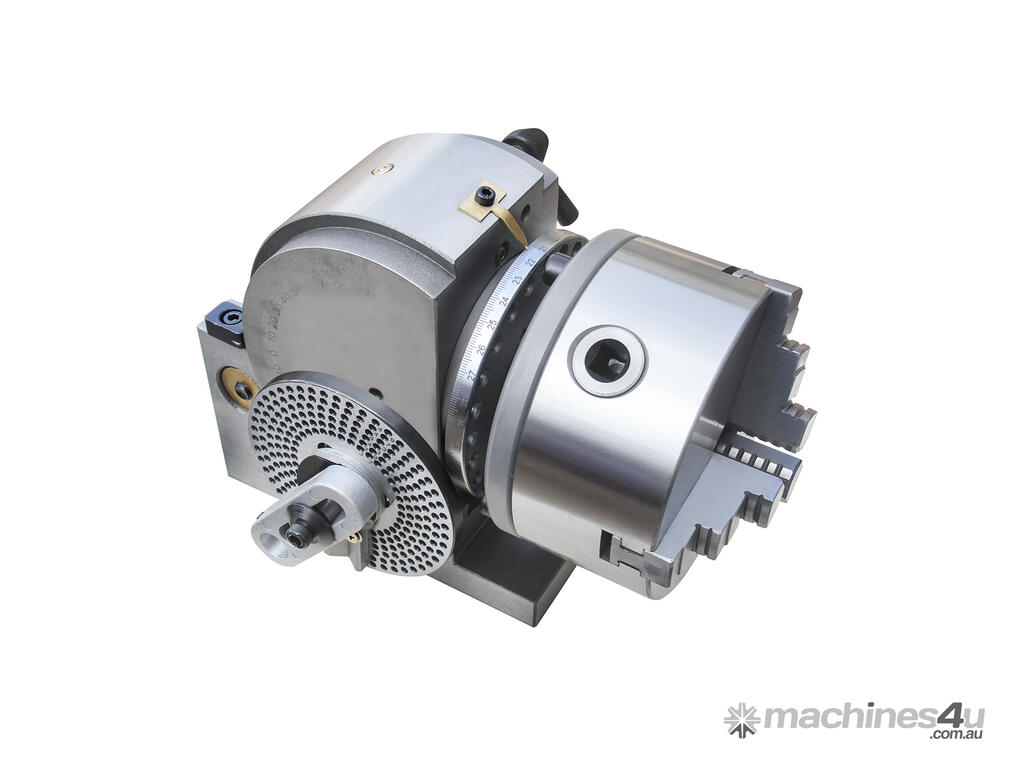

dividing head with tailstock

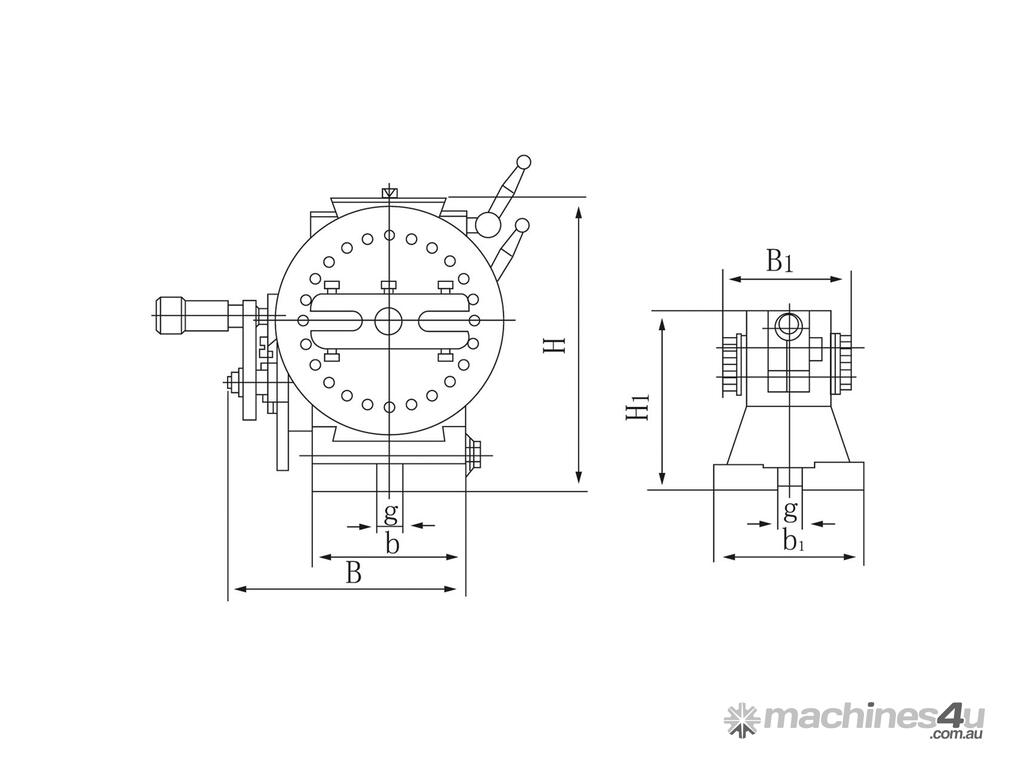

Dimension of Dividing head
A B H h a b g
193 mm 140 mm 173 mm 100 mm 166 mm 90 mm 16 mm

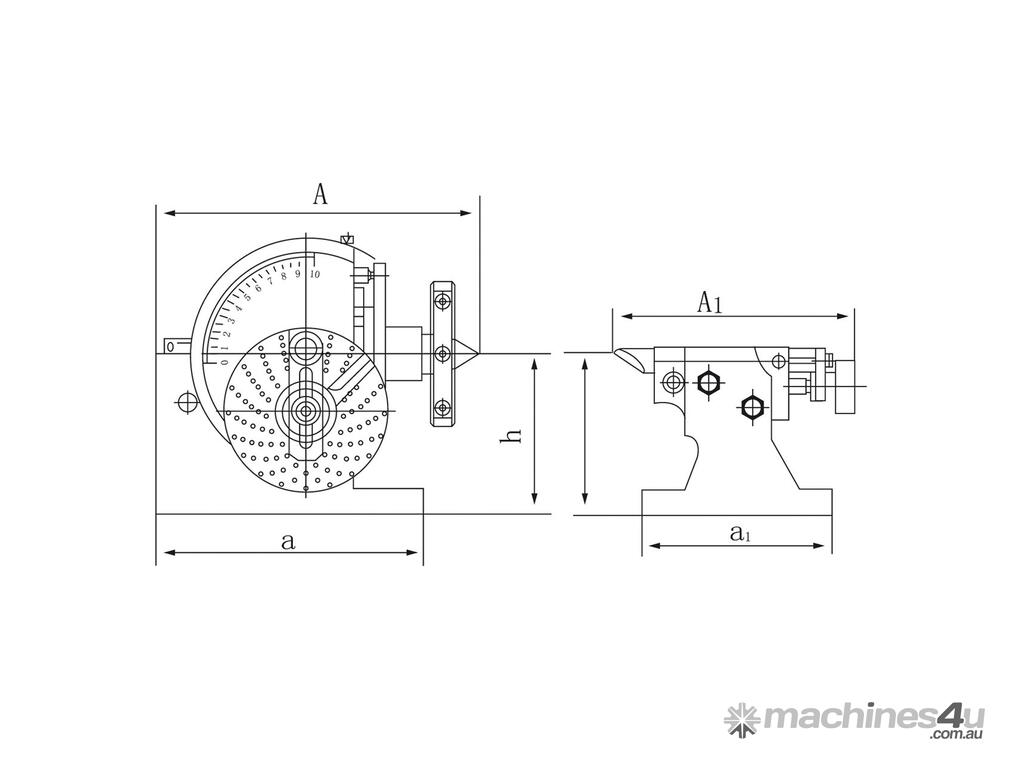

Dimension of Tailstock
A1 B1 H1 h a1 b1 g1
175 mm 87 mm 107 mm 100 mm 130 mm 92 mm 16 mm
