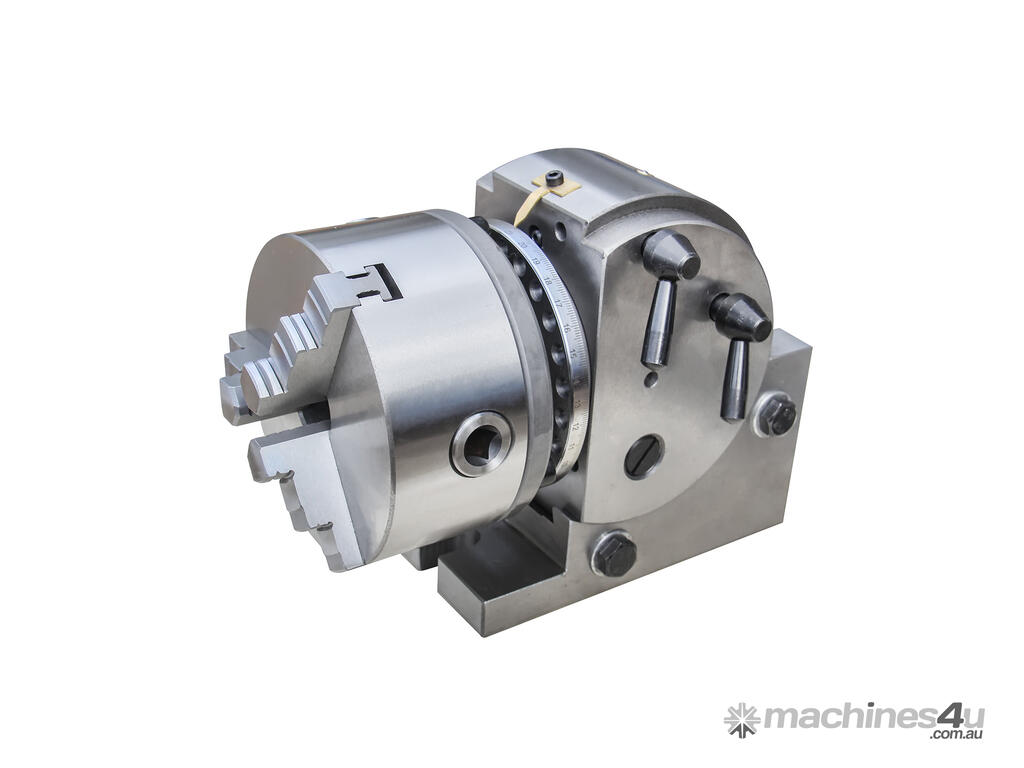

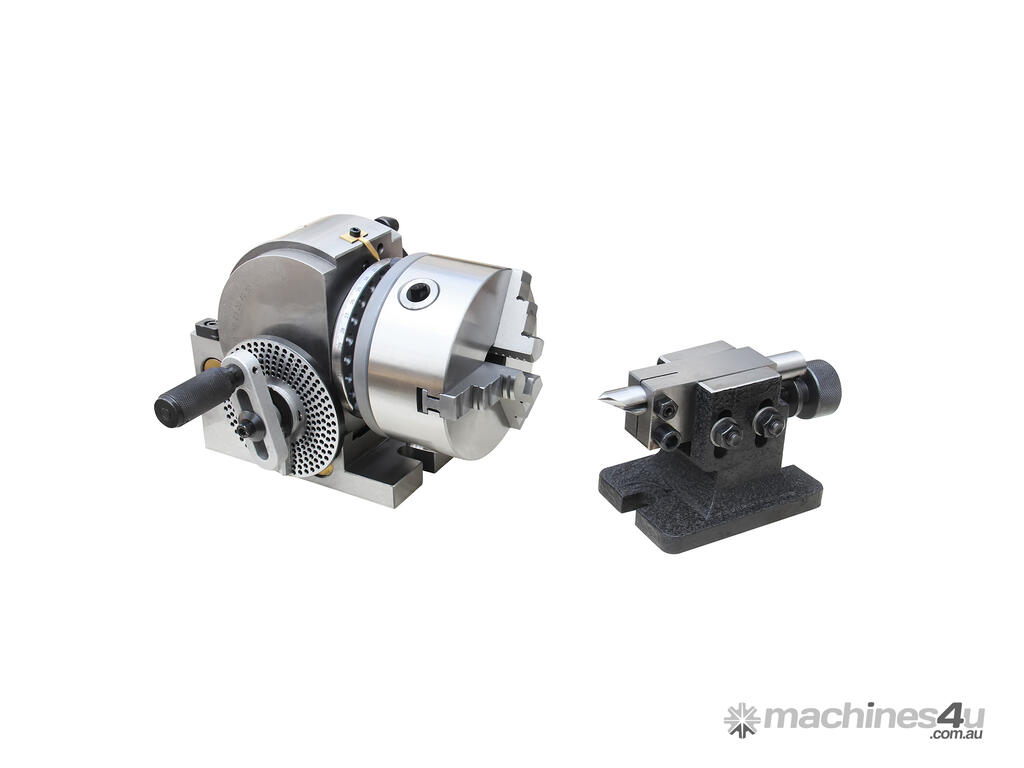

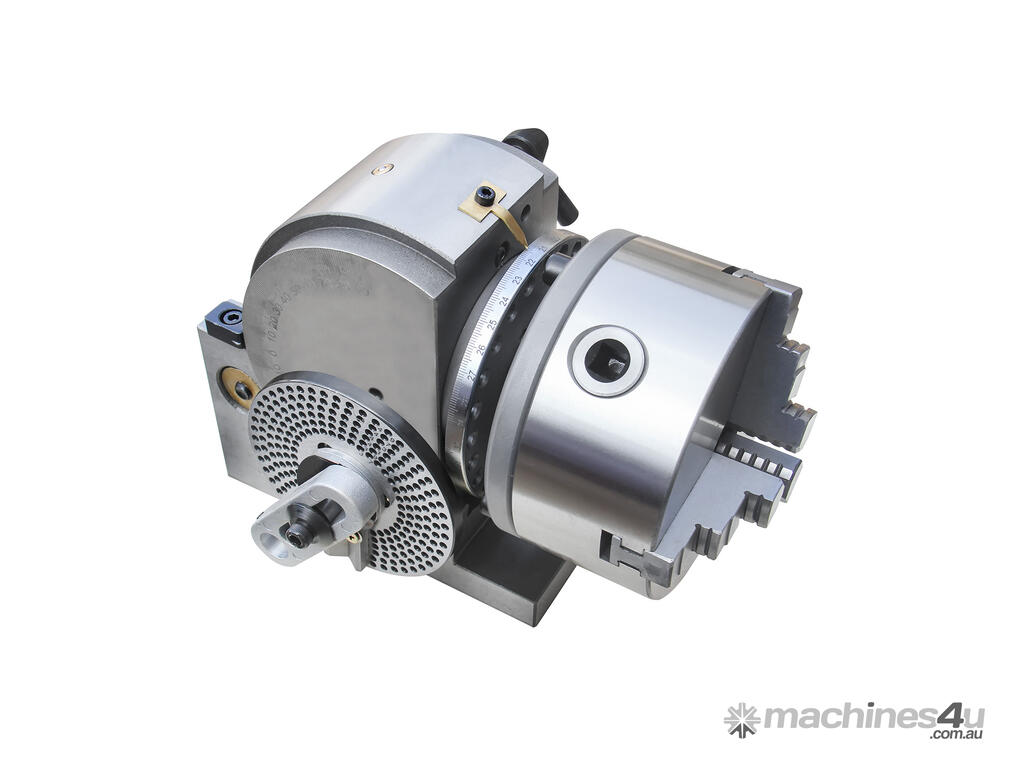

Kang Industrial Semi-Universal dividing head

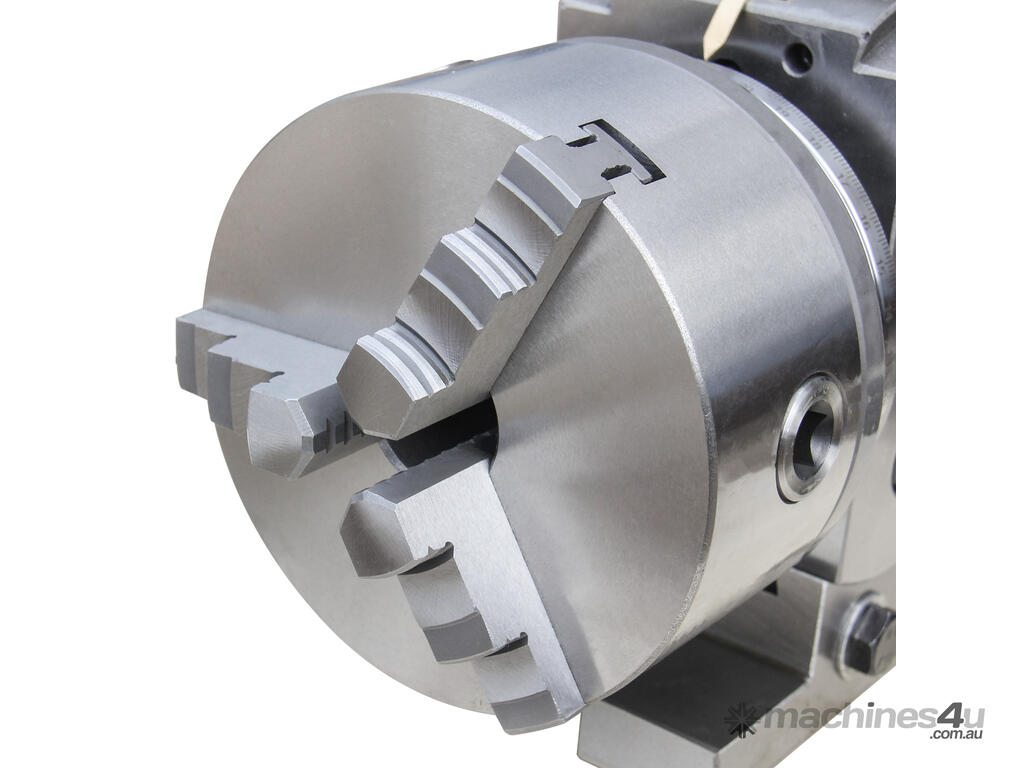

With 3 jaw chuck, 128mm center height
Features
BS-1 dividing head is suitable for direct and indirect indexing
MT2 spindle taper

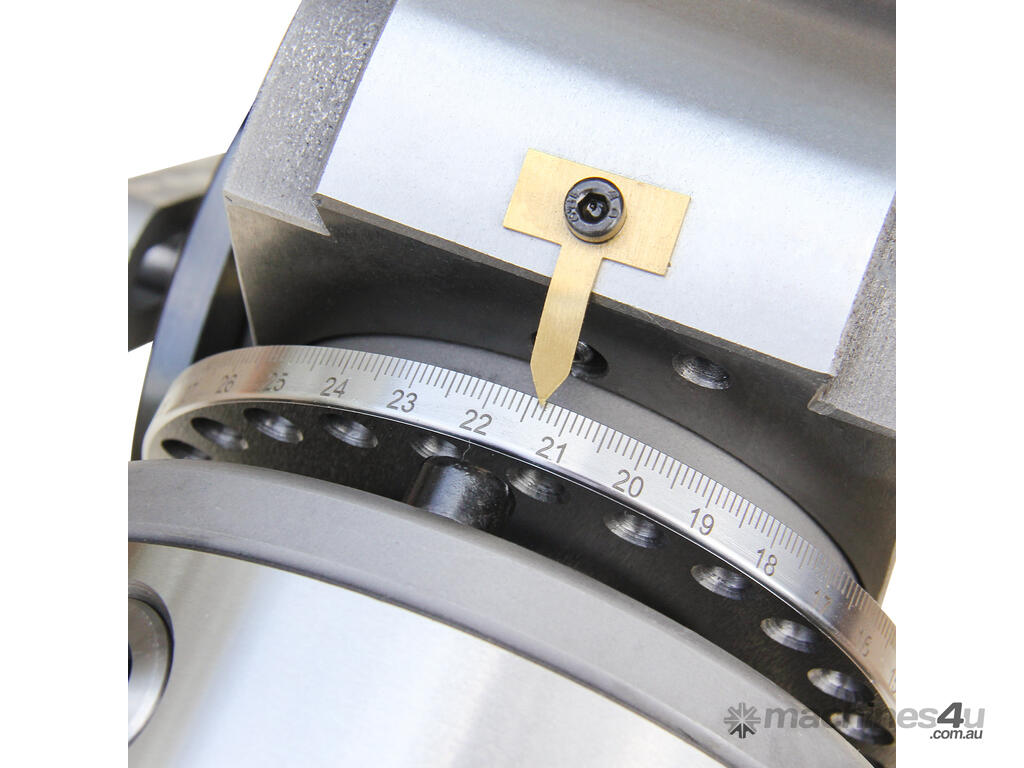

The 24 quick-dividing holes can complete 2,3,4,6,8,12,24 division indexiding
Worm and worm wheel ratio 40:1
Tilt from horizontal to vertical (-10° to +90°)
Each divide from 2 to 50 and many divides from 51-380

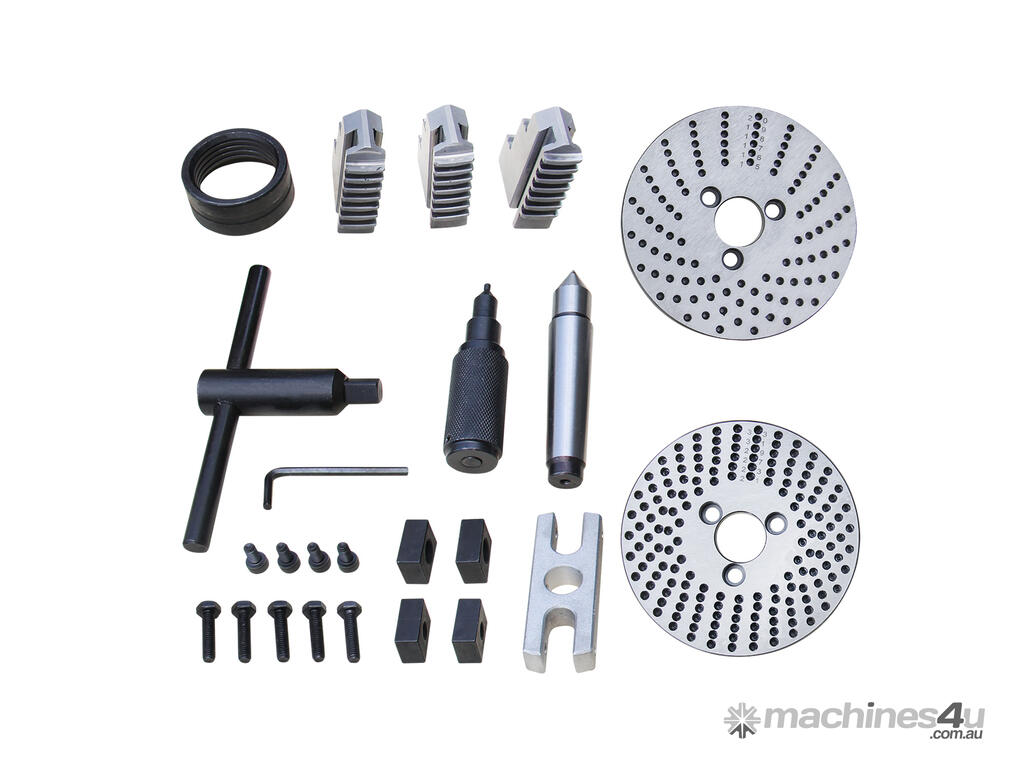

Standard Accessories
Tailstock, Dividing plate, Dead center

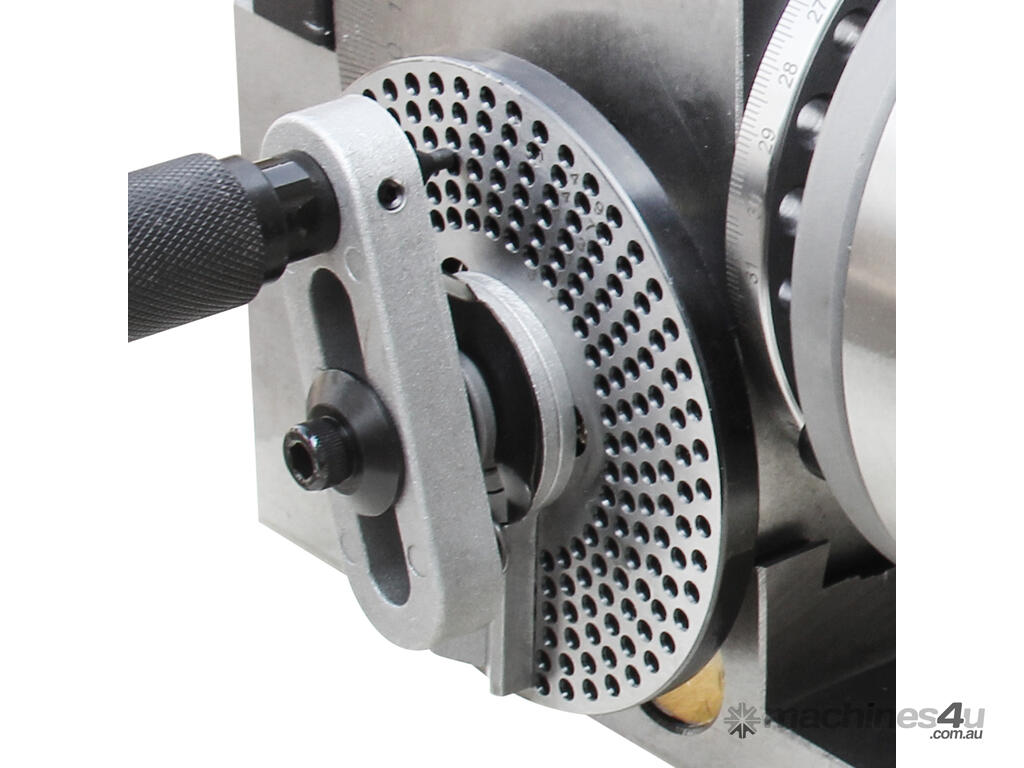

ABC dividing plate specifications
Plate A 15 mm 16 mm 17 mm 18 mm 19 mm 20 mm
Plate B 21 mm 23 mm 27 mm 29 mm 31 mm 33 mm
Plate C 37 mm 39 mm 41 mm 43 mm 47 mm 49 mm

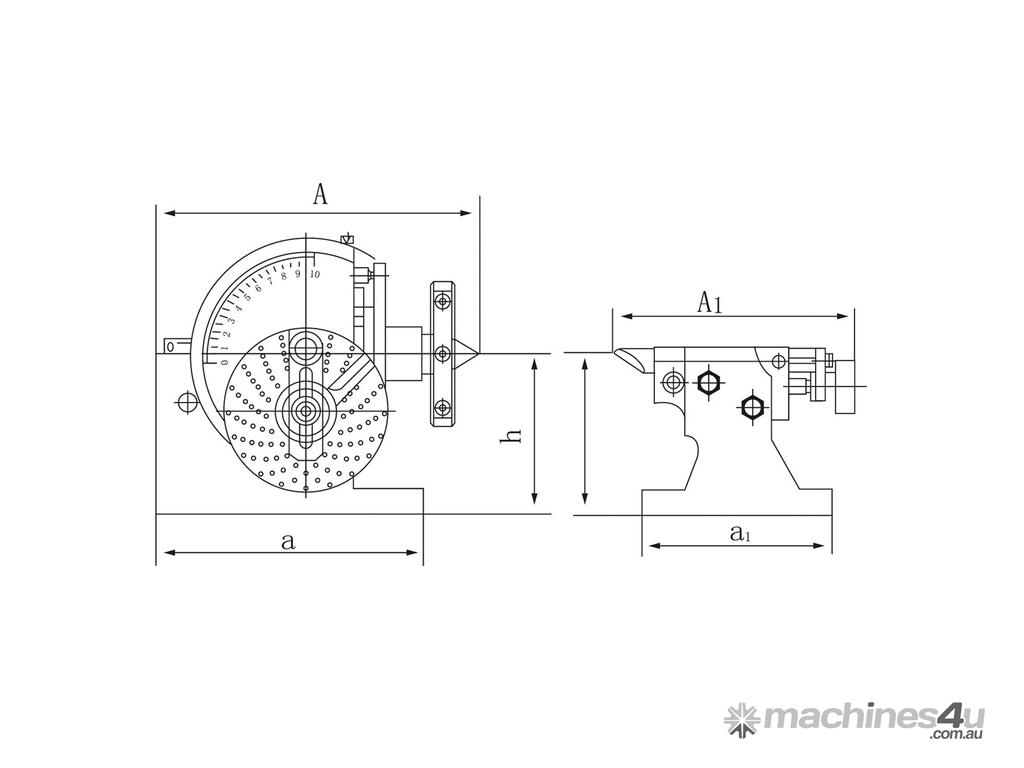

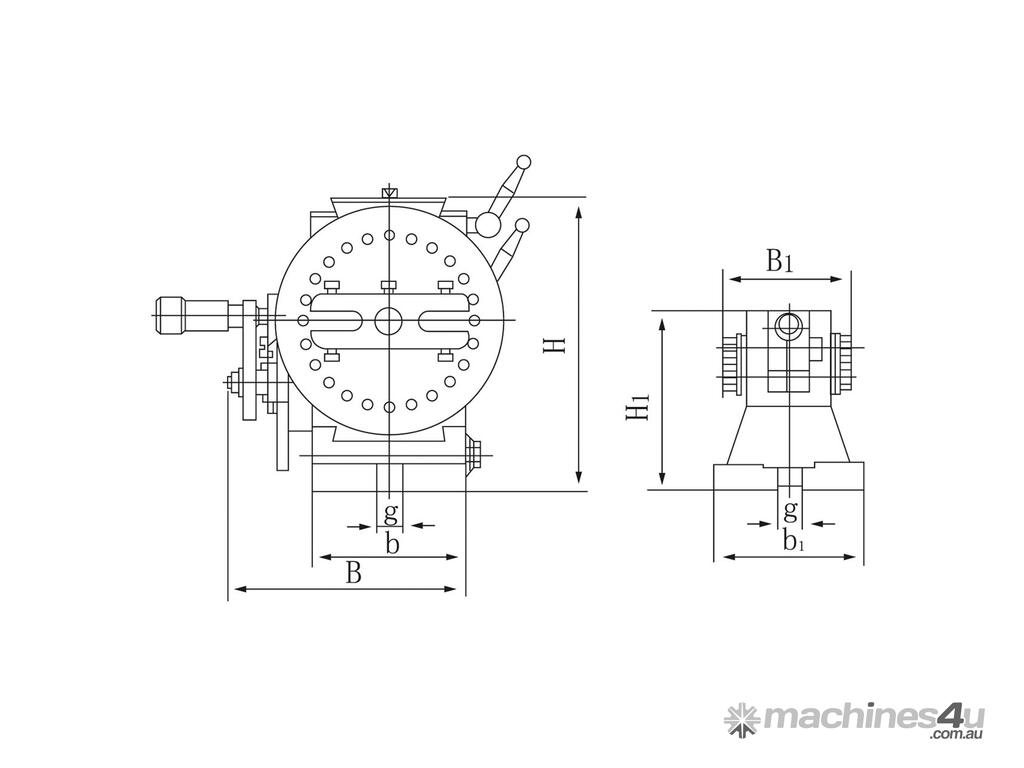

Dimension of Dividing head
A B H h a b g
242 mm 168 mm 220 mm 128 mm 206 mm 113 mm 16 mm

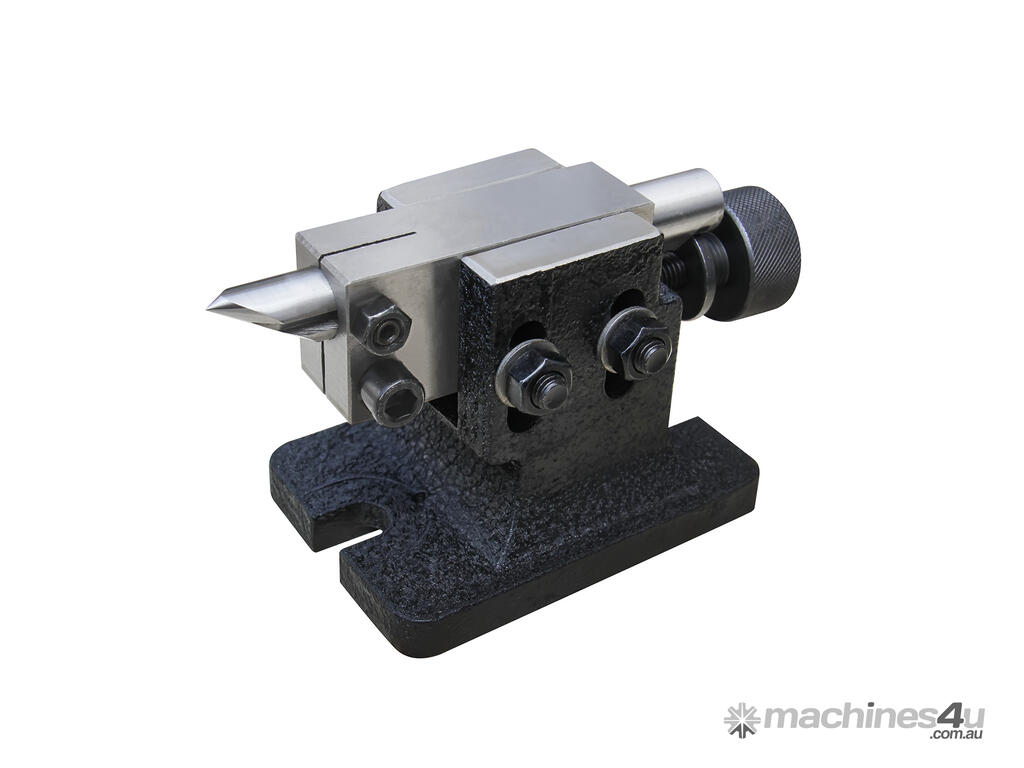

Dimension of Tailstock
A1 B1 H1 h a1 b1 g1
183 mm 87 mm 137 mm 128mm 158 mm 110 mm 16 mm
