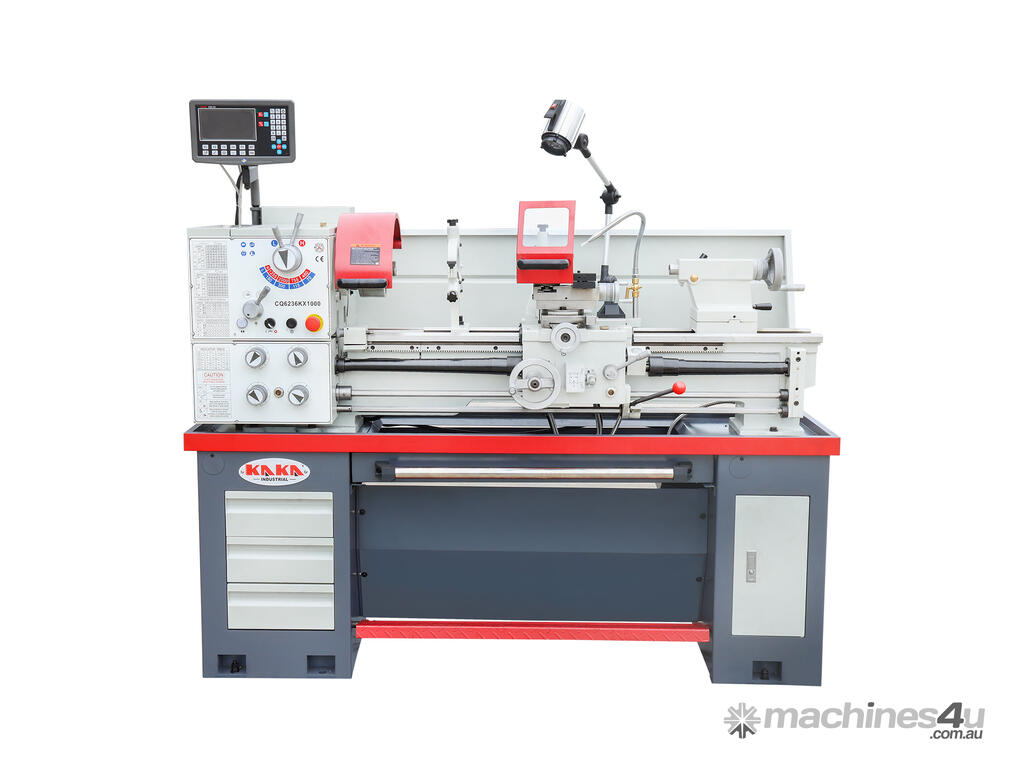

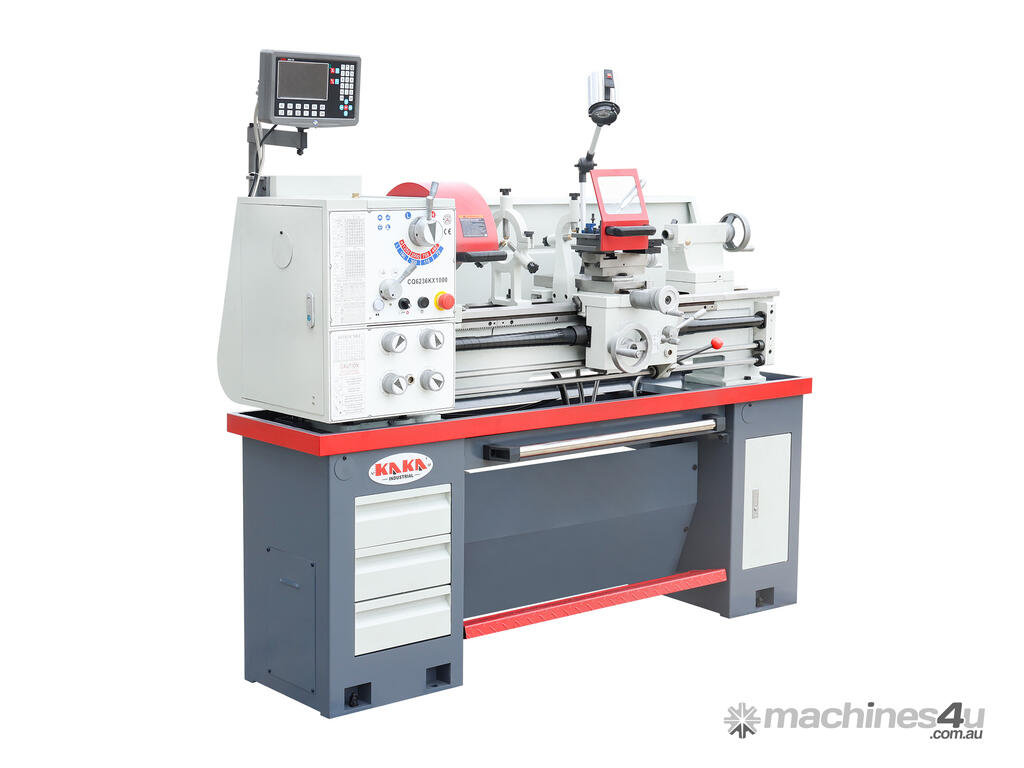

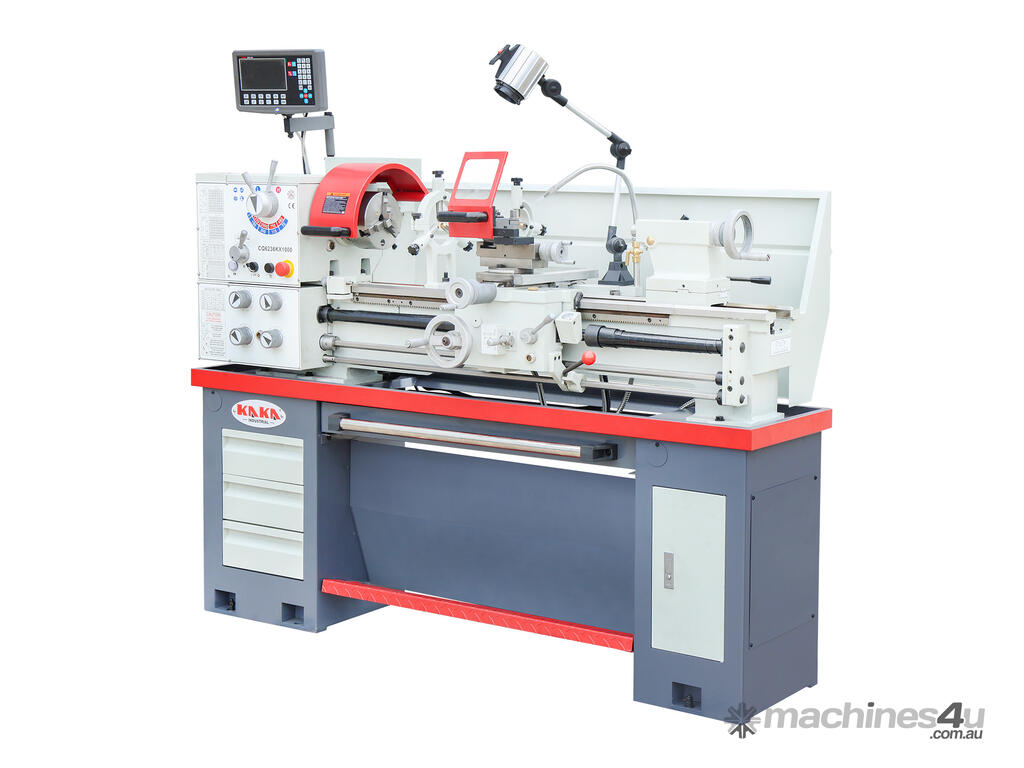

Kang Industrial Center Lathe CQ6236Kx1000

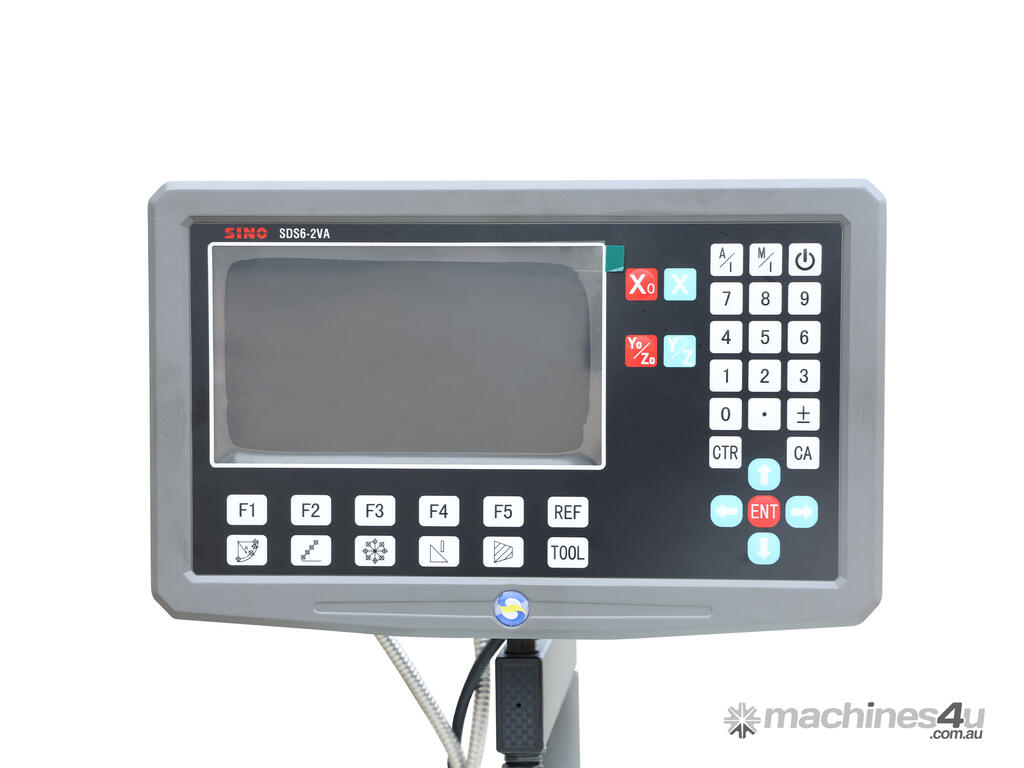

C/W 2-axis DRO
Features
Swing over bed 360mm, and distance between centers 1000mm
Hardened and ground cast iron bed and slide ways

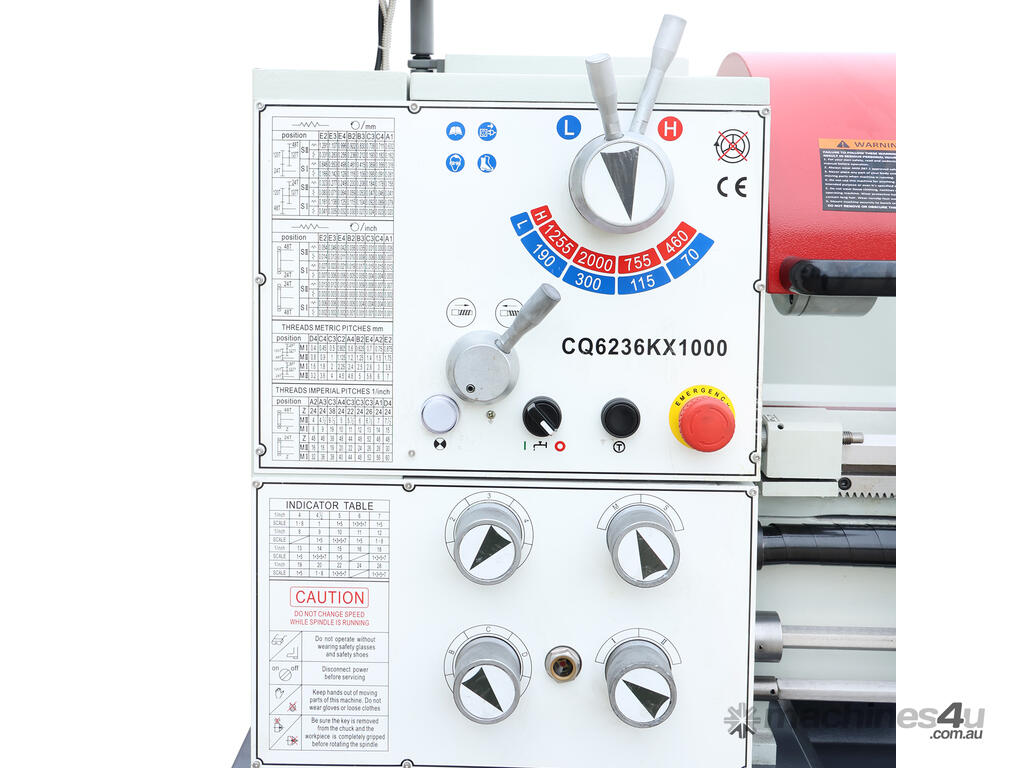

Gear drive headstock

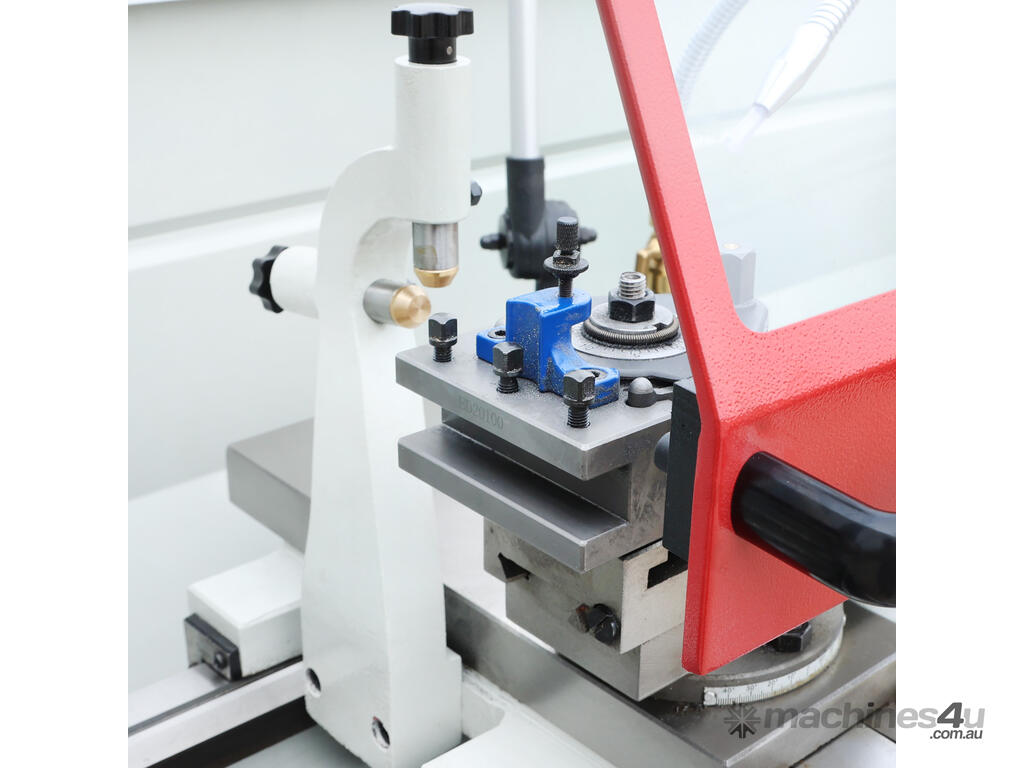

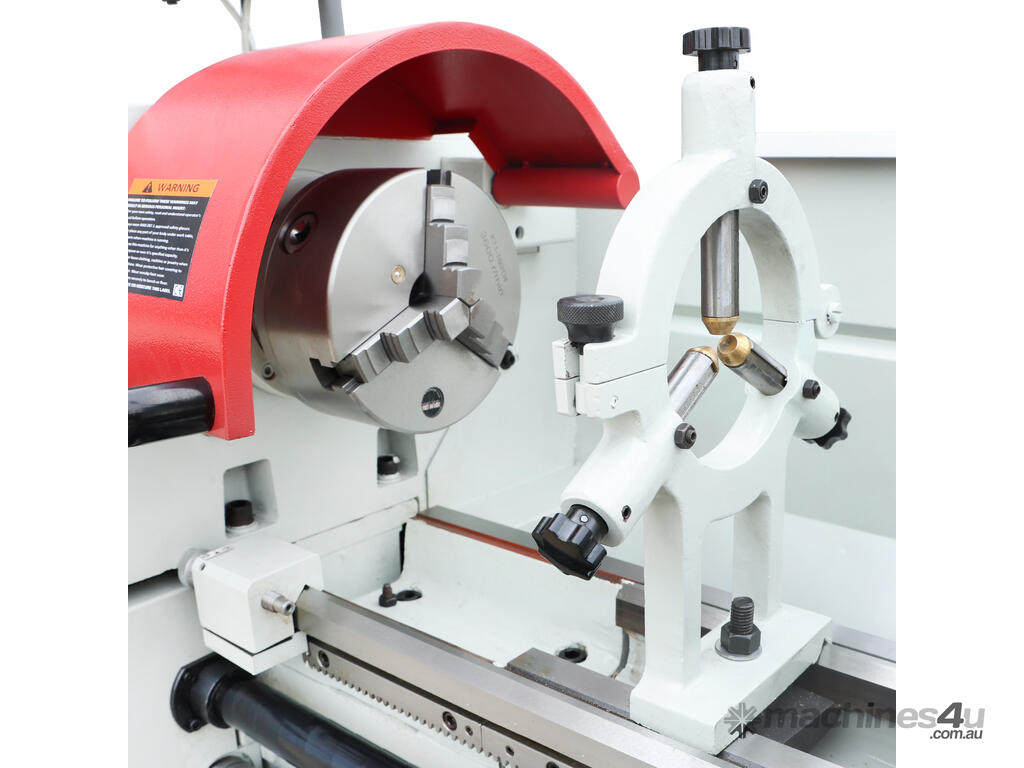

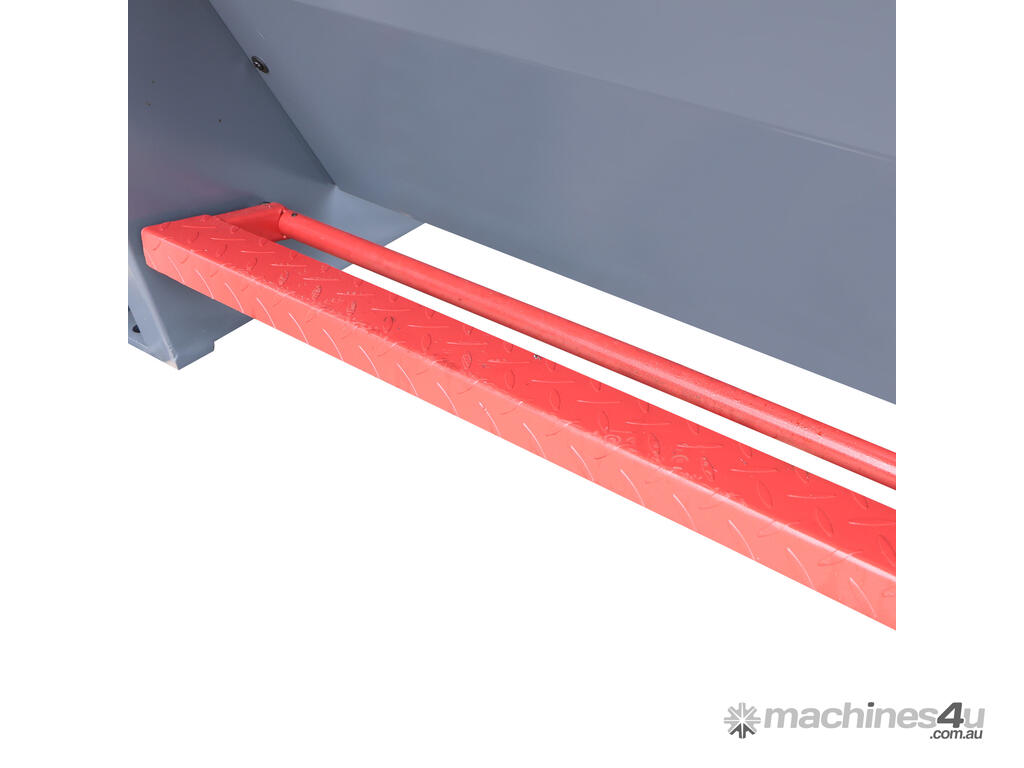

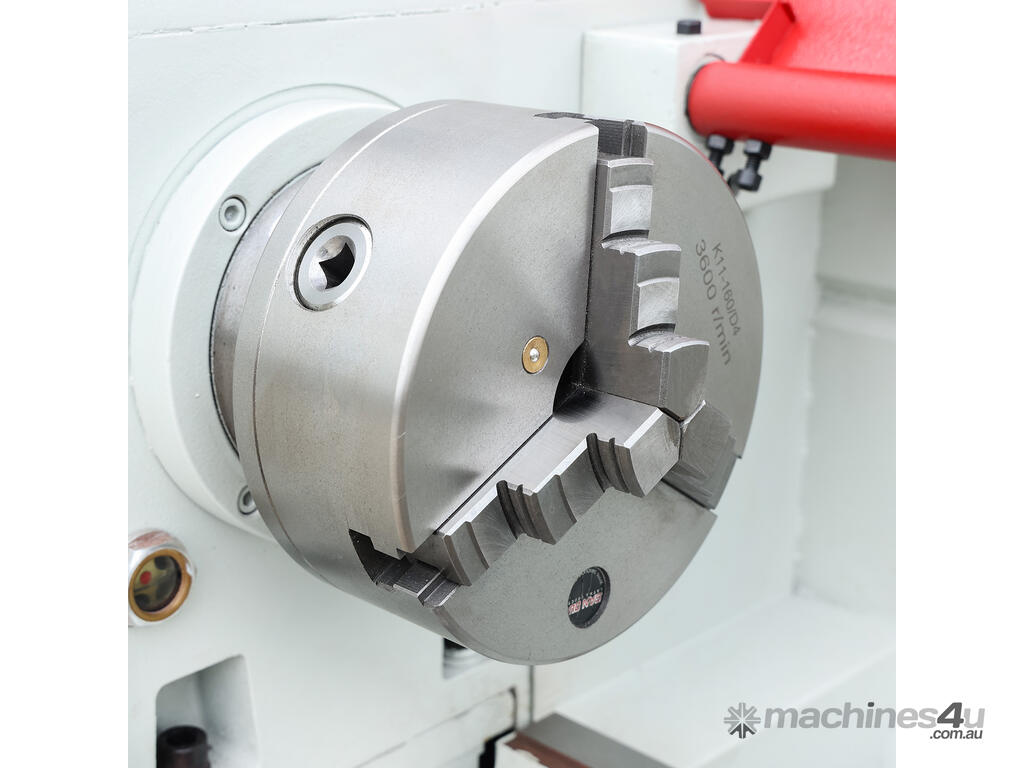

Standard, 3-Jaw Chuck, 4 Jaw Chuck, Fixed steady, travelling steady, face plate, foot brake, cooling system
Specifications
SKU 162121
Model CQ6236Kx1000
Max. swing over bed 360 mm
Max. swing over gap 502 m
Max. turning dia. over cross slides 224 mm
Center distance 1000 m
Spindle speed 70-2000 rpm, 8 steps
Spindle bore dia. 51 mm
Spindle taper MT5
Longitudinal feed 0.079-1.291 mm/rev, 36 steps
Cross feed 0.017-1.276 mm/rev, 36 steps
Metric thread 0.4-7 mm, 36 steps
Imperial thread 4-60 TPI, 36 steps
Cross slide travel 160 mm
Top slide travel 76 mm
Swiveling angle of turret ±45 degrees

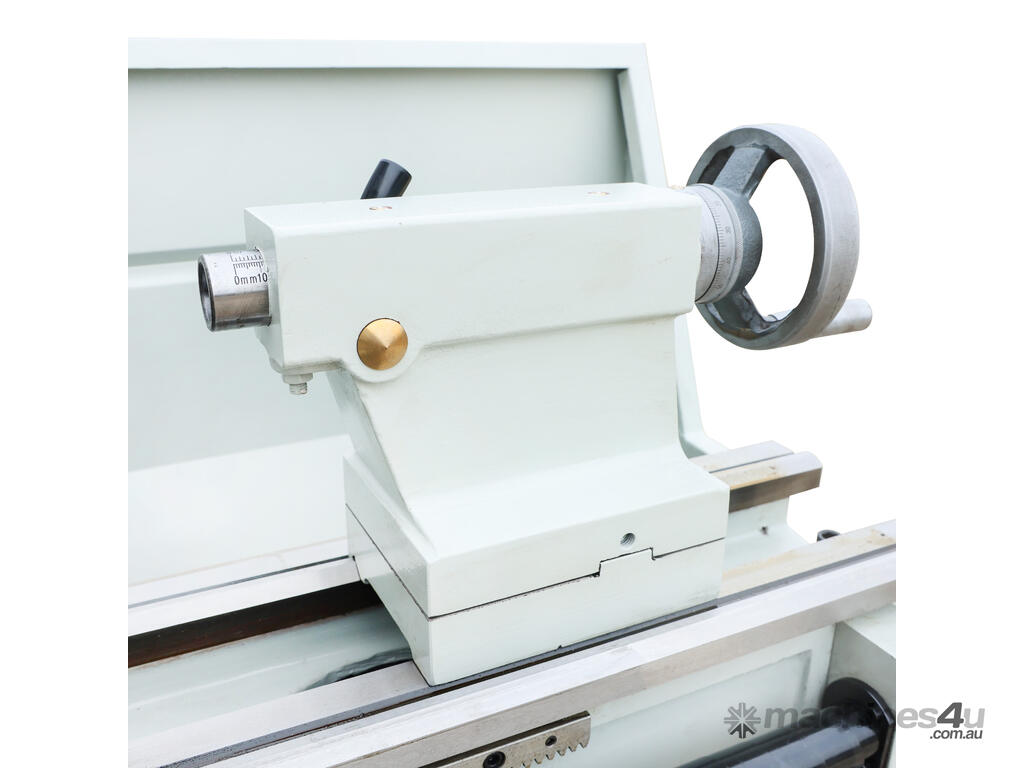

Tailstock quill travel 100 mm
Tailstock taper MT3
Main motor power 1.5 kW
Packing size 185x76x140 cm
Weight 560/660 kg
