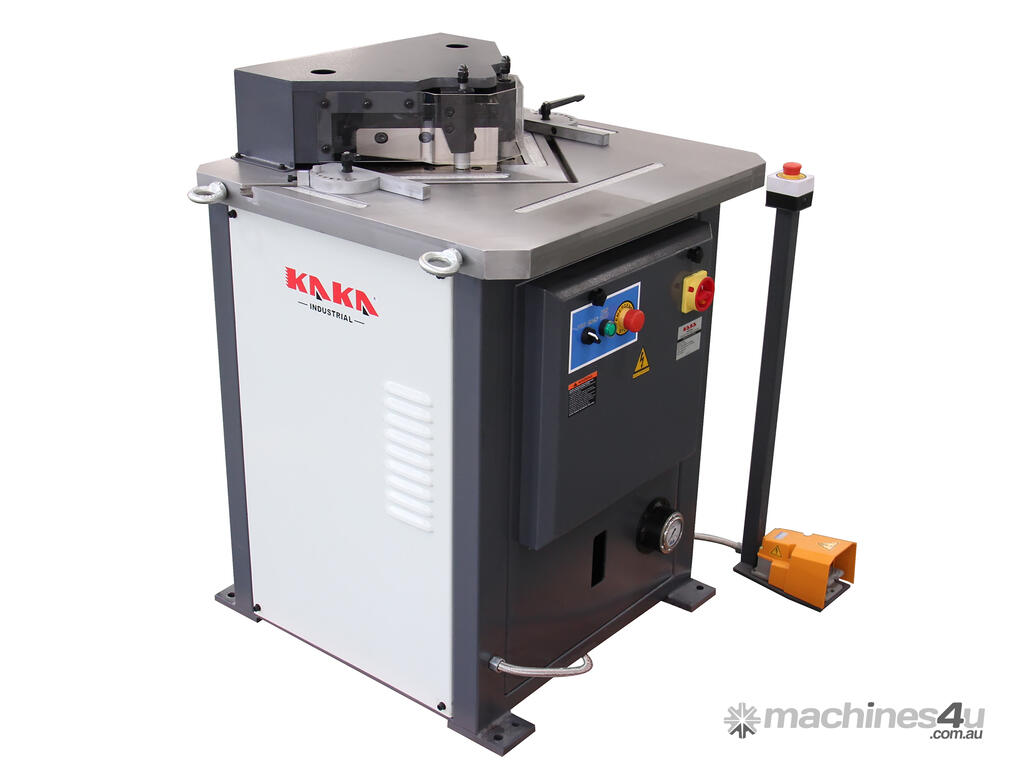

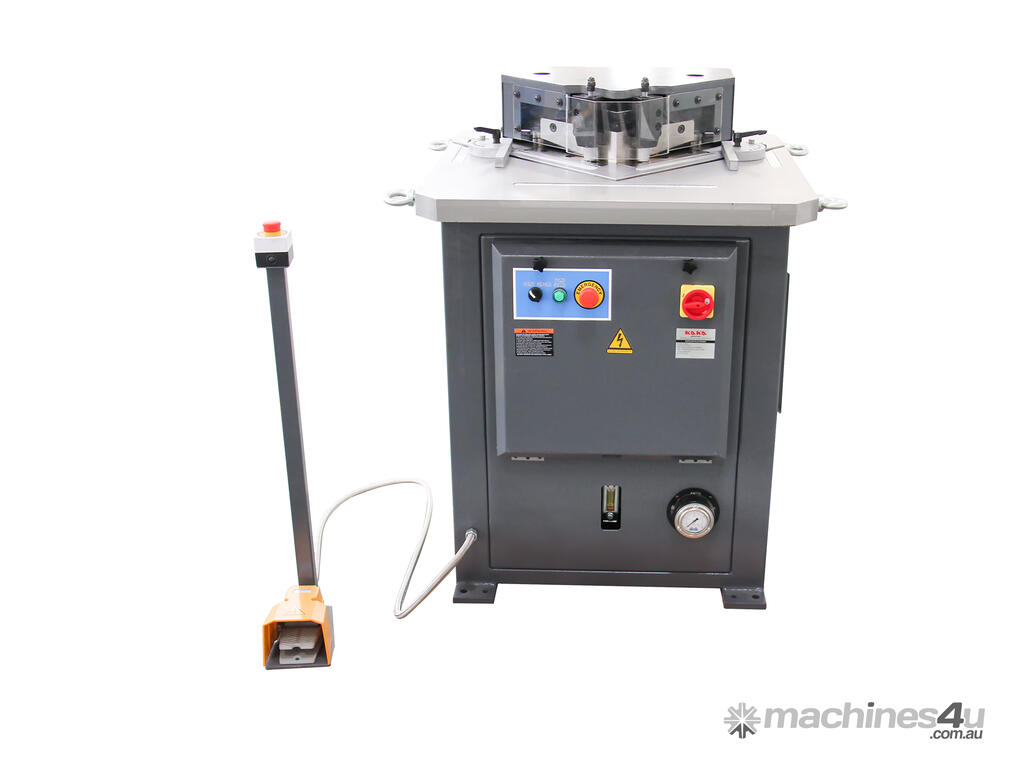

Kang Industrial Hydraulic Angle Notcher HNM-6
Fixed angle notcher, 250x6.5mm capacity
Features
Runs on 415V power, 4.0 KW motor
Up to 12 Mpa working pressure
Heavy duty angle notcher, notching up to 6.5mm plate
Blade length 250mm

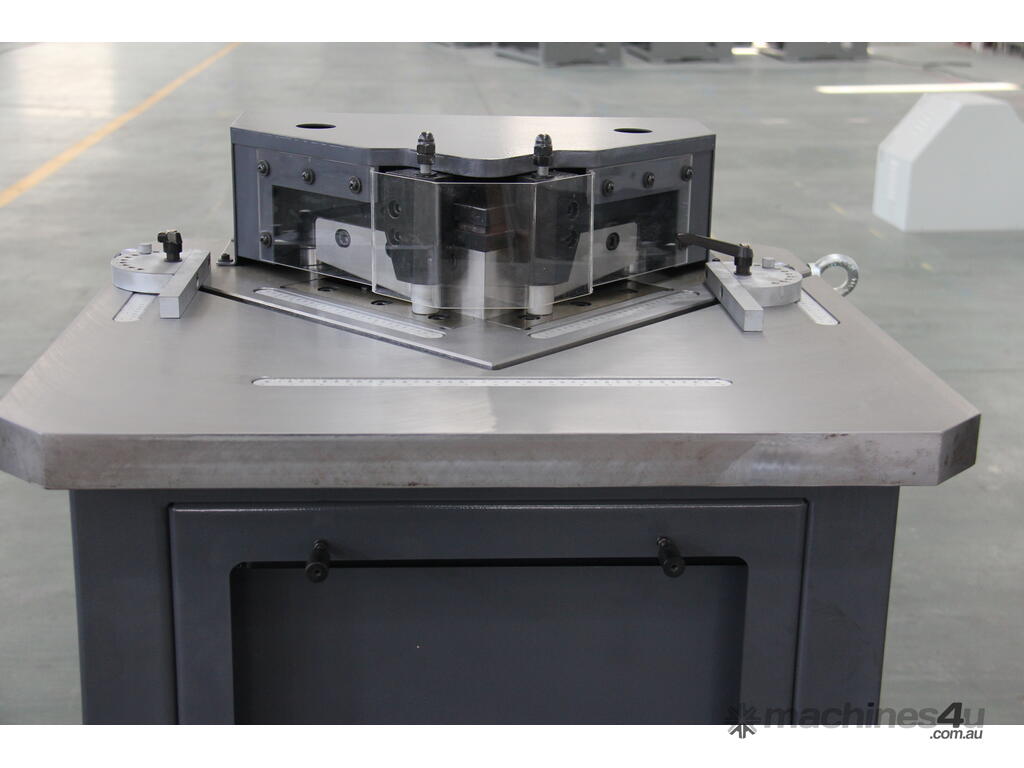

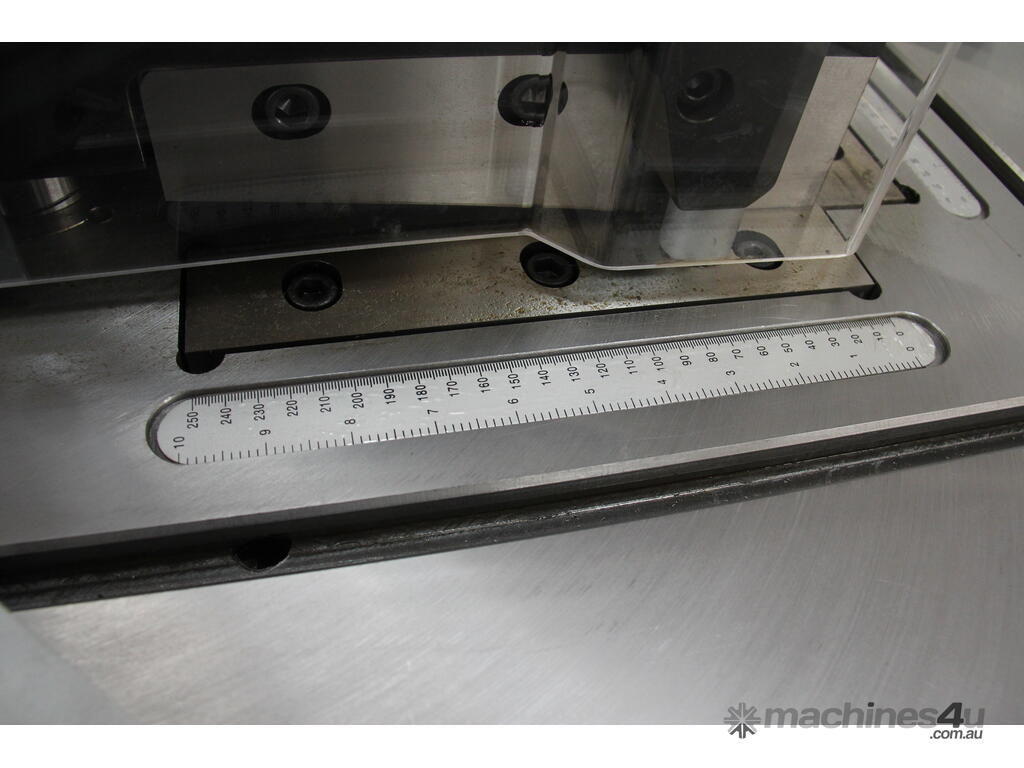

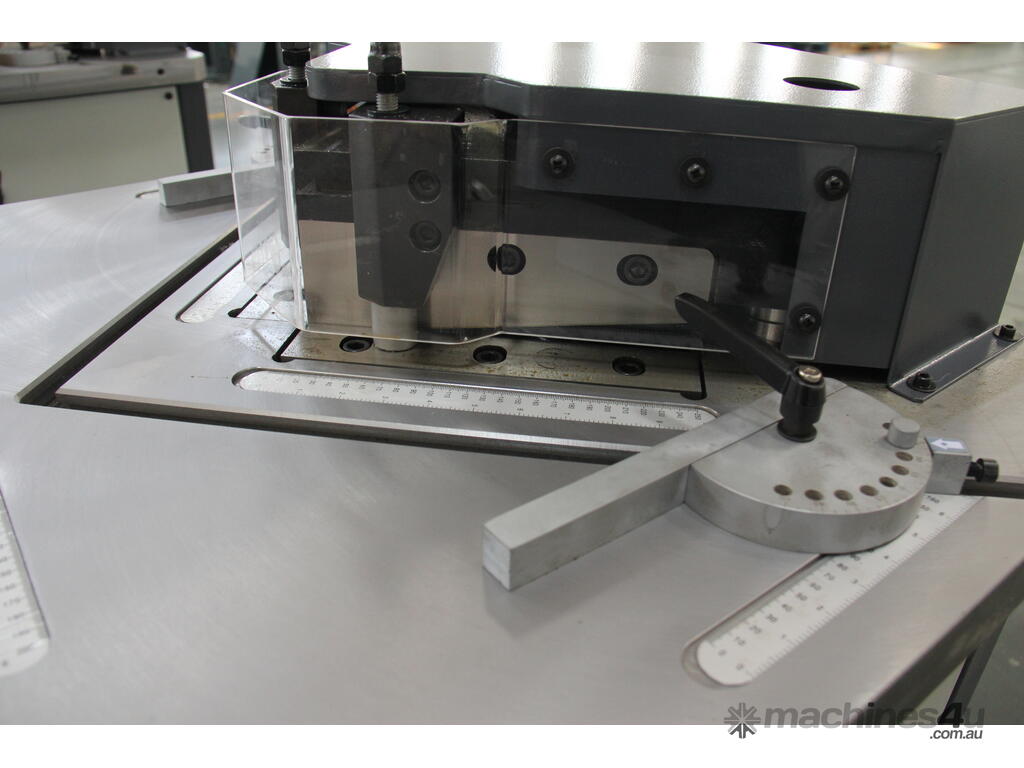

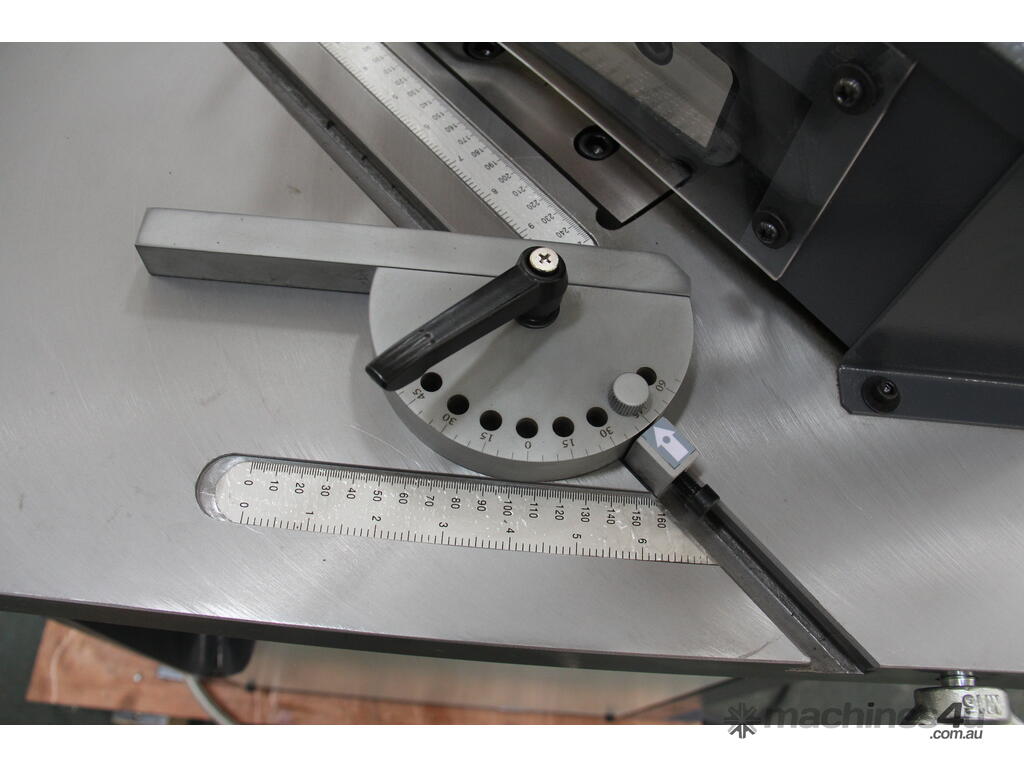

Adjustable stops with fixed handle for quick setup notcher
Plastic cover over the cutting blade for safety notching and see the cutting line
Hold down clamps to ensure the plate not moving when cutting the plate
Specifications
SKU 172410
Model HNM-6
Cutting angle 90°
Max. cutting length 250 mm
Max. cutting thickness 6.5 mm
No. of stroke 24 times per min
Table size 810x750 mm
Motor power 4 kW
Motor speed 1440 rpm
Oil tank volume 35L
Max. working pressure 12 MPA
Packing size 101x85x137 cm
N.W./G.W. 630/675 kg
