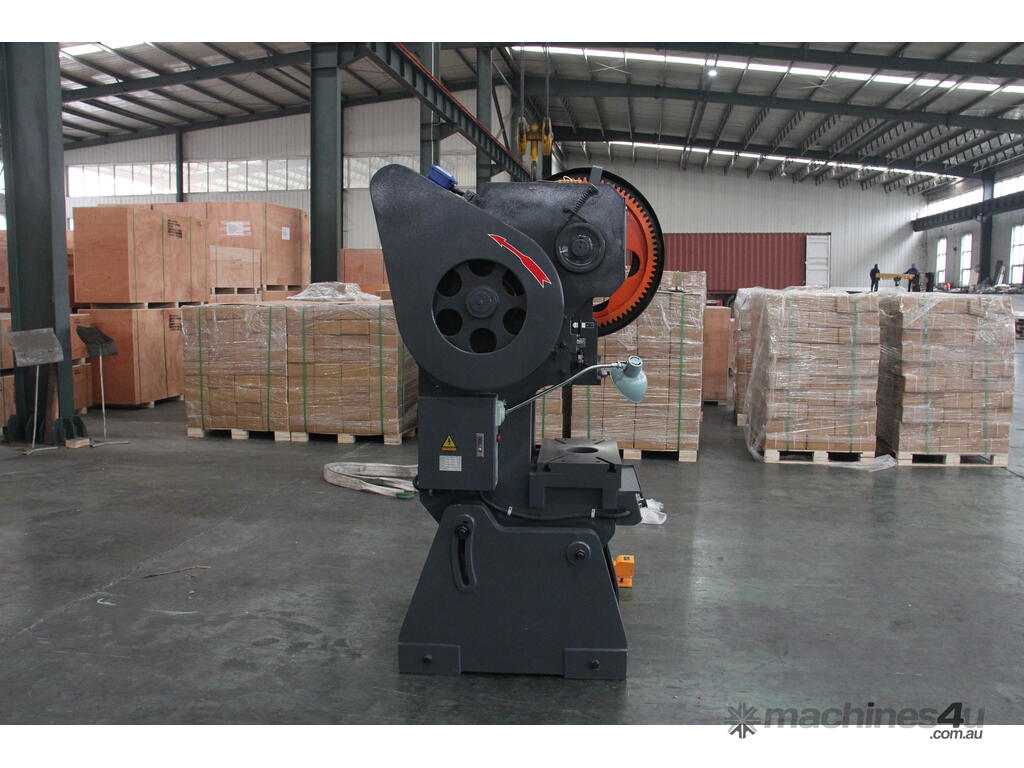

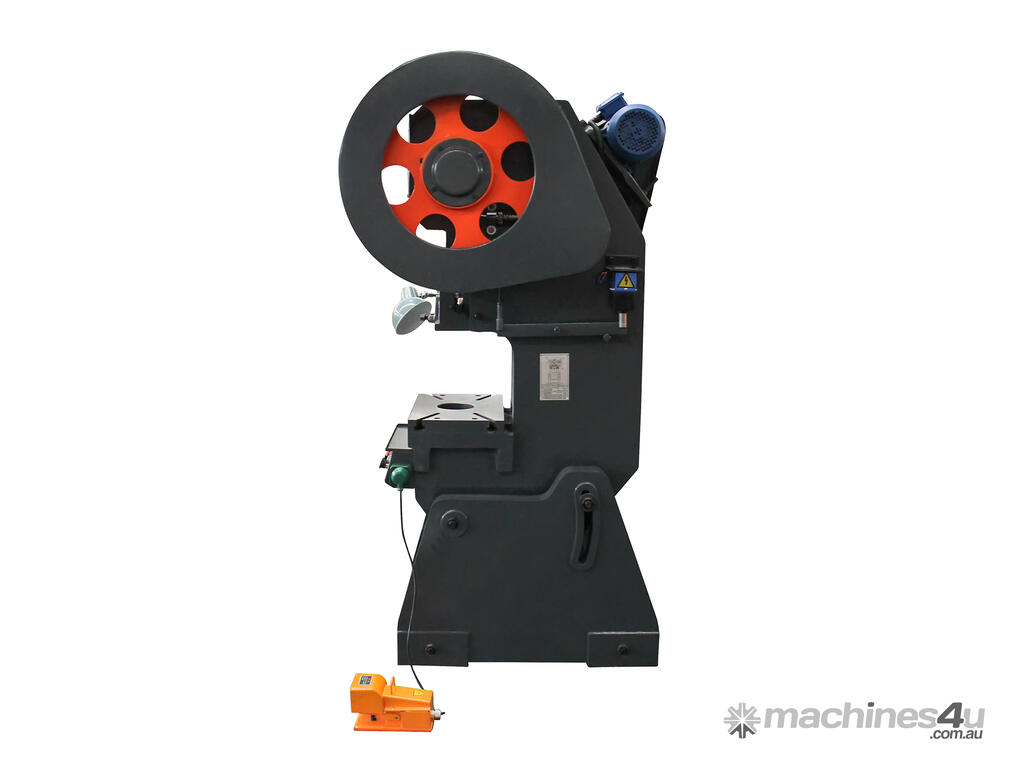

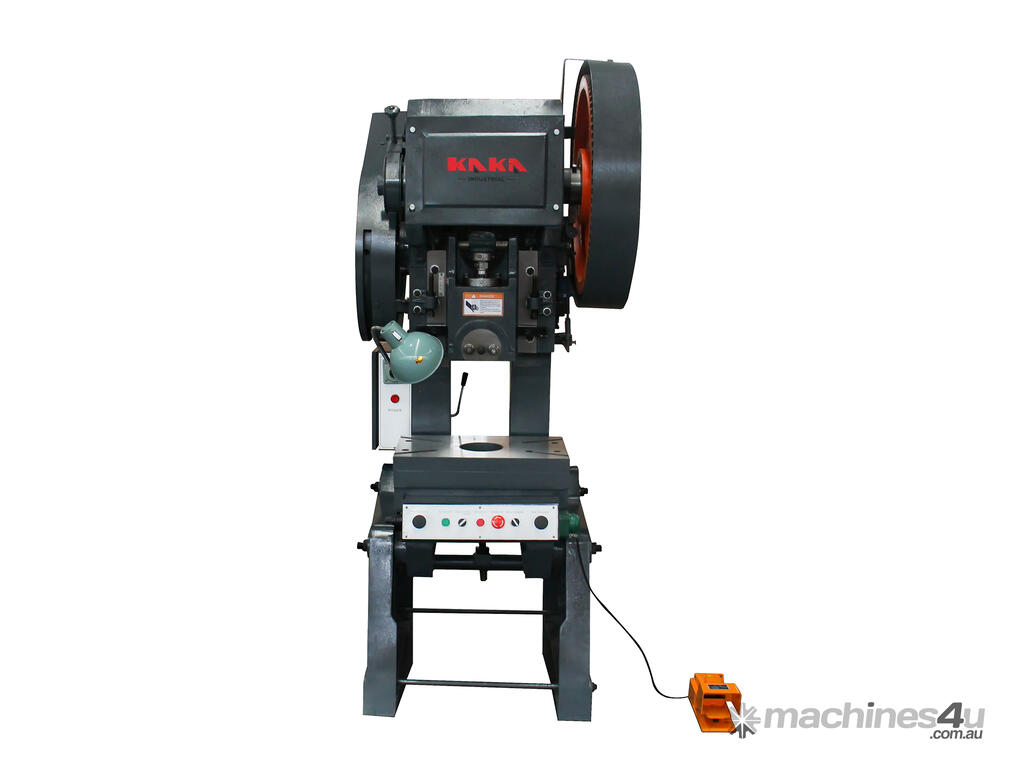

Kang Industrial JB23-25 Mechanical Press Machine
Economic Press Machine, 25-Ton Pressure
C frame, the inclinable body can slide the material and scrap easily
Cast iron body, stable performance
Suitable for blanking, forming, curving, and flat stretching on punch & press function.
Rigid rotated bond clutch, simple structure, easy operation
Specifications
SKU 162012
Model JB23-25
Nominal force 250 KN
Nominal travel 2.5 mm
Slide travel 70 mm
Number of strokes 65 times per min.
Max. die height 200 mm
Die height adjustment 40 mm
Distance from slide block center to frame 200 mm

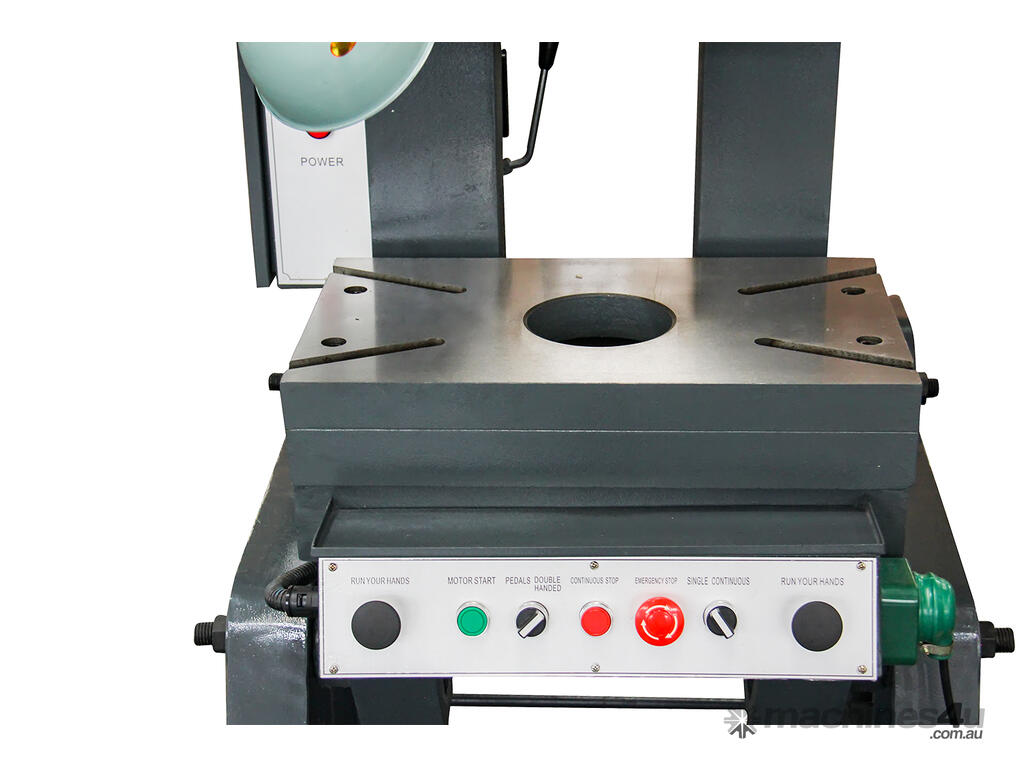

Table size 320x500 mm
Dimension of working table hole 120 mm
Table thickness 50 mm
Slide area 170x220 mm
Shank hole 40x60 mm
Distance between columns 240 mm

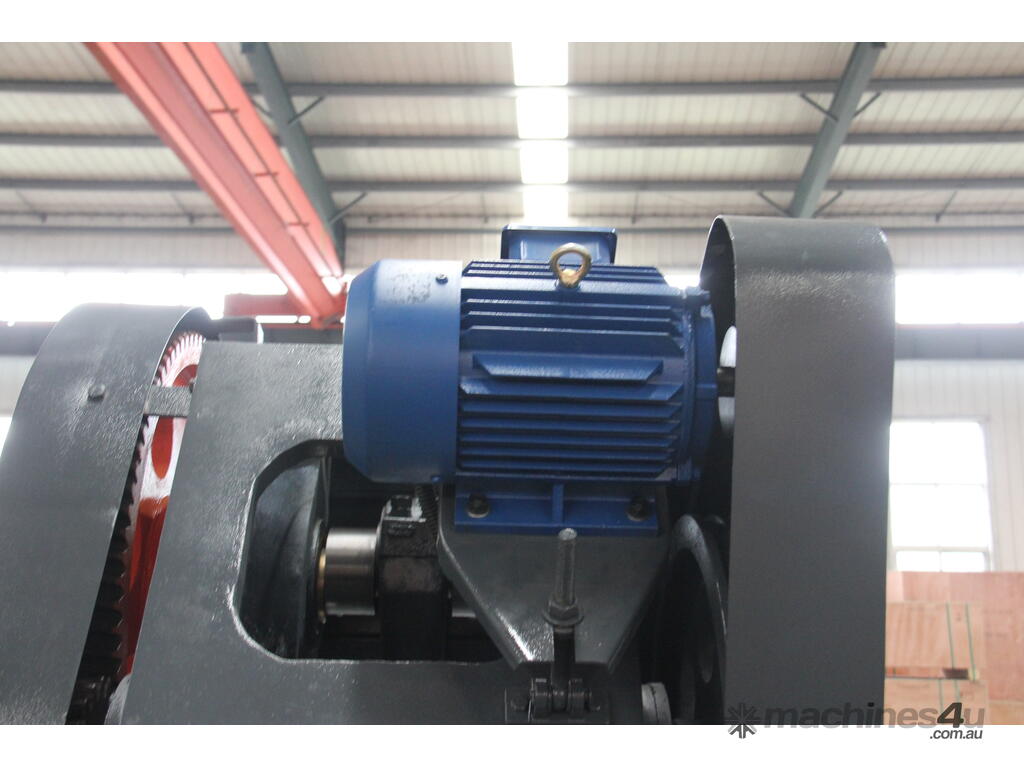

Motor Y100L-4, 3.0 KW

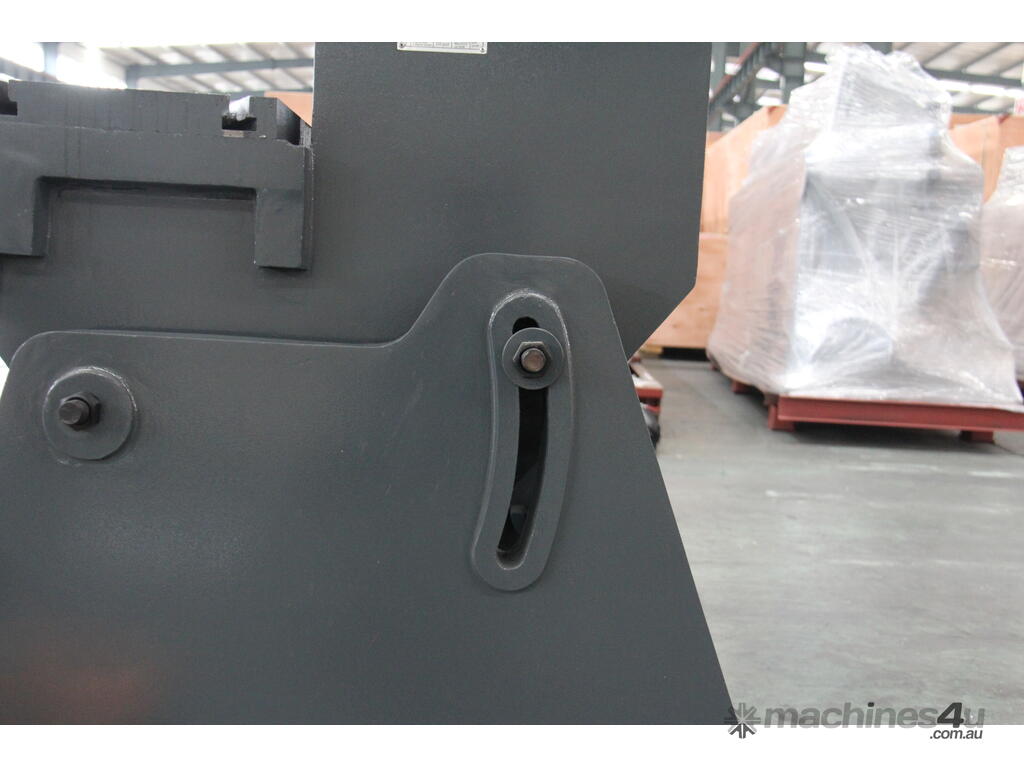

Max. inclinable angle 25°
Packing size 218x106x139 cm
N.W./G.W. 1650/1750 kg
