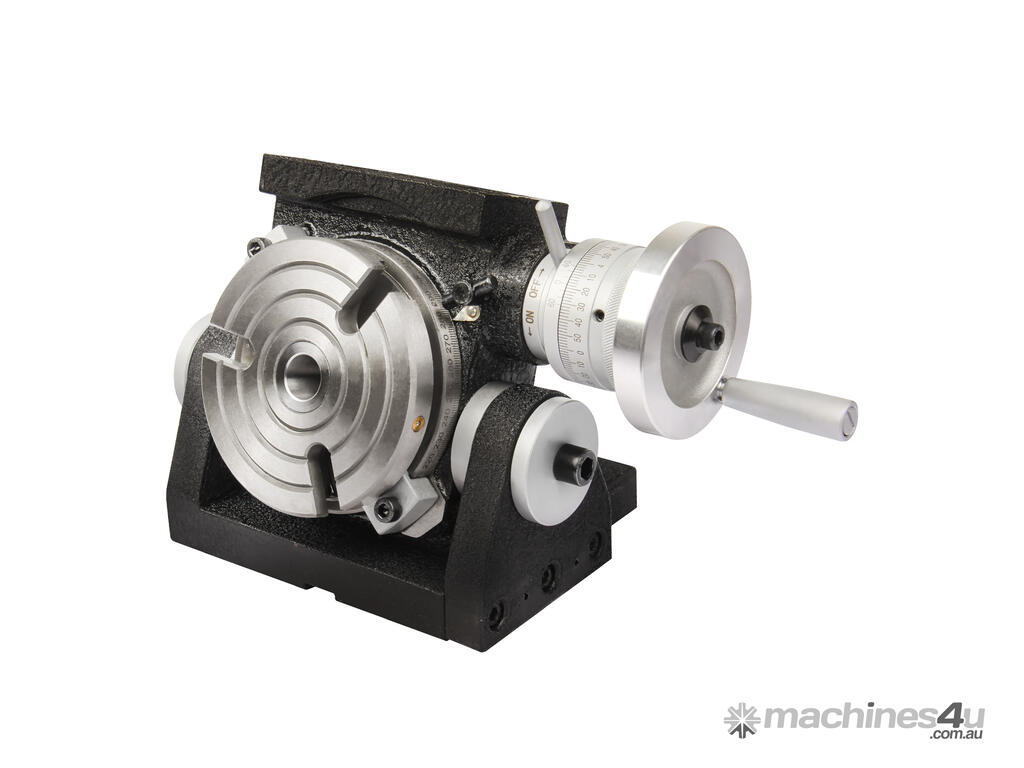

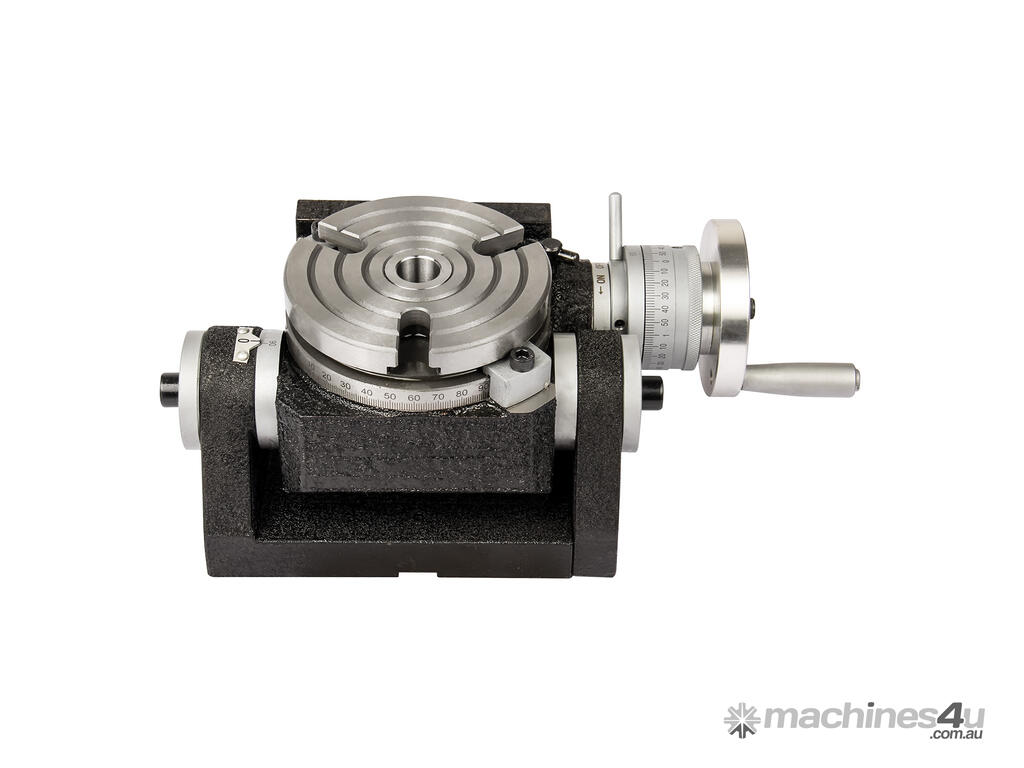

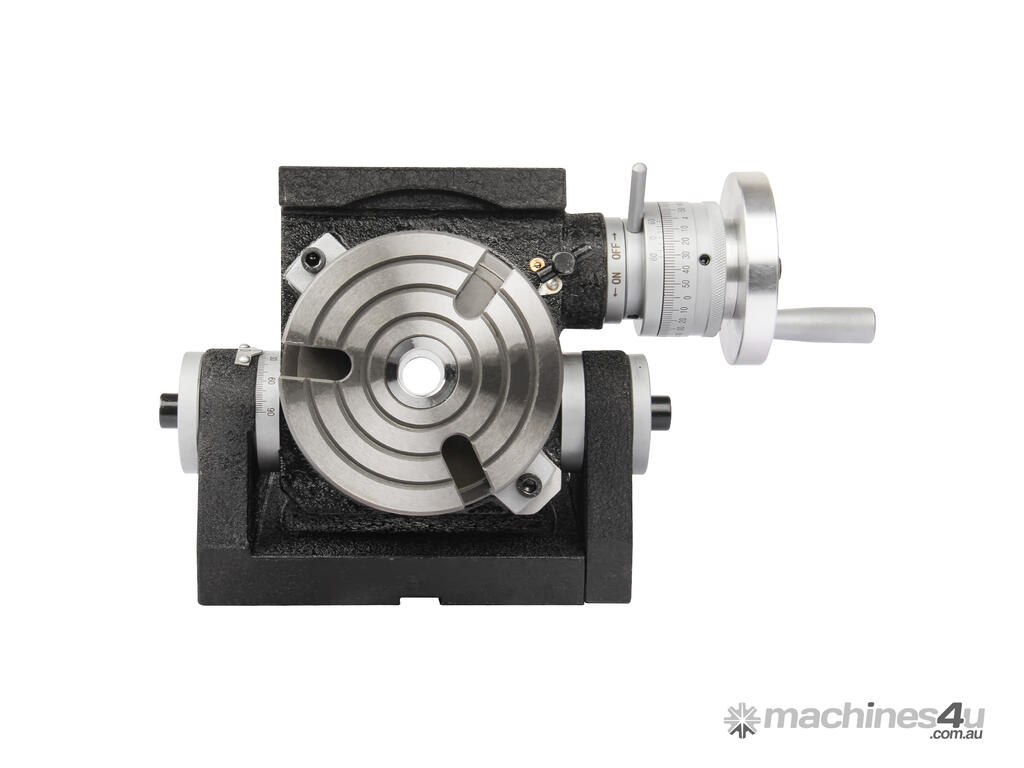

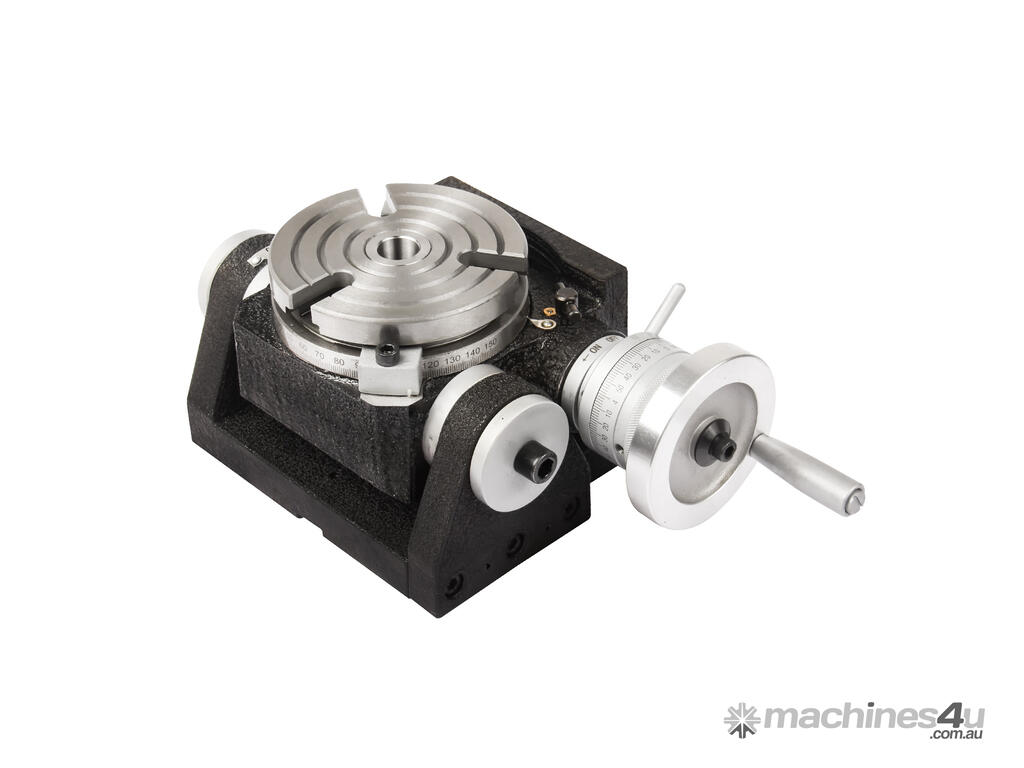

Kang Industrial Tilting Rotary Table
OD 110 mm table
Features

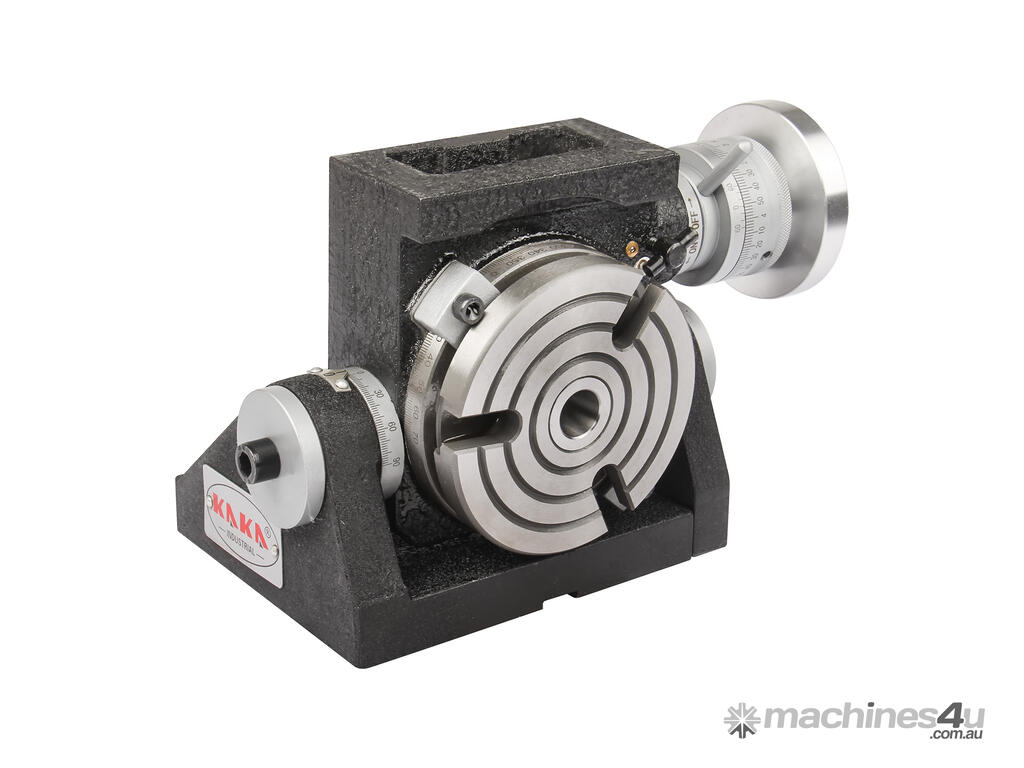

Tilting range 0-90 ° horizontal to vertical graduated in 1°
Graduation of the table 360°

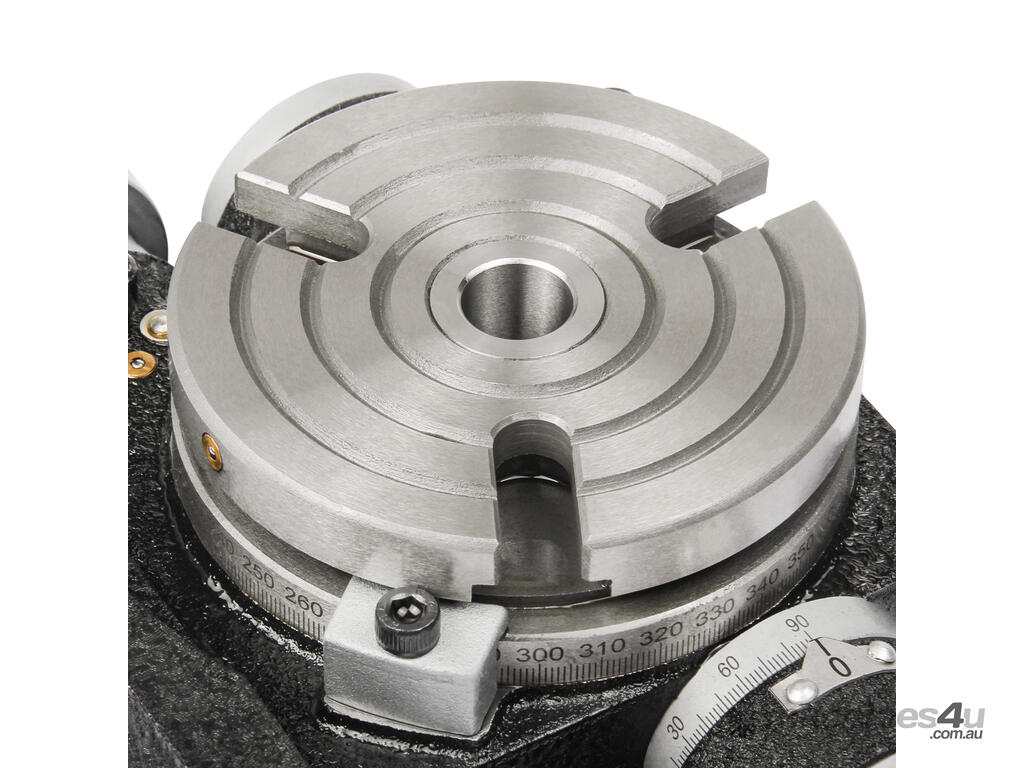

Table with 3 slots
Worm ration is 1:72
Specifications
SKU 162314
Model TSK-4
Table dia. ø 110 mm
Morse taper of the center hole MT2
Width of T-slot 12 mm
Modules of worm and worm gear 1
Width of the locating key 16 mm
Adjacent angle of T-slot 120°
Transmission ratio of the worm gear 1:72
Graduation of the table 360°
Tilting angle 0~90°

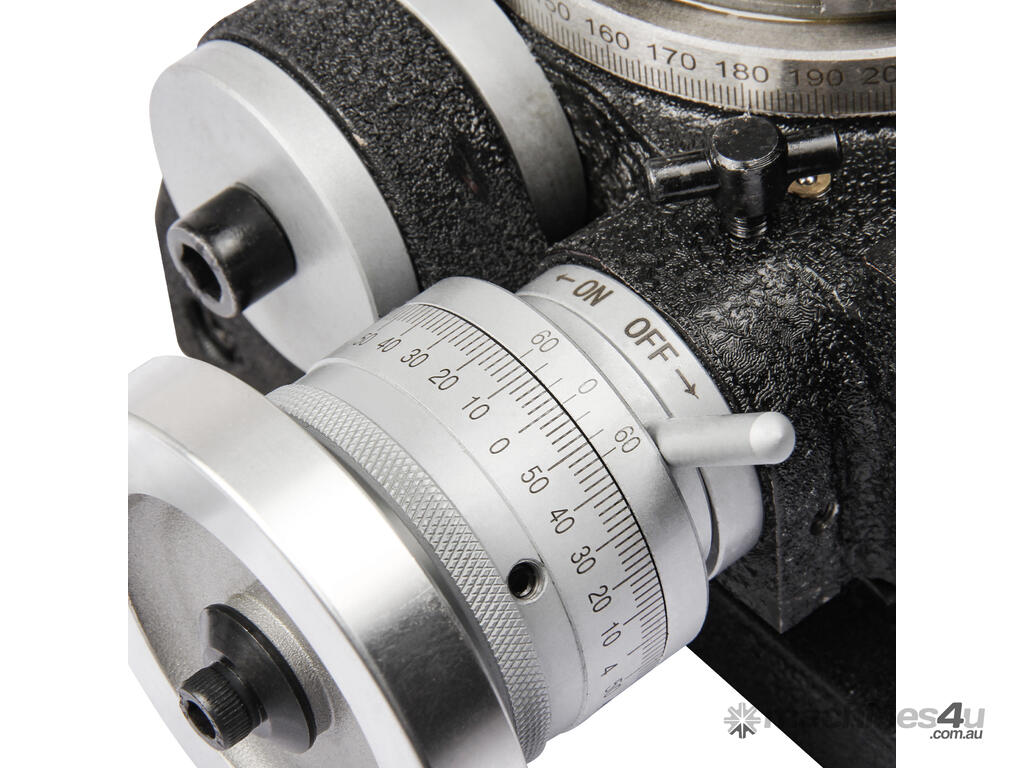

Readout of the handwheel 1"
Min. value of vernier 10"

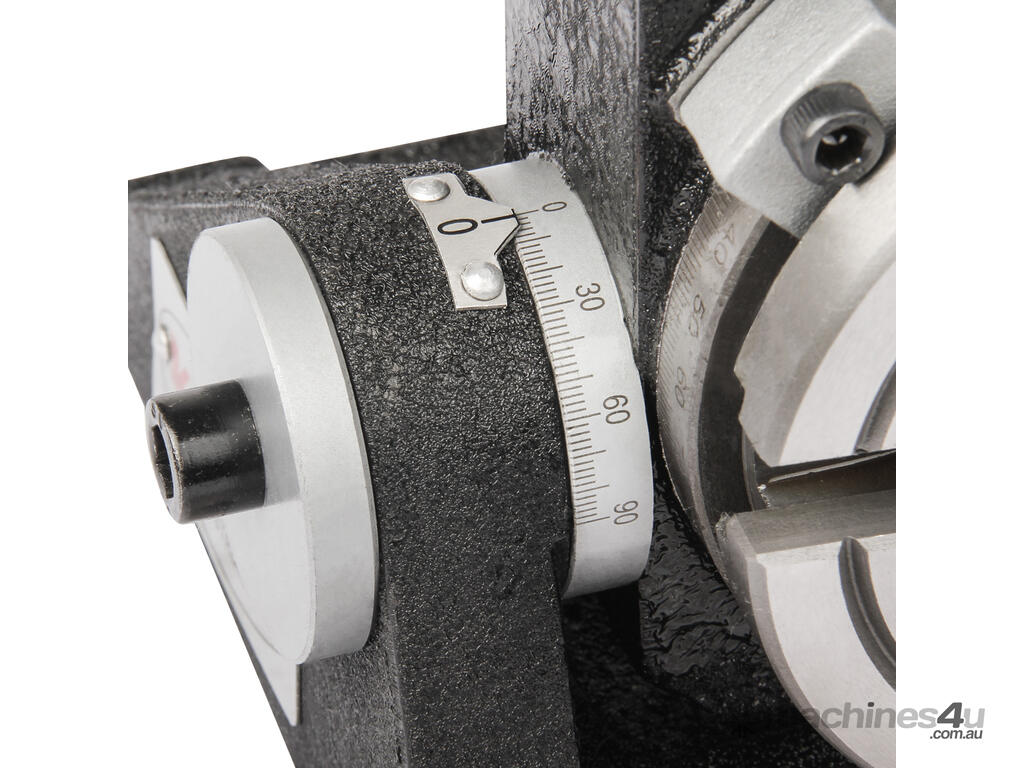

Min. reading of tilting vernier 1°
Indexing accuracy 60"
Packing size 32x12x19 cm
N.W./G.W. 15/17 kg

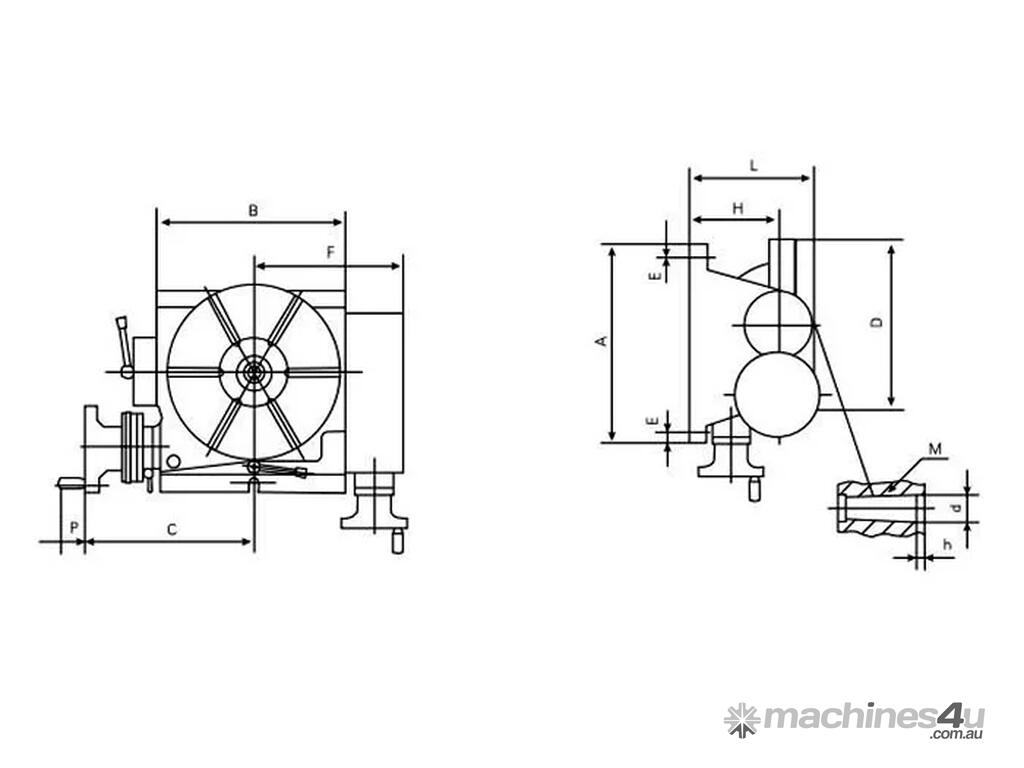

Installation sketch and dimensions
A B C D F H L M P
120 MT2 50
