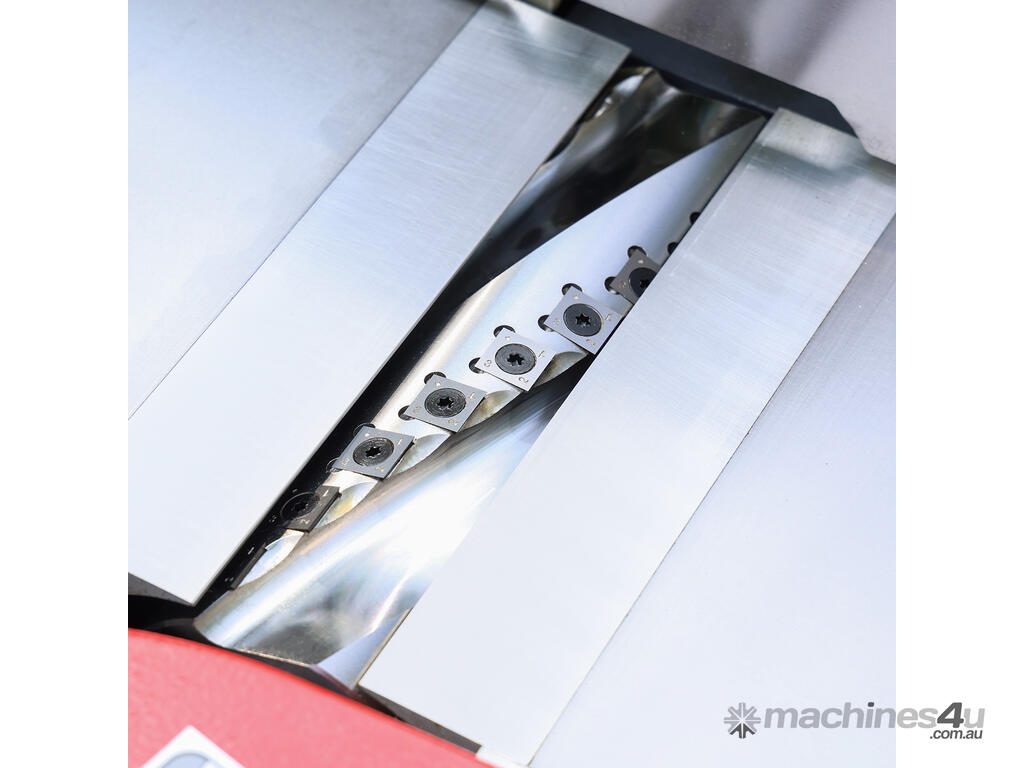

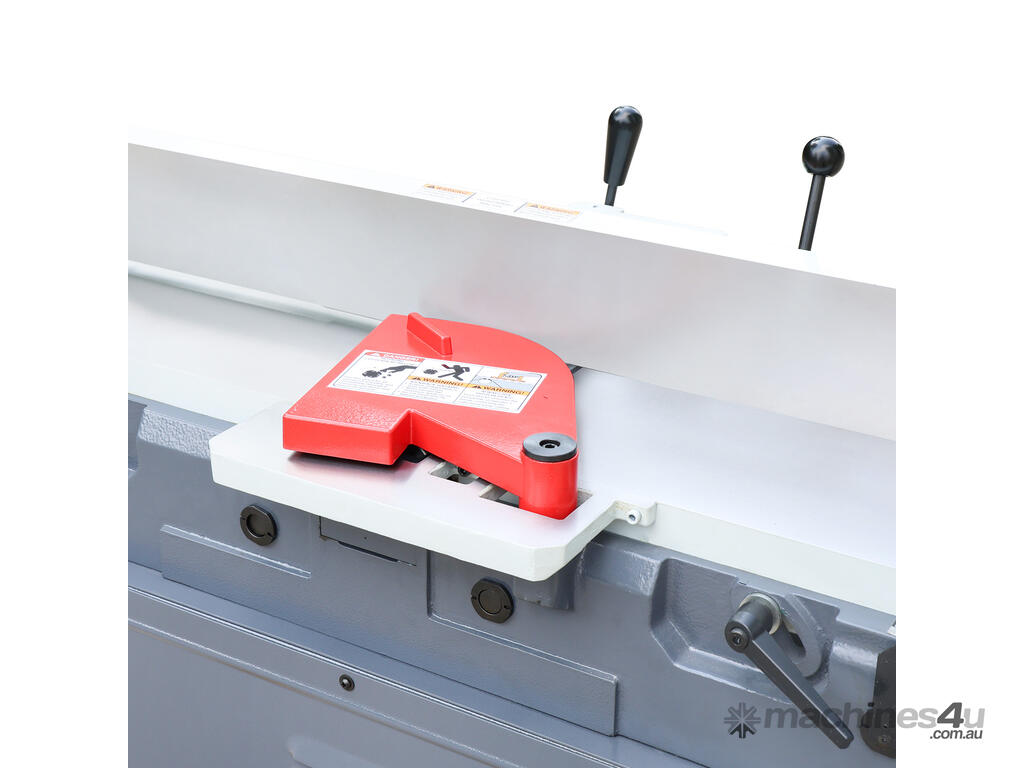

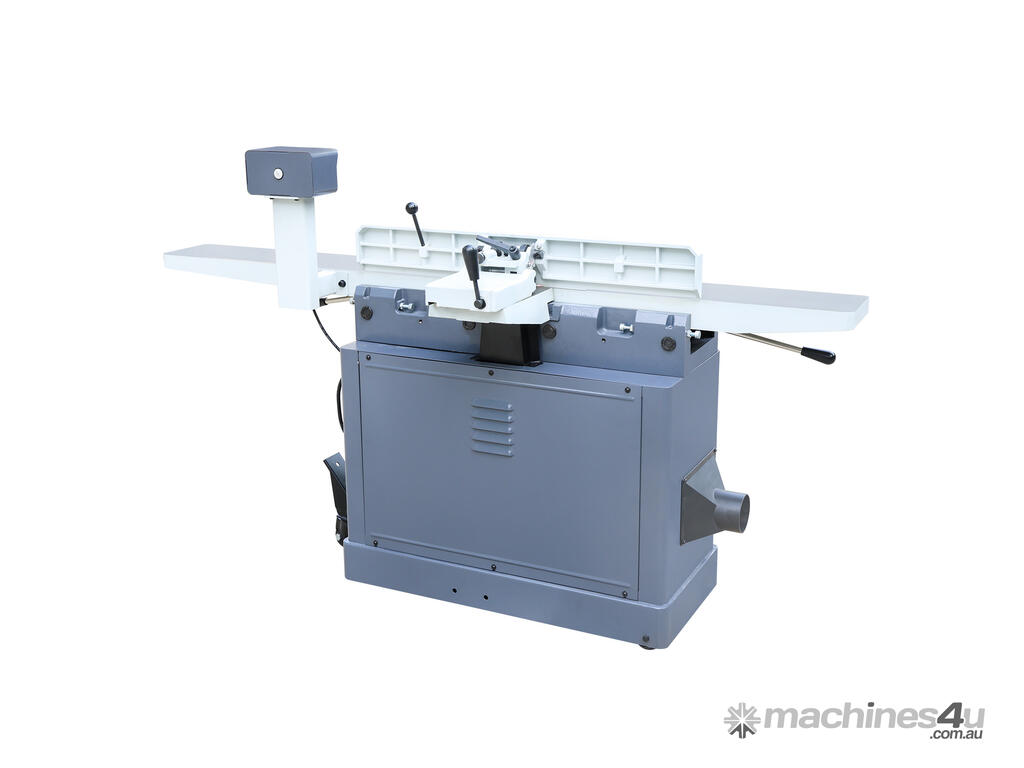

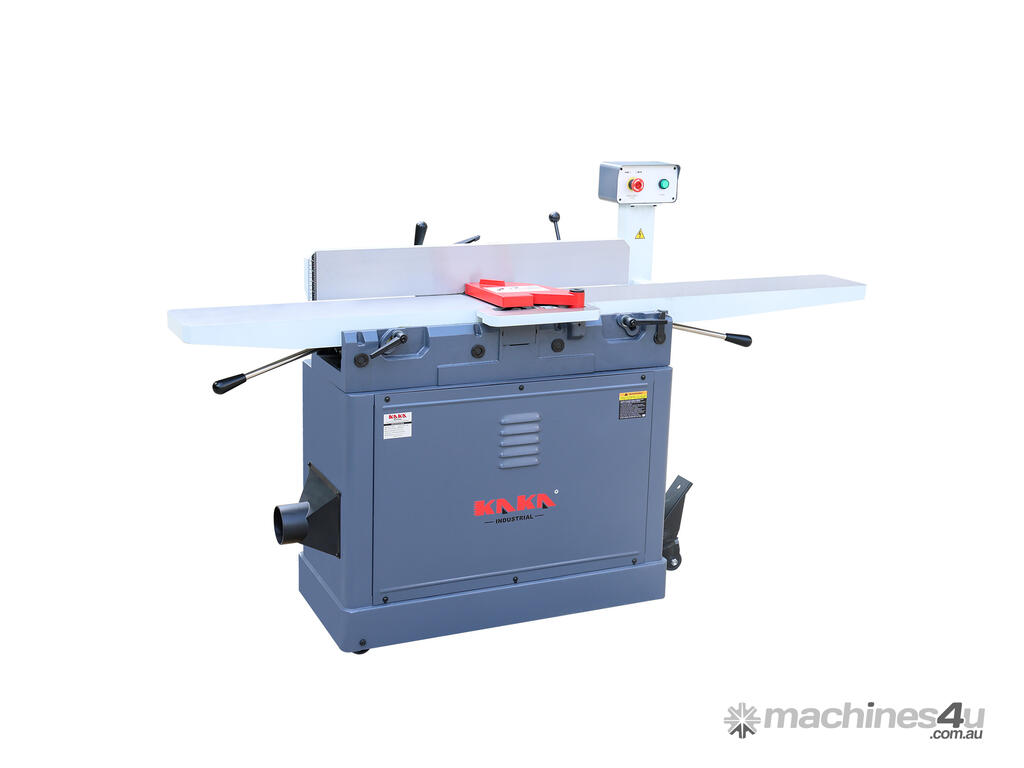

Spiral Cutter Head, fully protected across its whole width by spring return guard
1930mm cast iron infeed and outfeed tables support long timber for straighter joints
Adjustable in & out feed tables

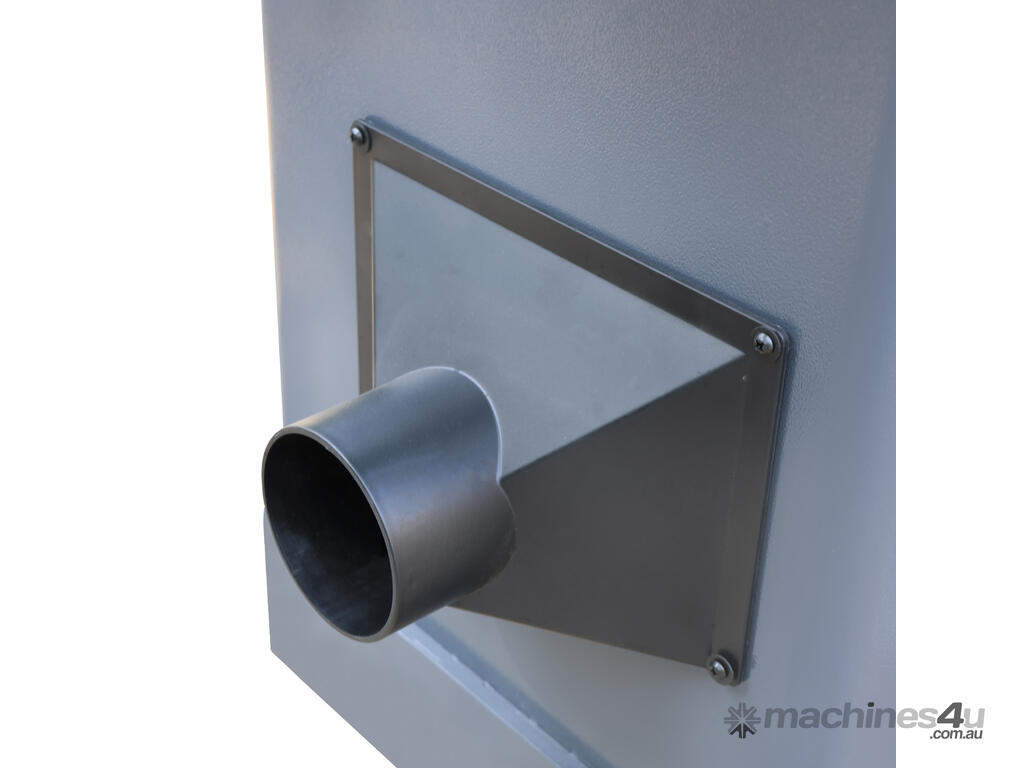

Fully enclosed base enhances safety, and built-in dust chute makes dust collection efficiency

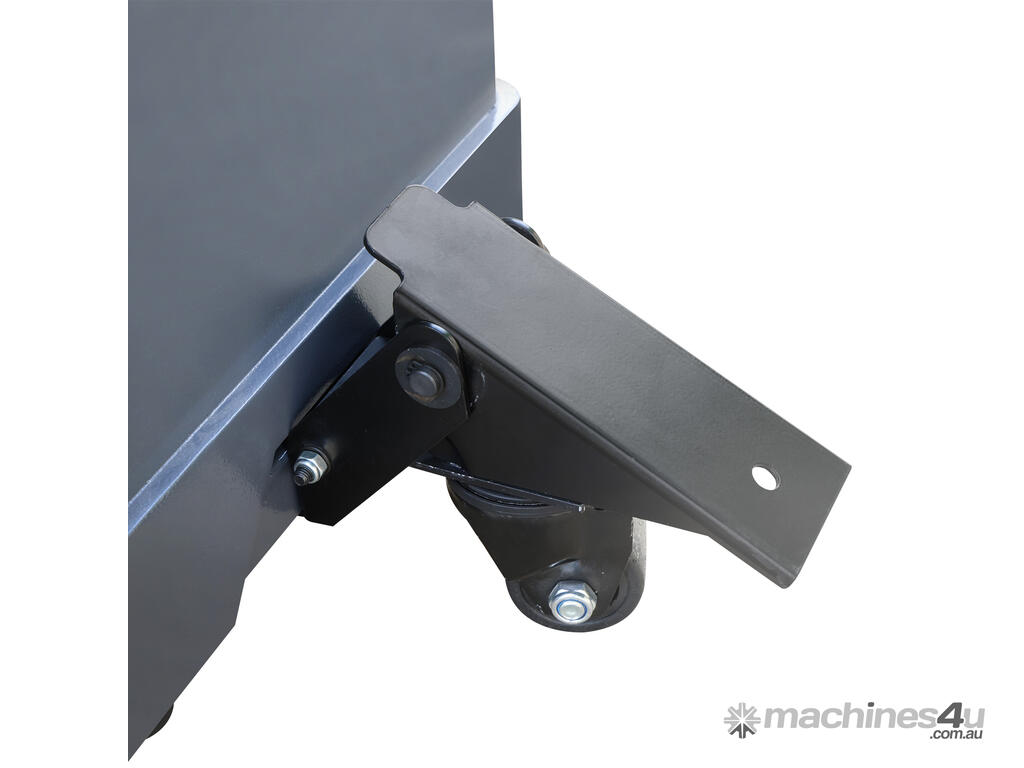

Built-in mobile base for convenient repositioning in the workshop

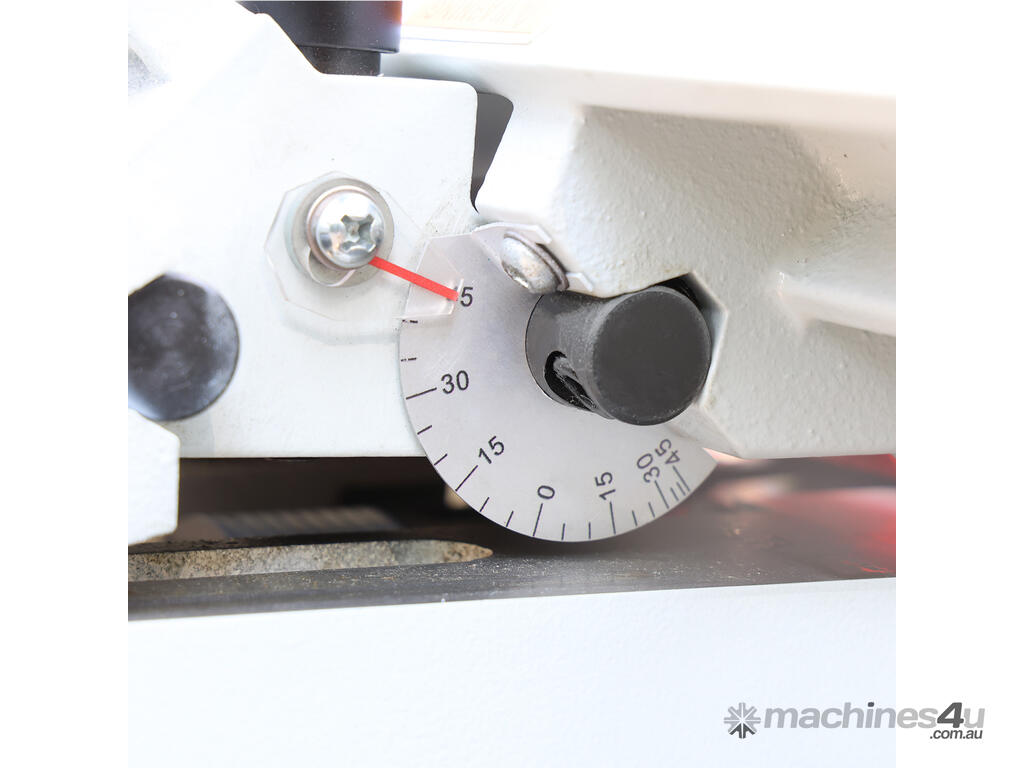

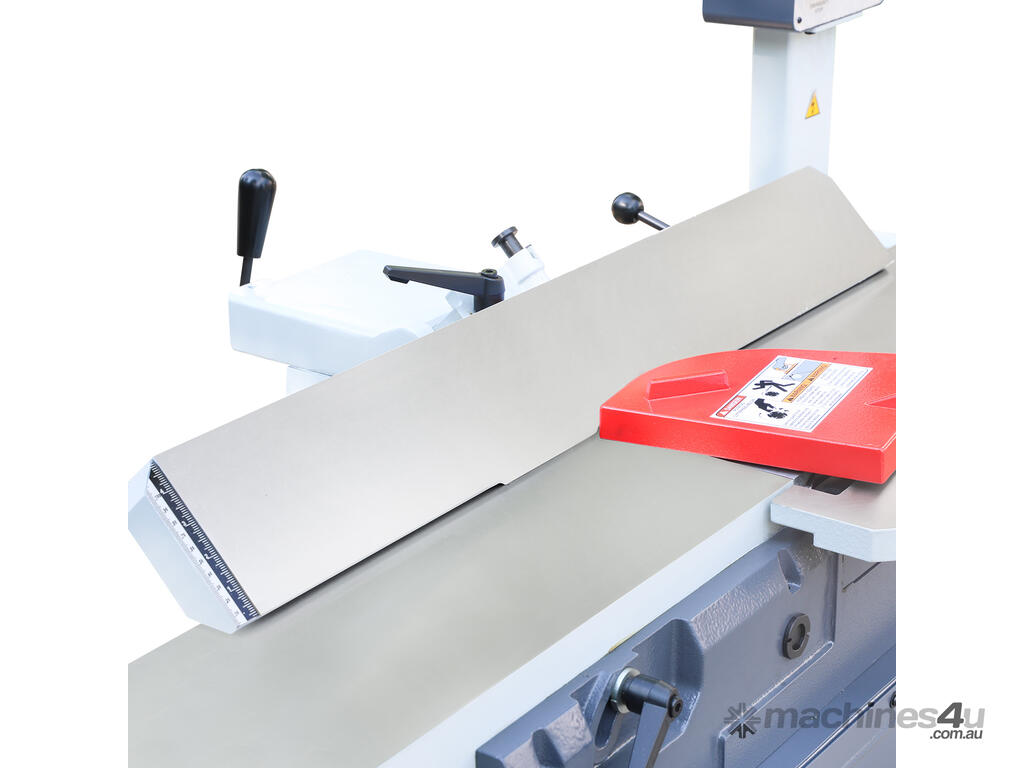

Rack-and-pinion fence for smooth and accurate angle adjustment, 45 degrees L & R
Standard with safety push blocks
Specifications
SKU 473022
Model WDP-768
Max. cutting width 200 mm
Max. cutting depth 3 mm
Min. stock length 254 mm
Min. stock thickness 12 mm
Cutter Head Spiral Cutter Head
Insert size & type 14x14x2mm, Indexable carbide
Cutter speed 4800 rpm
Fence tilt 45 degrees, Left & Right side
Table size 1930x203 mm
Fence size 915x127 mm
Packing size 103x54x82 cm (body), 206x62x34 cm (table)
N.W./G.W. 230/280 kg
