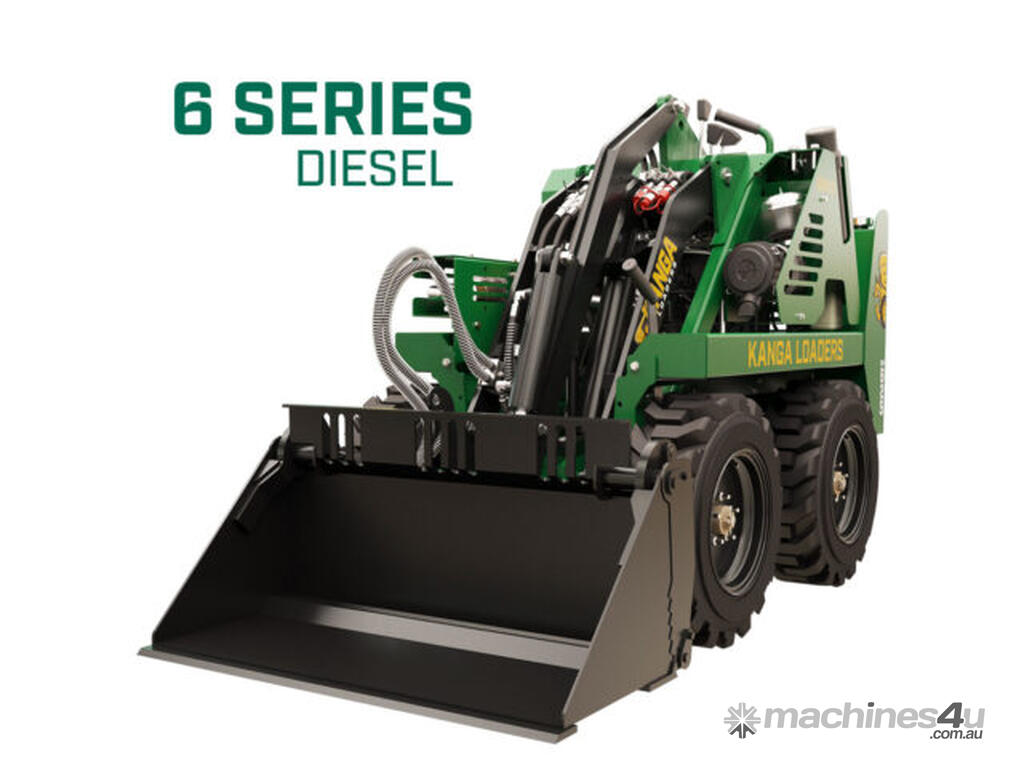

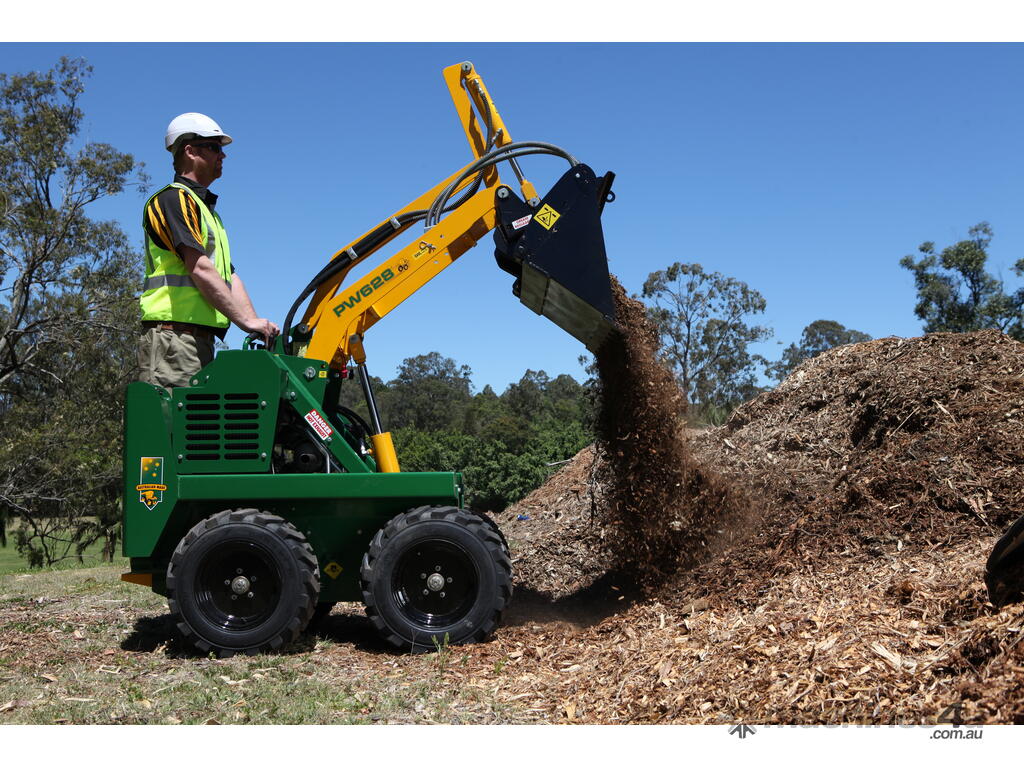

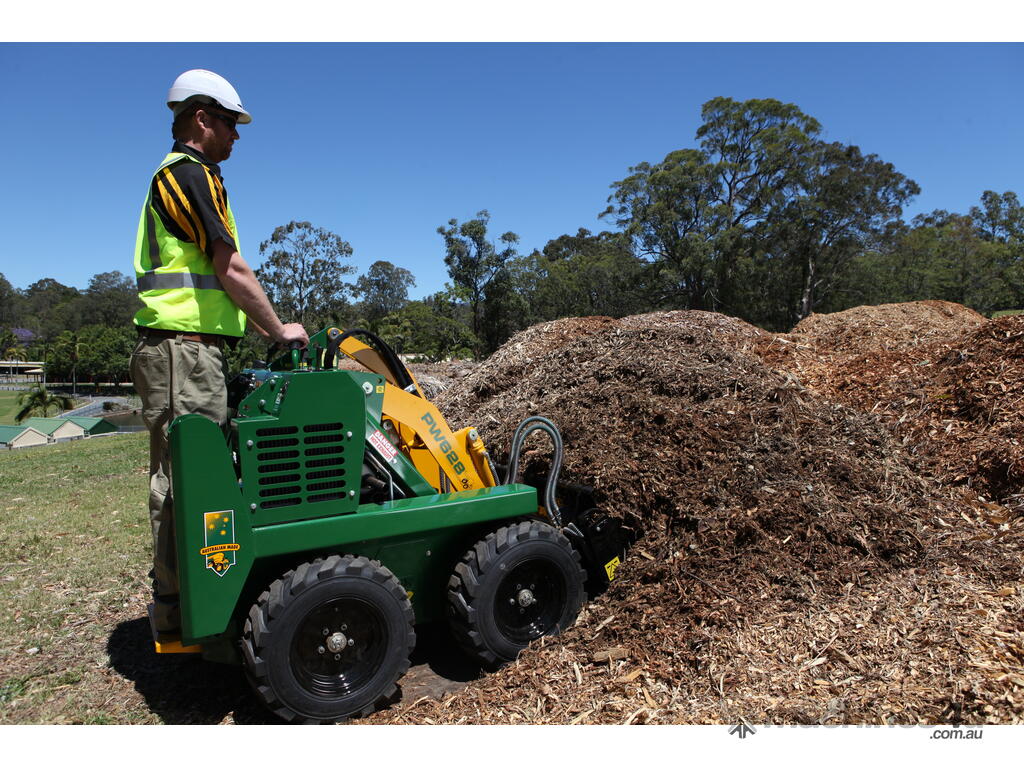

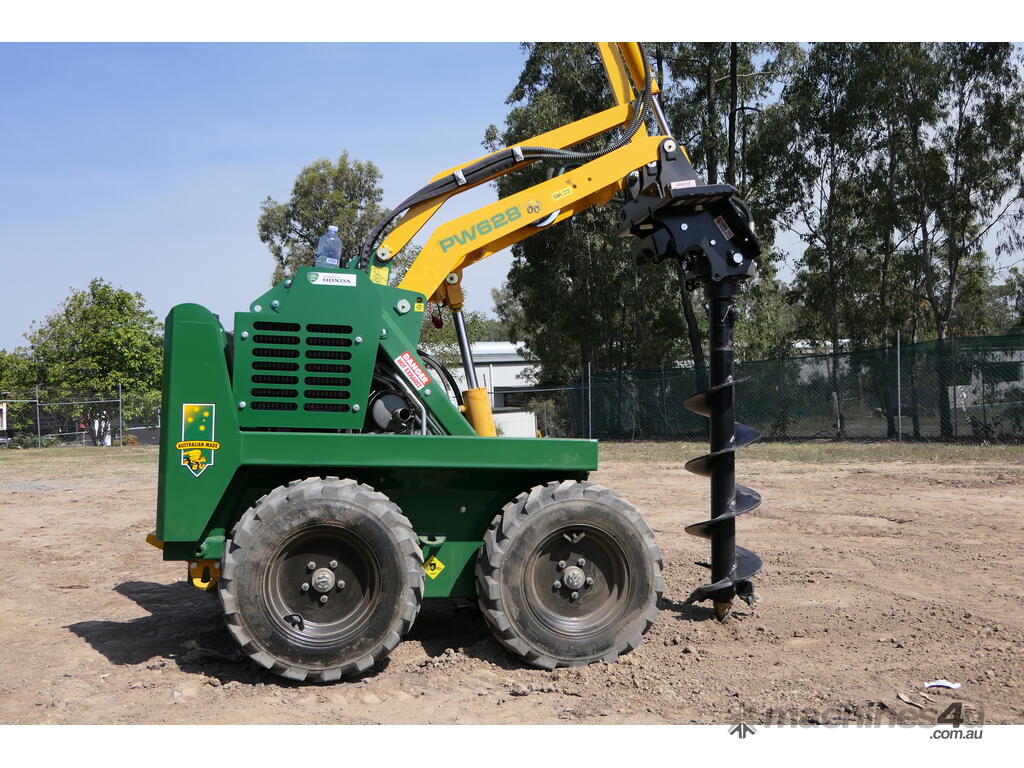

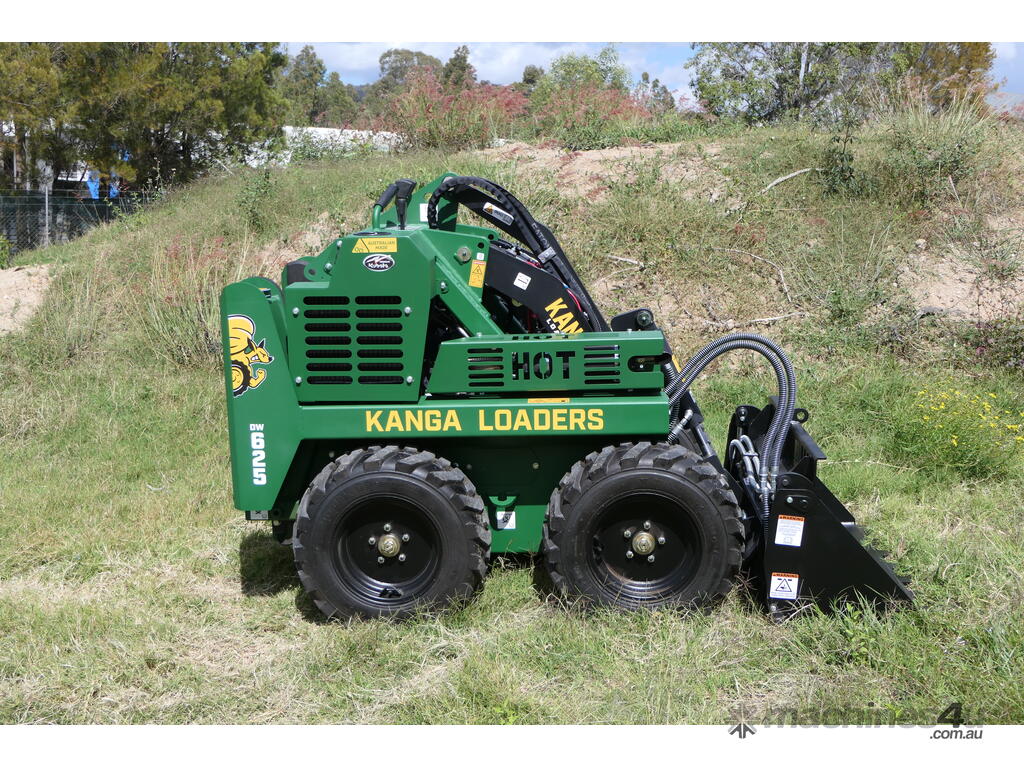

Kanga 6 Series Diesel / Wheeled Mini Loader

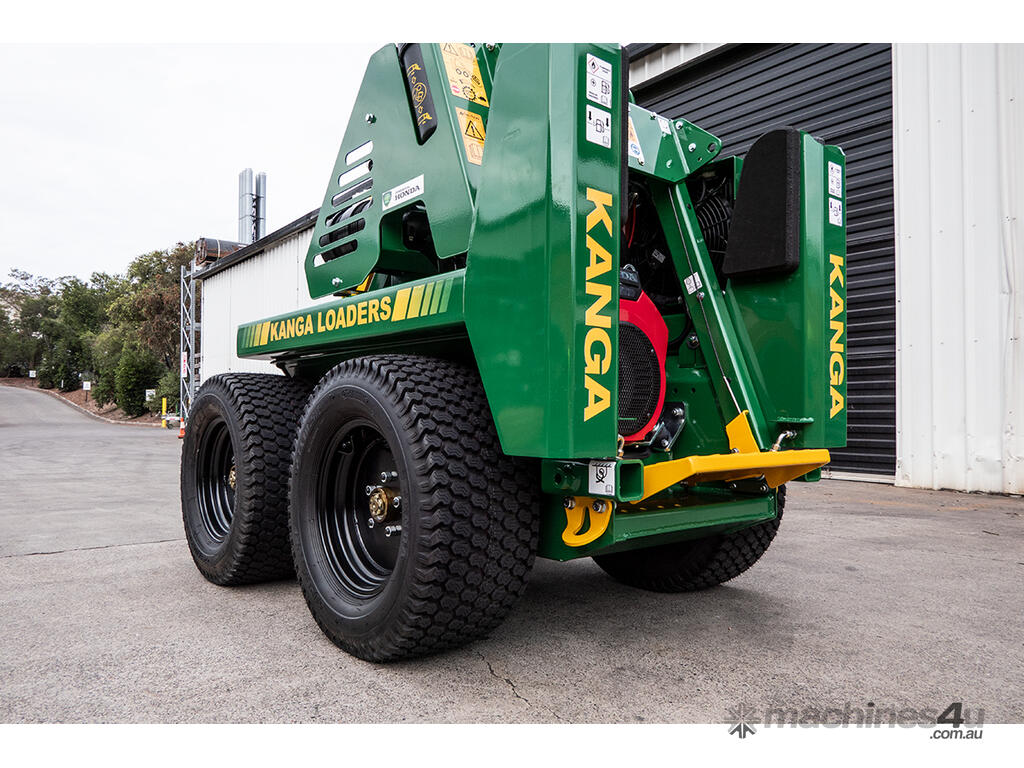

With its independent 4-wheel high torque drive system, the Diesel Powered 6 Series DW625 is perfect for any terrain. Coupled with huge 23" tyres, and a generous 185mm ground clearance, it will take you through the most undulating conditions, offering faster ground speed, and higher puncture resistance. To help cope with harsh conditions, Kanga’s DW625 mini loader also comes fitted with a powerful Kubota diesel engine, and heavy duty two-stage 5" Donaldson air cleaner. Due to their versatility, and broad range of attachment availability, our mini loaders have proven popular for rental yards and general contractors.

With many other aftermarket options to consider, our range of 6 Series loaders will help increase jobsite productivity, and give you a leading edge within your industry.

Specifications
LOADER MODEL DW625 (Wheel)
ENGINE Kubota D902 Diesel
POWER RATING* 17.5kW
TRAVEL SPEED 7km/h
SYSTEM PRESSURE 220bar
FUEL CAPACITY 50L
COOLING Water cooled
OVERALL WIDTH 1030mm
MAXIMUM OPERATING HEIGHT WITH BUCKET 2510mm
MAXIMUM BUCKET ROLL-BACK 30°
GROUND CLEARANCE 185mm
TIPPING LOAD** 479kg
RATED OPERATING CAPACITY (ROC)** 239kg
MACHINE WARRANTY 1000hrs or 2yr Arm Tilt Assembly / 5yr Chasis Structure / 1yr Other Components
ENGINE WARRANTY 2yrs

Power Rating is the net power of the production engine, only as measured in accordance with SAE J1349 at 3600 RPM. Mass production engines vary from this value. Actual power output for the engine installed in the delivered machine may vary, depending on numerous factors. These factors can include engine operation in the application, environmental conditions, and other variables.
(**)Tipping load and Rated Operating Capacity (ROC) have been determined to ISO 14397-1 though the values shown here need to be adjusted for specific attachments. Refer to the section of the Operators Manual “Practice Safety at All Times” for Tipping Load and ROC values for the range of Kanga bucket and fork attachments. Note that ROC is 50% of the Tipping Load for wheel loaders and 45% for Kanga “over tire track” loaders.
