Kanga 6 Series Petrol / Wheeled Mini Loader

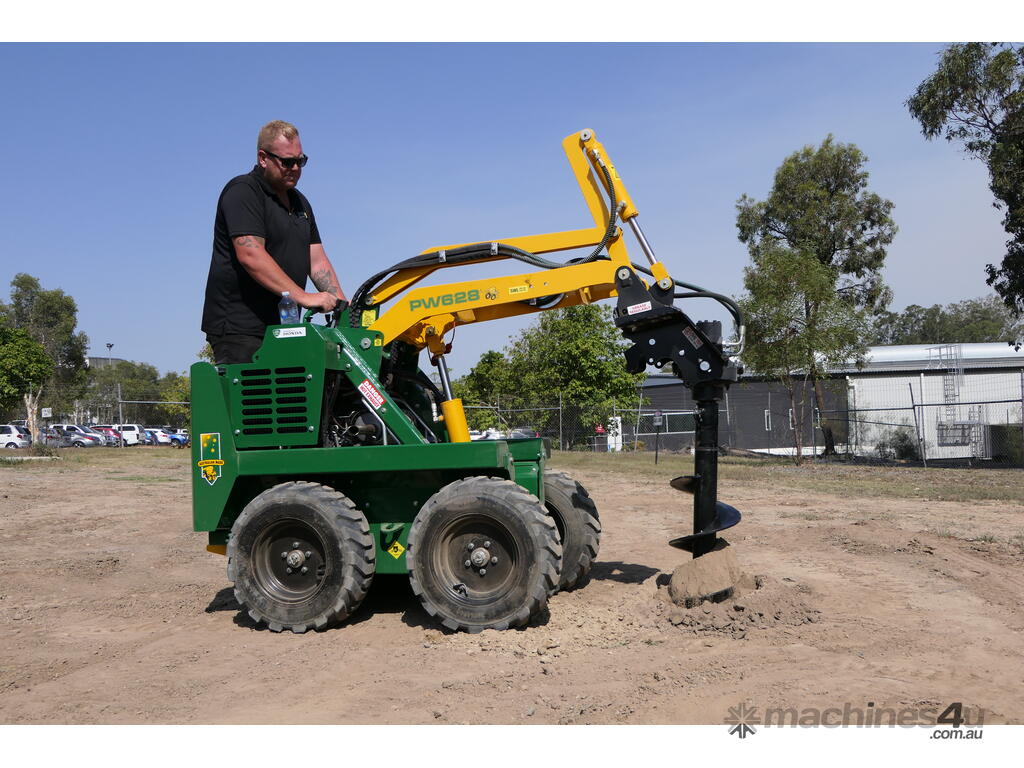

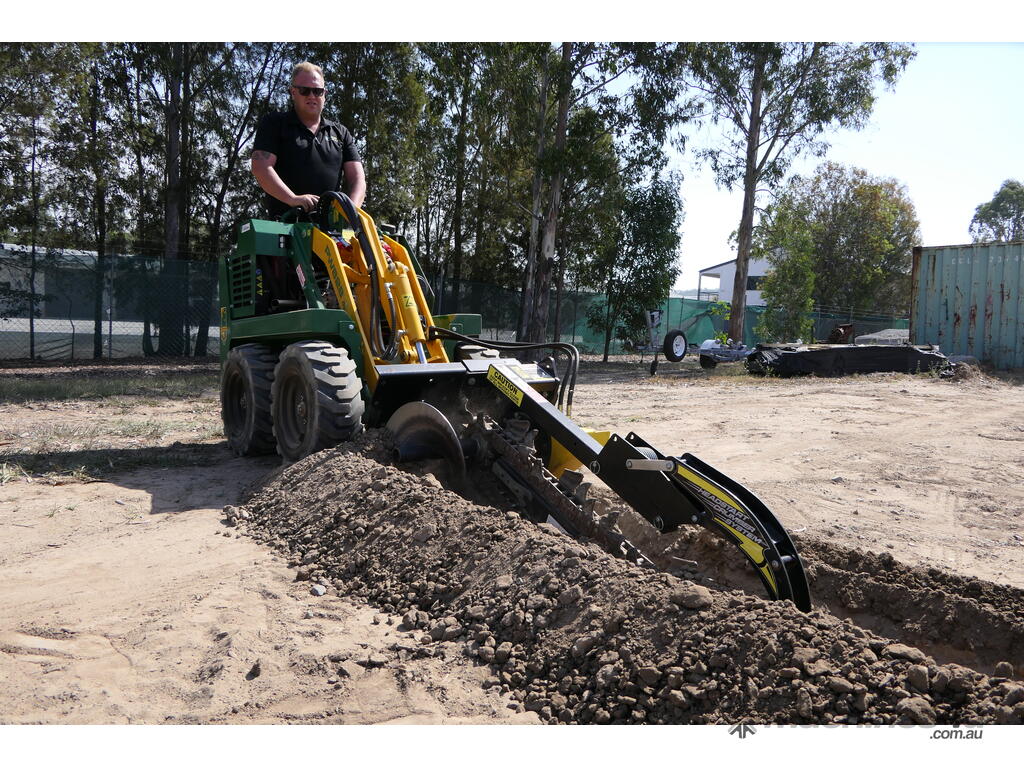

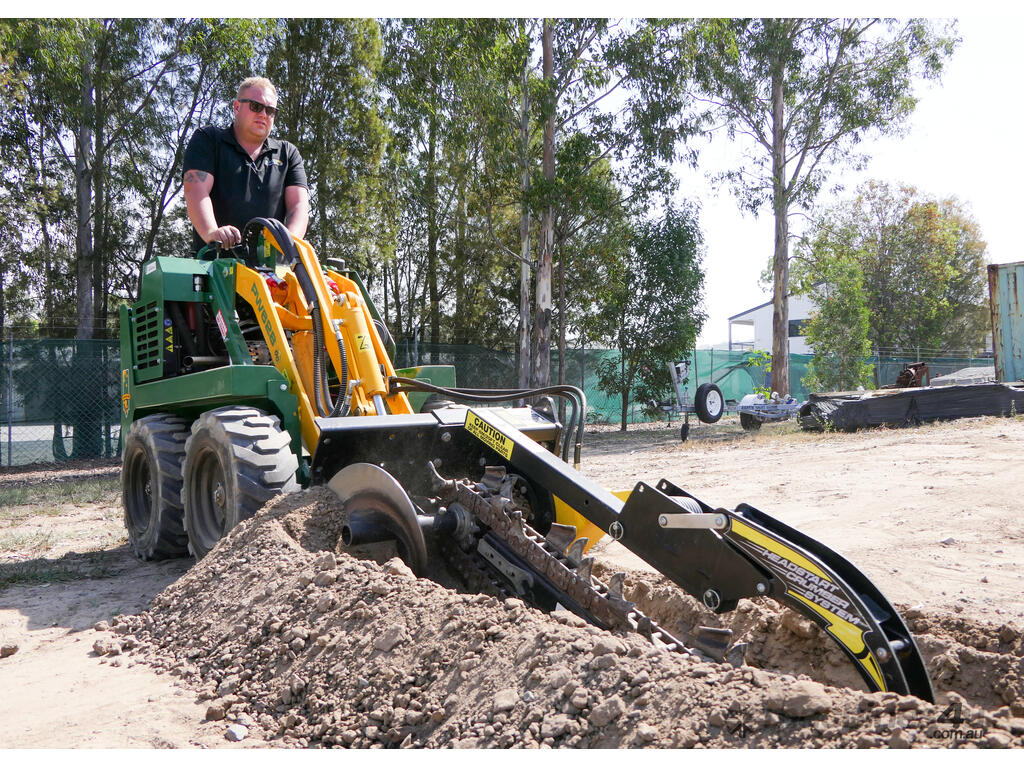

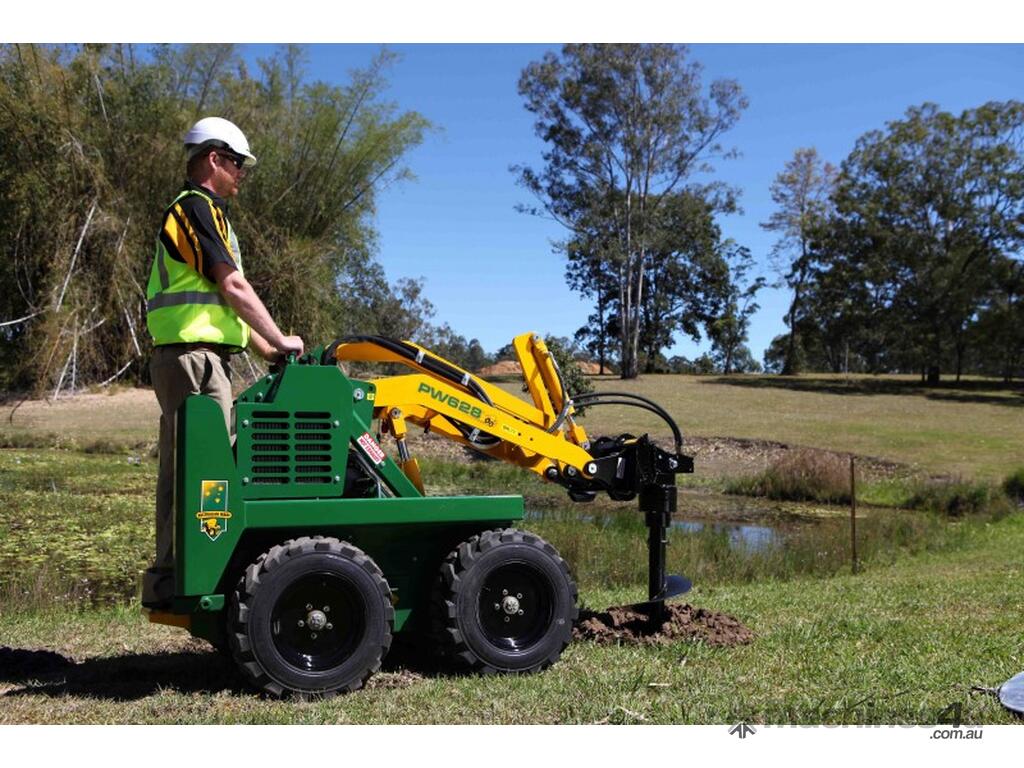

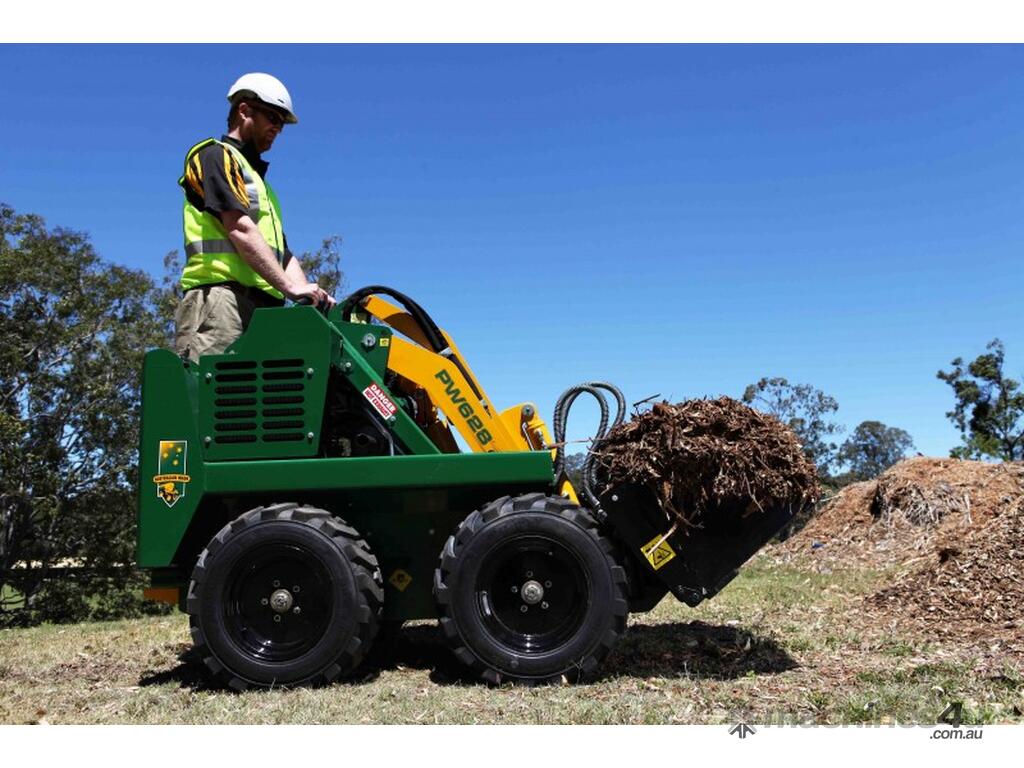

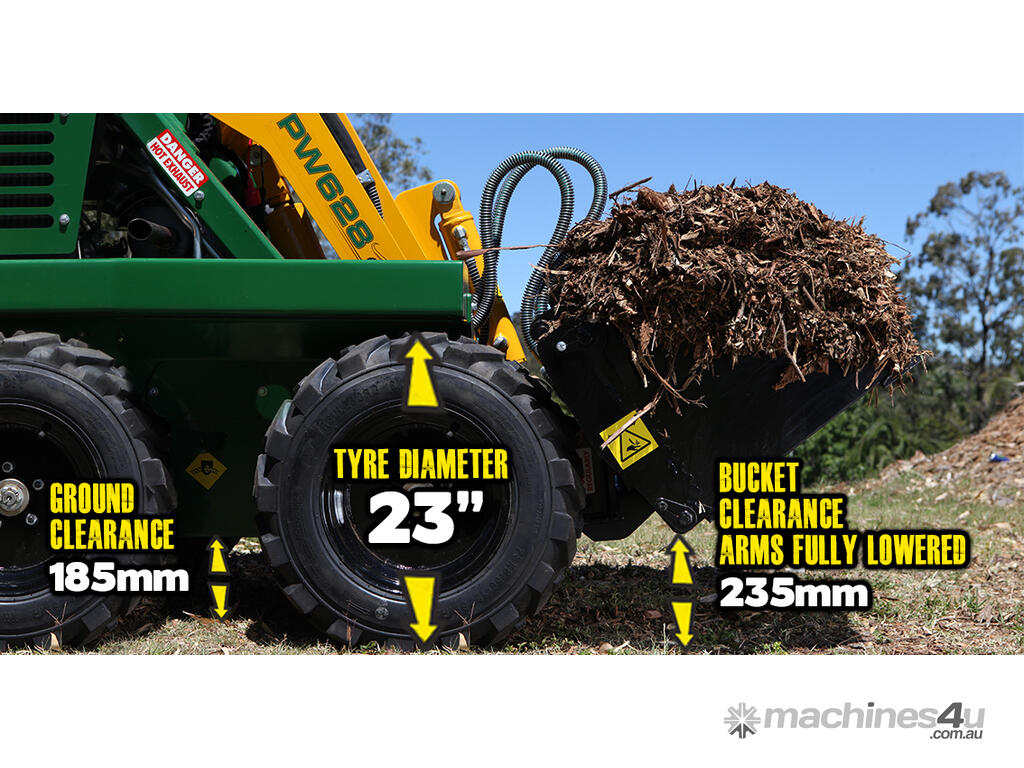

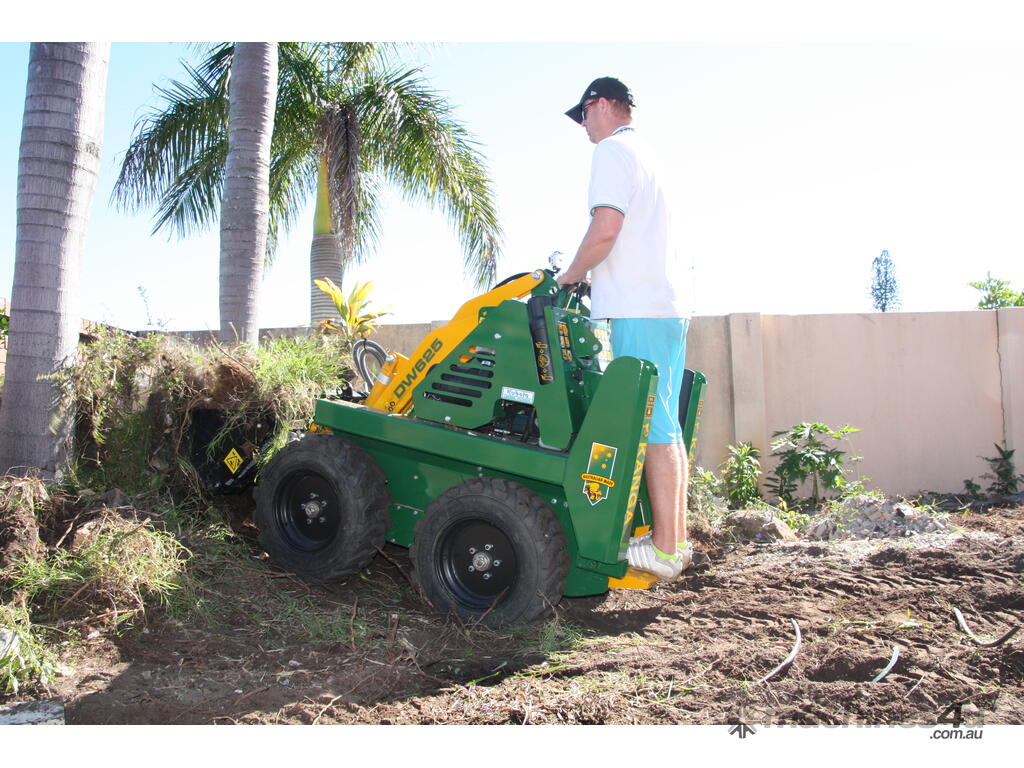

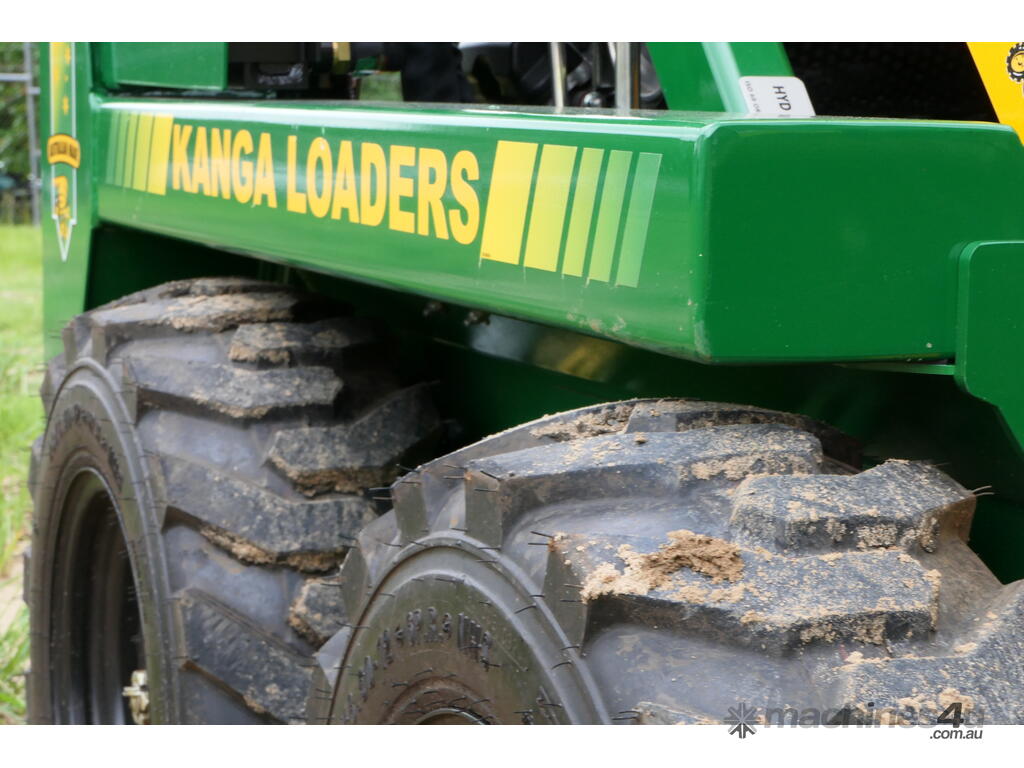

Australia's number one selling mini loader features independent 4-wheel high torque drive system, the 6 Series PW628 is perfect for any terrain. Coupled with huge 23" tyres, and a generous 185mm ground clearance, it will take you through the most undulating conditions, offering faster ground speed, and higher puncture resistance. Due to its versatility, and broad range of attachment availability, the PW628 has proven popular for rental yards and general contractors.

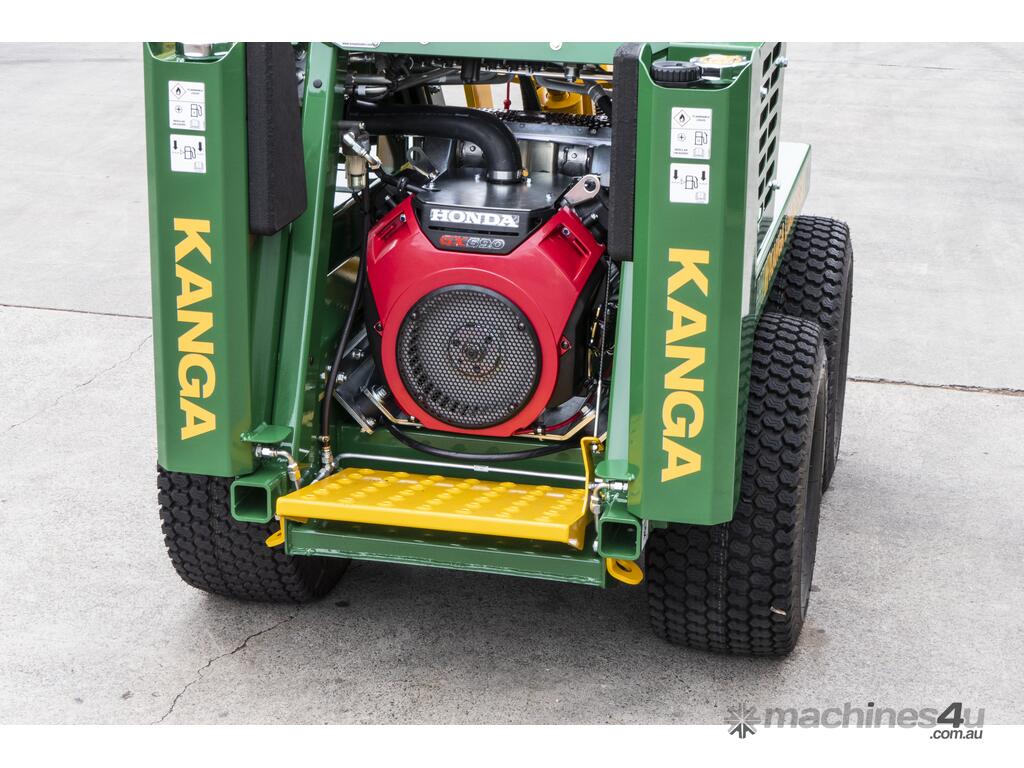

Kanga’s PW628 mini loader comes fitted with a powerful Honda petrol engine to cope with harsh conditions, and help increase jobsite productivity. With many aftermarket options to consider, our range of 6 Series loaders will give you a leading edge within your industry.

Specifications
LOADER MODEL PW628 (Wheel)
ENGINE Honda GX690
POWER RATING* 16.5kW
TRAVEL SPEED 7km/h
SYSTEM PRESSURE 207bar
FUEL CAPACITY 50L
COOLING Air cooled
OVERALL WIDTH 1030mm
MAXIMUM OPERATING HEIGHT WITH BUCKET 2510mm
MAXIMUM BUCKET ROLL-BACK 30°
GROUND CLEARANCE 185mm
TIPPING LOAD** 434kg
RATED OPERATING CAPACITY (ROC)** 217kg
MACHINE WARRANTY 1000hrs or 2yr Arm Tilt Assembly / 5yr Chassis Structure / 1yr Other Components
ENGINE WARRANTY 3yrs

Power Rating is the net power of the production engine, only as measured in accordance with SAE J1349 at 3600 RPM. Mass production engines vary from this value. Actual power output for the engine installed in the delivered machine may vary, depending on numerous factors. These factors can include engine operation in the application, environmental conditions, and other variables.
(**)Tipping Load and Rated Operating Capacity (ROC) have been determined to ISO 14397-1, though the values shown here need to be adjusted for specific attachments. Refer to the section of the Operator’s Manual “Practice Safety at All Times” for Tipping Load and ROC values, for the range of Kanga bucket and fork attachments. Note that ROC is 50% of the Tipping Load for wheel loaders, and 45% for Kanga “over tyre track” loaders.
