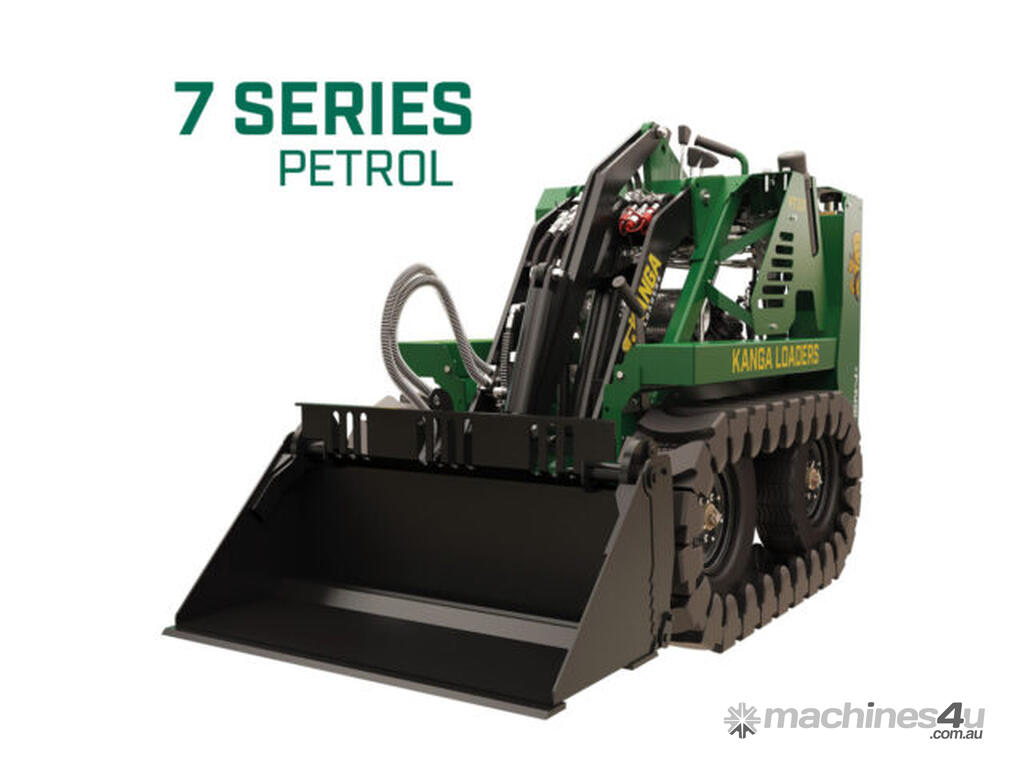

Kanga 7 Series Petrol / Track Mini Loader

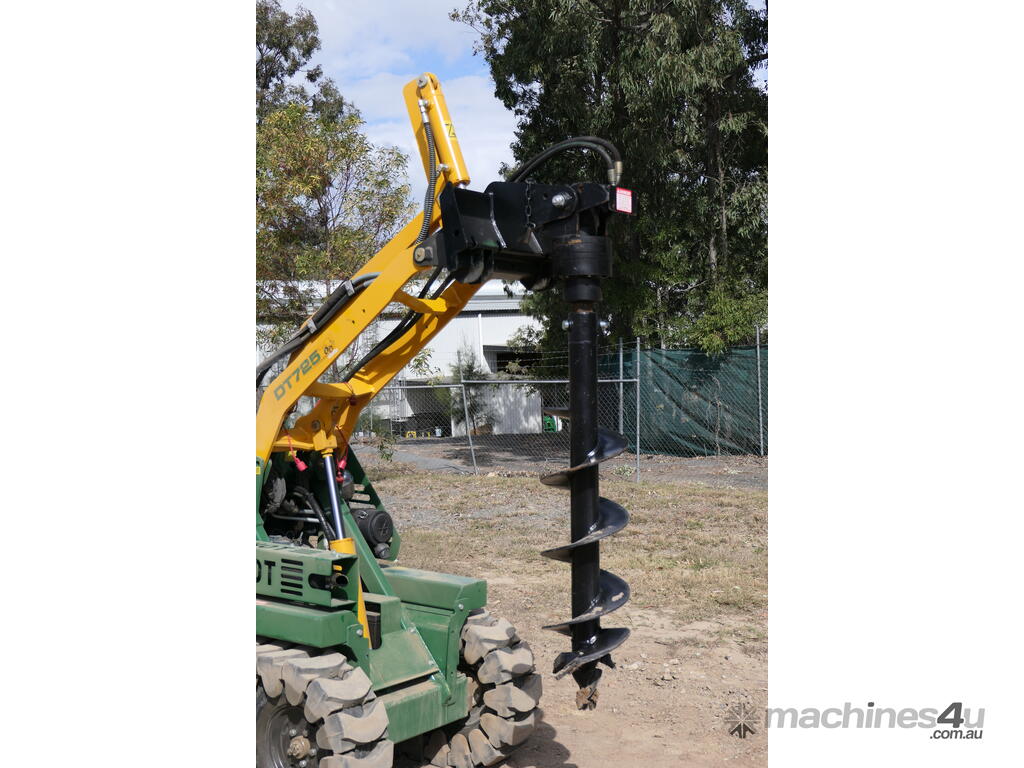

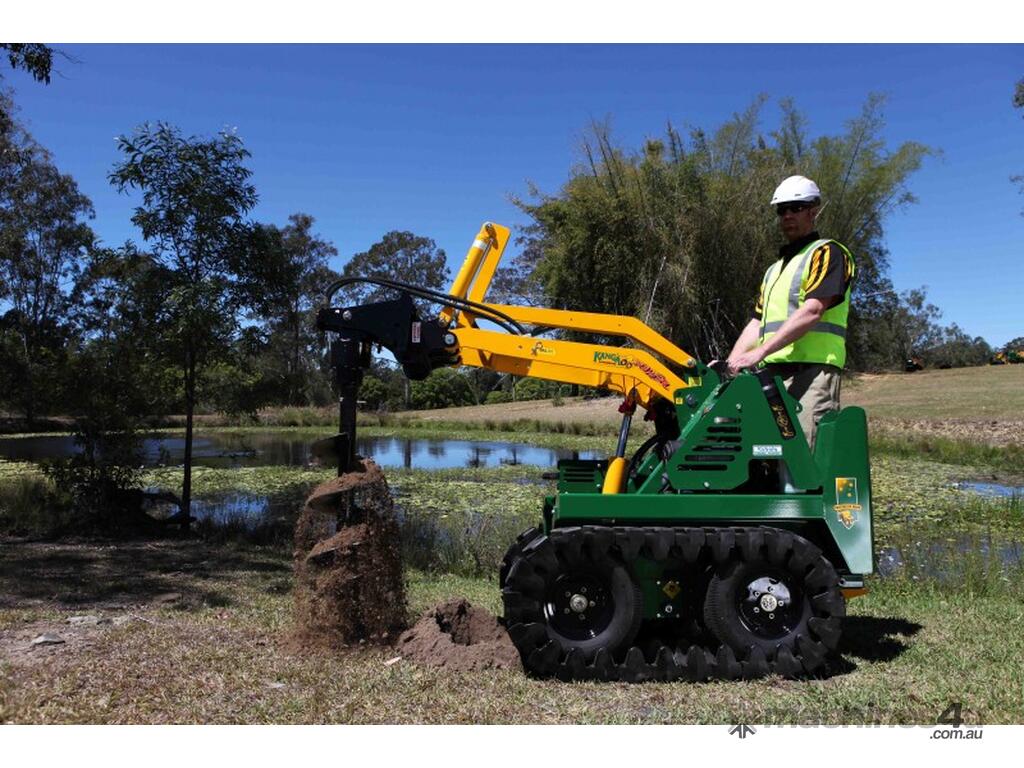

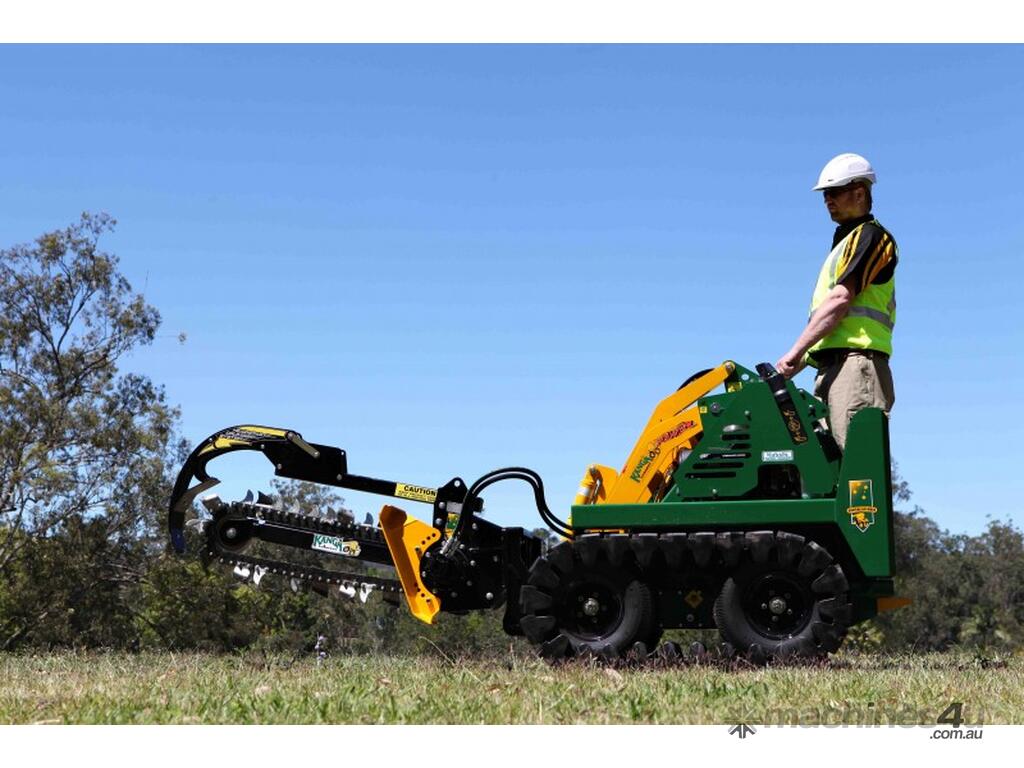

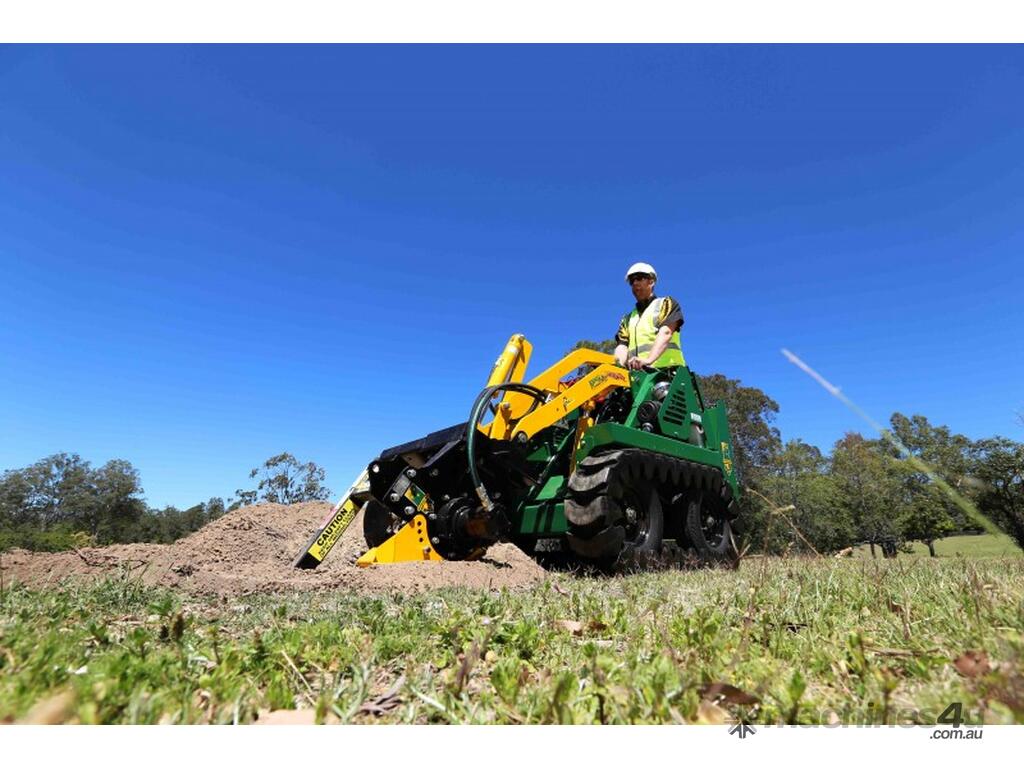

The 7 Series PT728 petrol loader has been designed with features to offer you an edge in power, speed, durability, ease of use, economy, and safety. With a broad range of attachment availability, as well as aftermarket options to consider, our range of 7 Series loaders will help increase jobsite productivity, and give you a leading edge within your industry.

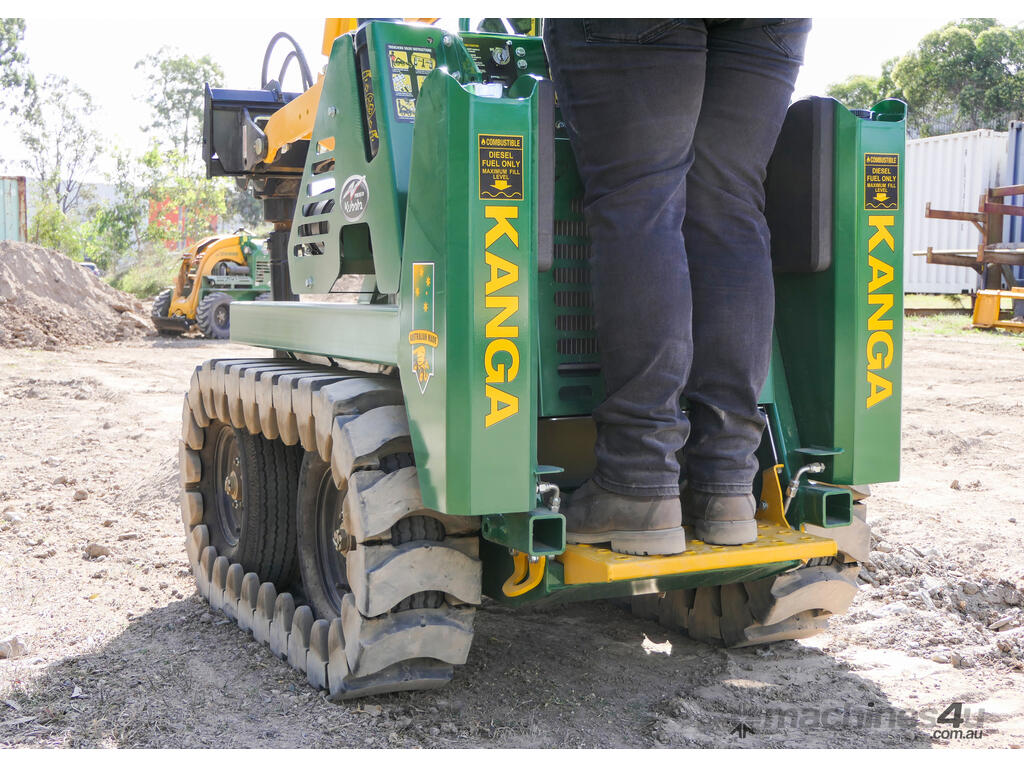

Kanga’s 7 Series mini loaders come standard with tracks, for increased stability on uneven surfaces. A large operator platform allows for a wider stance, for improved safety and fatigue reduction, whilst a safety cell ensures the operator is enclosed within the operating platform, with side bump protection to provide additional support on rough terrain.

A reliable fuel efficient Honda V Twin petrol engine powers the Kanga PT728, offering the quietest petrol engine on the market – Well suited for the rigorous demands of the earthmoving environment.


Specifications
LOADER MODEL PT728 (Track)
ENGINE Honda GX690 Petrol
POWER RATING* 16.5kW
TRAVEL SPEED 7km/h
SYSTEM PRESSURE 207bar
FUEL CAPACITY 50L
COOLING Air Cooled
OVERALL WIDTH 1040mm
MAXIMUM OPERATING HEIGHT WITH BUCKET 2515mm
MAXIMUM BUCKET ROLL-BACK 30°
GROUND CLEARANCE 195mm
TIPPING LOAD** 430kg
RATED OPERATING CAPACITY (ROC)** 194kg
MACHINE WARRANTY 1000hrs or 2yr Arm Tilt Assembly / 5yr Chassis Structure / 1yr Other Components
ENGINE WARRANTY 3yrs

(*)Power Rating is the net power of the production engine, only as measured in accordance with SAE J1349 at 3600 RPM. Mass production engines vary from this value. Actual power output for the engine installed in the delivered machine may vary, depending on numerous factors. These factors can include engine operation in the application, environmental conditions, and other variables.
(**)Tipping Load and Rated Operating Capacity (ROC) have been determined to ISO 14397-1, though the values shown here need to be adjusted for specific attachments. Refer to the section of the Operator’s Manual “Practice Safety at All Times” for Tipping Load and ROC values, for the range of Kanga bucket and fork attachments. Note that ROC is 50% of the Tipping Load for wheel loaders, and 45% for Kanga “over tyre track” loaders.
