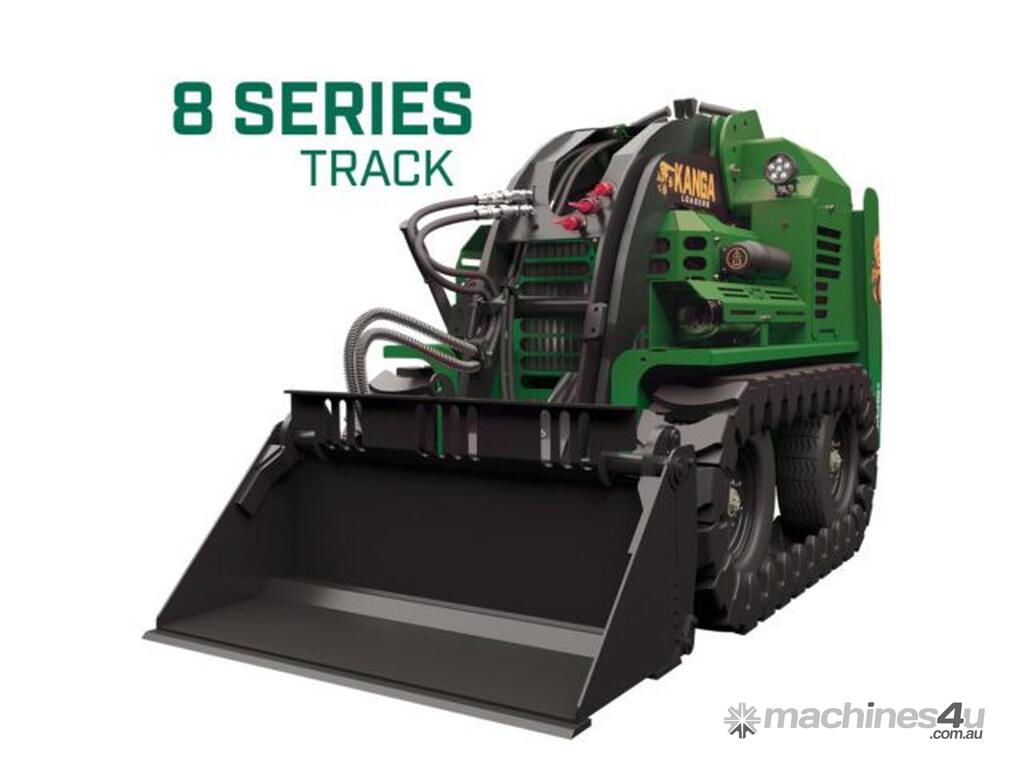

Kanga 8 Series Diesel Track Mini Loader

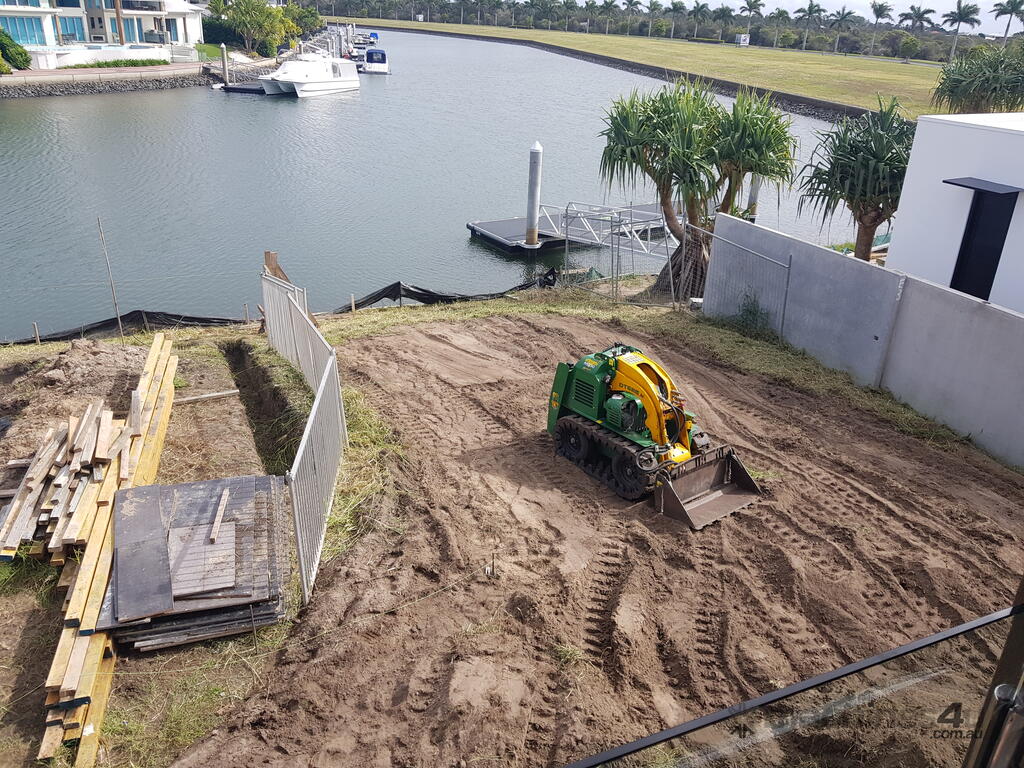

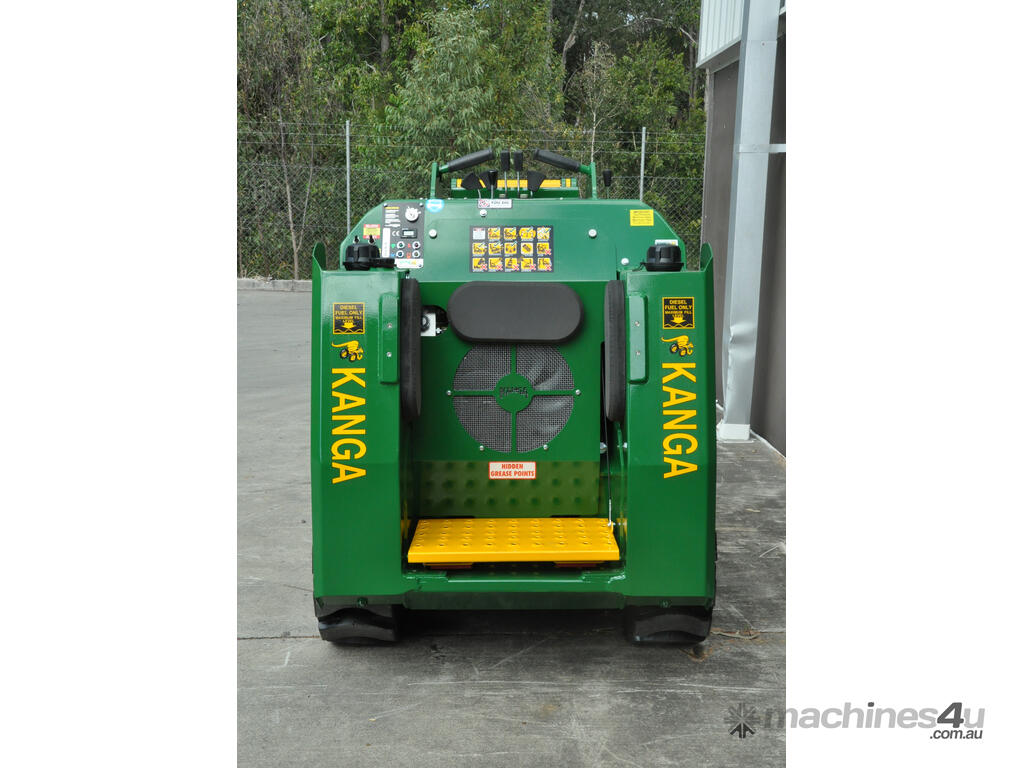

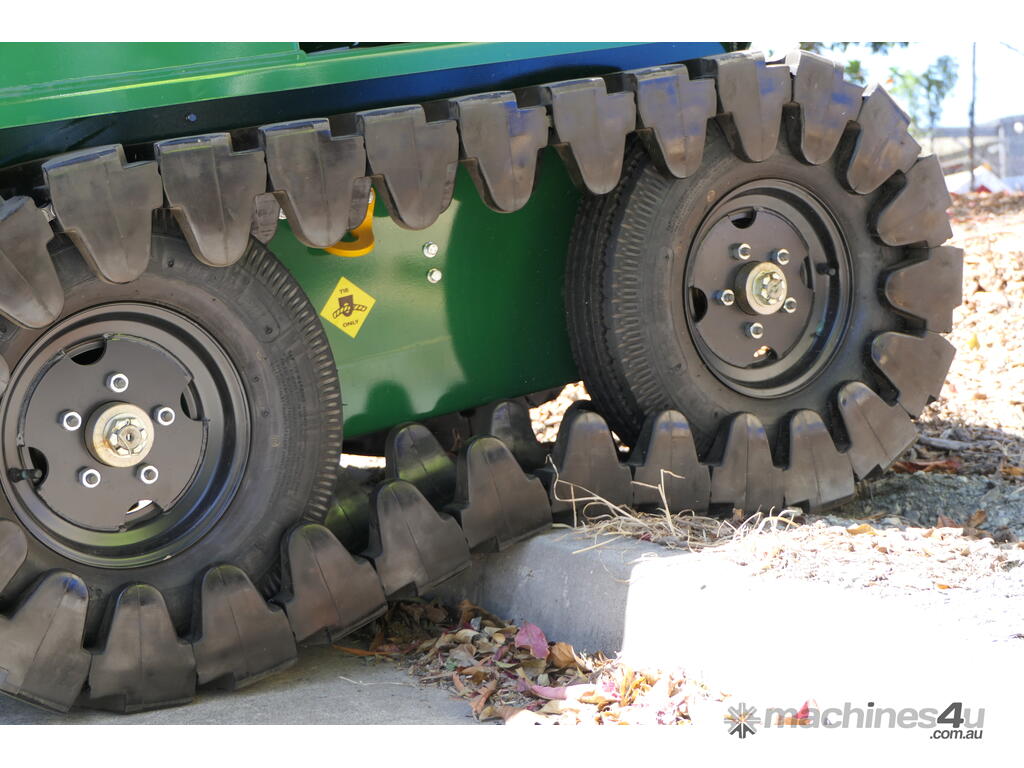

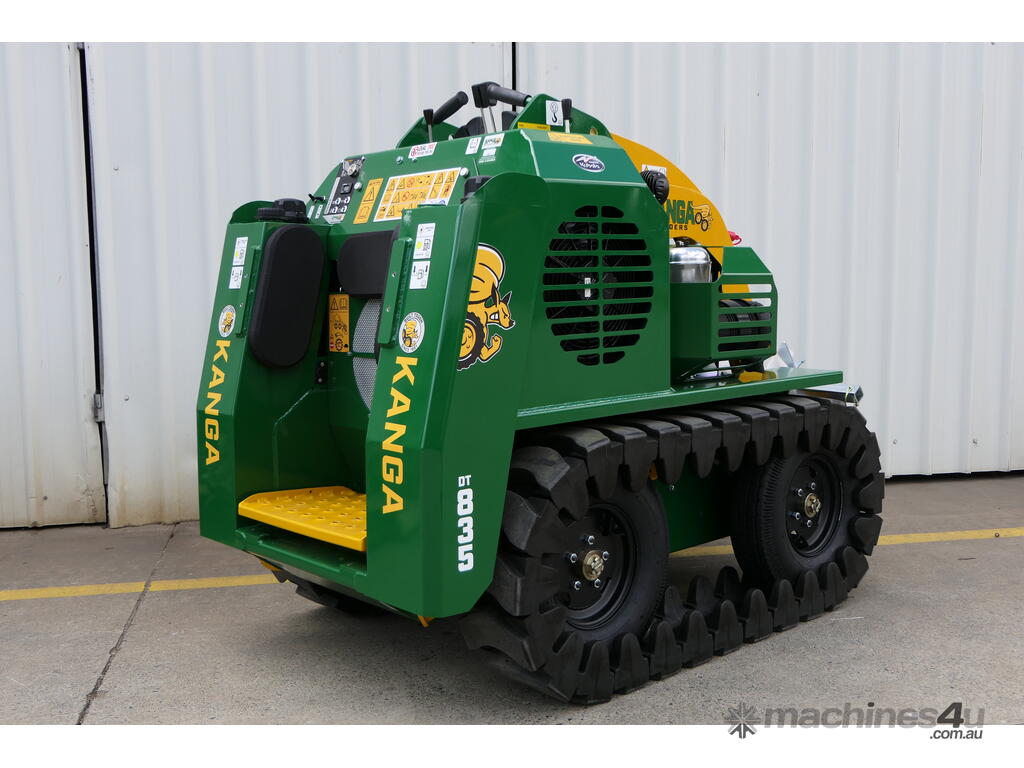

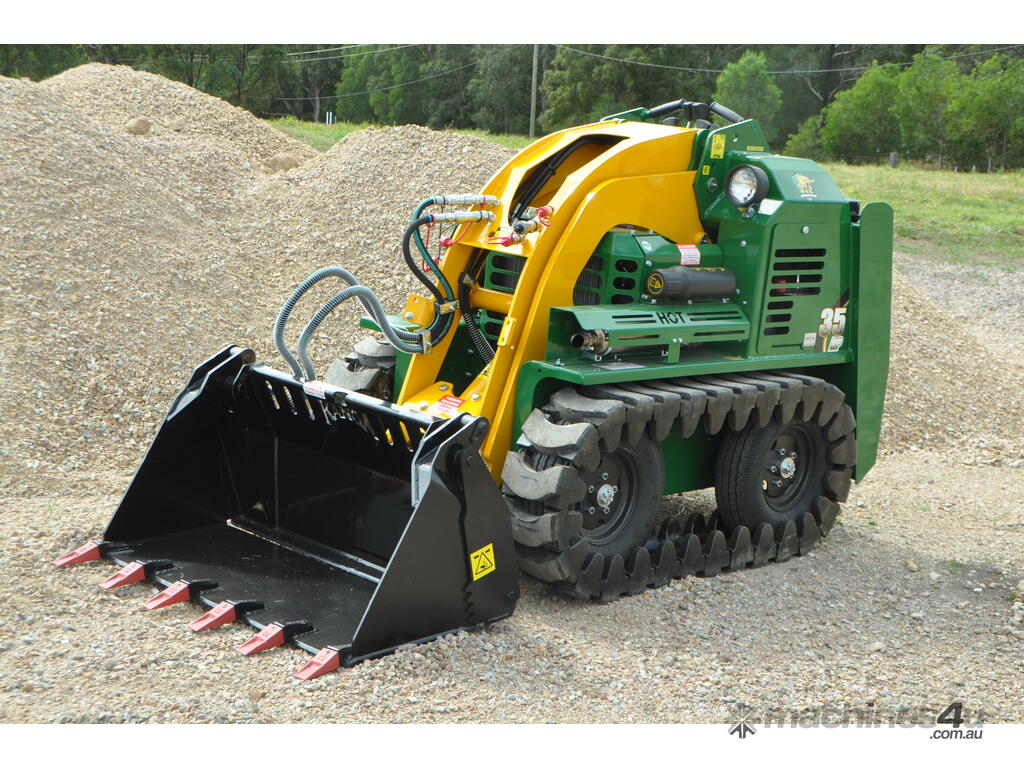

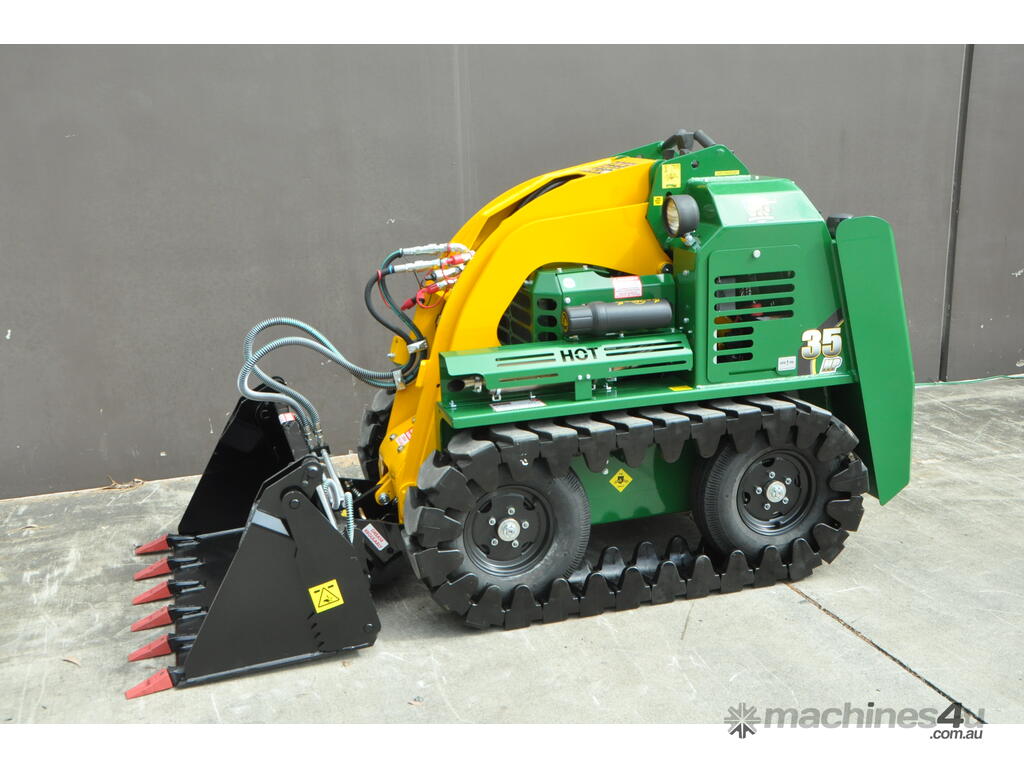

The 8 Series DT835 tracked loader is the most powerful Kanga mini skid steer. Made to be operated in the harshest of conditions, it comes fitted with a powerful Kubota diesel engine, a heavy duty two-stage 5" Donaldson air cleaner, and is fitted standard with tracks for increased stability on uneven surfaces. A large operator platform allows for a wider stance, for improved safety and fatigue reduction, whilst a safety cell ensures the operator is enclosed within the operating platform, with side bump protection to provide additional support on rough terrain.

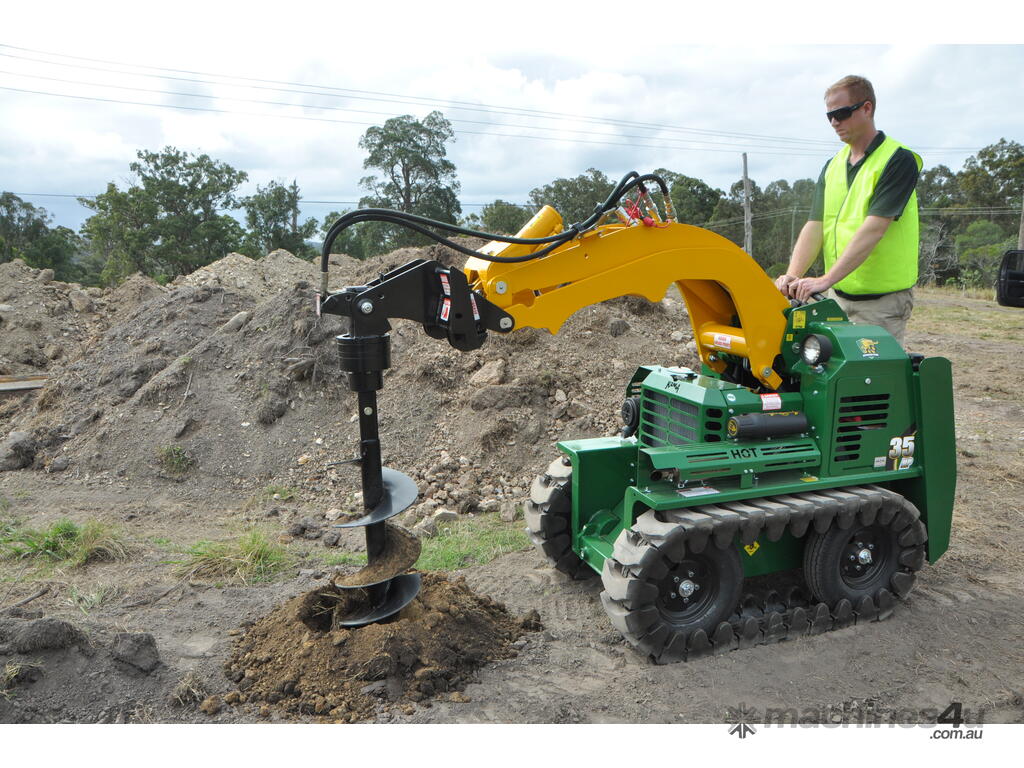

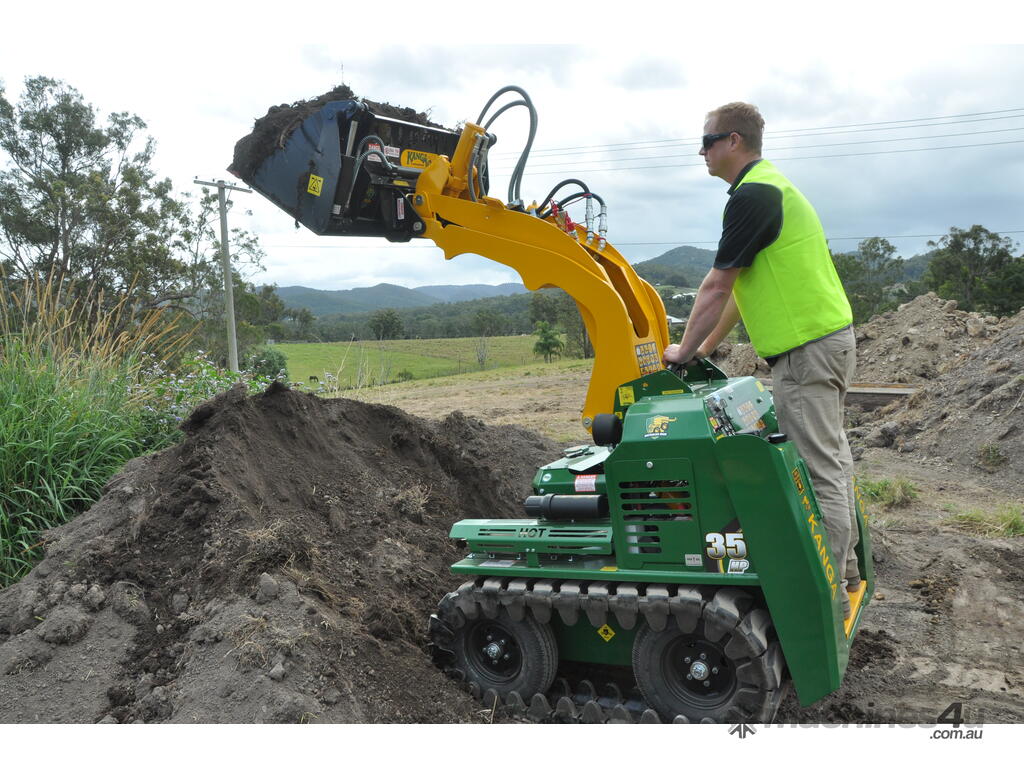

Kanga’s DT835 diesel loader has been designed with features to offer you an edge over smaller loaders on the market, with an increased lift capacity and longer reach. With many aftermarket options to consider, our range of 8 Series loaders will help increase jobsite productivity, and give you a leading edge within your industry.

Specifications
LOADER MODEL DT835 (Track)
ENGINE Kubota V1505 Diesel
POWER RATING* 25kW
TRAVEL SPEED – DEFAULT MODE (FAST MODE) 5.4km/h (9.3km/h)
SYSTEM PRESSURE 220bar
FUEL CAPACITY 50L
COOLING Water Cooled
OVERALL WIDTH 1046mm
MAXIMUM OPERATING HEIGHT WITH BUCKET 2597mm
MAXIMUM BUCKET ROLL-BACK 40°
GROUND CLEARANCE 195mm
TIPPING LOAD** 604kg
RATED OPERATING CAPACITY (ROC)** 272kg
MACHINE WARRANTY 1000hrs or 2yr Arm Tilt Assembly / 5yr Chassis Structure / 1yr Other Components
ENGINE WARRANTY 2yrs

Power Rating is the net power of the production engine, only as measured in accordance with SAE J1349 at 3000 RPM. Mass production engines vary from this value. Actual power output for the engine installed in the delivered machine may vary, depending on numerous factors. These factors can include engine operation in the application, environmental conditions, and other variables.

(**)Tipping Load and Rated Operating Capacity (ROC) have been determined to ISO 14397-1, though the values shown here need to be adjusted for specific attachments. Refer to the section of the Operator’s Manual “Practice Safety at All Times” for Tipping Load and ROC values, for the range of Kanga bucket and fork attachments. Note that ROC is 50% of the Tipping Load for wheel loaders, and 45% for Kanga “over tyre track” loaders.
