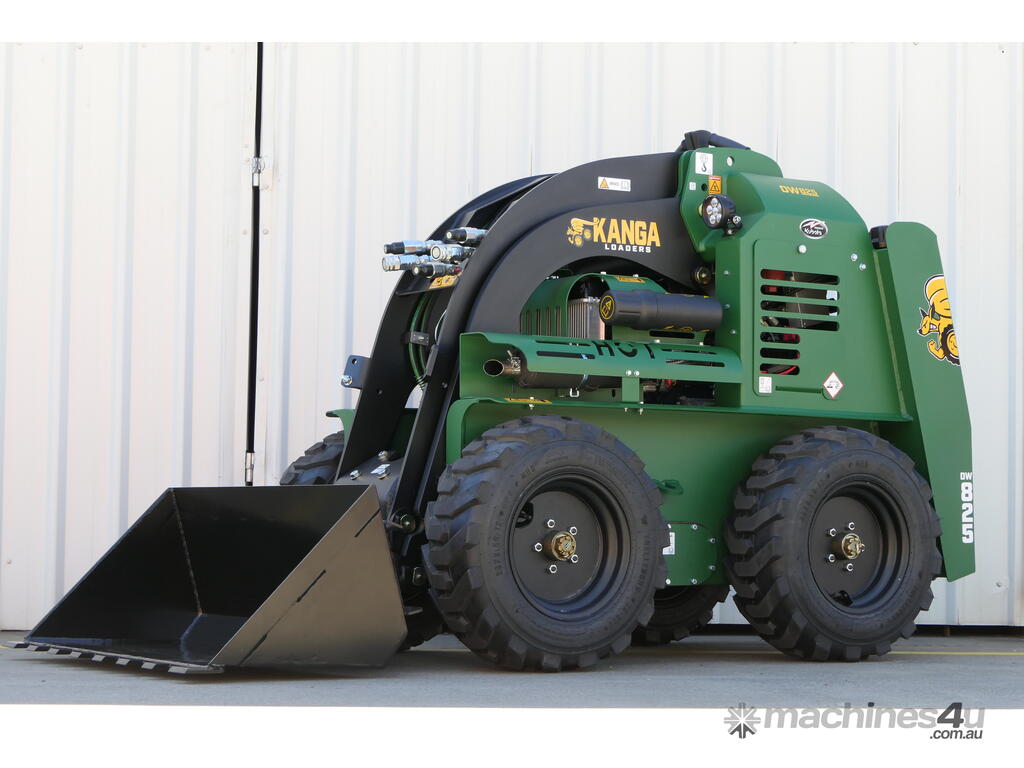

Kanga 8 Series Diesel / Wheel Mini Loader

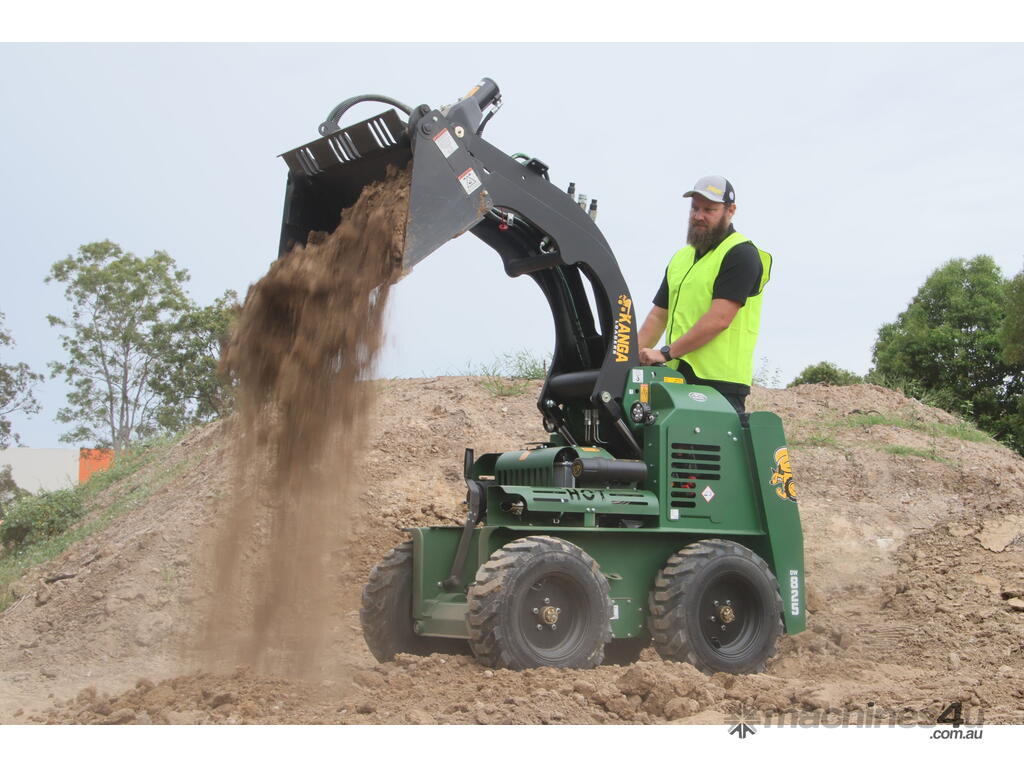

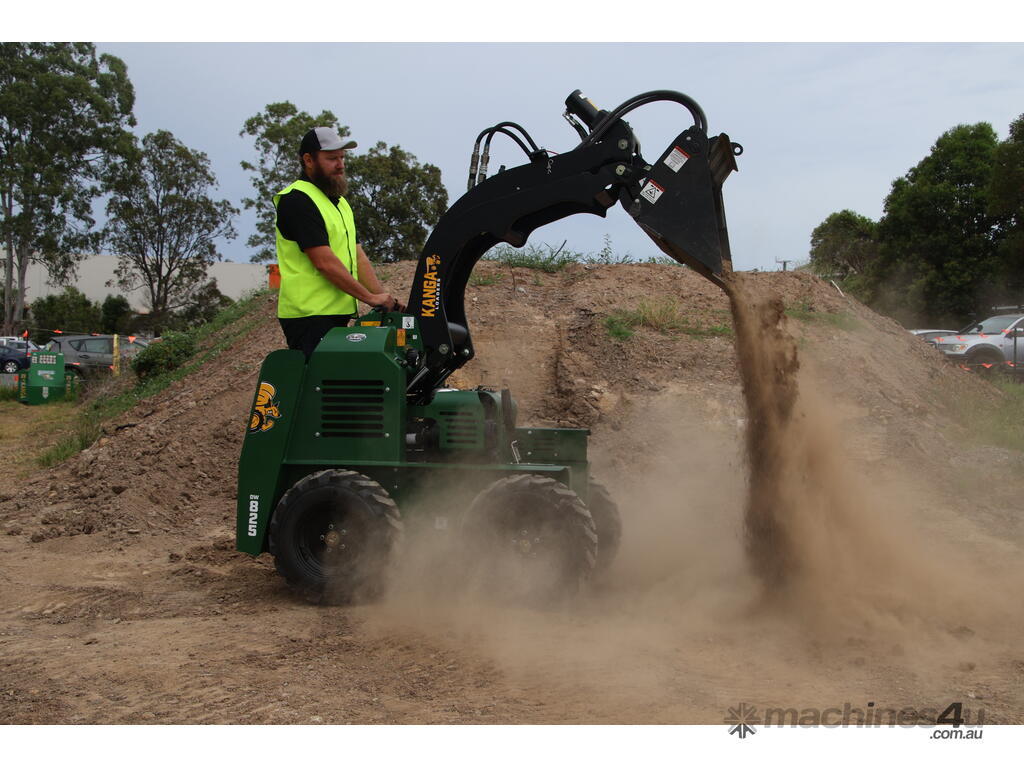

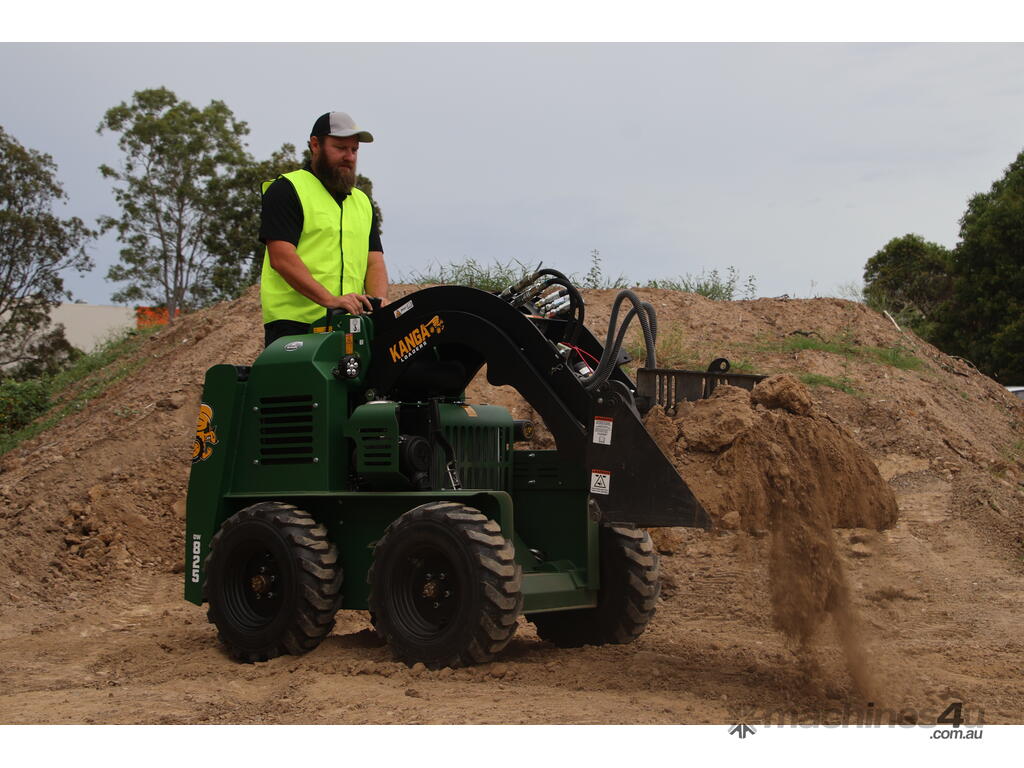

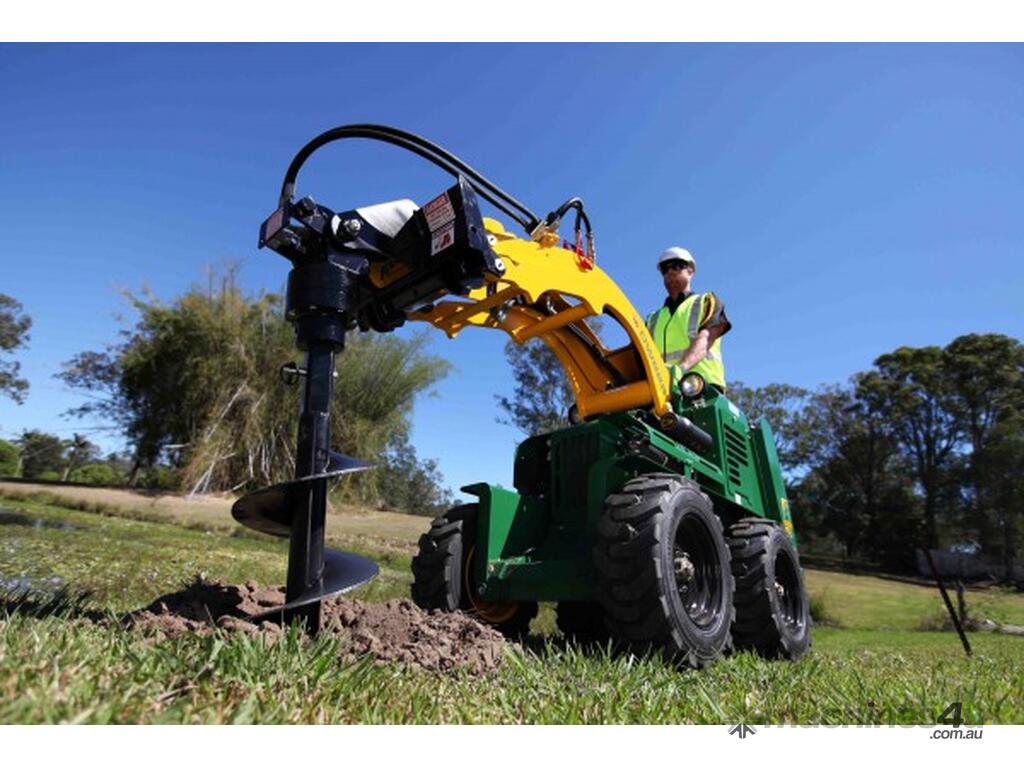

The 8 Series DW825 diesel loader has been designed with features to offer you an edge over smaller loaders on the market; with increased lift capacity and longer reach – Best suited for hard working attachments and tough site conditions. With a broad range of attachment availability, as well as aftermarket machine options to consider, our range of 8 Series loaders will help increase jobsite productivity, and give you a leading edge within your industry.

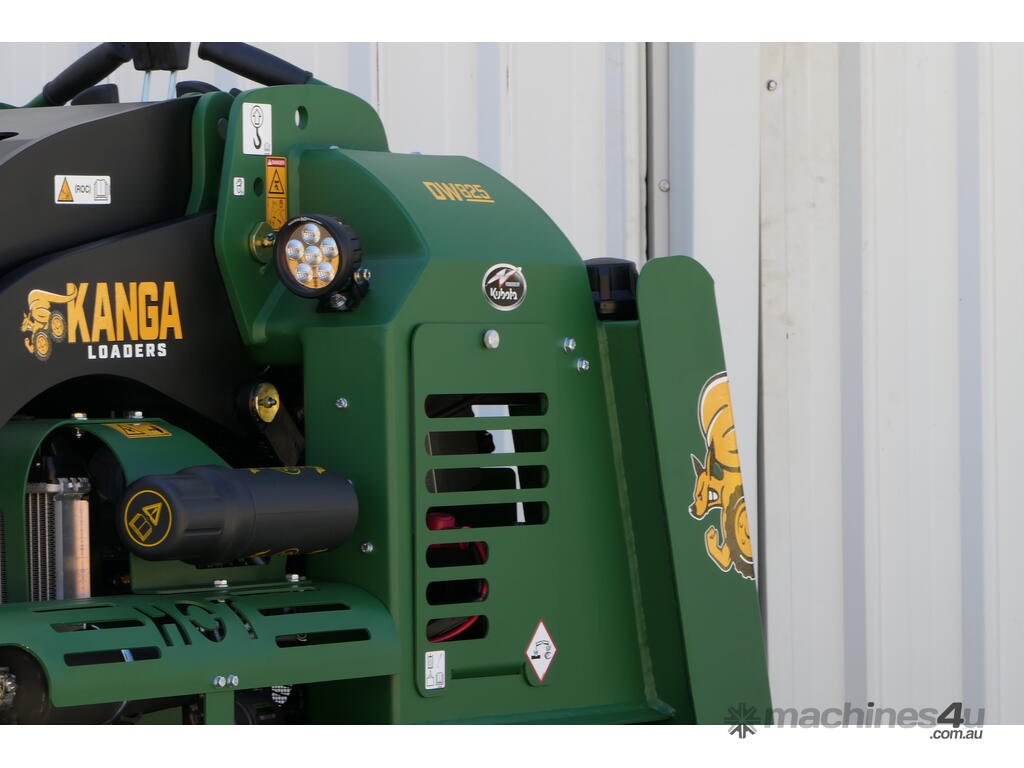

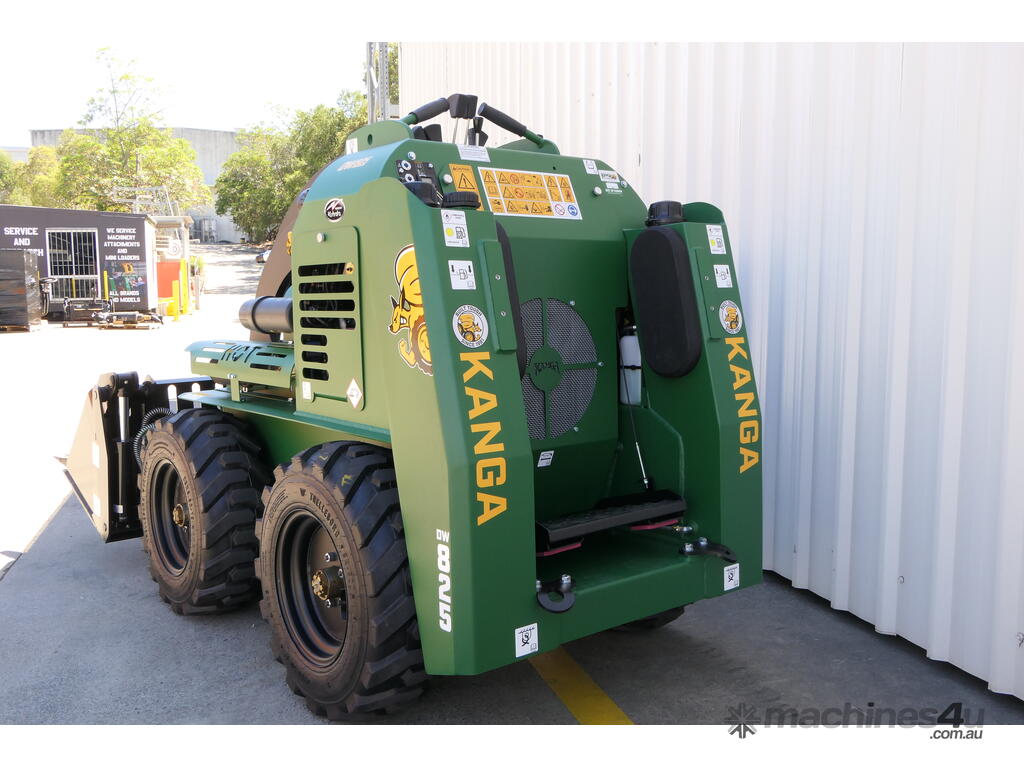

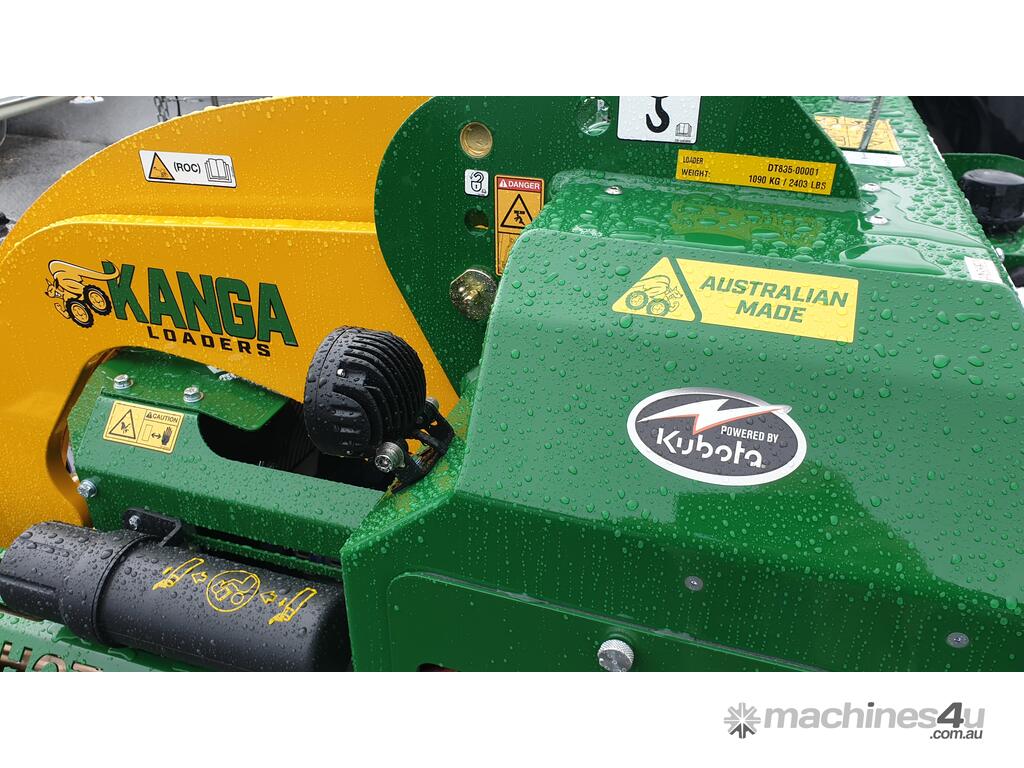

With its independent 4-wheel high torque drive system, the DW825 is perfect for any terrain. Coupled with huge 23? tyres, and a generous 194mm ground clearance, it will take you through the most undulating conditions, offering faster ground speed, and higher puncture resistance. To help cope with harsh conditions, Kanga’s DW825 mini loader also comes fitted with a powerful Kubota diesel engine, and heavy duty two-stage 5" Donaldson air cleaner.

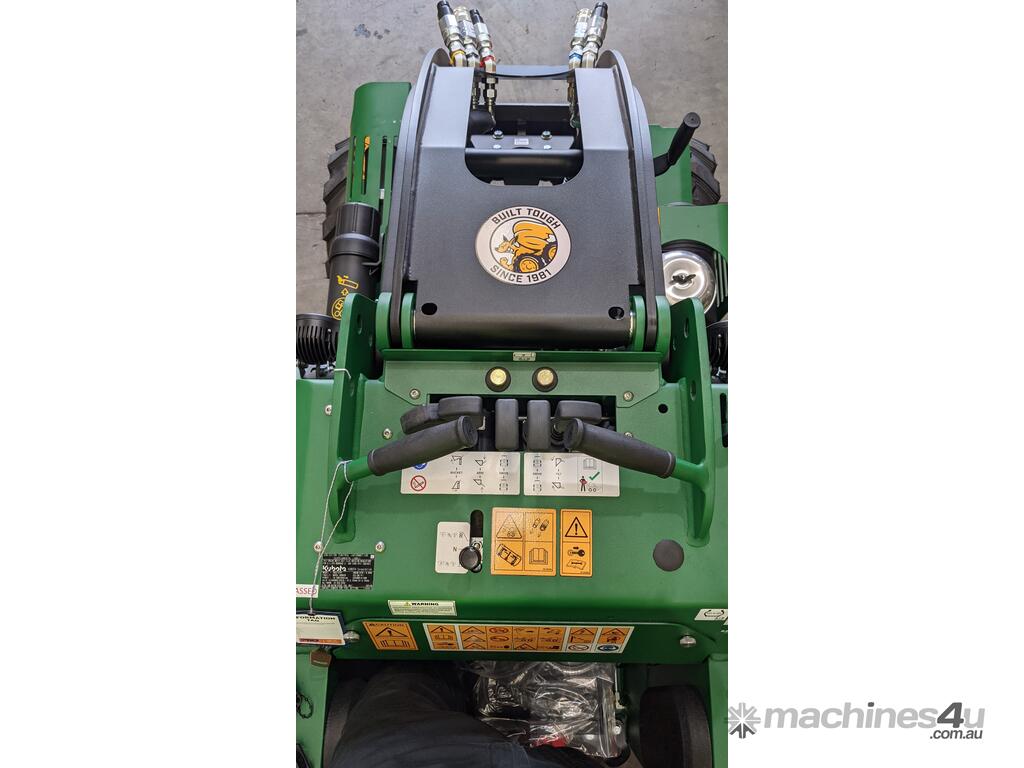

A large operator platform allows for a wider stance, for improved safety and fatigue reduction, whilst a safety cell ensures the operator is enclosed within the operating platform, with side bump protection to provide additional support on rough terrain.

Specifications
LOADER MODEL DW825 (Wheel)
ENGINE Kubota D902 Diesel
POWER RATING* 17.5kW
TRAVEL SPEED 7km/h
SYSTEM PRESSURE 220bar
FUEL CAPACITY 40L
COOLING Water Cooled
OVERALL WIDTH 1033mm

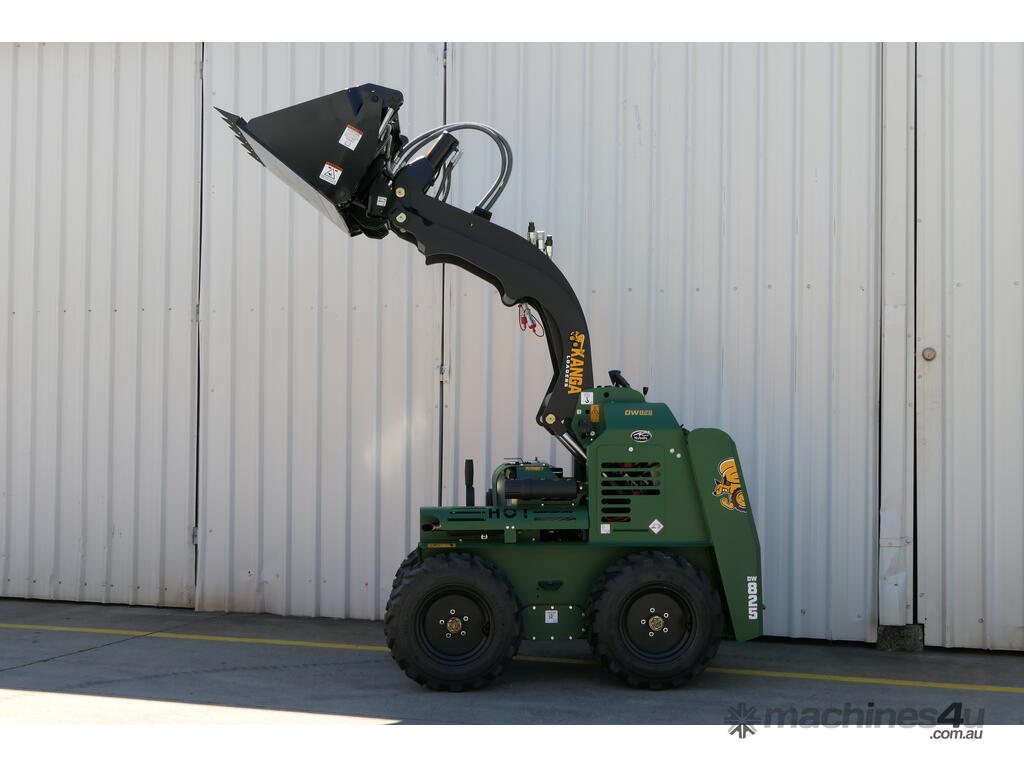

MAXIMUM OPERATING HEIGHT WITH BUCKET 2565mm
MAXIMUM BUCKET ROLL-BACK 41°
GROUND CLEARANCE 194mm
TIPPING LOAD** 537kg
RATED OPERATING CAPACITY (ROC)** 267kg
MACHINE WARRANTY 1000hrs or 2yr Arm Tilt Assembly / 5yr Chasis Structure / 1yr Other Components
ENGINE WARRANTY 2yrs

(*)Power Rating is the net power of the production engine, only as measured in accordance with SAE J1349 at 3600 RPM. Mass production engines vary from this value. Actual power output for the engine installed in the delivered machine may vary, depending on numerous factors. These factors can include engine operation in the application, environmental conditions, and other variables.
(**)Tipping Load and Rated Operating Capacity (ROC) have been determined to ISO 14397-1, though the values shown here need to be adjusted for specific attachments. Refer to the section of the Operator’s Manual “Practice Safety at All Times” for Tipping Load and ROC values, for the range of Kanga bucket and fork attachments. Note that ROC is 50% of the Tipping Load for wheel loaders, and 45% for Kanga “over tyre track” loaders.
