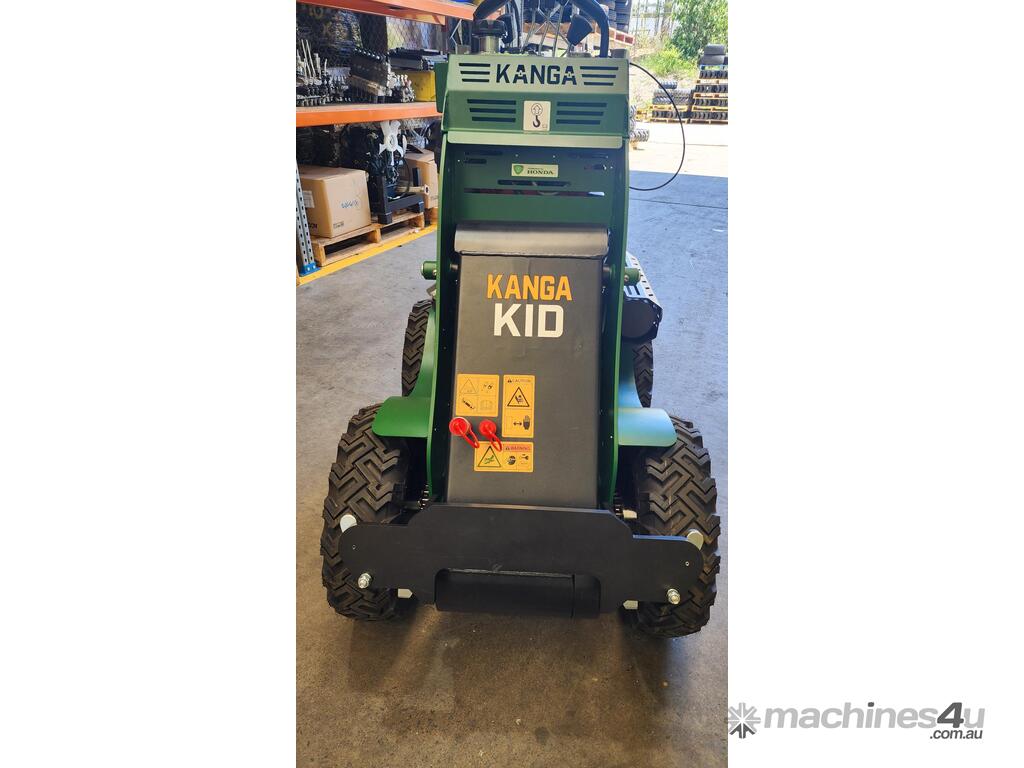

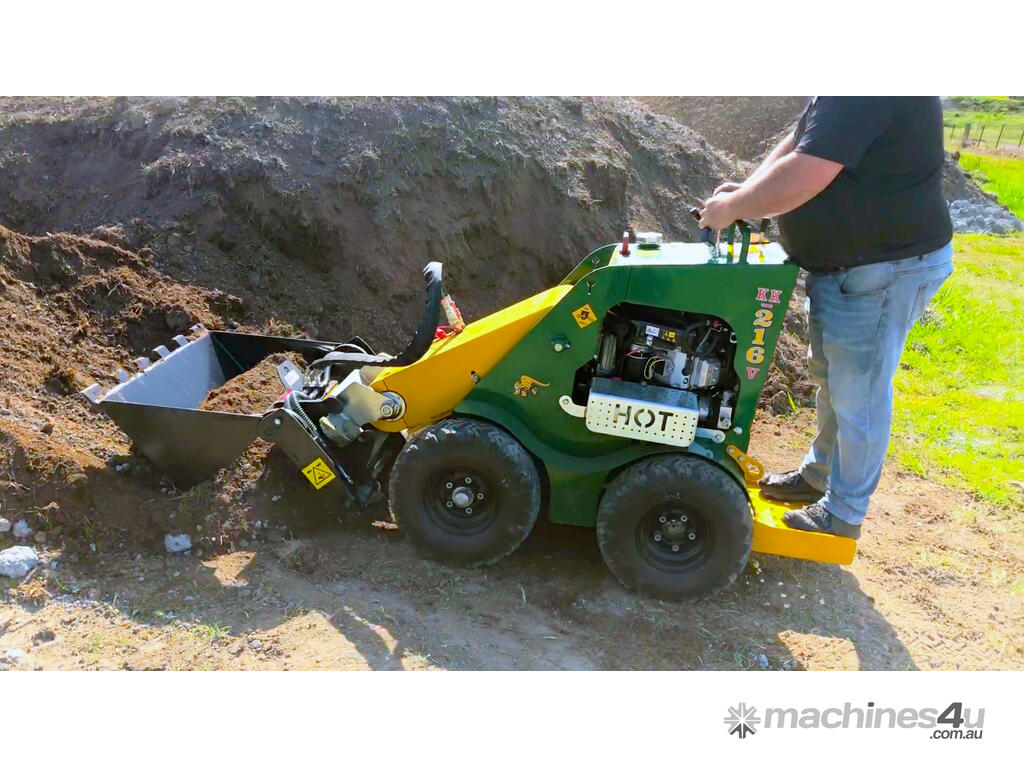

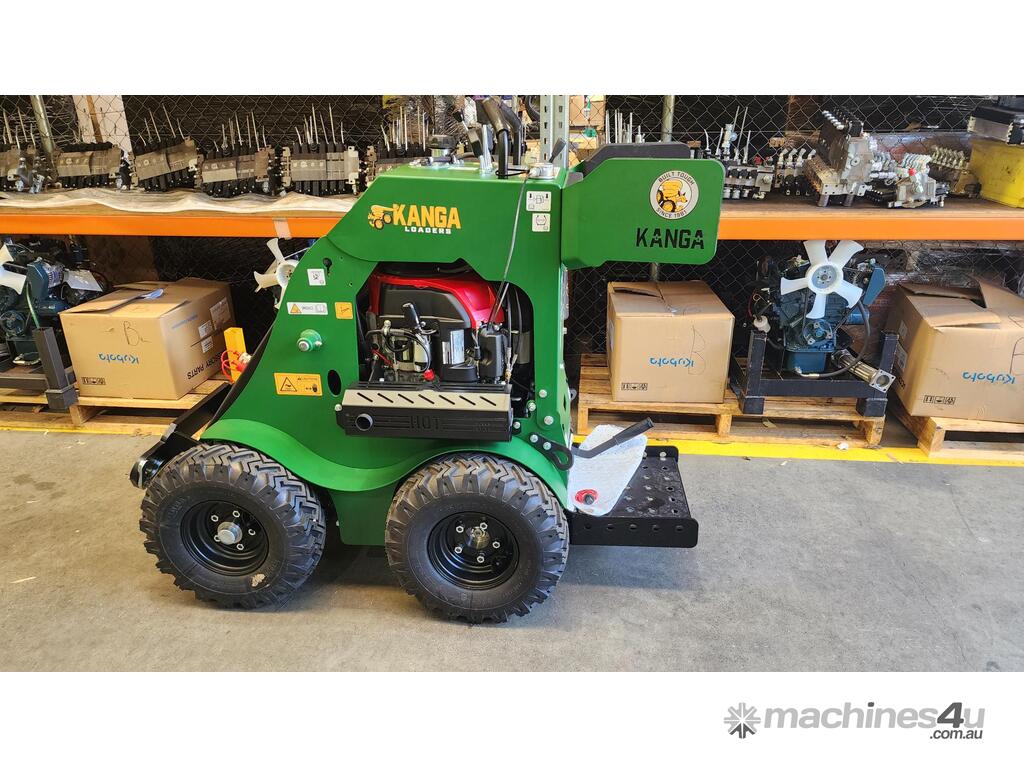

Kanga Kid 2 Series - Wheel

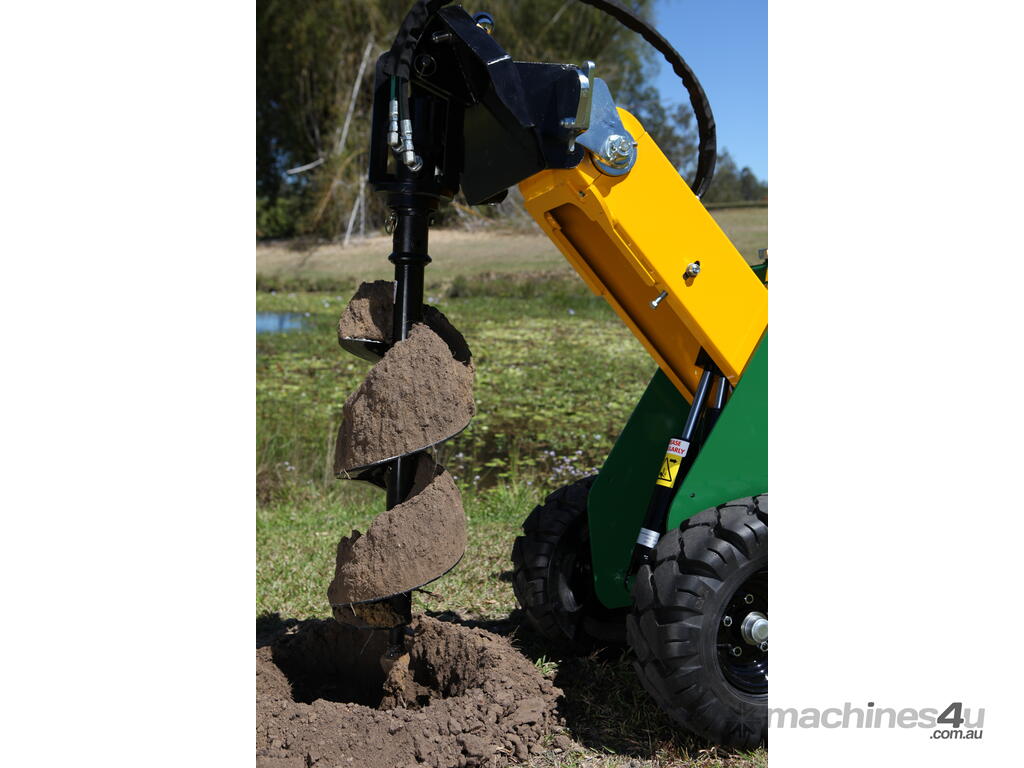

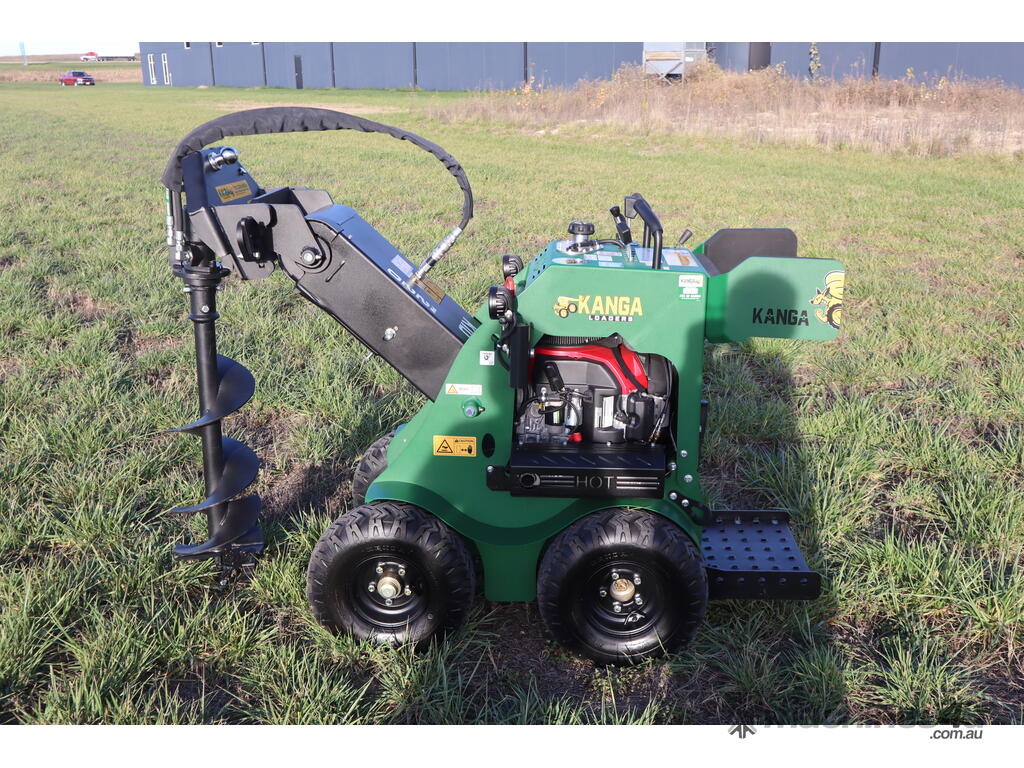

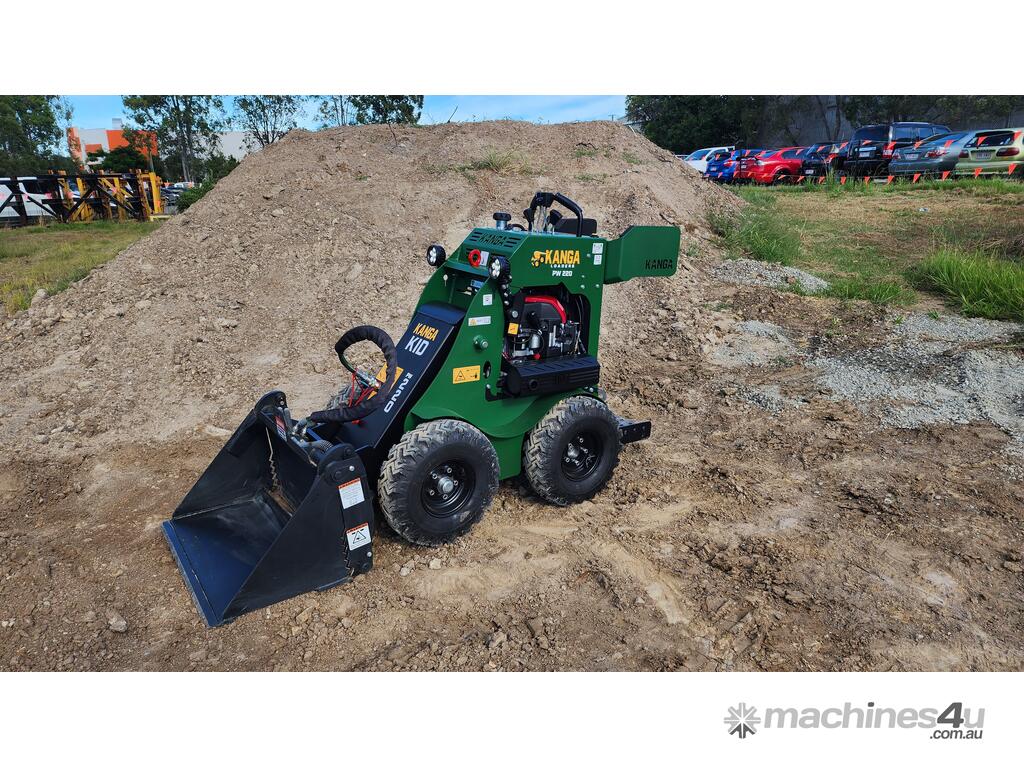

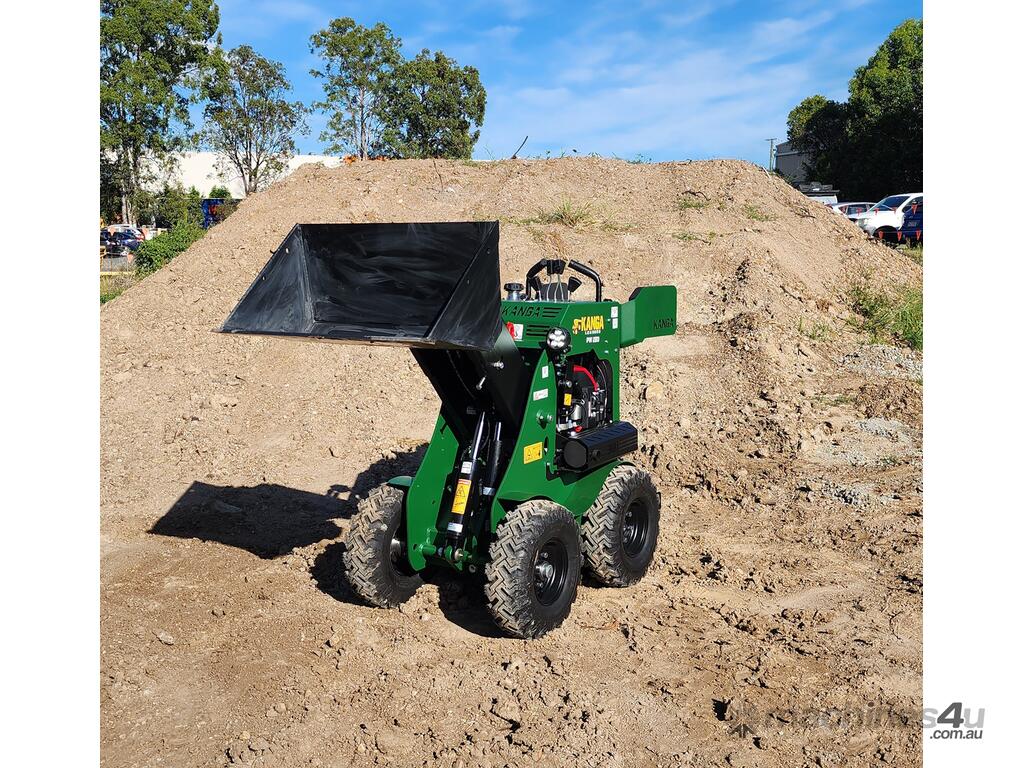

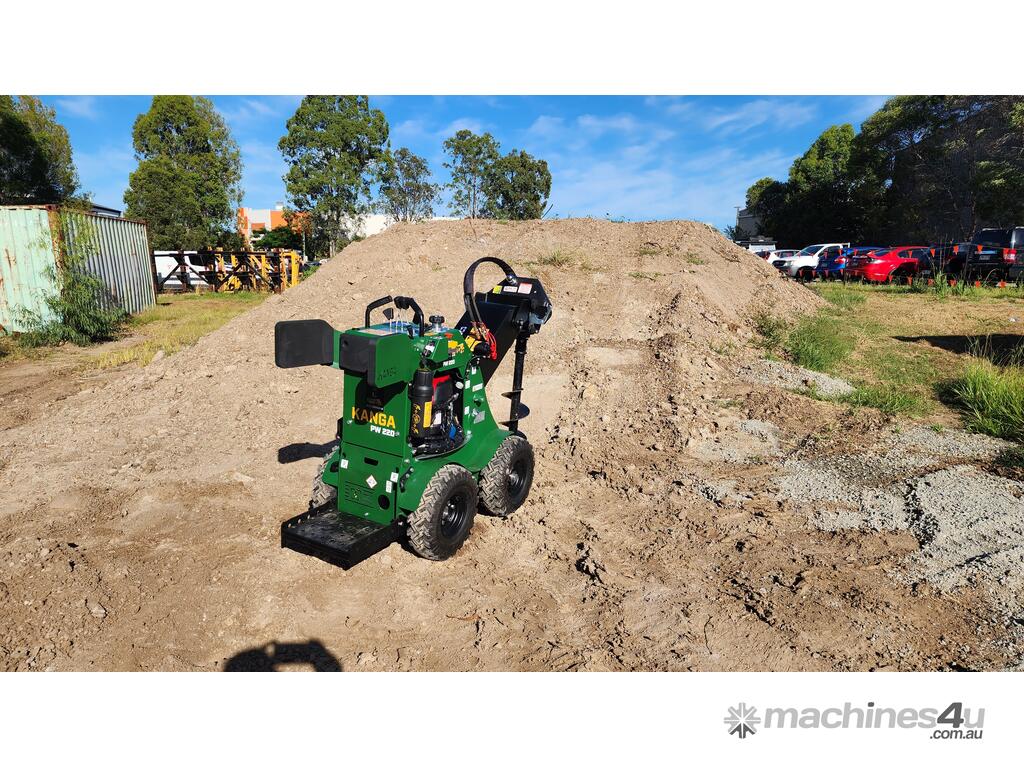

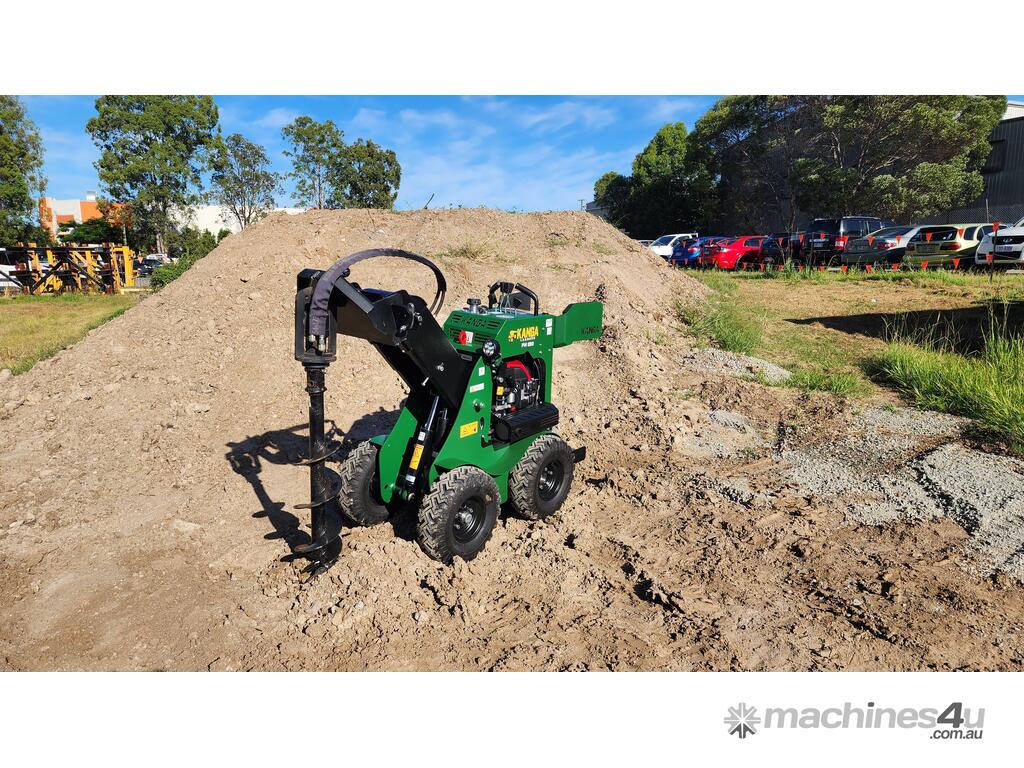

The Kanga Kid now features a more powerful Honda 20HP engine and improved ergonomics amongst a number of other improvements. With dozens of different attachments, the Kanga Kid is versatile and able to handle the toughest jobs quickly and easily. With residential site access becoming increasingly smaller, the 2 Series is the popular choice among landscapers, pool installation, builders, electricians, plumbers and many more to access backyards through gates and doorways.

Specifications
LOADER MODEL PW220 (Wheel)

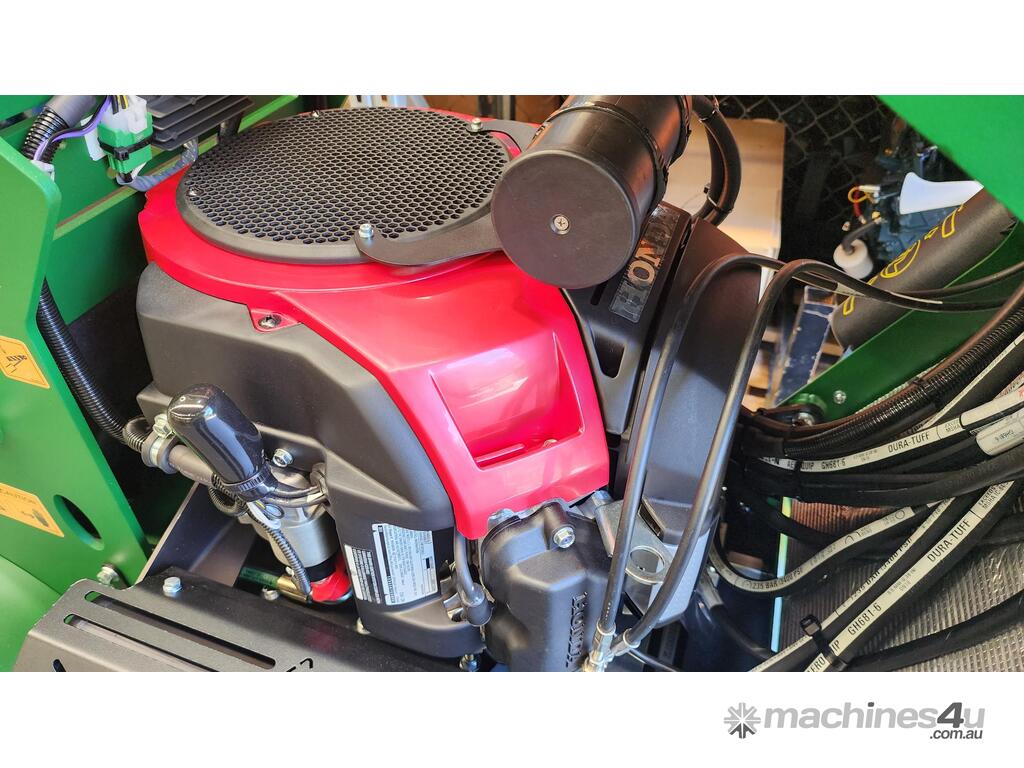

ENGINE Honda GXV 630 (Petrol)
POWER RATING* 15.5kW
TRAVEL SPEED 5.4km/h
SYSTEM PRESSURE 203bar
FUEL CAPACITY 11.6L
COOLING Air cooled
OVERALL WIDTH 755mm
MAXIMUM OPERATING HEIGHT WITH BUCKET 1492mm
MAXIMUM BUCKET ROLL-BACK 38°
GROUND CLEARANCE 154mm
TIPPING LOAD 357kg
MACHINE WARRANTY 1000hrs or 2yr Arm Tilt Assembly / 5yr Chassis Structure / 1yr Other Components
ENGINE WARRANTY 3yrs

Power Rating is the gross power of the production engine only as measured in accordance with SAE J1995 at 3600 RPM. Mass production engines vary from this value. Actual power output for the engine installed in the delivered machine may vary depending on numerous factors. These factors can include operation speed of the engine in the application, environmental conditions, and other variables.

(**)Tipping Load and Rated Operating Capacity (ROC) have been determined to ISO 14397-1, though the values shown here need to be adjusted for specific attachments. Refer to the section of the Operator’s Manual “Practice Safety at All Times” for Tipping Load and ROC values, for the range of Kanga bucket and fork attachments. Note that ROC is 50% of the Tipping Load for wheel loaders, and 45% for Kanga “over tyre track” loaders.
