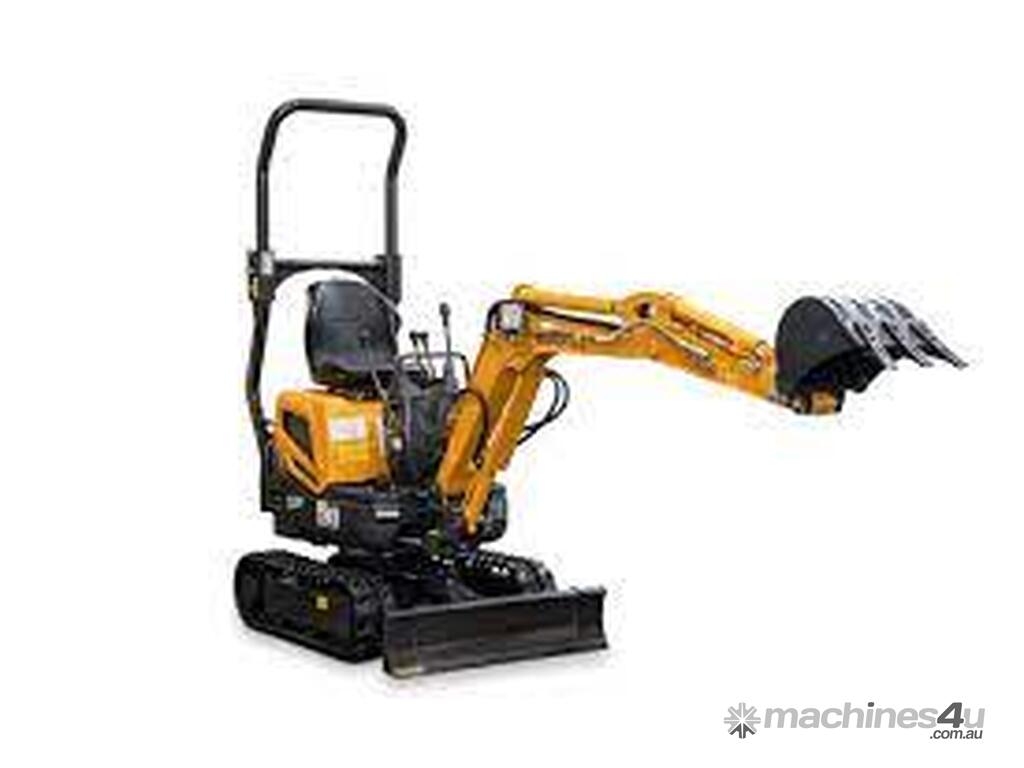

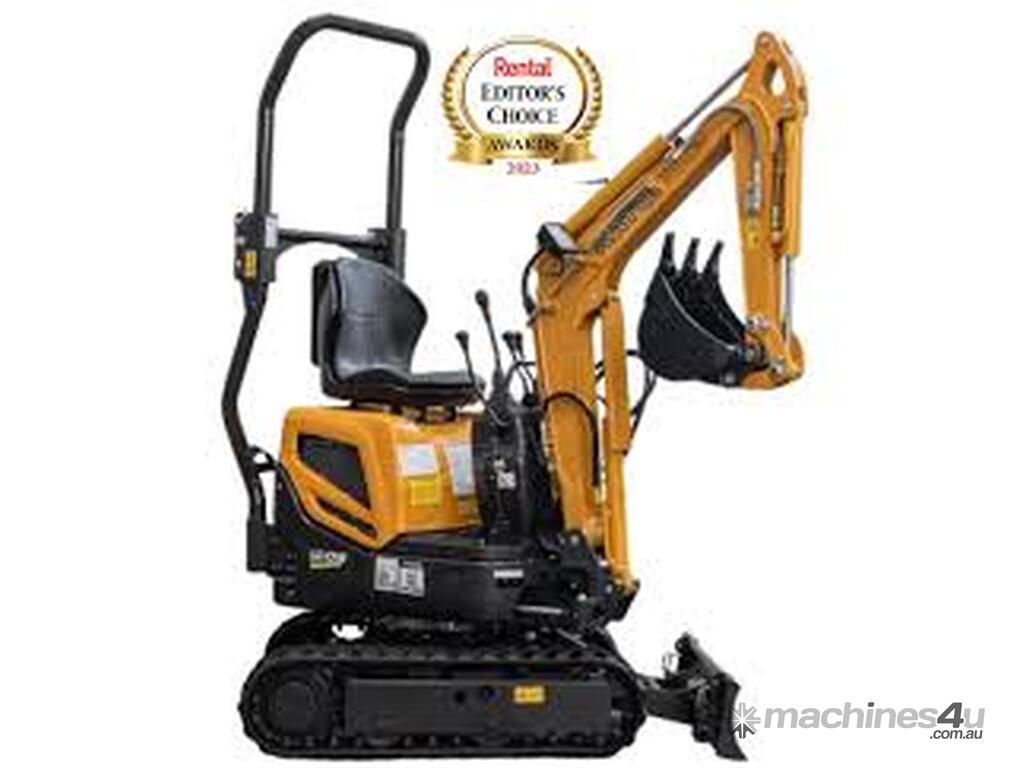

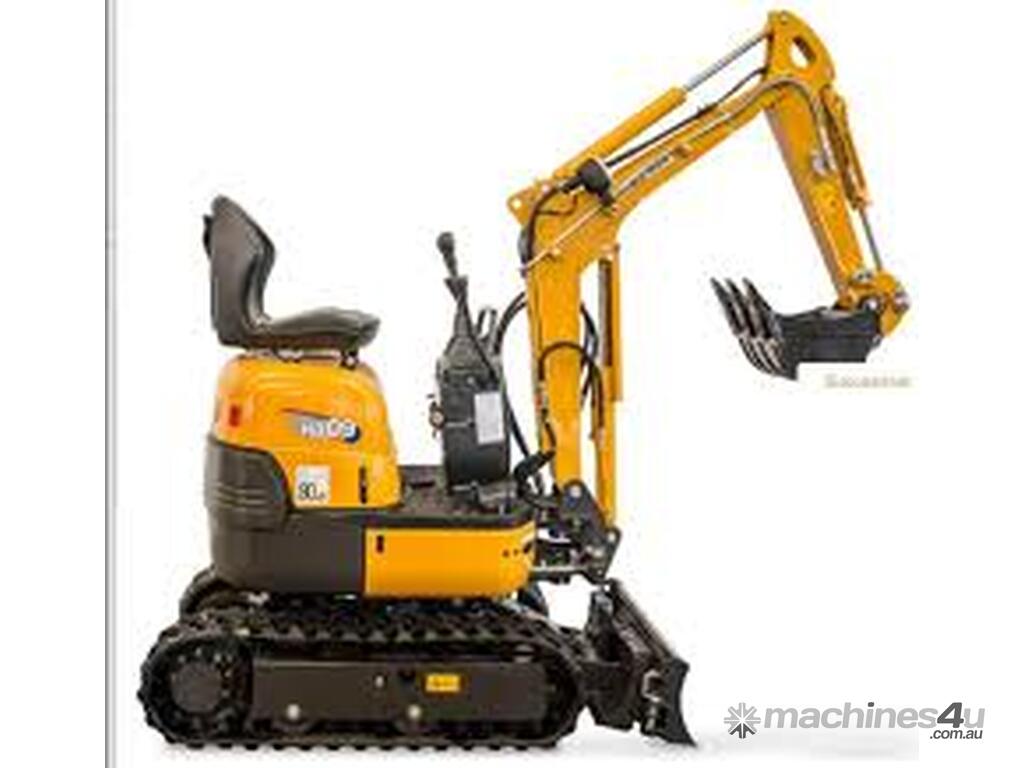

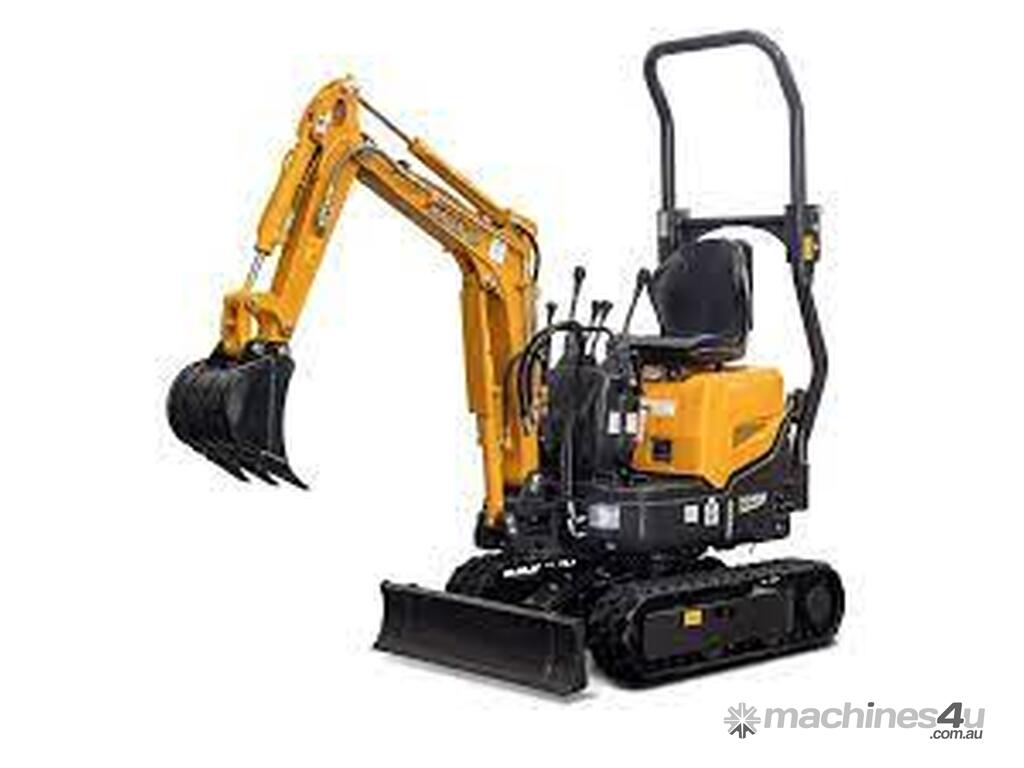

Kato IHI HD09V5 (9VX3) Mini Excavator Zero Swing Mini

HD09V5 Kato IHI
Engine: Yanmar 2TNV70
The new design allows for an increase in traction during work and a longer life
Retractable Tracks 950mm to 720mm ( as well be lower and better centre of gravity.
The version with the auxiliary system for the demolition hammer and other accessories is
available as an optional
DOUBLE-PIN BLADE EXTENSION
The double-pin blade extension system facilitates and simplifies installation, ensuring greater strength during use.
GREAT STABILITY
Better machine stability thanks to an equal distribution of weights and the larger front blade.
Front turning radius with tilt: 950 mm.
Machine width in narrow configuration: 720 mm.
Despite the compact size of the machine, the swing motor is equipped with an automatic brake
for blocking the turret in any position.
Greater production obtained thanks to the increased travel speed, the more efficient use of the swing motor and the lower centre of gravity.
Thanks to the very small rear swing radius of 770 mm, during rotation the frame rotates within the track gauge of the tracks with the undercarriage widened and allows greater safety for both the machine and the operator.
If the undercarriage is closed, access to confined spaces is facilitated.
Low fuel consumption, low running costs and facilitated maintenance ensure higher profit.
High reliability and the long life of the machine are ensured by the optimised design and the low swing speed of the combustion engine

Operating weight: 965KG
Transportation weight: 890kg
