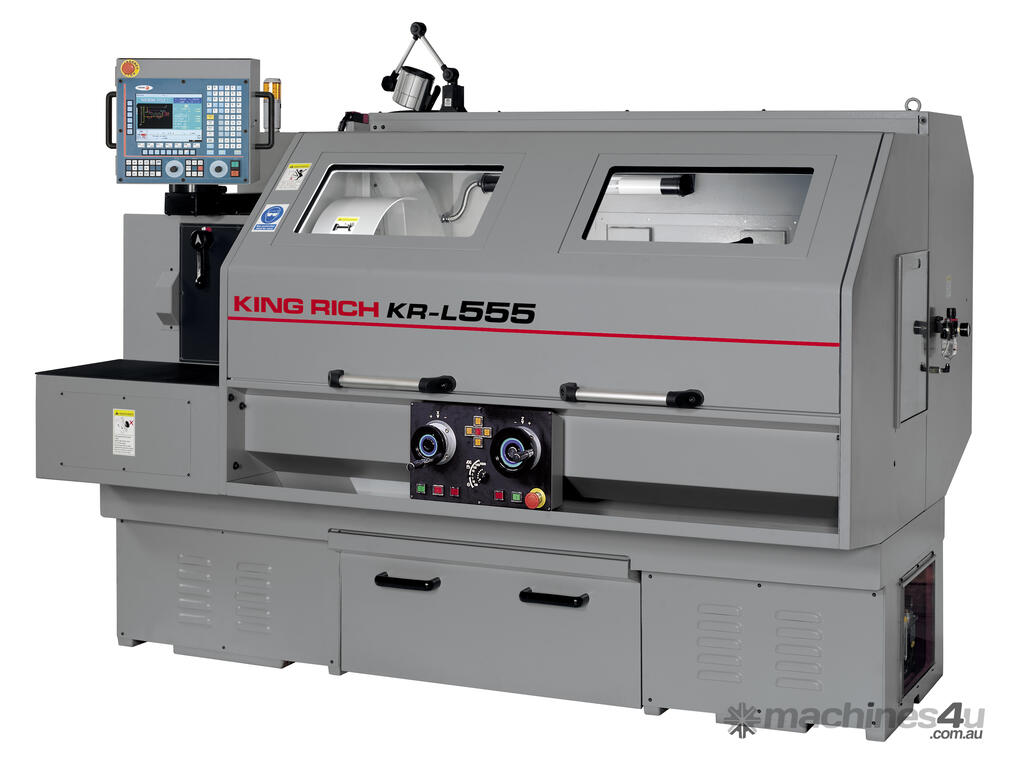

King Rich KR-L555 CNC Lathe

Heavy duty King Rich KR-L555 CNC Lathe engineered for larger diameter work, high cutting loads and reliable production performance. Part of the proven King Rich L Series, the KR-L555 is well suited to general engineering, maintenance machining and medium production environments where rigidity and accuracy matter.

The machine is built on a solid one-piece cast iron bed to minimise vibration and maintain consistent accuracy during heavy turning operations.

Key Features:
• Taiwanese made CNC lathe with heavy duty mechanical construction
• One-piece cast iron bed for maximum rigidity and long-term accuracy
• High-speed, heavy-duty headstock with hardened and ground gears
• Fully interlocked guarding for safe operation
• Air assisted tailstock for smooth travel and quick setup
• Precision ground ballscrews with automatic lubrication system
• Supplied with coolant system, swarf tray, work light and tool kit
• Fixed and travelling steadies included as standard

Typical Specifications:
• Swing over bed: 555 mm
• Swing over cross slide: approx. 380 mm
• Distance between centres: approx. 1500 mm
• Spindle bore: approx. 80 mm
• Spindle nose: D1-8 camlock
• Spindle speeds: multi-range up to approx. 3000 rpm
• Spindle motor: approx. 11 kW
• Tailstock taper: MT5
• Bed width: heavy section design for stability
• Machine weight: approx. 4200 kg

Control Options:
Available with industry-standard CNC controls including FANUC, Siemens or FAGOR, depending on configuration.

Applications:
Ideal for turning larger shafts, flanges, rollers, bushings and heavy engineered components across a wide range of materials.
