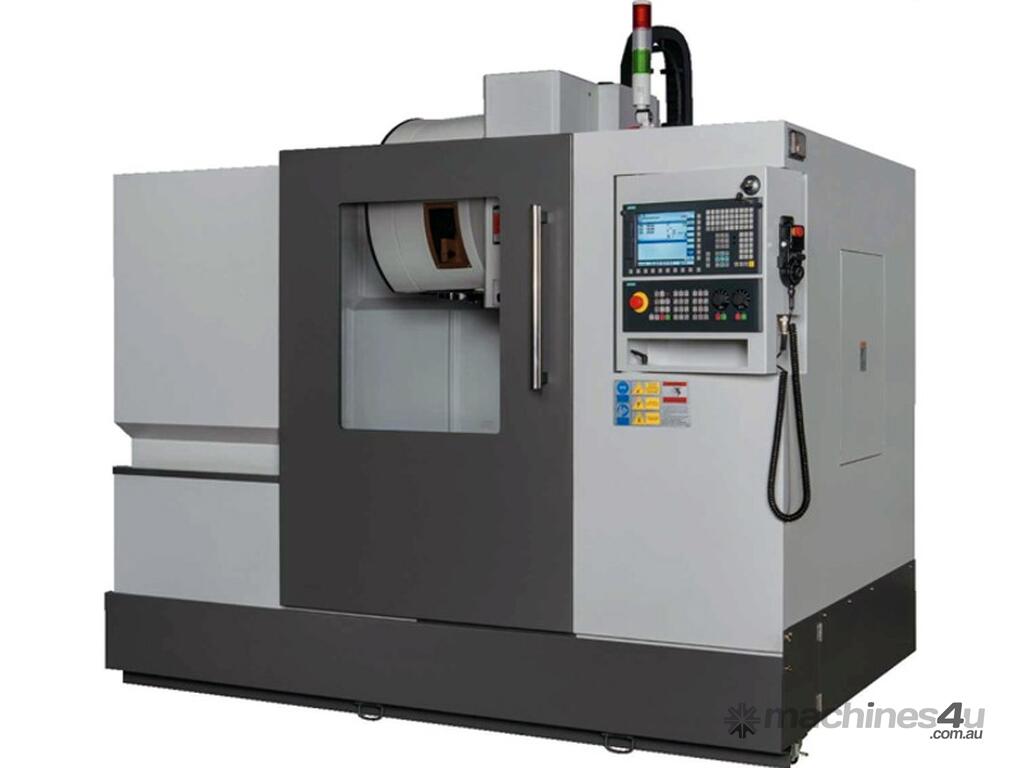

King Rich KR-ME1000 CNC Vertical Machining Centre

The King Rich KR-ME1000 is a large-capacity CNC vertical machining centre designed for workshops that need extended travels, higher table load capacity, and stable performance across larger components. Built in Taiwan by King Rich Industries, it offers proven rigidity and reliability for production and heavy jobbing environments.

Equipped with Fanuc control, linear guideways, and a BT40 spindle as standard, the KR-ME1000 is well suited to general engineering, manufacturing, education, and batch production work.

Key Specifications

- Control: Fanuc Oi-MF Plus (10.4" colour LCD / MDI)
- Spindle: 10 HP (standard) BT40 taper
- Spindle Speed: 8,000 rpm
- Travels (X / Y / Z): 1,000 × 500 × 500 mm
- Table Size: 1,060 × 500 mm
- Tool Changer: 20-tool carousel ATC
- Guideways: Linear rails on all axes
- Rapid Traverse: 20,000 mm/min
- Max Table Load: 800 kg

Standard Equipment Included

- Fanuc spindle and servo motors
- Automatic lubrication system
- Flood coolant system
- Steel slideway covers on all axes
- Fully enclosed guarding
- Air blast through spindle
- Electronic handwheel
- Working light
- Levelling bolts and blocks
- Tool kit

Optional Upgrades Available

- 15 HP spindle motor
- 10,000 rpm or 12,000 rpm spindle
- 24-tool arm-type ATC
- Chip conveyor
- 4th axis rotary table packages
- Transformer options to suit site power

Why Choose the KR-ME1000

- Large working envelope for longer and heavier components
- Proven Taiwanese build quality from King Rich
- Industry-standard Fanuc control for training, service, and support
- Strong value alternative to high-priced European and Japanese machines

Supplied and supported in Australia by QMT Machinery, with local parts availability, commissioning assistance, and after-sales support.

Enquire now for pricing, lead time, and available options.
