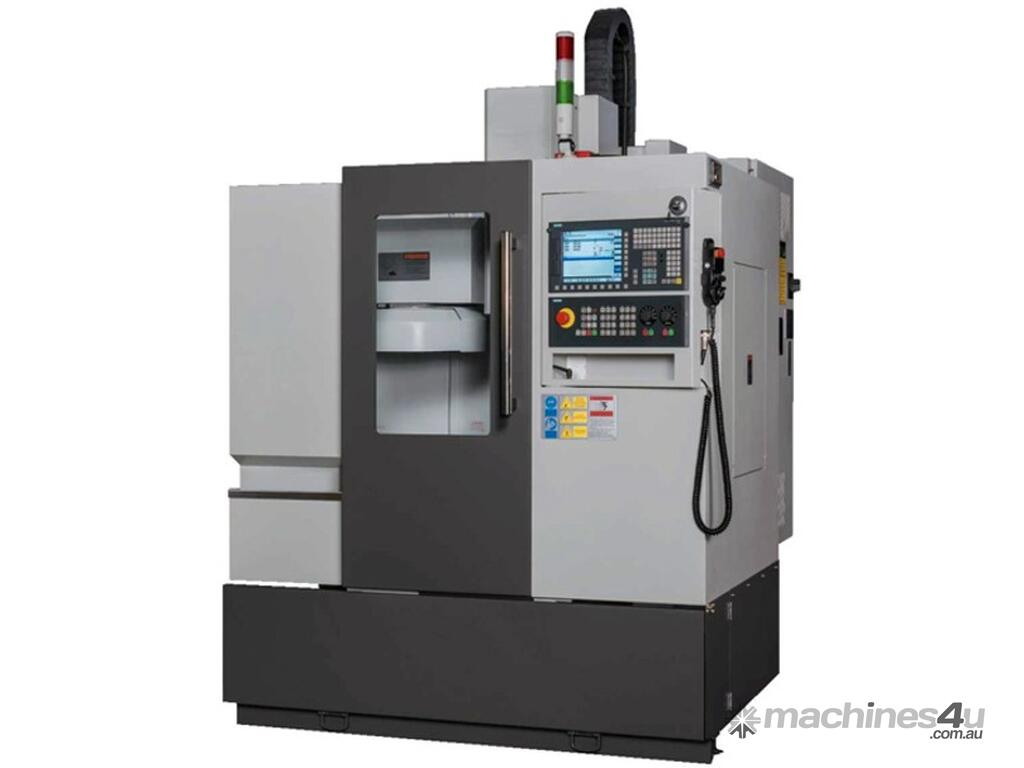

King Rich KR-ME500 CNC Vertical Machining Centre

The King Rich KR-ME500 is a compact, rigid CNC vertical machining centre designed for accuracy, reliability, and everyday production work. Built in Taiwan by King Rich Industries, it delivers consistent performance for general engineering, toolmaking, education, and light to medium production environments.

Supplied with Fanuc control, linear guideways, and a BT40 spindle, the KR-ME500 offers an excellent balance of footprint, capability, and long-term reliability.

Key Specifications

- Control: Fanuc Oi-MF Plus (10.4" colour LCD / MDI)
- Spindle: 10 HP, BT40 taper
- Spindle Speed: 8,000 rpm
- Travels (X / Y / Z): 510 × 400 × 450 mm
- Table Size: 580 × 400 mm
- Tool Changer: 12-tool carousel ATC
- Guideways: Linear rails on all axes
- Rapid Traverse: 20,000 mm/min
- Max Table Load: 250 kg

Standard Equipment Included

- Fanuc spindle and servo motors
- Automatic lubrication system
- Flood coolant system
- Steel slideway covers on all axes
- Fully enclosed guarding
- Air blast through spindle
- Electronic handwheel
- Working light
- Levelling bolts and blocks
- Tool kit

Optional Upgrades Available

- 10,000 rpm or 12,000 rpm spindle
- Chip conveyor
- 4th axis rotary table packages
- Transformer options to suit site power

Why Choose the KR-ME500

- Proven Taiwanese build quality from King Rich
- Compact footprint without sacrificing rigidity
- Industry-standard Fanuc control for ease of use and support
- Ideal entry to mid-tier CNC machining without European price tags

Backed locally by QMT Machinery, offering commissioning support, parts availability, and after-sales service.

Enquire now for pricing, lead time, and available options.
