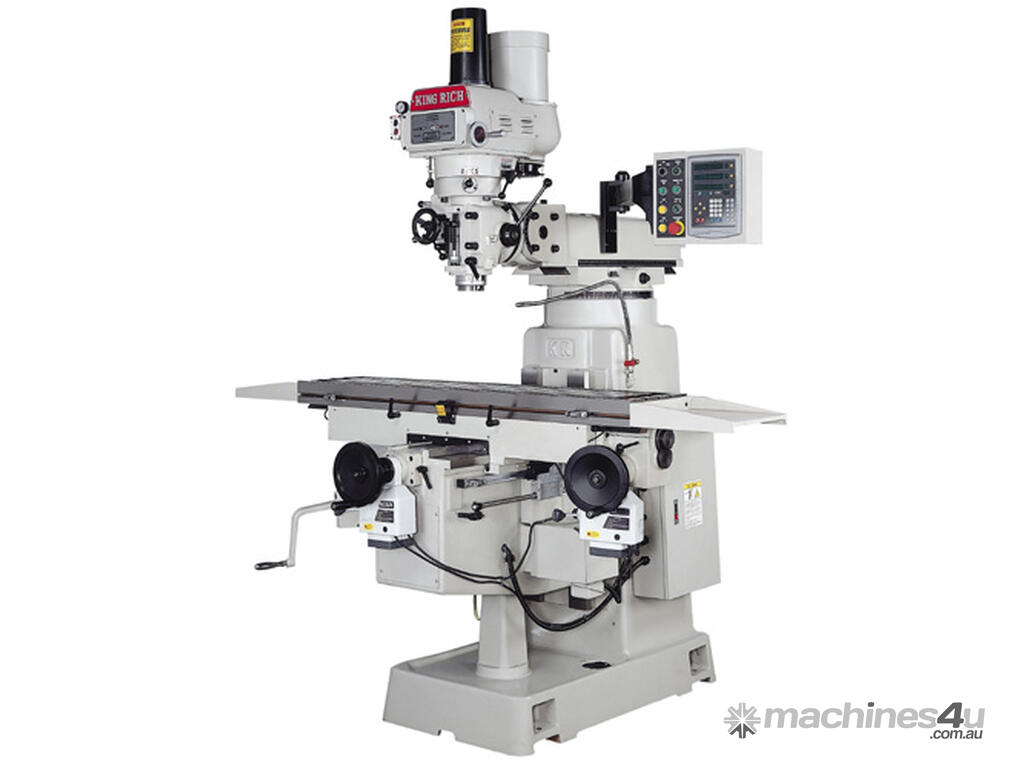

The King Rich KR-V3000 is a heavy-duty manual vertical turret milling machine designed for serious metal removal, accuracy, and long-term reliability. It sits above light workshop mills, offering increased table capacity, rigidity, and power for production environments, training facilities, and general engineering shops.
Built by King Rich Industries, the KR-V3000 features hardened and ground slideways, a robust ISO 40 spindle, and a powerful 5 HP motor. The machine is well suited to heavier cuts while maintaining good surface finish and repeatability.
Key Features
- Heavy-duty vertical turret mill
- ISO 40 spindle taper
- 5 HP spindle motor
- Hardened and ground table and slideways
- Square Y and Z axis slideways for improved rigidity
- Manual operation with optional accessories available
- Proven King Rich build quality and long service life
Typical Applications
- General machining and jobbing work
- Toolmaking and maintenance workshops
- Training and TAFE environments
- Low-volume production and prototyping
Core Specifications (summary)
- Table size: approx. 1220 × 305 mm or 1372 × 305 mm (configuration dependent)
- X-axis travel: up to 860 mm
- Y-axis travel: 400 mm
- Z-axis (knee) travel: 406 mm
- Spindle speeds: Low and high range via geared head
- Machine weight: approx. 1600 kg
Supplied and supported locally by QMT Machinery. Backed by spare parts availability and technical support in Australia.
Contact us for pricing, optional accessories, delivery, and installation details.
