Kohler J88+FD02 Diesel Generator – 88 kVA | Extended Autonomy | Heavy-Duty Power

Kohler J88 + FD02 Industrial Diesel Generator with extended Tank
88 kVA Standby and 80 kVA Prime Power
Clarke Energy Supplied

The Kohler J88 plus FD02 industrial diesel generator is a robust and dependable power solution designed for both standby and prime power applications across commercial, industrial, and rural sites. Supplied and supported by Clarke Energy, this generator set combines Kohler’s globally recognised build quality with proven engine technology and strong local service support.

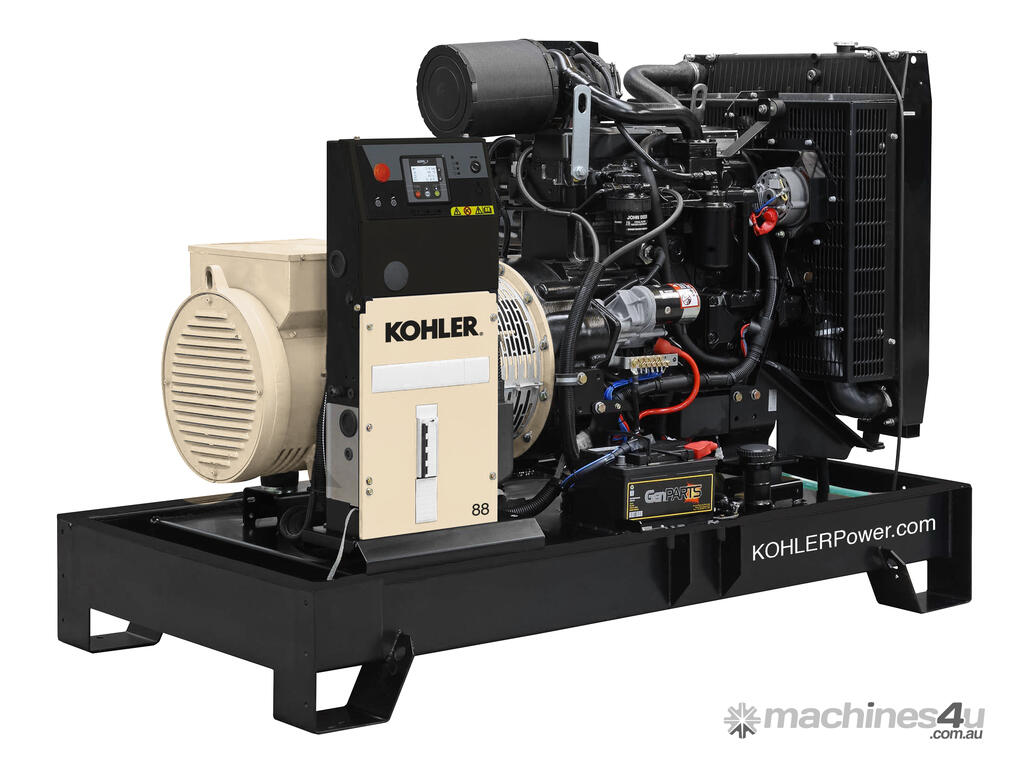

Powered by a John Deere industrial diesel engine and coupled to a Kohler alternator, the J88 delivers reliable performance, stable output, and long service life. The integrated FD02 extended fuel system provides increased autonomy and environmental protection, making this unit ideal for sites requiring extended run times and compliance focused design.

Power ratings at 415 240 V, 50 Hz:
Standby rating ESP
88 kVA 70 kWe
122 A
Prime rating PRP
80 kVA 64 kWe
116 A

Typical applications include:
• Commercial buildings and office facilities
• Industrial plants and manufacturing sites
• Agricultural operations and rural infrastructure
• Telecommunications and utility installations
• Construction sites and temporary power
• Essential backup power for critical services

Key specifications and features:
• John Deere 4045TSG20 water cooled industrial diesel engine
• Mechanical governor for proven, stable operation
• Kohler single bearing alternator KH00590T with Class H insulation and IP23 protection

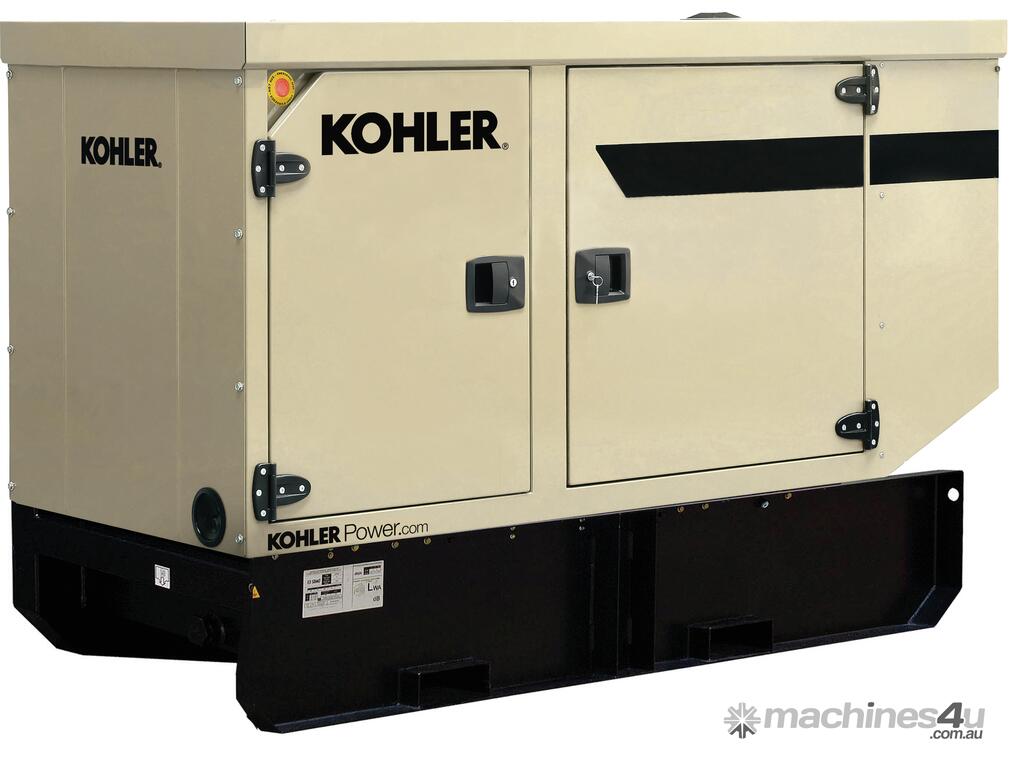

• Silent canopy manufactured from corrosion resistant European steel
• Durable QUALICOAT certified epoxy paint finish in RAL1014 beige
• Integrated 500 L fuel tank with FD02 extended autonomy system
• FD02 fuel containment with secondary bund, drain plug, and retention bund alarm

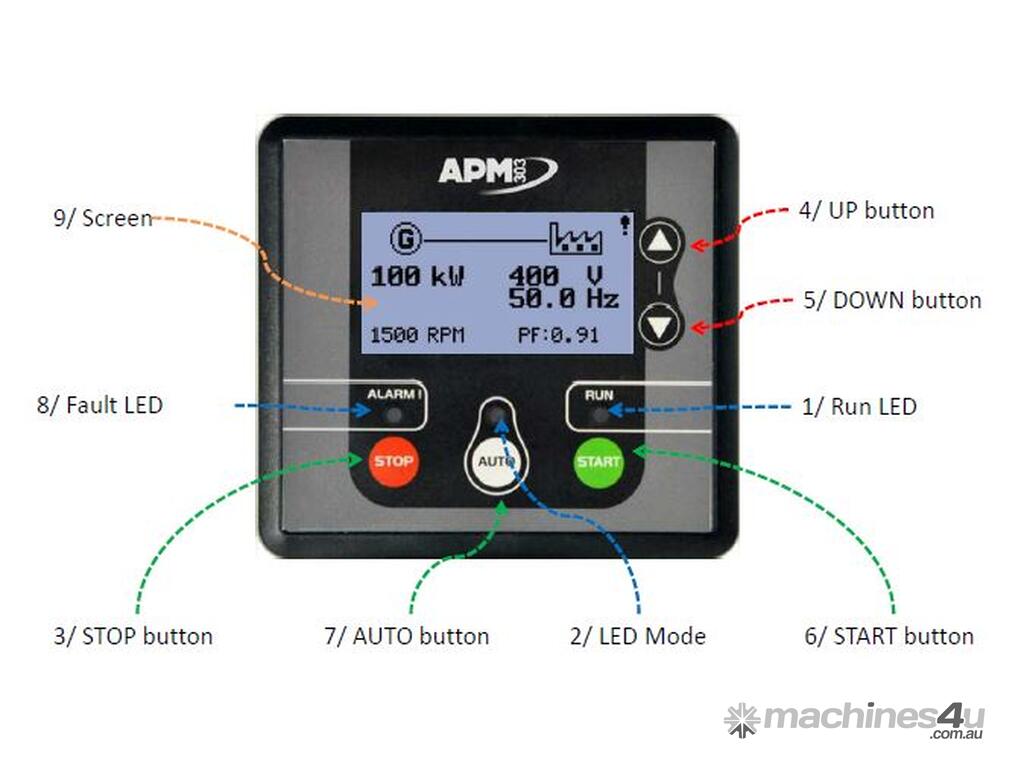

• APM303 control panel with engine and electrical monitoring, alarms, and protection
• Auto start prewiring with battery charger and engine preheating
• Schneider or ABB circuit breaker matched to genset short circuit performance
• Heavy duty welded steel base frame with vibration isolation mounts
• Forklift friendly design with multiple lifting points
• External emergency stop button and stainless steel IP64 locking system
• Supplied filled with oil and antifreeze and complete with user manuals

Backed by Clarke Energy as the authorised Kohler distributor, the KJ88 plus FD02 offers confidence in product quality, performance, and long term support. This generator is a strong choice for customers seeking a professional grade diesel genset with extended run capability from a trusted global brand.

Contact us for pricing, availability, ATS selection, or installation and commissioning support.
