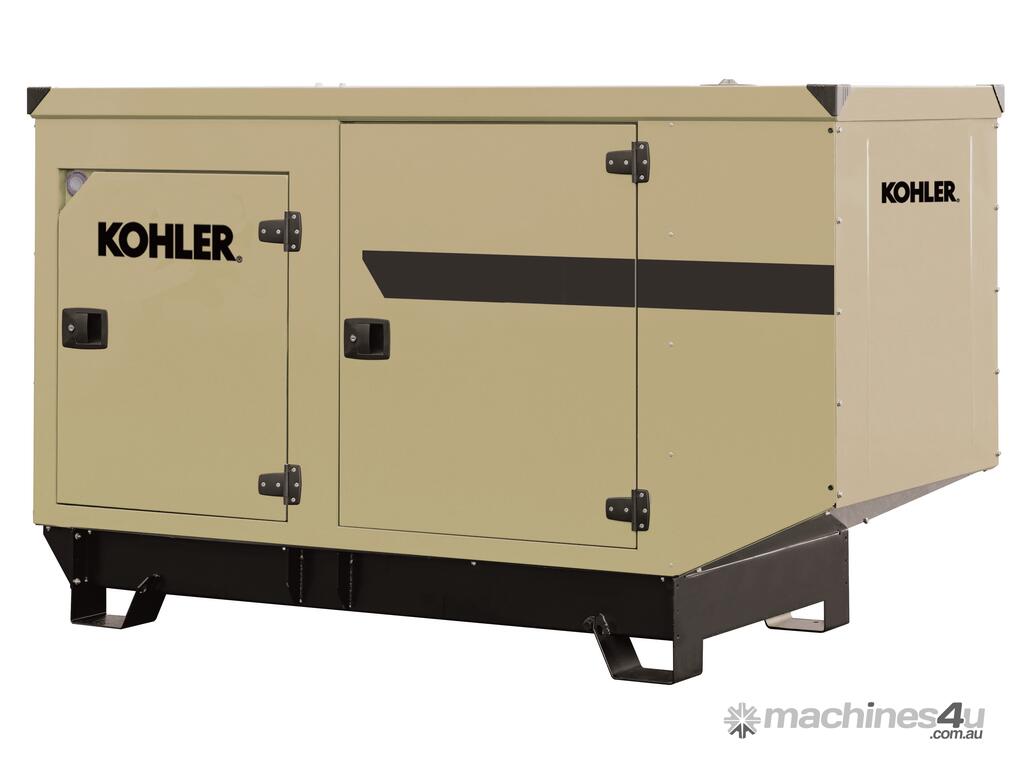

Kohler - KJ110+FD02 Diesel Generator – 110 kVA Silent Powerhouse with Extended Autonomy

Kohler - KJ110+FD02 Diesel Generator – 110 kVA Silent Powerhouse with Extended Autonomy
High Output. Extended Runtime. Built for Australian Conditions.

The KJ110+FD02 Diesel Generator (Model KD110+FD02) is a high-performance power solution designed for industrial, commercial, and mission-critical applications. Powered by a John Deere engine and engineered by Rehlko, this 110 kVA unit offers extended fuel autonomy, rugged durability, and quiet operation—ideal for remote sites and high-demand environments.

Key Specifications
• Max Power Output: 110.0 kVA
• Voltage: 415/240V (Three Phase)
• Frequency: 50 Hz

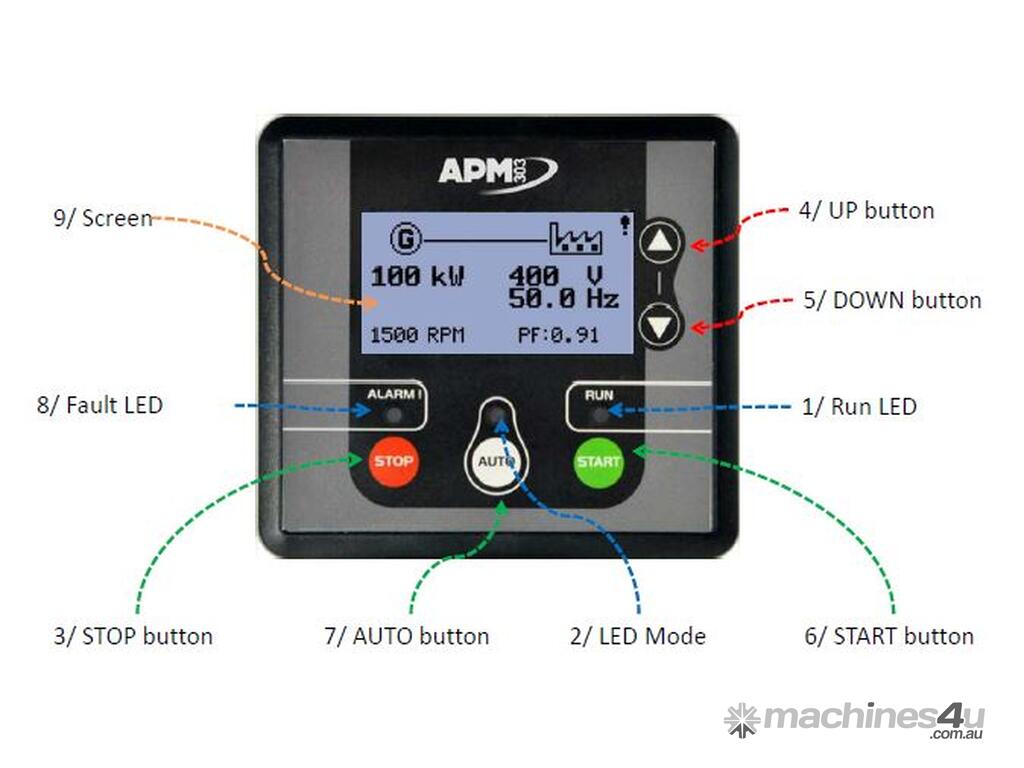

• Control Panel: APM303 with auto-start prewiring
• Fuel Tank Capacity: 500L (Extended autonomy with containment bund and drain plug)
• Max Current: 153.0 A

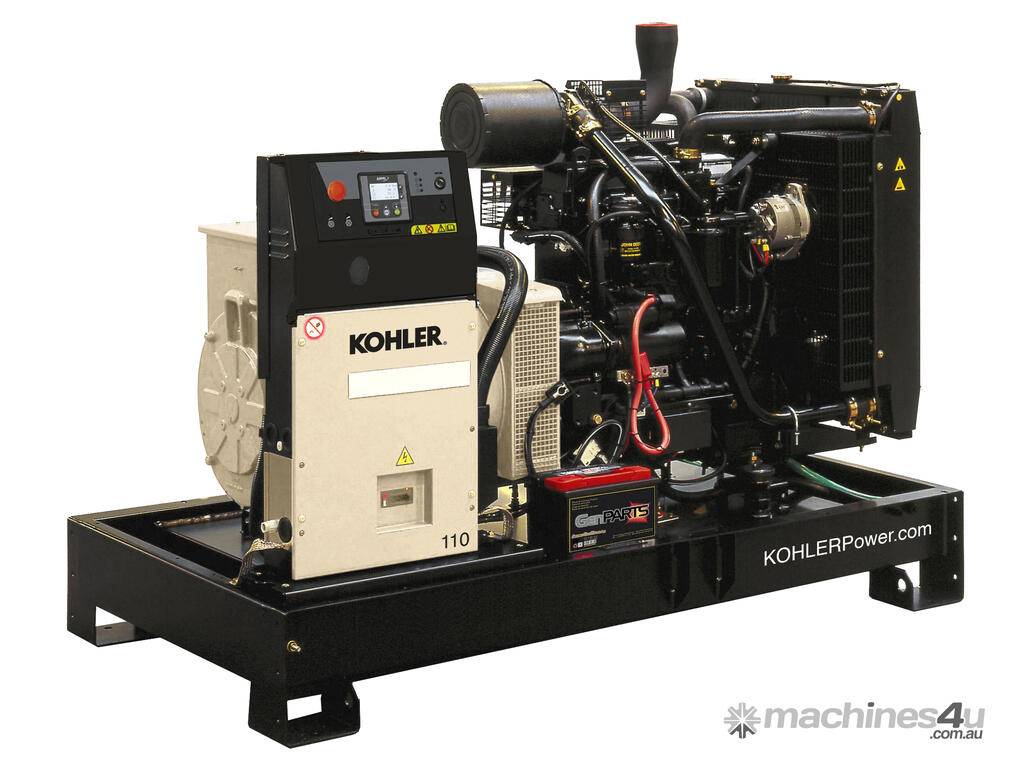

• Engine Type: John Deere 4045HSG20, water-cooled diesel
• Alternator: Kohler KH00753T, single bearing, IP23
• Governor Type: Mechanical
• Aux Voltage: 12V DC

Built Tough for Australia
• RAL1014 Beige Canopy – Silent Version M138 for noise compliance with 2000/14/CE standards
• Heavy-Duty Steel Frame – Welded base with 85% vibration attenuation and forklift-friendly design
• QUALICOAT Epoxy Paint – Enhanced corrosion resistance, tested by the French Corrosion Institute
• IP64 Stainless Locks – Secure and weather-resistant enclosure
• Center Point Lift Option – M138 lifting bar available

Sustainability & Emissions
• Compatible with Hydrotreated Vegetable Oil (HVO) – a renewable fuel that reduces net CO2 emissions by up to 90%
• Designed to meet Stage IIIA emissions standards for reduced NOx and particulate matter
• Built with ROHS-compliant components to limit hazardous substances

Standard Features
• Emergency stop button
• Fuel level gauge with display
• Flexible fuel lines & oil drain cock
• Delivered with oil & antifreeze
• User manuals (paper & USB)
• Bunded base for fluid containment
• Schneider or ABB circuit breaker
• Charged DC starting battery
• Oil pressure & coolant temperature gauges
• Retention bund alarm for environmental safety
• Remote Management – RTU Modbus over RS485
• AUTO Pack – Battery charger + engine resistor
• REPORT Pack – Status alarms, sound alerts, and fuel level monitoring
• Advanced Monitoring – Integrated current transformers for power and current display
• 160A 4P Compact Circuit Breaker – Available as an upgrade

Rehlko Engineering Advantages
• Optimised sound levels certified by CETIM
• Power maintained even in high-temperature environments
• Compact footprint with high performance
• Total system integration for seamless operation
________________________________________

Need a generator with extended runtime and industrial-grade reliability?
The KJ110+FD02 is ideal for remote operations, critical infrastructure, and high-demand environments where fuel autonomy and performance are essential.
