Kohler - KJ130+FD02 Diesel Generator – 130 kVA Silent Powerhouse with Extended Autonomy

J130+FD02-1 Diesel Generator – 130 kVA Silent Performer
Reliable Power. Engineered for Performance. Built for Australia.

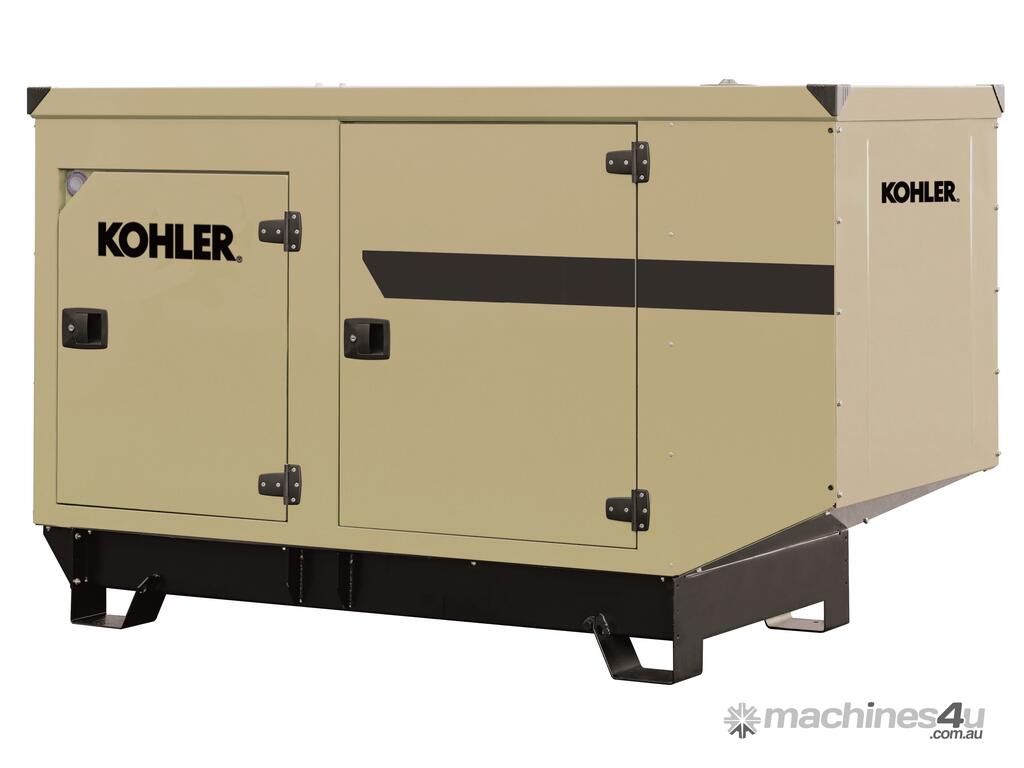

The J130+FD02-1 Diesel Generator (Model J130) is a high-capacity power solution designed for emergency standby applications. With a 130 kVA output and powered by a robust John Deere 4045HSG2 engine, this unit is housed in a durable M138 canopy module and finished in RAL1014 Beige. It combines advanced engineering with rugged reliability for demanding environments.

Key Specifications

Max Power Output: 130.0 kVA
Voltage: 415/240V (Three Phase)
Frequency: 50 Hz
Control Panel: APM303
Fuel Tank Capacity: 500L
Max Current: 181.0 A
Engine Type: 4045HSG2, water-cooled diesel
Alternator: KH01051T, single bearing, IP23
Governor Type: Mechanical
Aux Voltage: 12V DC


Built Tough for Australia

RAL1014 Beige Canopy – Silent Version IV_F for noise compliance with 2000/14/CE
Heavy-Duty Steel Frame – Welded base with 85% vibration attenuation and forklift-friendly design
QUALICOAT Epoxy Paint – Enhanced corrosion resistance, tested by the French Corrosion Institute
IP64 Stainless Locks – Secure and weather-resistant enclosure
Center Point Lift Option – M138 lifting bar available


Standard Features

Emergency stop button
Fuel level gauge with display
Flexible fuel lines & oil drain cock
Delivered with oil & antifreeze
User manuals (paper & USB)
Bunded base for fluid containment
Schneider or ABB circuit breaker
Charged DC starting battery
Oil pressure & coolant temperature gauges
Low coolant level fault
Drip-proof IP23 alternator with analog voltage regulator
Heat hand protection (ISO 8528-13)
Containment and large autonomy tank with drain plug + retention bund alarm


Optional Upgrades

Remote Management – RTU Modbus over RS485
AUTO Pack – Battery charger + engine resistor
REPORT Pack – Status alarms, sound alerts, and fuel level monitoring
Advanced Monitoring – Integrated current transformers for power and current display
Prewiring for auto start-up


Rehlko Engineering Advantages

Optimised sound levels certified by CETIM
Power maintained even in high-temperature environments
Compact footprint with high performance
Total system integration for seamless operation


Looking for a generator that delivers performance, sustainability, and peace of mind?
The J130+FD02-1 is ideal for mission-critical applications, commercial operations, and remote installations where reliability and environmental responsibility matter.
