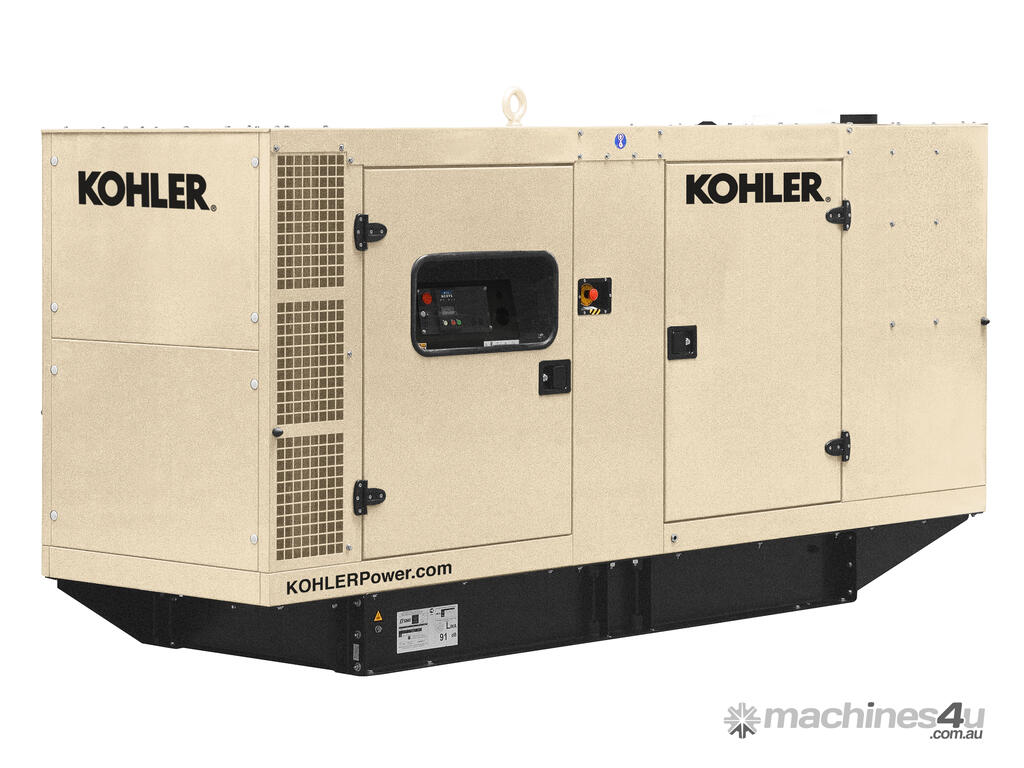

Kohler - KJ165+FD02 Diesel Generator – 165 kVA Silent Powerhouse with Extended Autonomy

Kohler - KJ165+FD02 Diesel Generator – 165 kVA Silent Powerhouse with Extended Autonomy
High Output. Long Runtime. Built for Australian Conditions.

The KJ165+FD02 Diesel Generator (Model KD165+FD02) is a premium-grade power solution designed for industrial, commercial, and mission-critical applications. Powered by a John Deere engine and engineered by Rehlko, this 165 kVA unit features an extended 868L fuel tank for long runtime, rugged durability, and quiet operation—ideal for remote sites and high-demand environments.

Key Specifications
• Max Power Output: 165.0 kVA
• Voltage: 415/240V (Three Phase)
• Frequency: 50 Hz
• Control Panel: APM303 with auto-start prewiring
• Fuel Tank Capacity: 868L (Extended autonomy with containment bund and drain plug)
• Max Current: 230.0 A
• Engine Type: John Deere 6068HFG20-153, water-cooled diesel
• Alternator: Kohler KH01191T, single bearing, IP23
• Governor Type: Mechanical
• Aux Voltage: 12V DC

Built Tough for Australia
• RAL1014 Beige Canopy – Silent Version M139 for noise compliance with 2000/14/CE standards
• Heavy-Duty Steel Frame – Welded base with 85% vibration attenuation and forklift-friendly design
• QUALICOAT Epoxy Paint – Enhanced corrosion resistance, tested by the French Corrosion Institute
• IP64 Stainless Locks – Secure and weather-resistant enclosure
• Centre Point Lift Option – Lifting bar included for single-point lift

Sustainability & Emissions
• Compatible with Hydrotreated Vegetable Oil (HVO) – a renewable fuel that reduces net CO2 emissions by up to 90%
• Designed to meet Stage IIIA emissions standards for reduced NOx and particulate matter
• Built with ROHS-compliant components to limit hazardous substances

Standard Features
• Emergency stop button
• Fuel level gauge with display
• Flexible fuel lines & oil drain cock
• Delivered with oil & antifreeze
• User manuals (paper & USB)
• Bunded base for fluid containment
• Schneider or ABB circuit breaker
• Charged DC starting battery
• Oil pressure & coolant temperature gauges
• Retention bund alarm for environmental safety
• Remote Management – RTU Modbus over RS485
• AUTO Pack – Battery charger + engine resistor
• REPORT Pack – Status alarms, sound alerts, and fuel level monitoring
• Advanced Monitoring – Integrated current transformers for power and current display

Rehlko Engineering Advantages
• Optimised sound levels certified by CETIM
• Power maintained even in high-temperature environments
• Compact footprint with high performance
• Total system integration for seamless operation
________________________________________

Need a generator with extended runtime and industrial-grade reliability?
The KJ165+FD02 is ideal for remote operations, critical infrastructure, and high-demand environments where fuel autonomy and performance are essential.
