Reliable Power. Industrial Build. Designed for Australian Conditions.

The KJ22 Diesel Generator (Model KD22) is a dependable and efficient power solution for commercial, industrial, and backup applications. With a 22 kVA output and rugged Kohler engineering, this unit is built to deliver consistent performance, quiet operation, and long-term durability.

Key Specifications
• Max Power Output: 22.0 kVA
• Voltage: 415/240V (Three Phase)
• Frequency: 50 Hz

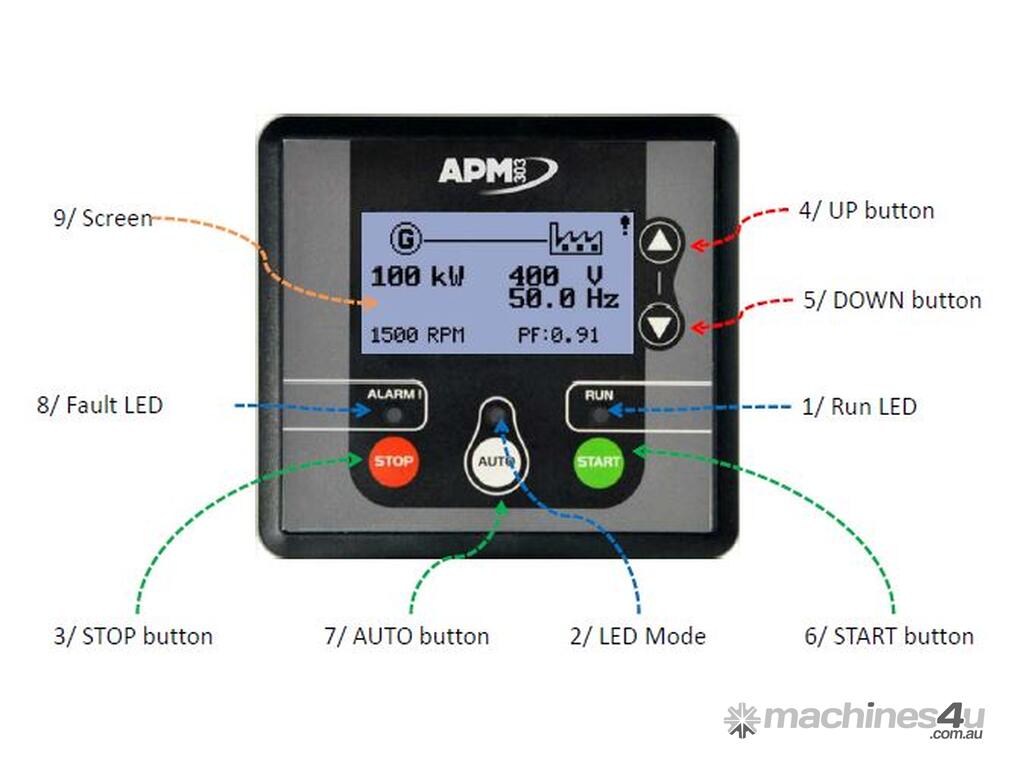

• Control Panel: APM303 with auto-start prewiring
• Fuel Tank Capacity: 100L
• Max Current: 31.0 A
• Engine Type: 3029DSG20, water-cooled diesel
• Alternator: Kohler KH00404T, single bearing, IP23
• Governor Type: Mechanical
• Aux Voltage: 12V DC

Built Tough for Australia

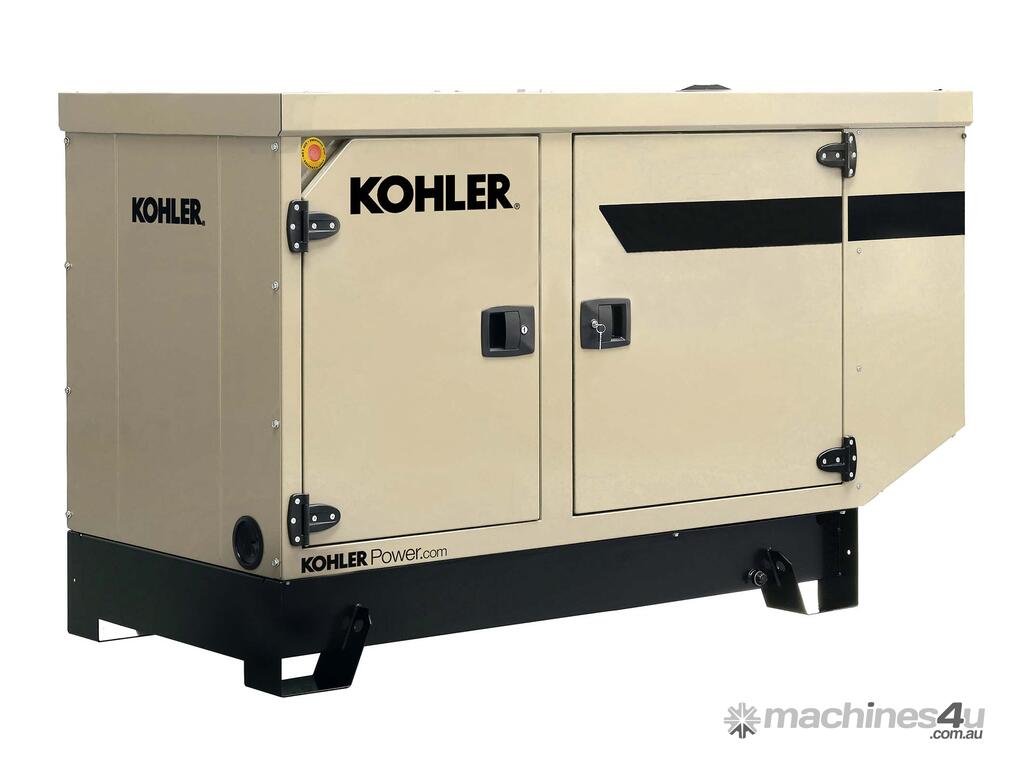

• RAL1014 Beige Canopy – Silent Version IV_F for noise compliance with 2000/14/CE standards
• Heavy-Duty Steel Frame – Welded base with 85% vibration attenuation and forklift-friendly design
• QUALICOAT Epoxy Paint – Enhanced corrosion resistance, tested by the French Corrosion Institute
• IP64 Stainless Locks – Secure and weather-resistant enclosure
• Center Point Lift Option – M137 lifting bar available

Standard Features
• Emergency stop button
• Fuel level gauge with display
• Flexible fuel lines & oil drain cock
• Delivered with oil & antifreeze
• User manuals (paper & USB)
• Bunded base for fluid containment
• Schneider or ABB circuit breaker
• Charged DC starting battery
• Oil pressure & coolant temperature gauges
• Remote Management – RTU Modbus over RS485
• AUTO Pack – Battery charger + engine resistor
• REPORT Pack – Status alarms, sound alerts, and fuel level monitoring
• Advanced Monitoring – Integrated current transformers for power and current display
________________________________________
Need a reliable mid-range generator for your site or facility?
The KJ22 is ideal for commercial operations, backup systems, and remote installations where performance and quiet operation are essential.
