Kohler KJ220+FD02 Diesel Generator – 220 kVA | John Deere Engine | Silent Canopy | High Autonomy

Kohler KJ220+FD02 Diesel Generator – 220 kVA | John Deere Engine | Silent Canopy | High Autonomy
Heavy-duty power. Engineered for endurance.

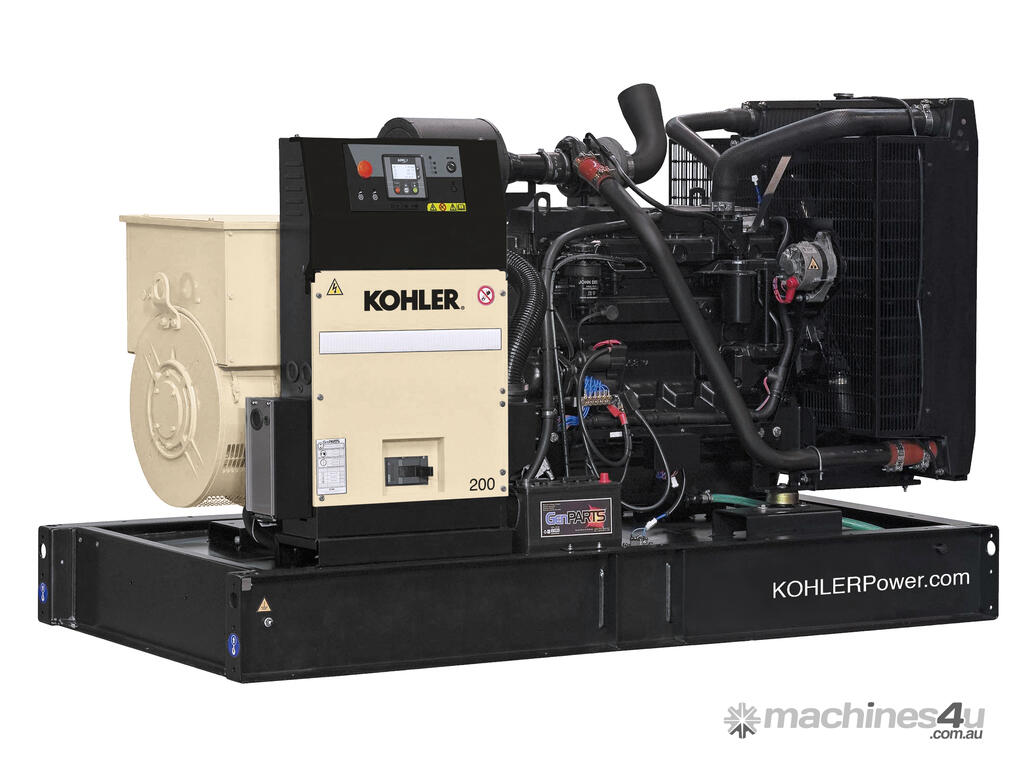

The Kohler KJ220+FD02 is a 220 kVA diesel generator designed for industrial and commercial standby applications. Powered by a robust John Deere engine and built to Rehlko’s high manufacturing standards, this genset delivers reliable performance, long autonomy, and ease of maintenance in a compact, rugged package.
________________________________________

Technical Specifications:
• Model: KJ220+FD02 (KD220+FD02)
• Service Duty: Emergency Standby Power (ESP)
• Engine: John Deere 6068HFG20-15202 – Mechanical governor
• Alternator: Kohler KH01221T – Single bearing, IP23, Class H/H insulation
• Control Panel: APM303 – LCD interface with auto-start, fault reporting, and Modbus RTU
• Max Power Output: 220 kVA
• Voltage: 415/240 V | Frequency: 50 Hz
• Max Current: 306 A
• Auxiliary Voltage: 12 VDC
• Fuel Tank Capacity: 868 Litres – with containment bund and drain plug
• Canopy Module: M139 – Silent IV_F version, RAL1014 Beige
________________________________________

Key Features:
Built for Reliability
• Industrial-grade water-cooled diesel engine
• QUALICOAT-certified epoxy paint for corrosion resistance
• Enclosure and base frame tested by the French Corrosion Institute
• Short circuit withstand: 2.7 ln for 5 seconds
Smart Control & Monitoring

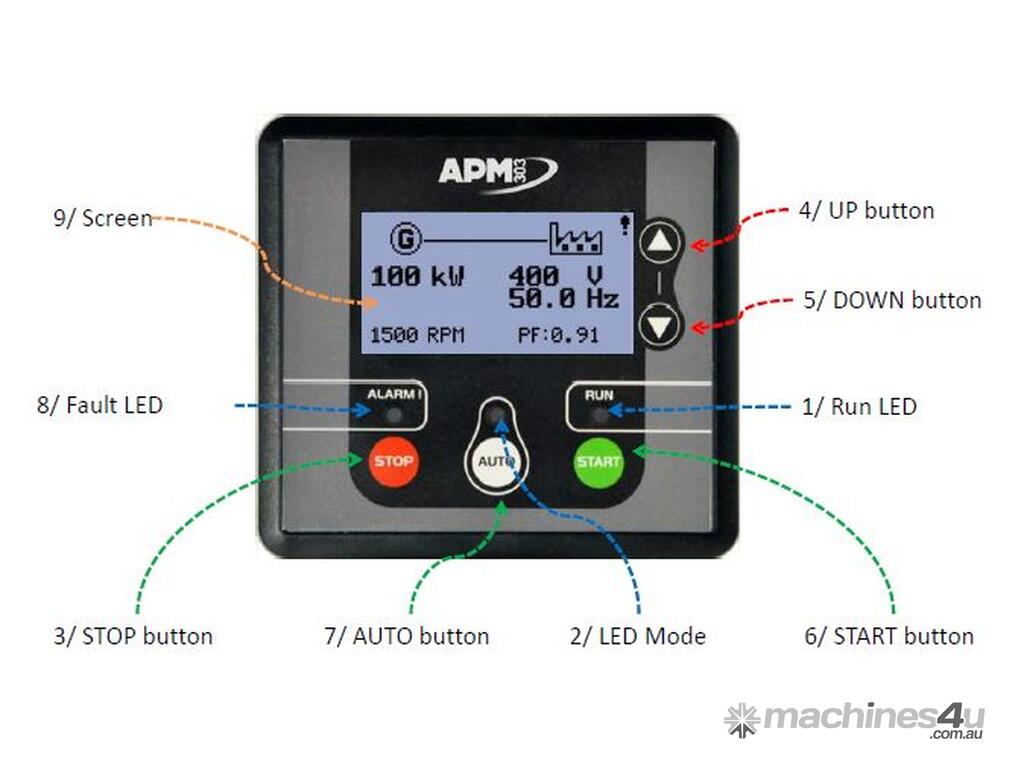

• APM303 control unit with analog/digital display
• AUTO pack: battery charger + engine preheating resistor
• REPORT pack: generator status, general fault, low fuel alarm
• RS485 Modbus RTU for remote monitoring
Safety & Compliance
• Emergency stop button
• Heat hand protection (ISO 8528-13)
• CE-compliant noise levels (2000/14/CE)
• IP64 stainless locks, drip-proof IP23 enclosure
Maintenance-Friendly Design
• Fuel level gauge and display
• Flexible fuel lines and oil drain cock
• Delivered with oil and antifreeze
• User manuals in paper and USB formats
________________________________________

Sustainability & Efficiency
• Compatible with Hydrotreated Vegetable Oil (HVO) – up to 90% CO2 reduction
• Designed for extended storage and blending with standard diesel
• Low fuel consumption and optimized combustion
________________________________________

Applications:
• Industrial Facilities
• Data Centers
• Water Treatment Plants
• Commercial Buildings
• Backup Power for Critical Infrastructure
