Kohler KJ33+FD02 Diesel Generator – 33 kVA | Silent Canopy

Kohler KJ33 Diesel Generator – 33 kVA | Silent Canopy | Industrial-Grade Reliability
Compact power. Engineered for performance.

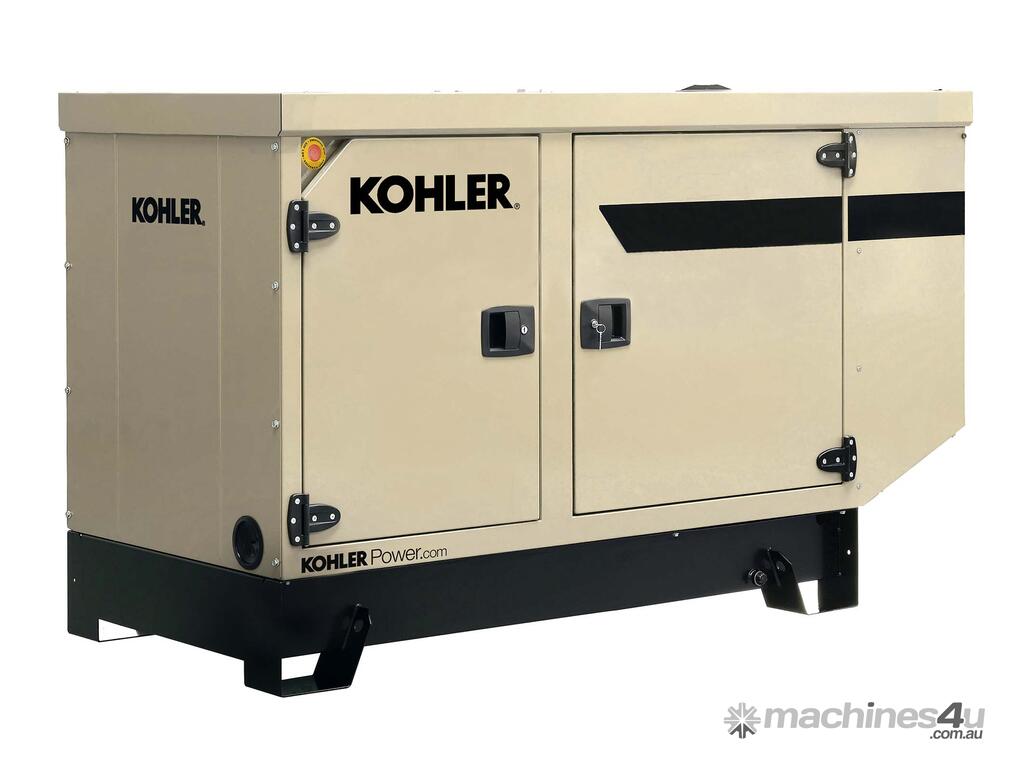

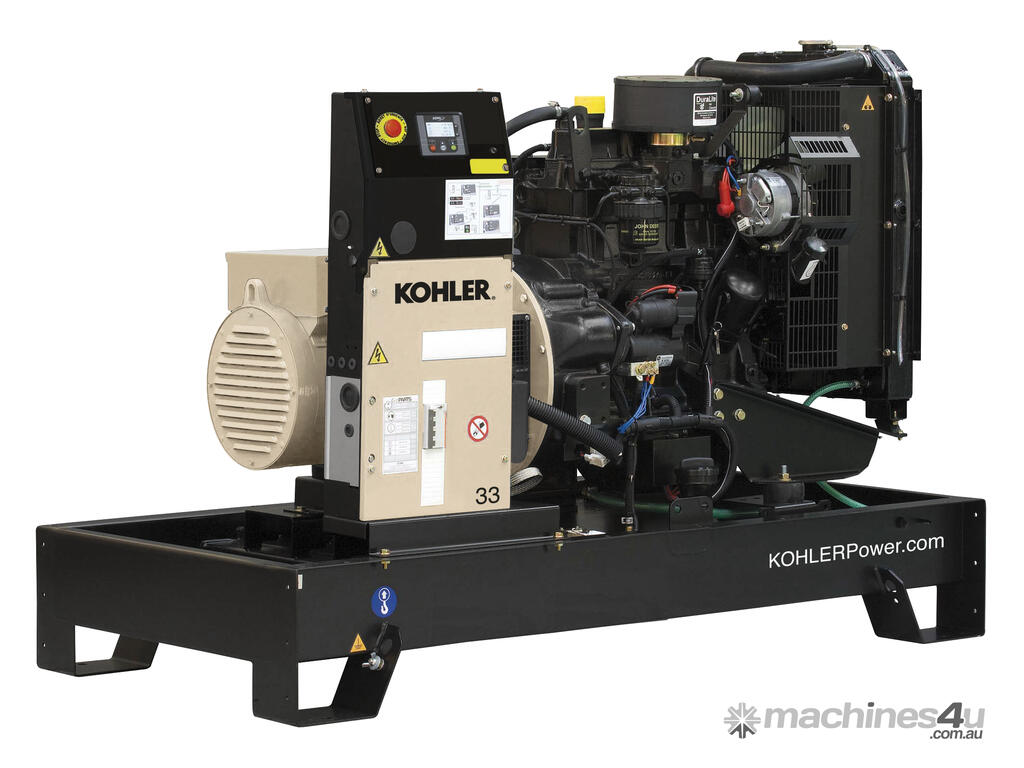

The Kohler KJ33+FD02 is a 33 kVA diesel generator designed for dependable emergency standby power in commercial and light industrial applications. Built with Rehlko’s renowned engineering standards, it combines robust construction, smart control, and sustainability features in a compact footprint.
________________________________________
Technical Specifications:
• Model: KJ33+FD02
• Service Duty: Emergency Standby Power (ESP)
• Engine: John Deere 3029DSG20 – Mechanical governor
• Alternator: Kohler KH00462T – Single bearing, IP23, Class H/H insulation

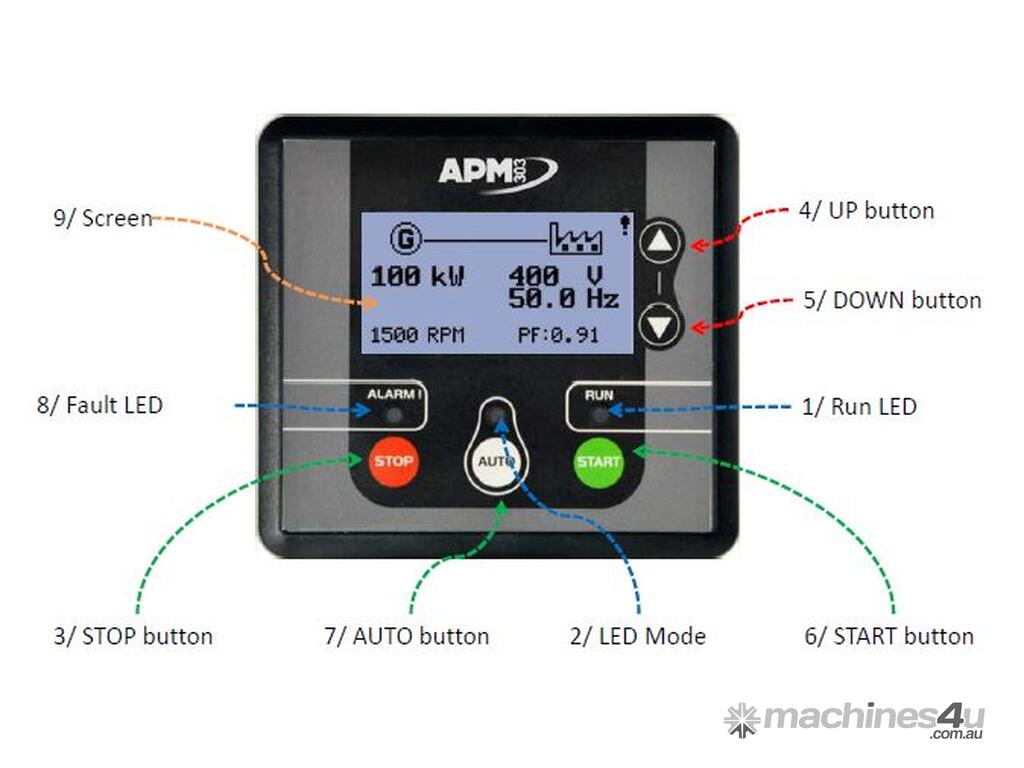

• Control Panel: APM303 – Intuitive LCD interface with auto-start and fault reporting
• Max Power Output: 33 kVA
• Voltage: 415/240 V | Frequency: 50 Hz
• Max Current: 46 A
• Auxiliary Voltage: 12 VDC
• Fuel Tank Capacity: 240 Litres – with containment bund and drain plug

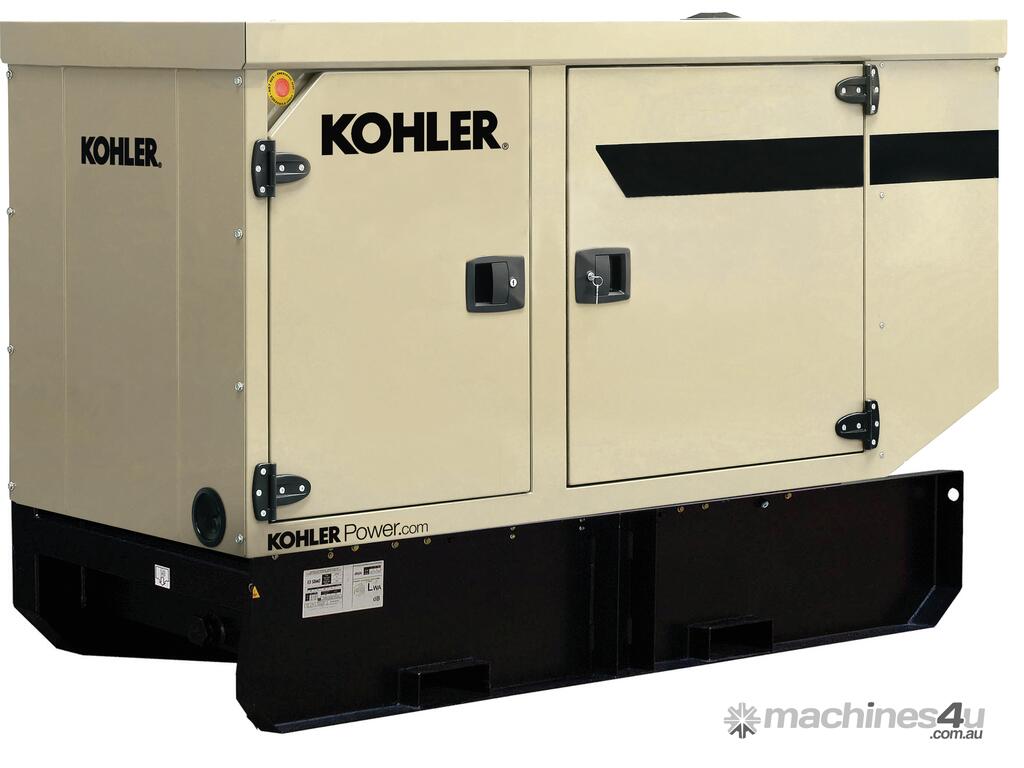

• Canopy Module: MI37 – Silent IV_F version, RAL1014 Beige
________________________________________
Key Features:
Robust Construction
• Welded steel base frame with 85% vibration attenuation
• QUALICOAT-certified epoxy paint for corrosion resistance
• IP64 stainless locks and drip-proof IP23 enclosure
• Enclosure and base frame tested by the French Corrosion Institute
Smart Control & Monitoring
• APM303 control unit with analog and digital display
• Auto pack: battery charger + engine preheating resistor
• Report pack: generator status, general fault, low fuel alarm
• RS485 Modbus RTU remote management capability
Safety & Compliance
• Emergency stop button
• Heat hand protection (ISO 8528-13)
• CE-compliant noise levels (2000/14/CE)
• Short circuit withstand: 2.7 ln for 5 seconds
Maintenance-Friendly Design
• Fuel level gauge and display
• Flexible fuel lines and oil drain cock
• Delivered with oil and antifreeze
• User manuals in paper and USB formats
________________________________________

Sustainability & Efficiency
• Compatible with Hydrotreated Vegetable Oil (HVO) – up to 90% CO2 reduction
• Low fuel consumption and optimized combustion
• Designed for extended storage and blending with standard diesel
________________________________________

Applications:
• Commercial Buildings
• Retail & Distribution
• Light Industrial Sites
• Backup Power for Offices & Facilities
