Kohler - KJ44+FD02 Diesel Generator – 44 kVA

Kohler KJ44+FD02 Diesel Generator – 44 kVA | Silent Canopy | John Deere Engine | Industrial-Grade Reliability
Smart power. Compact design. Built to last.

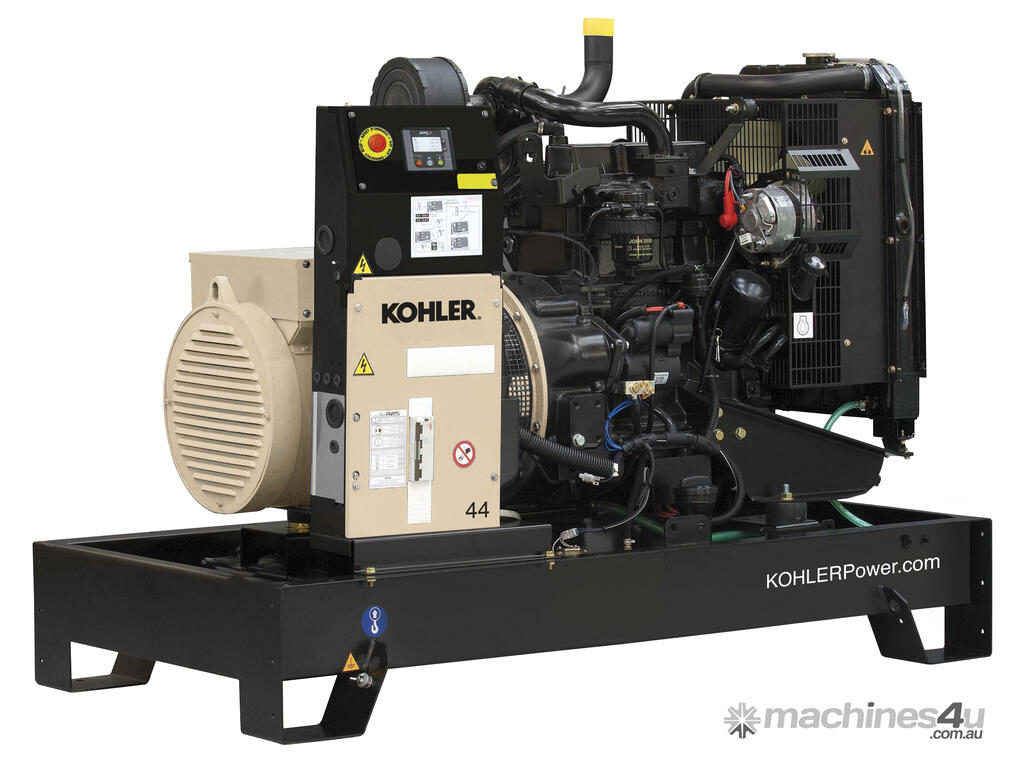

The Kohler KJ44+FD02 is a 44 kVA diesel generator engineered for emergency standby power in commercial and light industrial settings. Featuring a rugged enclosure, trusted John Deere engine, and Rehlko’s proven design standards, it delivers reliable performance with low noise and high safety.
________________________________________
Technical Specifications:
• Model: KJ44+FD02
• Service Duty: Emergency Standby Power (ESP)
• Engine: John Deere 3029TSG20 – Mechanical governor
• Alternator: Kohler KH00602T – Single bearing, IP23, Class H/H insulation

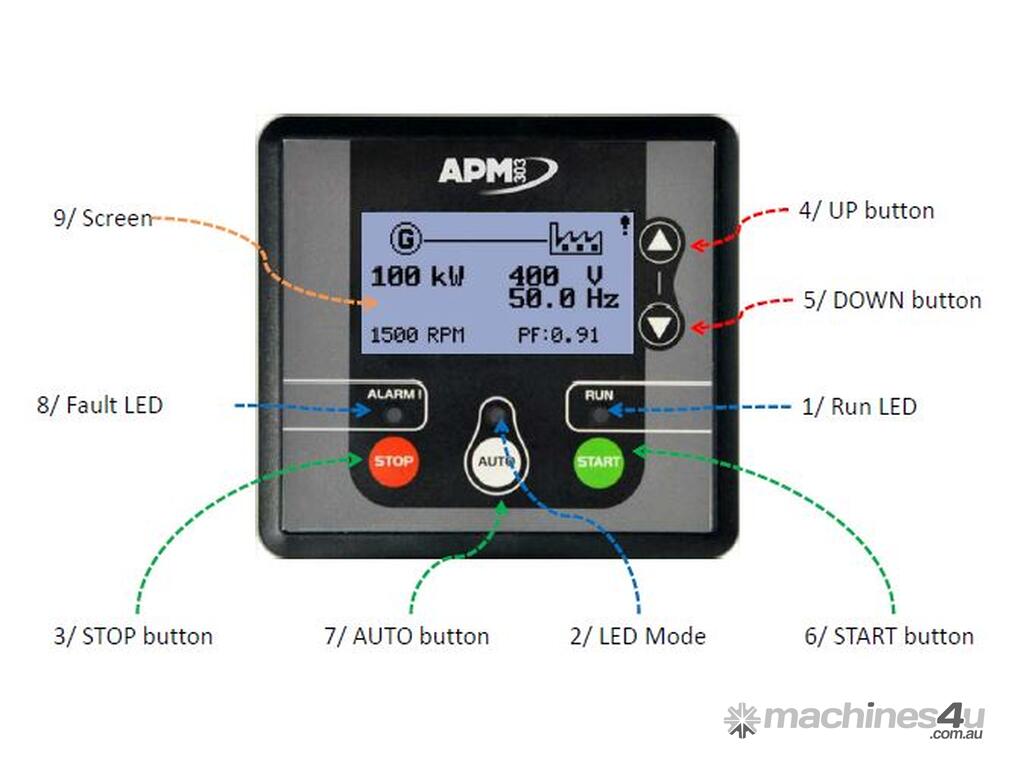

• Control Panel: APM303 – Intuitive LCD interface with auto-start and fault reporting
• Max Power Output: 44 kVA
• Voltage: 415/240 V | Frequency: 50 Hz
• Max Current: 61 A
• Auxiliary Voltage: 12 VDC
• Fuel Tank Capacity: 240 Litres – with containment bund and drain plug

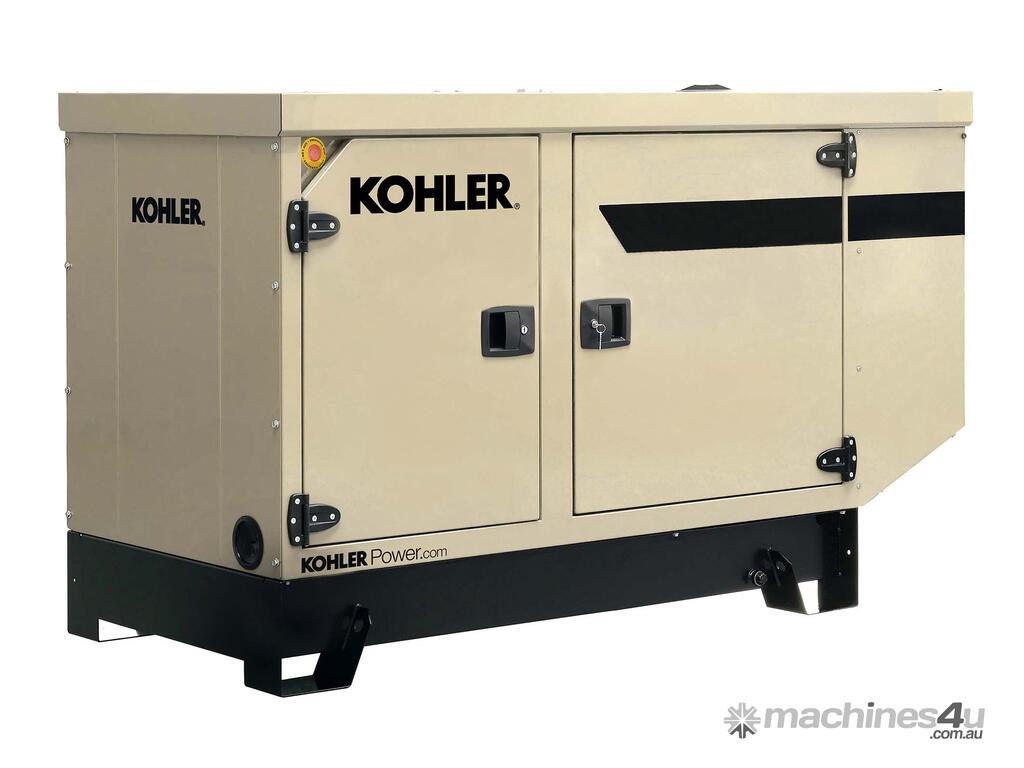

• Canopy Module: M137 – Silent IV_F version, RAL1014 Beige
________________________________________
Key Features:
Robust Construction
• Welded steel base frame with 85% vibration attenuation
• QUALICOAT-certified epoxy paint for corrosion resistance
• IP64 stainless locks and drip-proof IP23 enclosure
• Enclosure and base frame tested by the French Corrosion Institute
Smart Control & Monitoring
• APM303 control unit with analog and digital display
• Auto pack: battery charger + engine preheating resistor
• Report pack: generator status, general fault, low fuel alarm
• RS485 Modbus RTU remote management capability
Safety & Compliance
• Emergency stop button
• Heat hand protection (ISO 8528-13)
• CE-compliant noise levels (2000/14/CE)
• Short circuit withstand: 2.7 ln for 5 seconds
Maintenance-Friendly Design
• Fuel level gauge and display
• Flexible fuel lines and oil drain cock
• Delivered with oil and antifreeze
• User manuals in paper and USB formats
________________________________________
Sustainability & Efficiency
• Compatible with Hydrotreated Vegetable Oil (HVO) – up to 90% CO2 reduction
• Low fuel consumption and optimized combustion
• Designed for extended storage and blending with standard diesel
________________________________________
Applications:

• Commercial Buildings
• Retail & Distribution
• Light Industrial Sites
• Backup Power for Offices & Facilities
