Kohler - KV275C2+FDO2 Diesel Generator (Type D)

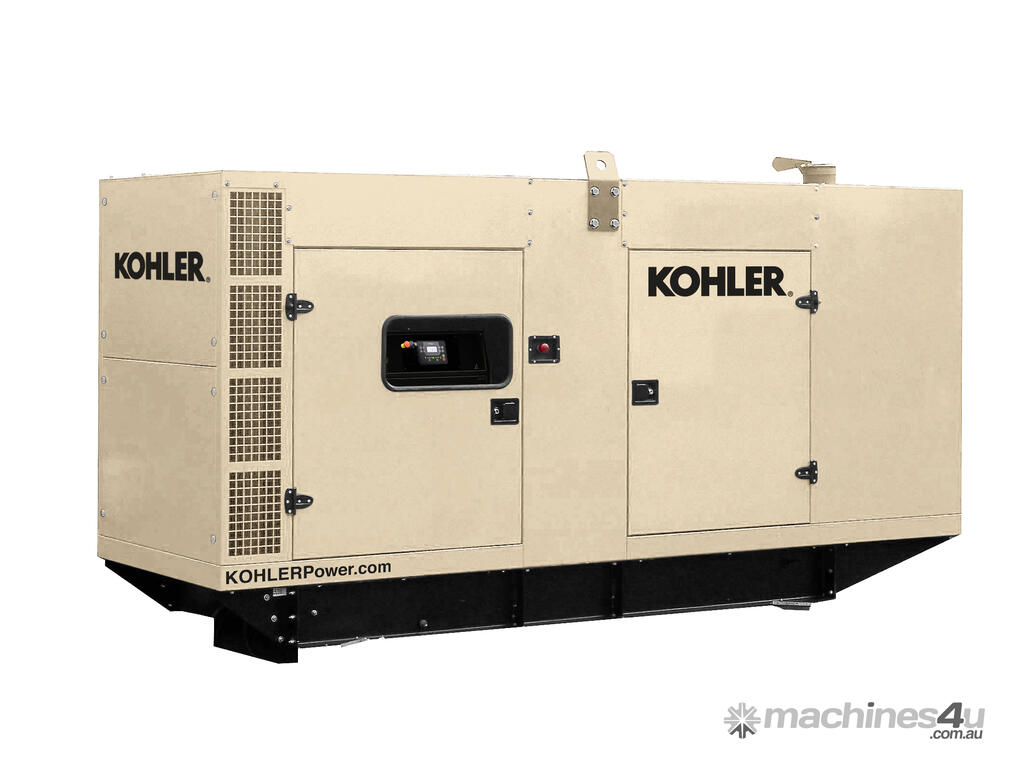

KV275C2+FDO2 Diesel Generator – 275 kVA (Type D)

Heavy-Duty Power for Industrial Needs
The KV275C2+FDO2 is a high-performance 275 kVA diesel generator designed for emergency standby applications in industrial and commercial environments. With a robust enclosure, advanced control panel, and high-quality components, it ensures reliable power delivery and long-term durability.

Type D impregnation (derating possible on alternator nominal power)
________________________________________
Key Specifications
• Max Power: 275 kVA
• Voltage: 415/240 V
• Frequency: 50 Hz
• Engine: 4045TSG20
• Alternator: KH00590T
• Control Panel: APM303
• Fuel Tank Capacity: 500L
• Aux Voltage: 12 VDC
________________________________________
Features & Benefits
• Type D impregnation (derating possible on alternator nominal power)
• Industrial water-cooled diesel engine with electric start
• Mechanical governor and dry-type air cleaner
• Heavy-duty welded steel base frame with 85% vibration attenuation
• IP64-rated stainless steel locks and corrosion-resistant European steel enclosure
• QUALICOAT-certified epoxy paint for enhanced durability
• Emergency stop button and 4-point lifting chassis (center lift bar optional)
• Schneider or ABB circuit breaker adapted to genset short-circuit current
• Delivered with oil, antifreeze, and user manuals (paper & USB)
• Flexible fuel lines and lube oil drain cock
• Noise levels compliant with 2000/14/CE standards
• Fluids containment bund and retention system included
• Remote monitoring via RTU Modbus (RS485)
• AUTO Pack: Battery charger + engine resistor
• REPORT Pack: Generator status, alarms, and fuel level monitoring
• Oil pressure & coolant temperature gauges
• Prewired for auto start-up
• SILENT Canopy (Version IV_F)
________________________________________
Ideal For
Industrial facilities, commercial buildings, and backup power systems requiring high output and extended fuel autonomy.
