Kohler - KV350C2+FDO2 Diesel Generator – 350 kVA | Extended Autonomy | Silent Canopy | Volvo-Powered

Kohler - KV350C2+FDO2 Diesel Generator – 350 kVA | Extended Autonomy | Silent Canopy | Volvo-Powered
Engineered for endurance. Built for performance.

The Rehlko KV350C2+FDO2 is a robust 350 kVA diesel generator designed for extended autonomy and mission-critical reliability. Featuring a high-capacity fuel tank, advanced control systems, and a durable enclosure, this genset is ideal for industrial, commercial, and emergency backup applications.
________________________________________
Technical Specifications:
• Model: KV350C2+FDO2
• Service Duty: Emergency Standby Power (ESP)

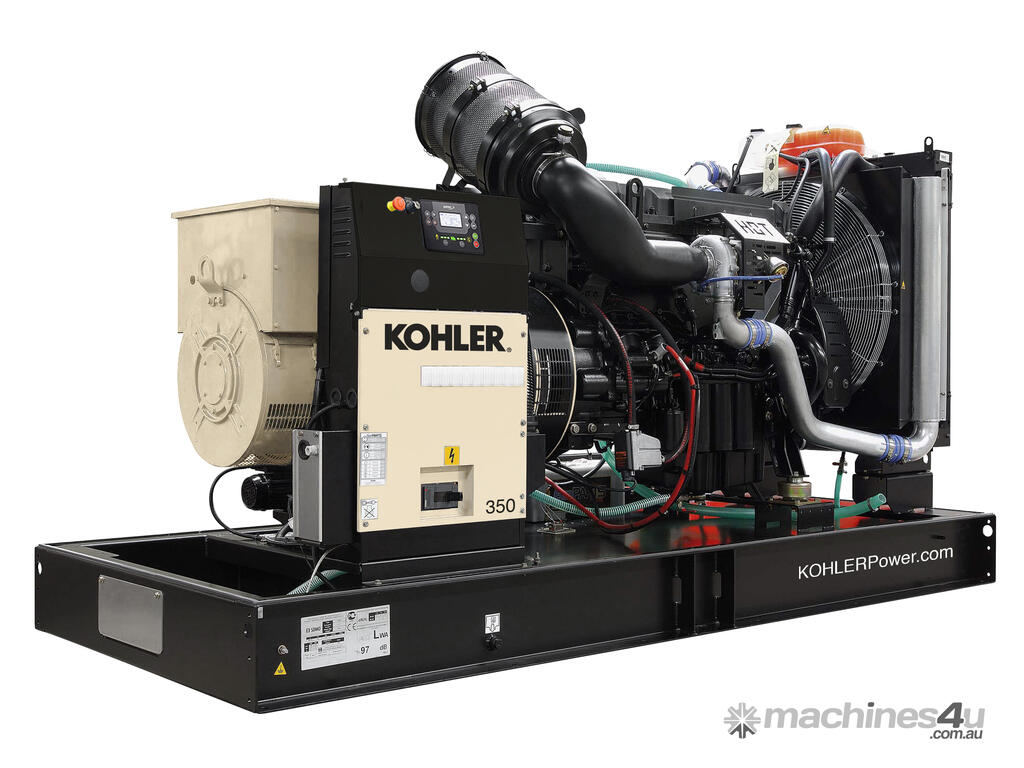

• Engine: Volvo TAD1341GE-B – Electronic Governor
• Alternator: Kohler KH02100T – Single Bearing, IP23, Class H/H insulation

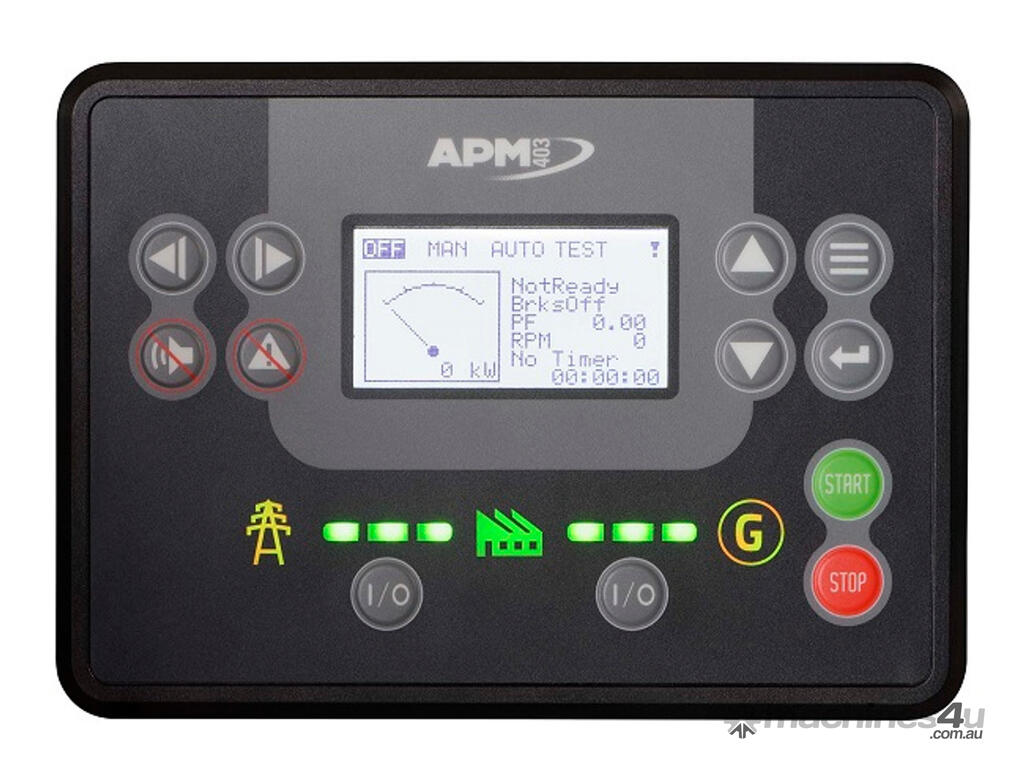

• Control Panel: APM403 – Advanced monitoring, auto-start, RS485 remote control compatible
• Max Power Output: 350 kVA
• Voltage: 415/240 V | Frequency: 50 Hz
• Max Current: 487 A
• Auxiliary Voltage: 24 VDC
• Fuel Tank Capacity: 1368 Litres – Extended autonomy with containment and bund alarm
• Air Cleaner Type: Dry

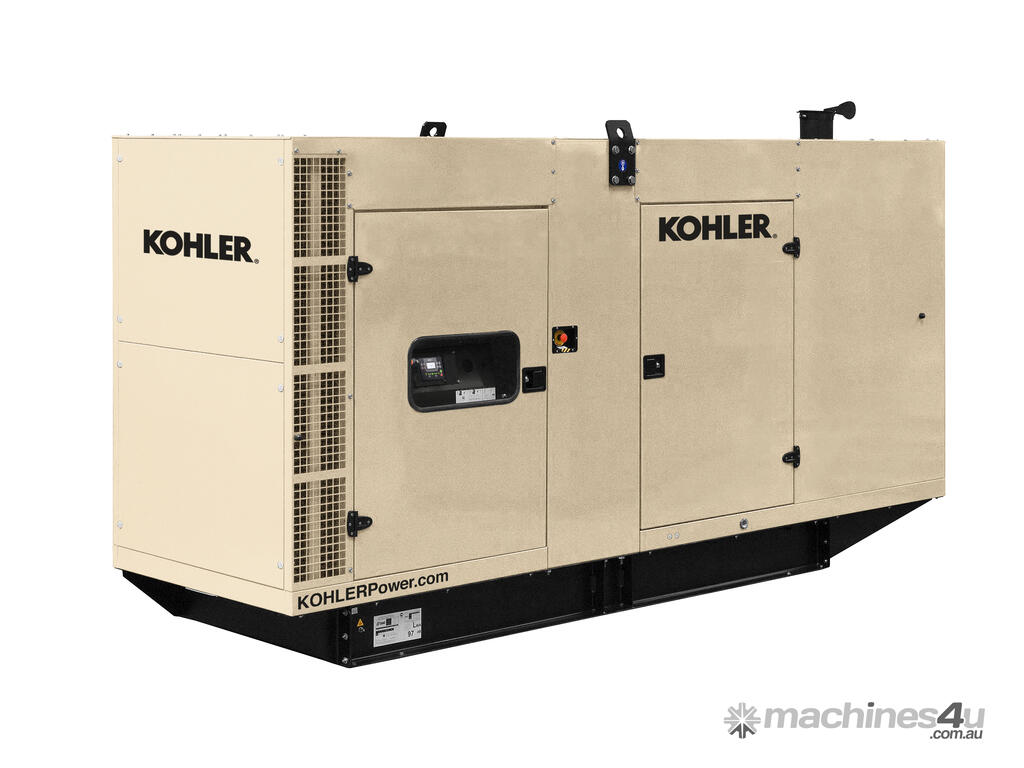

• Canopy Module: M228 – Silent IV_F version, RAL1014 Beige
• Circuit Breaker: Schneider or ABB, 630 A 4P (Compact)
________________________________________
Standard Features & Protections:
• Retention Bund & Alarm: Integrated containment with drain plug and bund alarm
• Drainage Pump: For easy maintenance
• Audible Alarm & Remote Contacts: Alerts for ON status, general failure, fuel level
• Automatic Full Pack: Includes 24V charger, relay, and engine preheating resistor
• Low Coolant Level Fault Detection
• Emergency Stop Button: External access for safety
• Flexible Fuel Lines & Lubrication Drain Cock
• Delivered with Oil & Antifreeze
• User Manuals: Available in paper and USB formats
________________________________________
Build Quality & Durability:
• Enclosure: European-grade electro-galvanized steel with QUALICOAT-certified epoxy paint
• Base Frame: Welded steel with 85% vibration attenuation, forklift-compatible height
• Locks: IP64 stainless steel
• Corrosion Resistance: Tested by the French Corrosion Institute
• Short Circuit Endurance: Maintains 3ln for 10 seconds (EC compliant)
________________________________________
Sustainability & Compliance:
• Emission Optimization: Stage II compliant
• Noise Compliance: Meets ISO 8528-13 and 2000/14/CE standards
• HVO Compatible: Supports Hydrotreated Vegetable Oil for up to 90% CO2 reduction
• Tropical Impregnation: D-type for harsh environments
________________________________________
Applications:
• Data Centers
• Healthcare Facilities
• Water Treatment Plants
• Construction Sites
• Telecommunications
• Emergency Backup Systems
________________________________________

Rehlko KV350C2+FDO2 – Extended autonomy. Exceptional reliability.
For pricing, availability, or to request a quote, contact us today.
