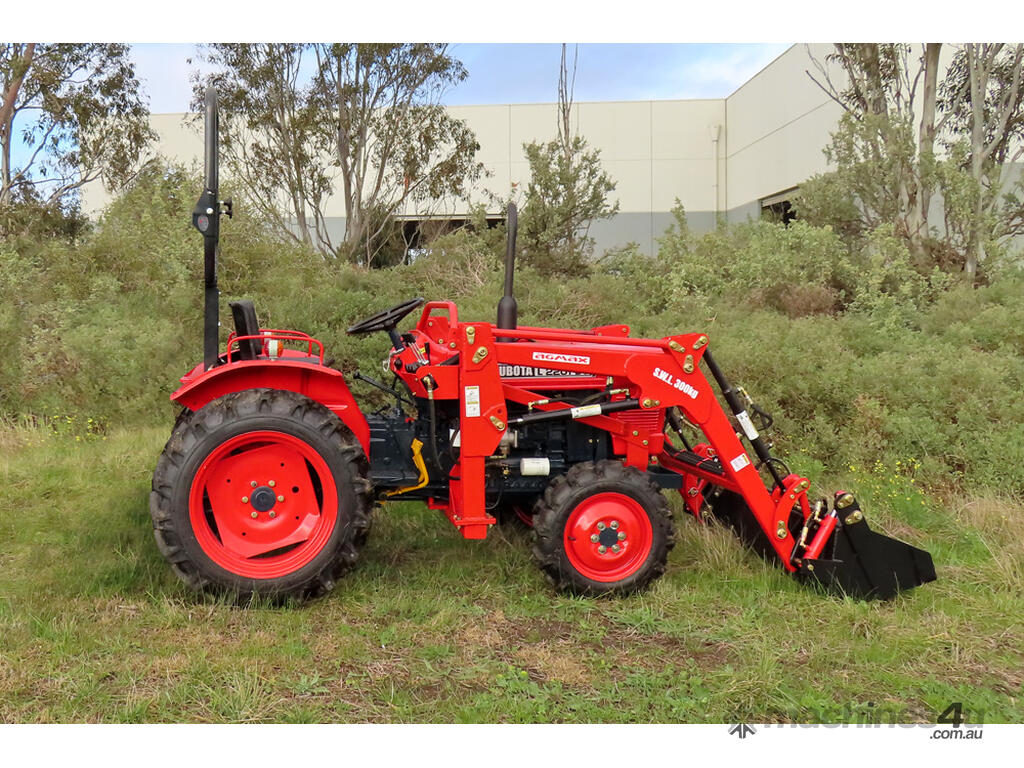

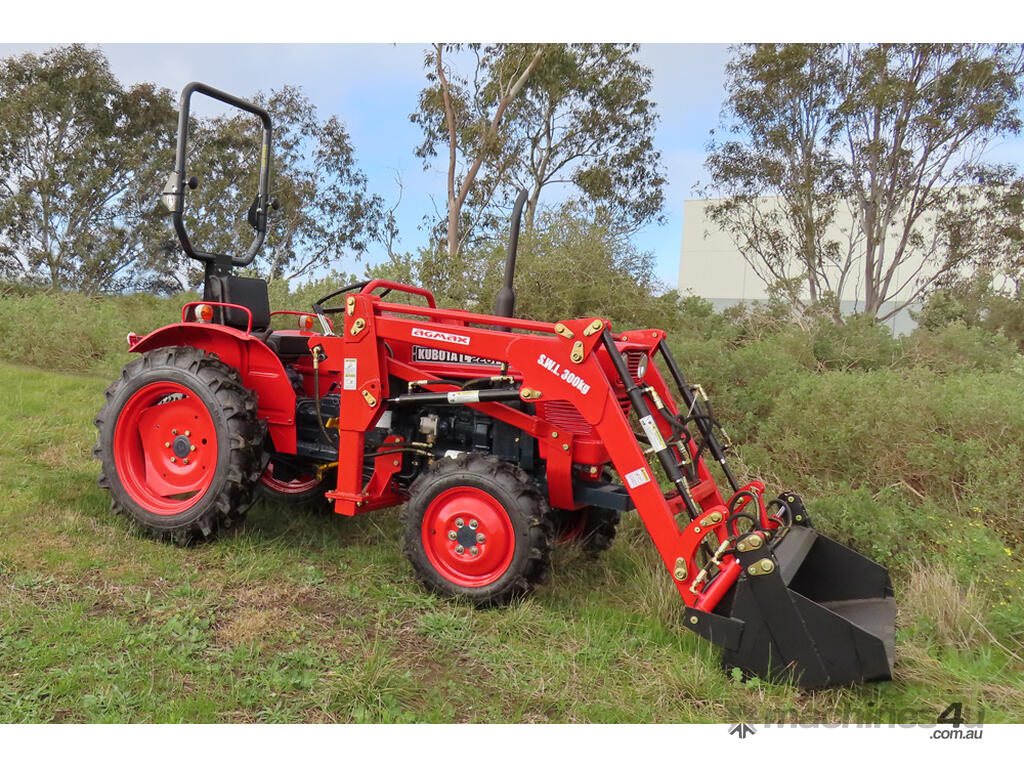

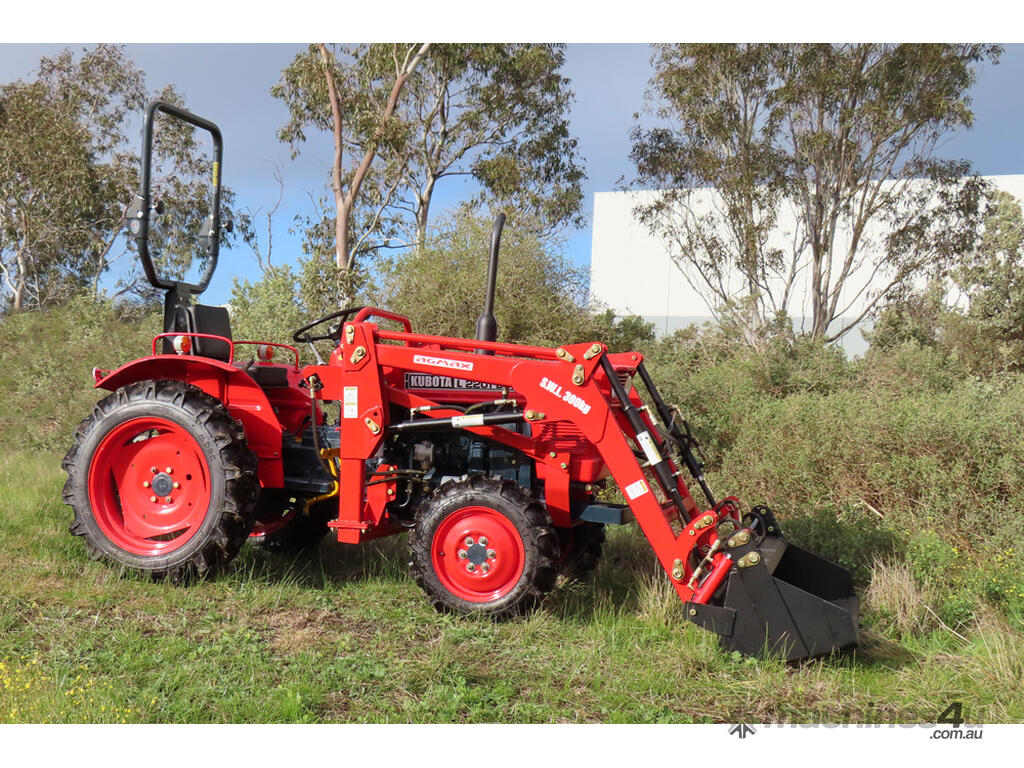

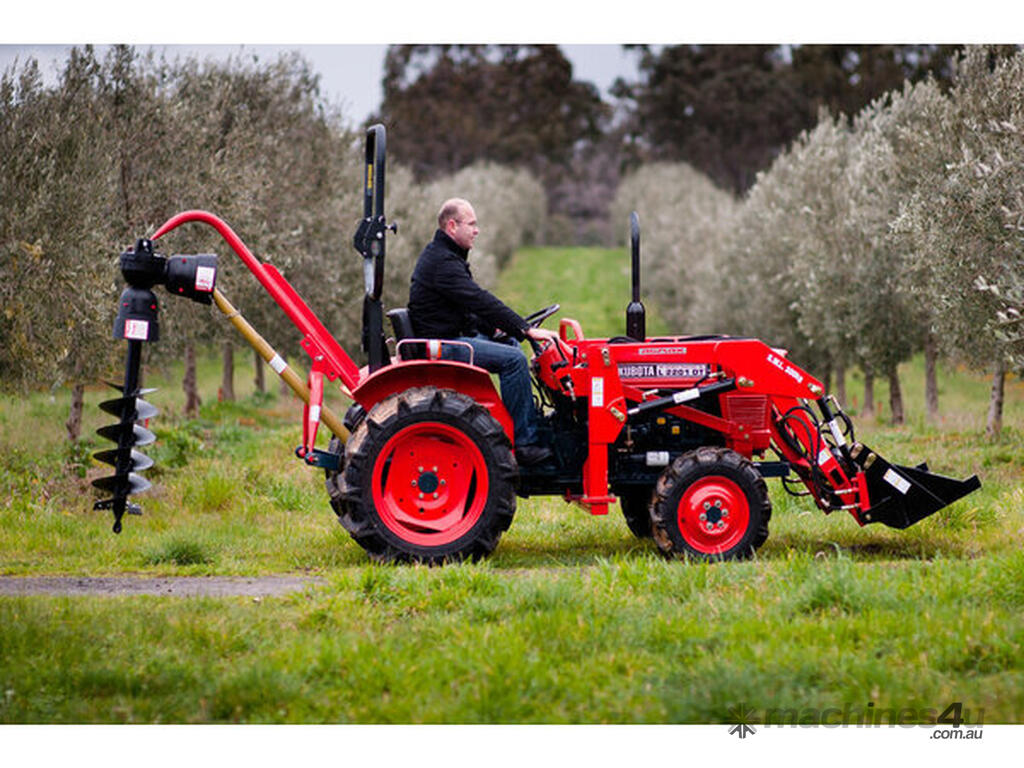

Kubota L2201DT 25hp 4WD Diesel Tractor

This listing is for a remanufactured Kubota L2201DT tractor with a 4-in-1 front end loader and ROPS only. No other implements are included.

Overview: SOTA's Kubota 01 series offers exceptional value when matching horsepower with price. The Kubota L2201DT is the largest tractor in this series, featuring a 25hp diesel engine, 4WD, and a 4-in-1 front end loader. While not a new tractor, it is a remanufactured model rebuilt to a fixed specification.

Remanufacturing Process: A SOTA remanufactured Kubota tractor is dismantled down to the transmission, engine, clutch, brakes, hydraulics, and starting system. These key components are tested and replaced as required, ensuring a high-quality rebuild.

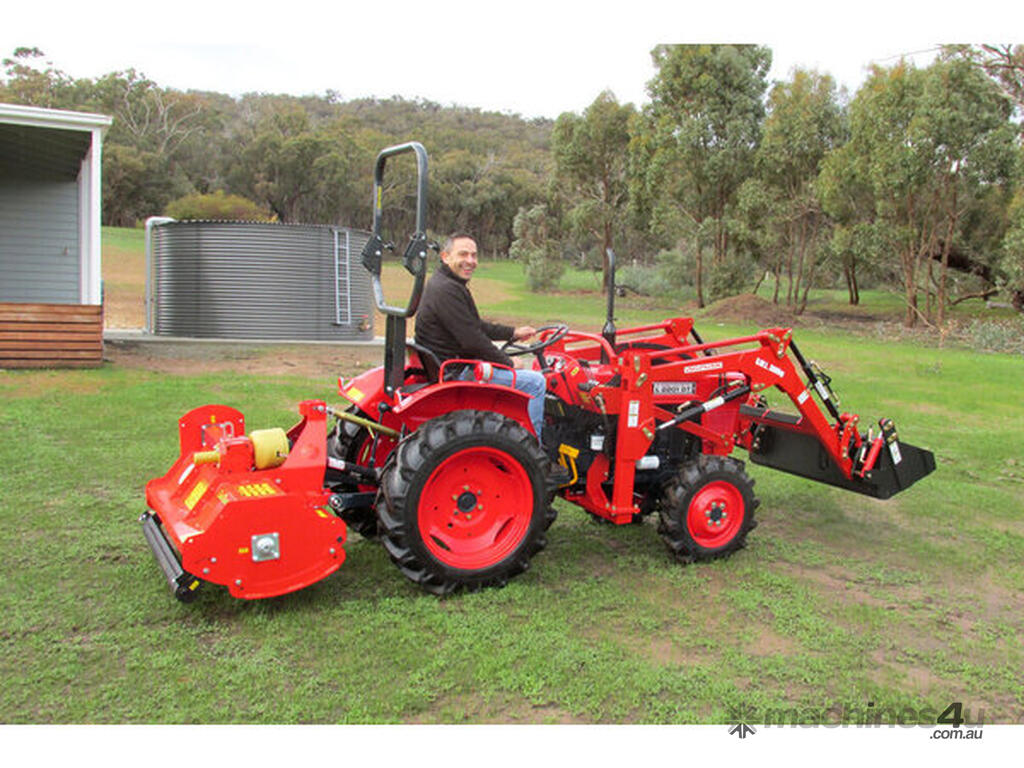

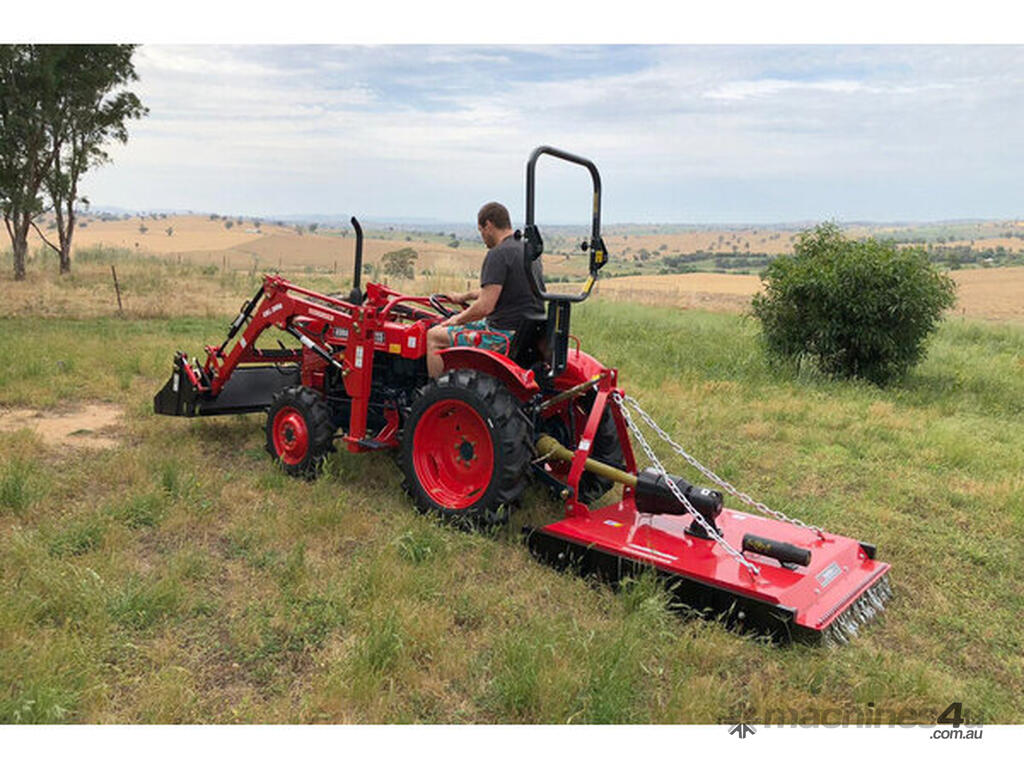

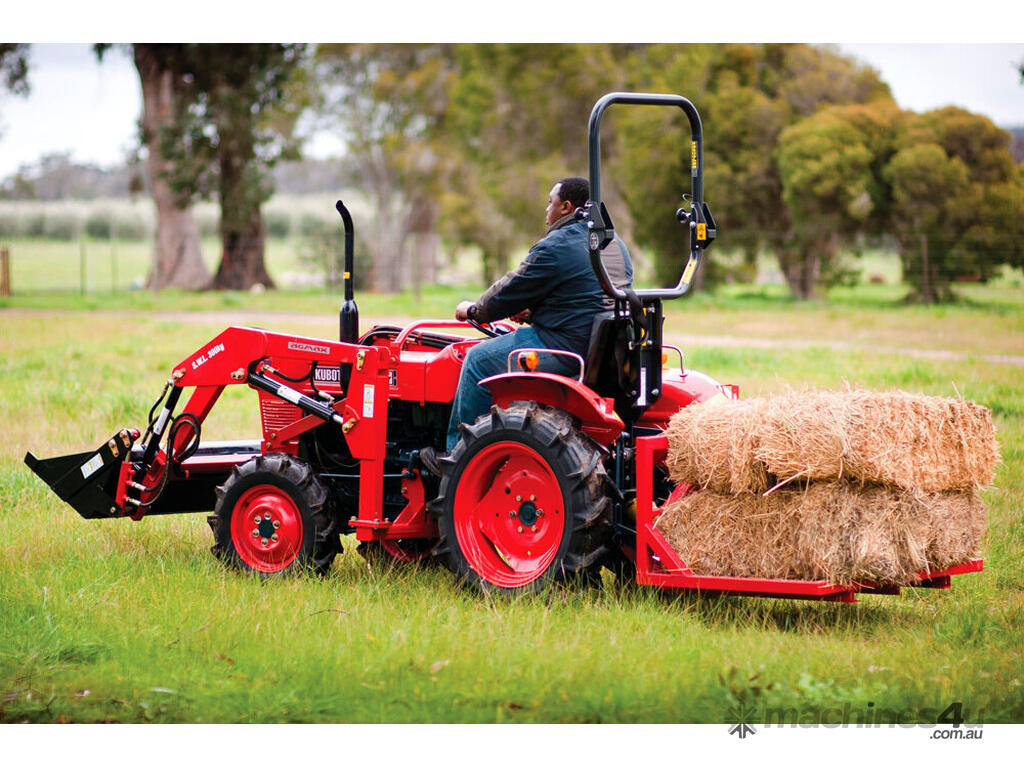

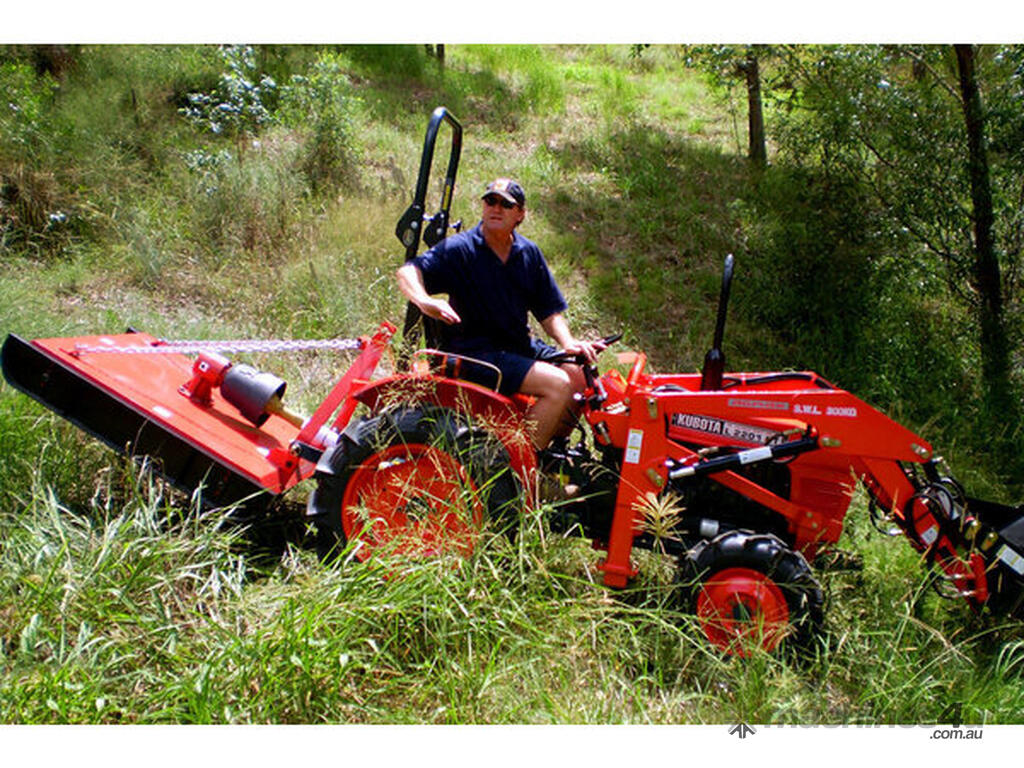

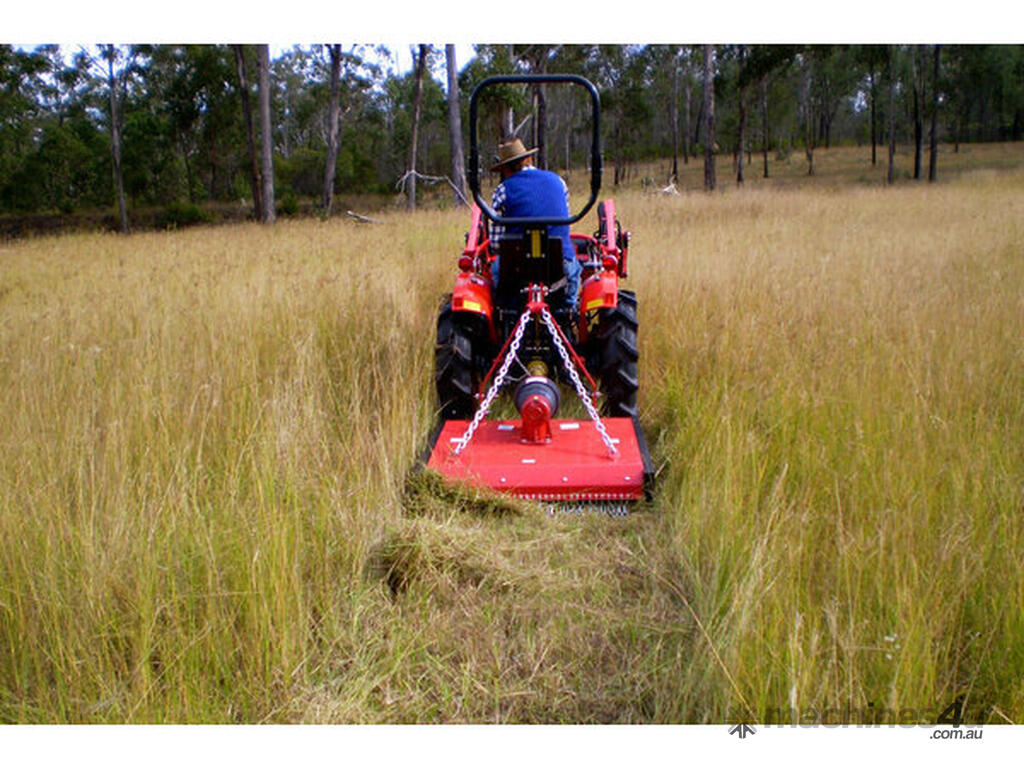

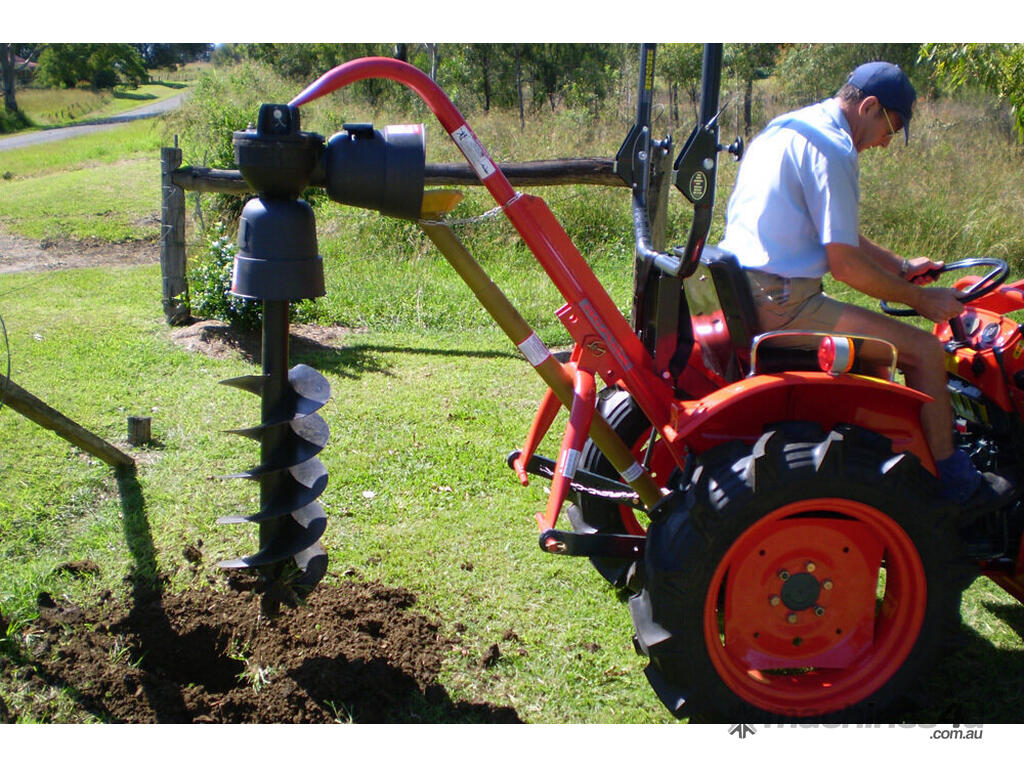

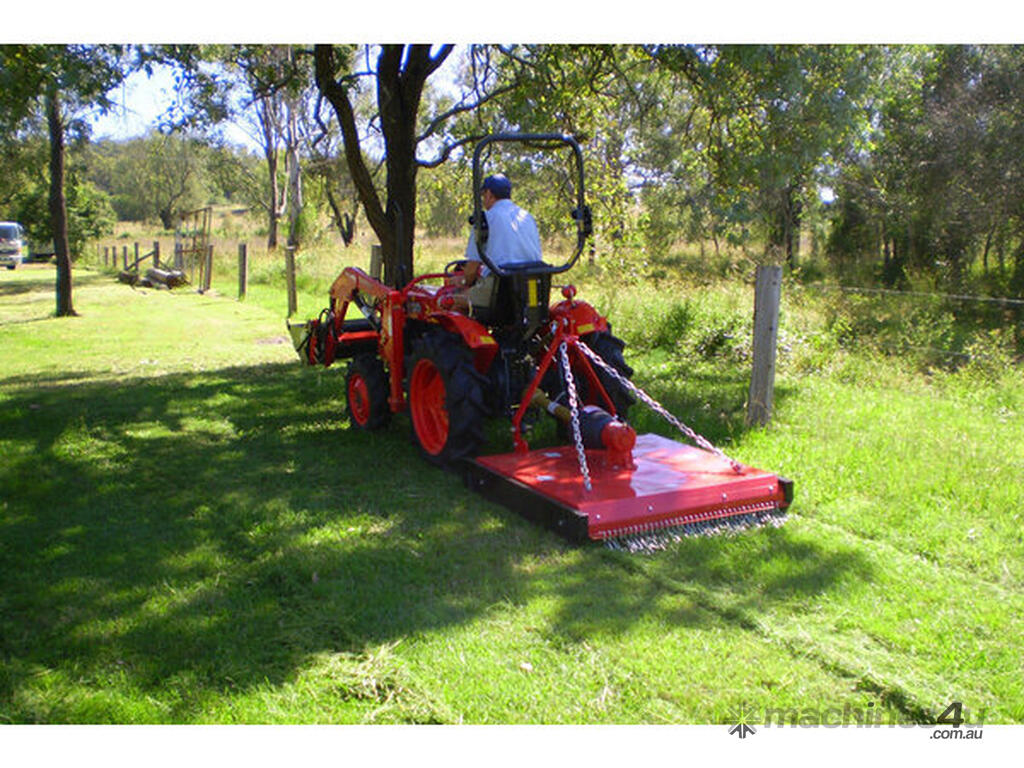

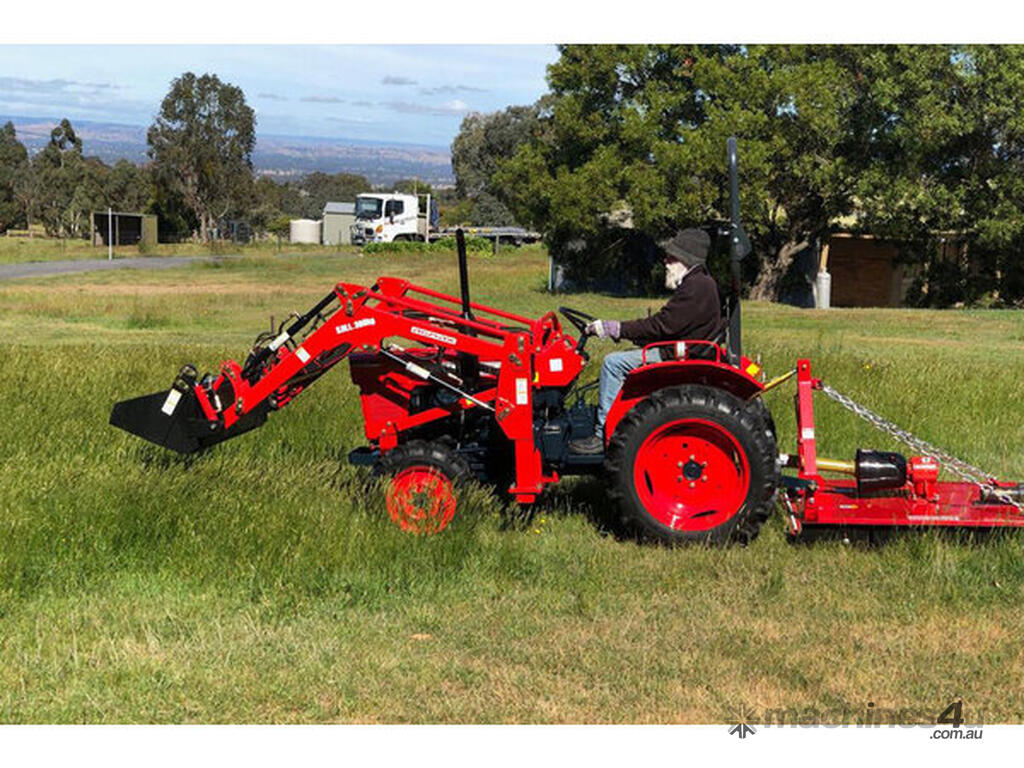

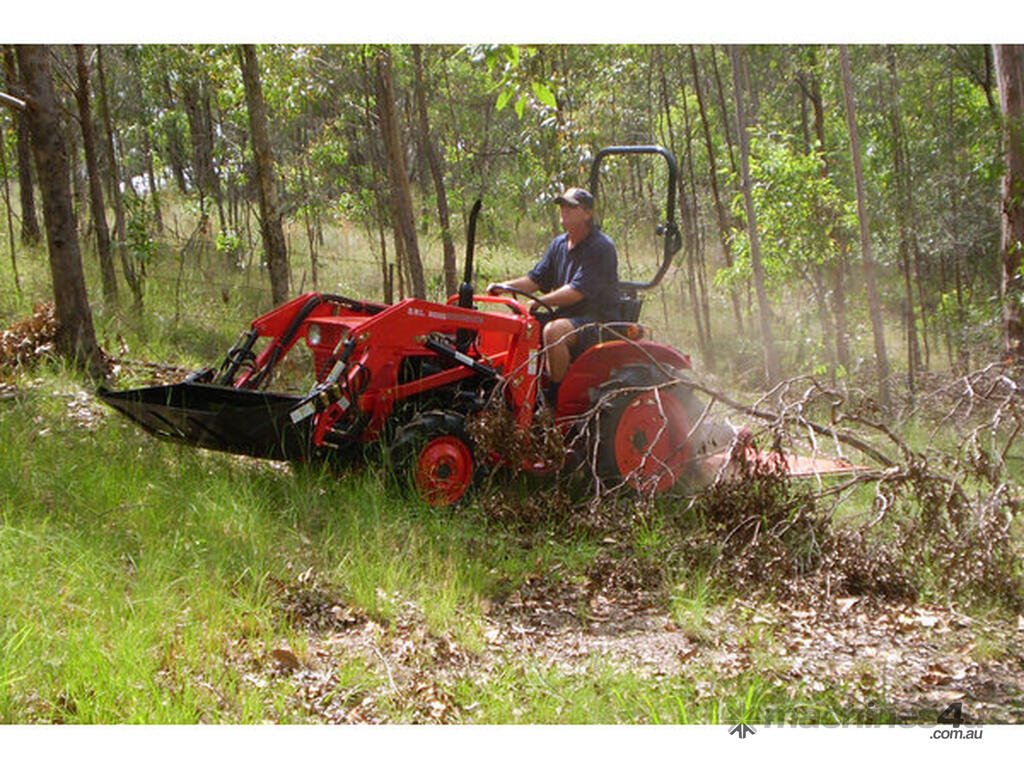

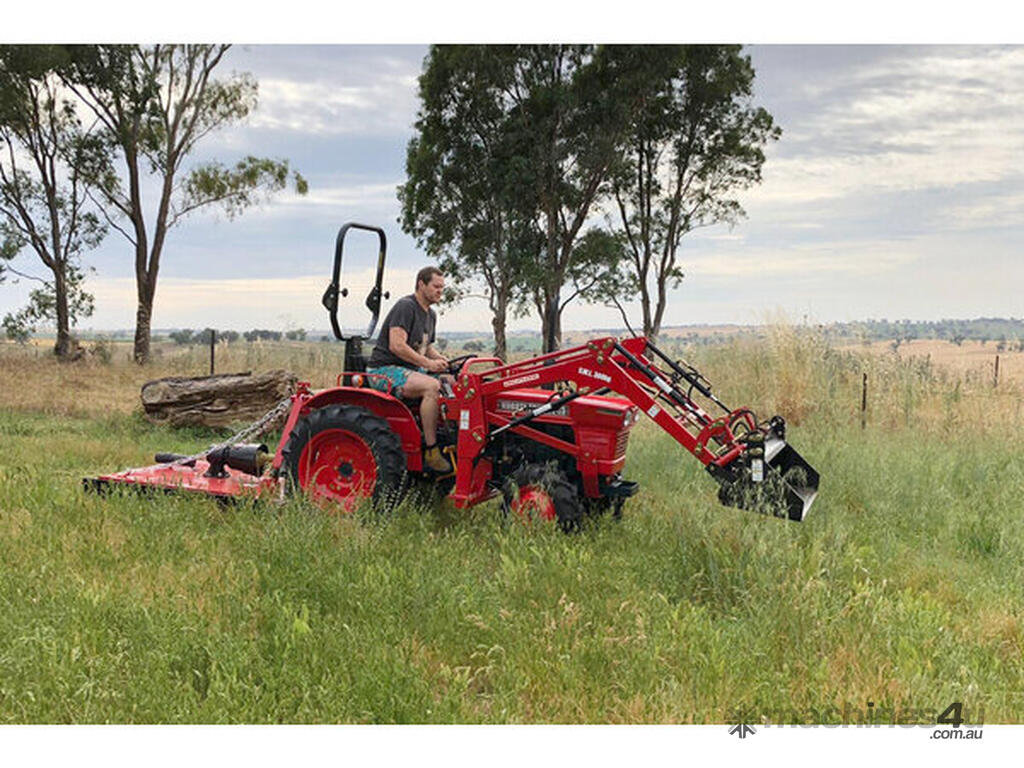

Benefits: Purchasing a remanufactured Kubota is a cost-effective way to acquire a reliable, high-quality tractor supported like a new one. The Kubota range is perfect for landscaping, small farming, and agricultural applications. With 16-speed transmissions and creeper gears as standard, the 01 series can handle a wide range of implements, including 4-in-1 loaders, post hole diggers, box scrapers, backhoes, rotary hoes, flail mowers, chippers, bale spikes, and stick rakes.

Included with the Tractor:
Certified Hercules ROPS
Operator's manual and comprehensive safety manual
Spare parts backup
3-month written warranty (extended warranty available)
2-year warranty on the AGMAX front-end loader

Key Features:

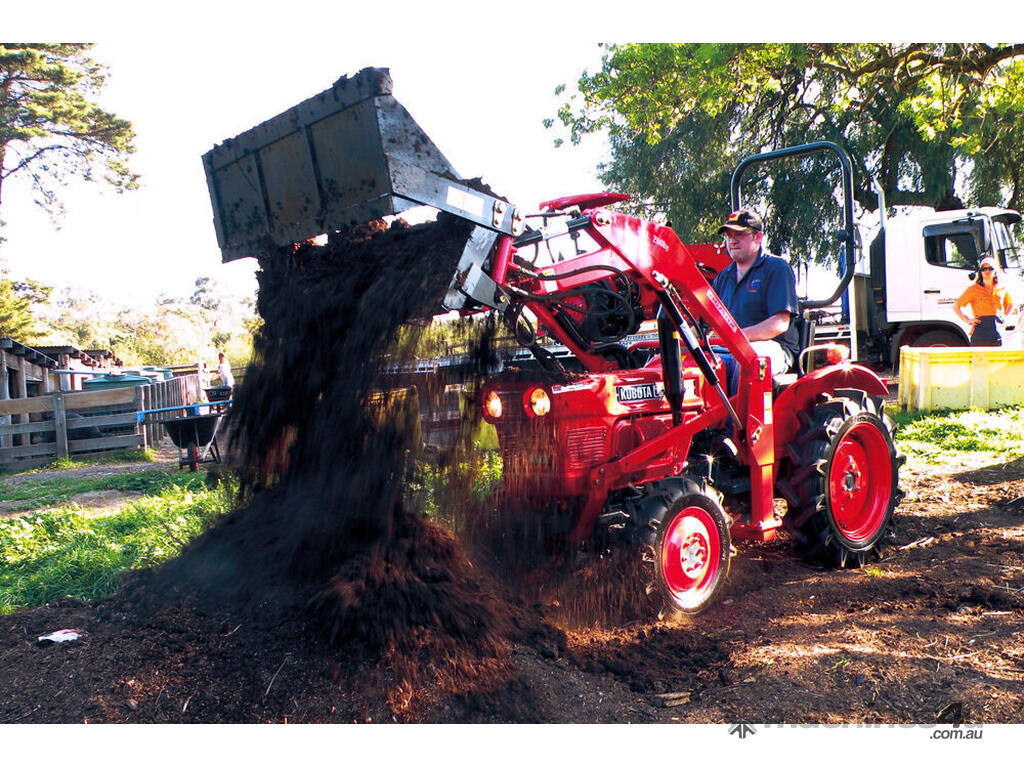

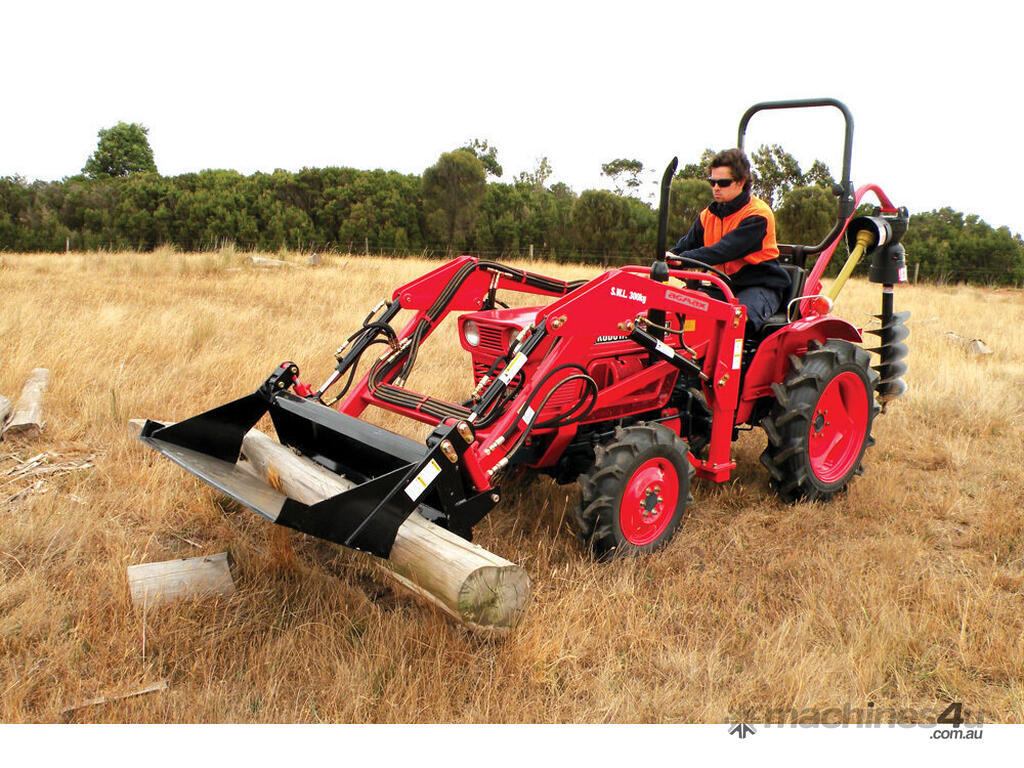

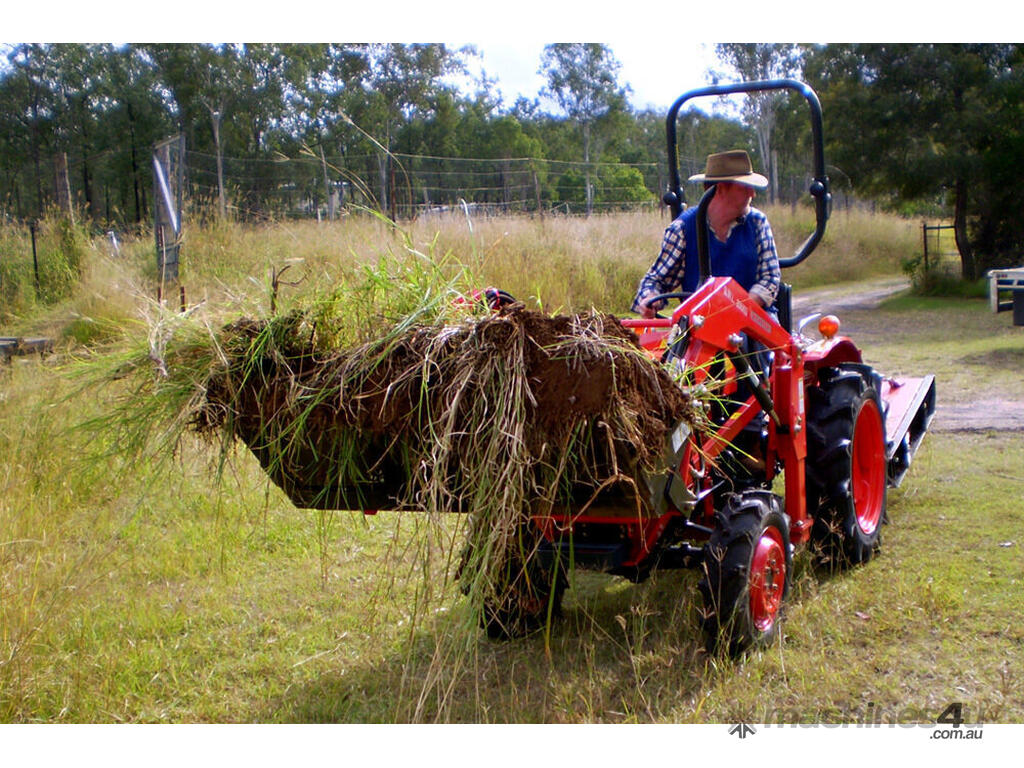

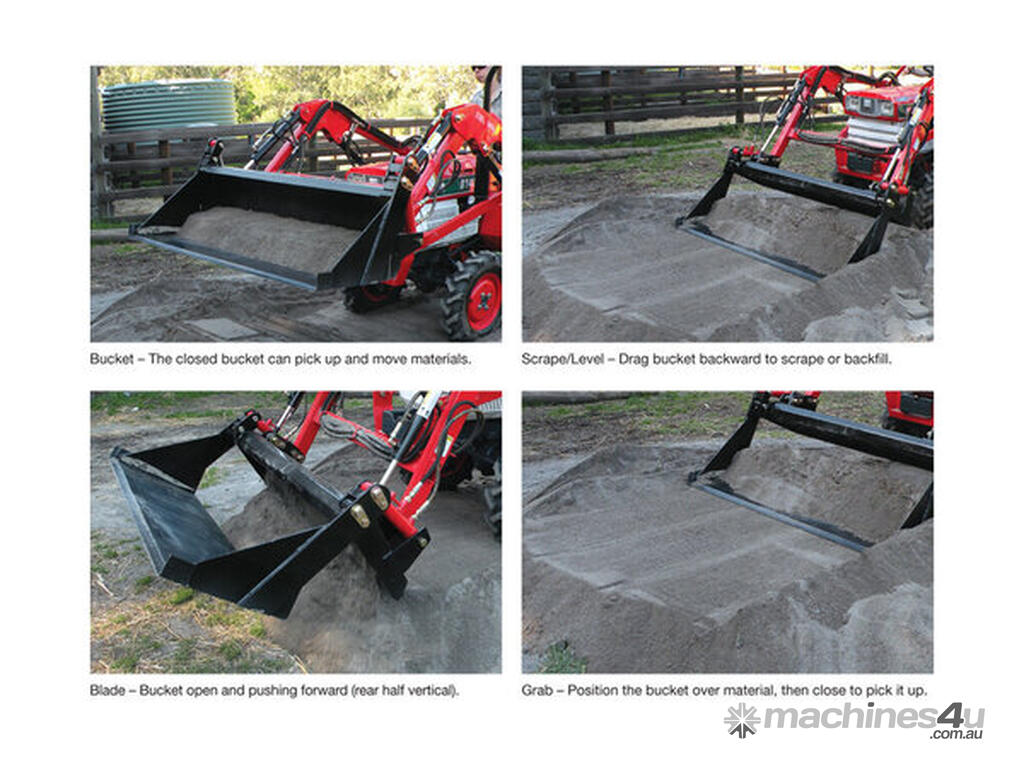

Self-leveling 4-in-1 loader
SWL 300kg
3-cylinder, direct injection diesel engine
16 forward and 4 reverse gears
2WD/4WD selection
Creeper gears
Rear differential lock
Single-stage clutch
Split brakes
4-speed PTO
Certified (AS 1636) ROPS and seat belt
Accepts standard Cat 1 TPL implements

Kubota L2201 Specifications:
Engine Model: Kubota DH1100
Engine Type: Diesel
Engine Gross Power: 25hp
PTO: 4 Speed, 22hp
Cylinders: 3
Total Displacement: 1115cc
Transmission: Manual, 16 Forward, 4 Reverse
Fuel Tank Capacity: 22L
Drive: 4WD
Brakes: Wet Disc
Clutch: Dry Single
Rear PTO Revolutions: 540/810/1160/1480rpm

Hydraulics:
Lift Control Type: Position
TPL: Cat 1
SWL: 300kg

Standard Tyre Size:
Front: 6 x 14
Rear: 8.3 x 22

Dimensions:
Overall Length: 3400mm
Overall Width: 1350mm
Overall Height (Including ROPS): 2220mm
Min. Ground Clearance: 290mm
Weight with Loader: 1190kg

Warranty:
Standard 3-month warranty covering parts, labor, and travel expenses.
Optional 15-month warranty extension covering the powertrain.
2-year warranty on the AGMAX front-end loader.
