Kusing 12.5KVA Perkins Silenced Diesel Generator 3 Phase 415V

Specialised in the sales and after-sales service of generator sets, construction machines, auto parts and garden machines, we are a professional sales and service company facing the South Pacific region and Australia. Kusing Generators have been sold around the world for more than 15 years with more than 100 million U.S. dollars annual sales. Their products are deeply praised and appreciated by customers all over the world.

To better serve customers in Australia, a sales and service centre called WELLKU POWER PTY LTD is now set up in Brisbane, Queensland. In accordance with the ISO9000 quality management system, we provide products that meet the safety CE certification and continue to solve problems for customers. In addition, we also provide reliable, excellent, high-quality, punctual, and competitive products.

• Composed of Cummins, YTO, Perkins, Deutz, SDEC, Weichai diesel engines and Stamford, Kusing, Marathon and Leroy somer alternators.
• 4 pole brushless, self-excited, IP23, insulation class H alternators.
• Digital start panel control system is standard, digital auto-start panel is optional.
• 50? radiator as standard.
• 8-hour operation base tank.
• Optional open type or silent canopy.

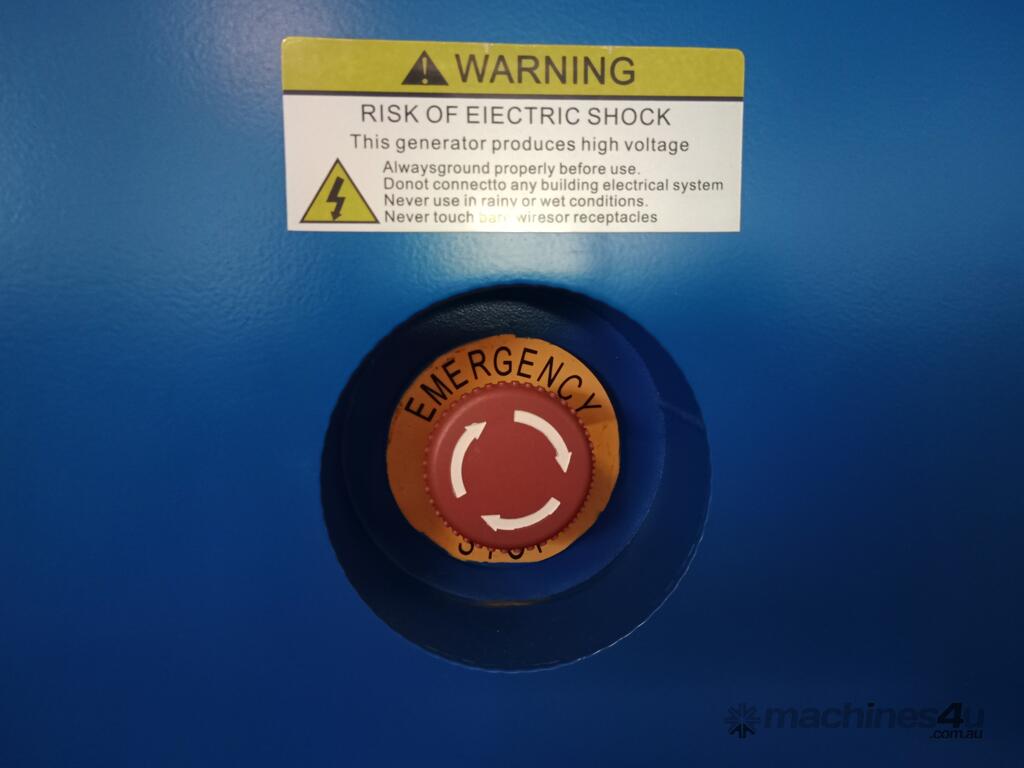

All generator sets have gone through rigorous testing before being released to the market place. Including 50% load, 75% load, 100% load, 110% load and all protection functions tested eg, overspeed stop, high water temperature, low oil pressure, battery charging fail & emergency stop.


****PRE-ORDER TODAY 10-12 WEEK TURN AROUND ****

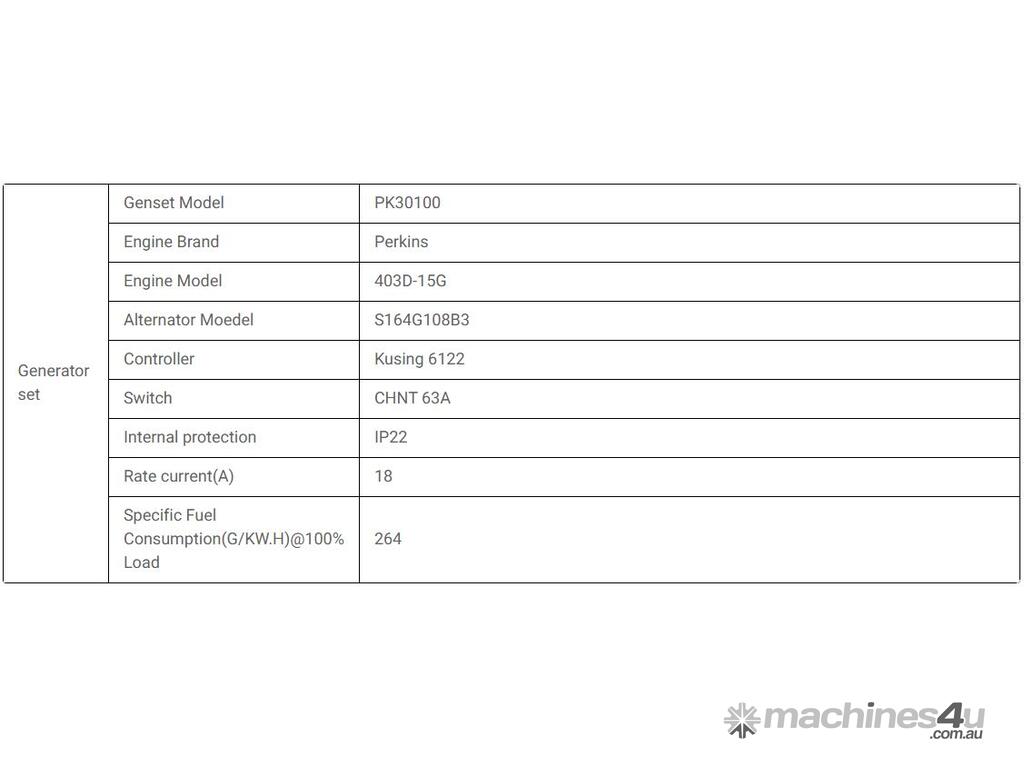

Model PGK30100 Technical Data

Generator
Prime Power: 12.5KVA (10KW)
Standby Power: 13.8KVA (11KW)
Rated Current: 18 amps per phase
Canopy: Silenced
Fuel Tank Capacity: 8-10 hours run time
Noise Level: 75Db at 7 metres

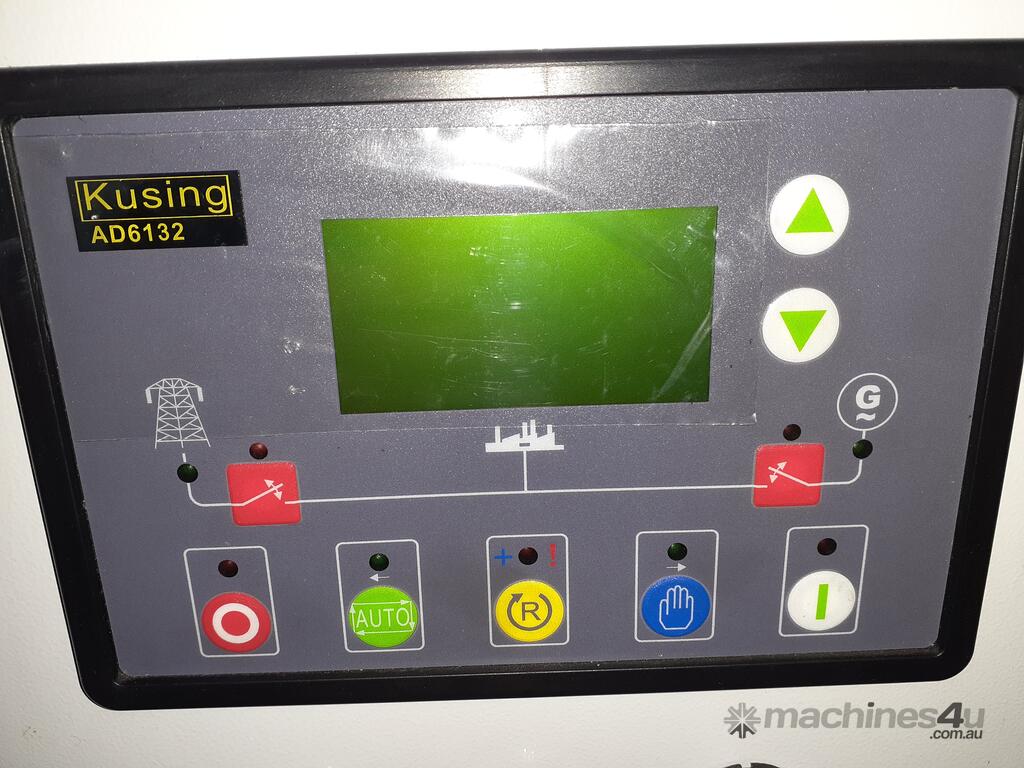

Controller: Kusing 6122
Main Contactor Switch: Chint 63A
Dimensions: 150L x 80W x 110Hcm
Weight: 670kg

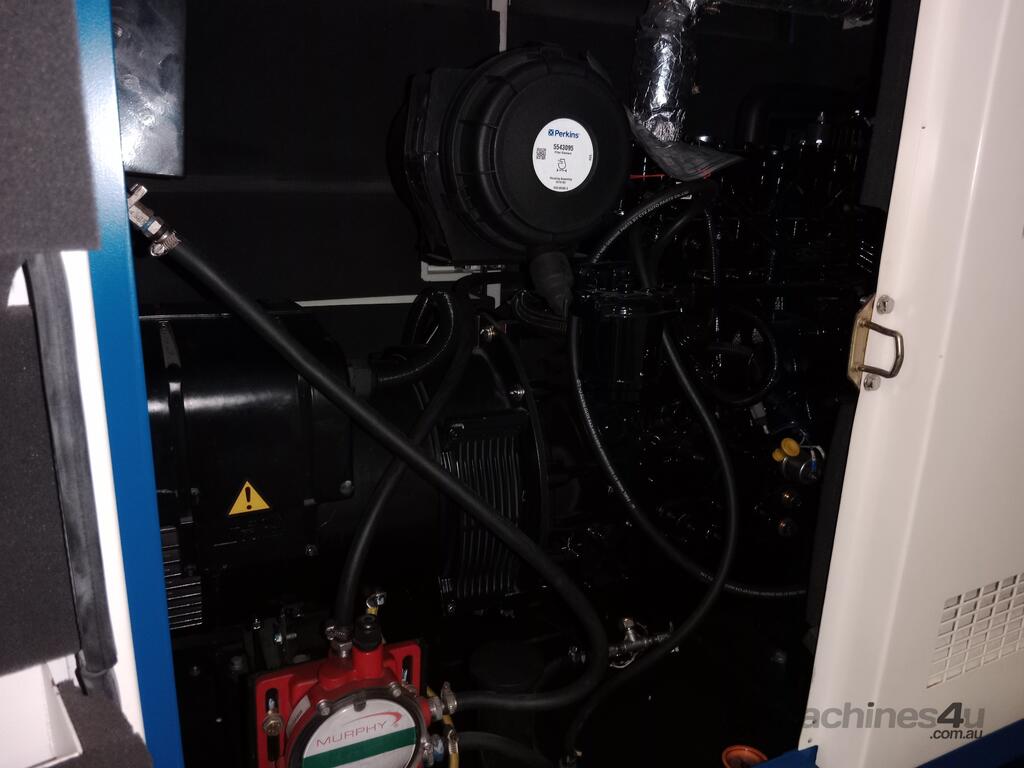

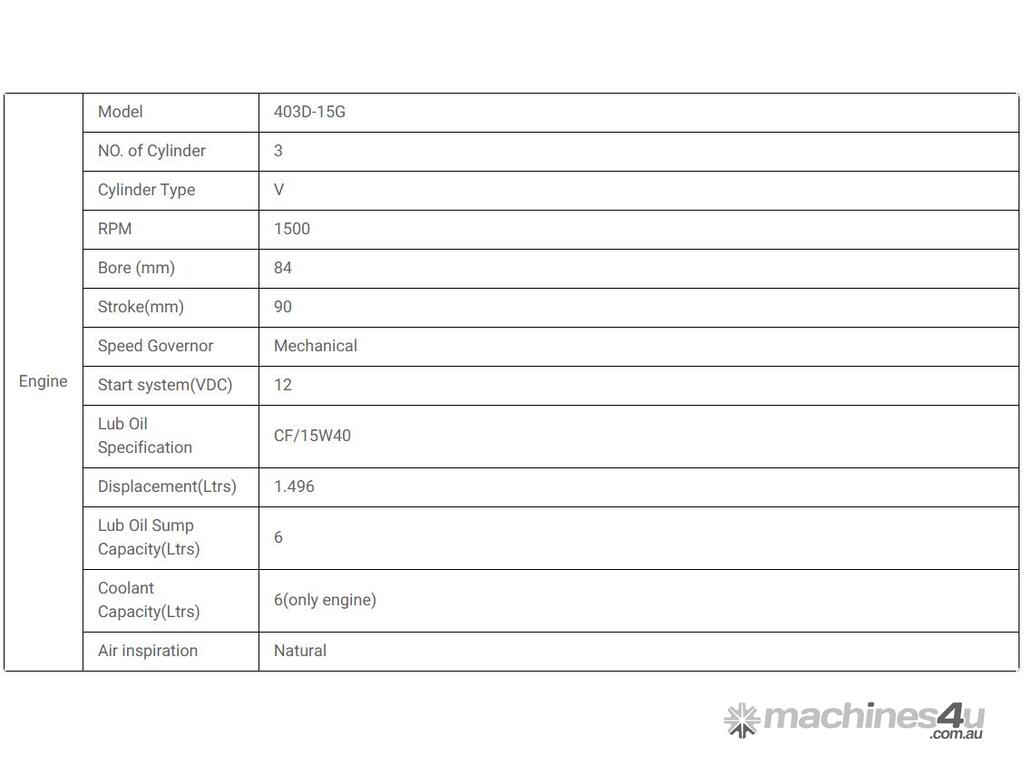

Engine
Perkins 403D-15G
Bore: 84mm
Stroke: 90mm
Air Aspiration: Natural
RPM: 1500
Speed governor: Mechanical
Start system: 12V
Fuel consumption: 264 G/KW hours at 100% load
Oil specification: 15W/40
Oil sump capacity: 6 litres
Coolant capacity: 6 litres (engine only)

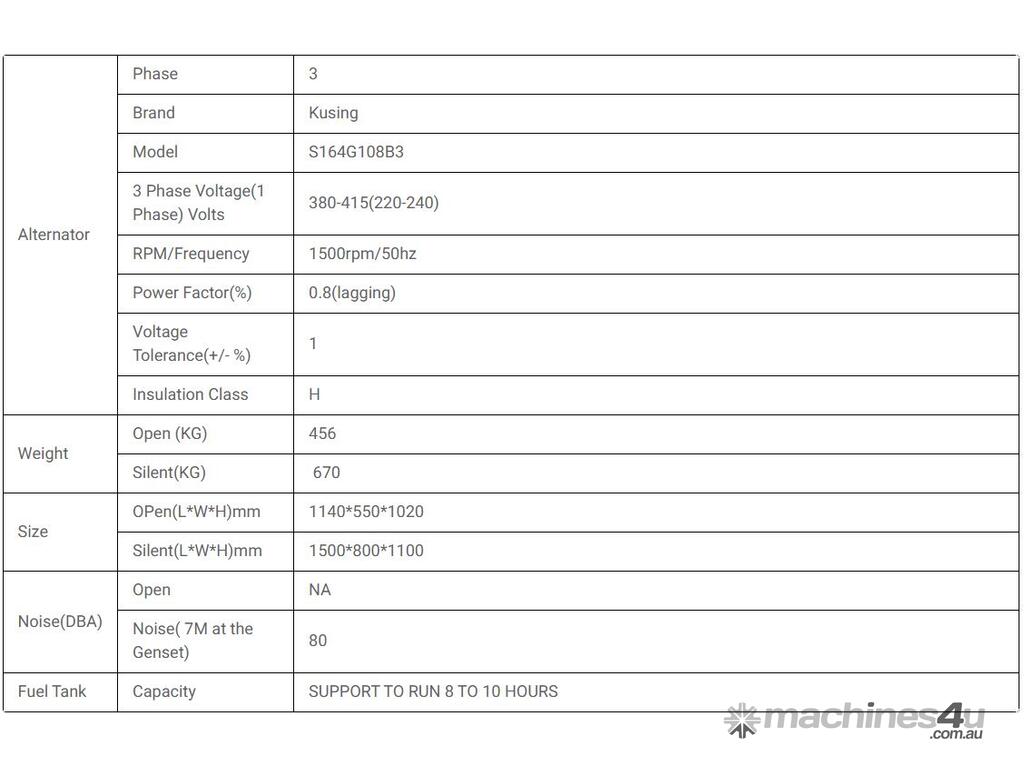

Alternator
Kusing S164G108B3
Voltage: 3 phase 380-415V / single phase 220-240V
Frequency: 50Hz at 1500 RPM
Power Factor: 0.8 (lagging)
Voltage Tolerance: + / - 1%
Insulation Class: H

Warranty
12 Months / 1000 hours

Optional – Inquire for pricing on optional items.

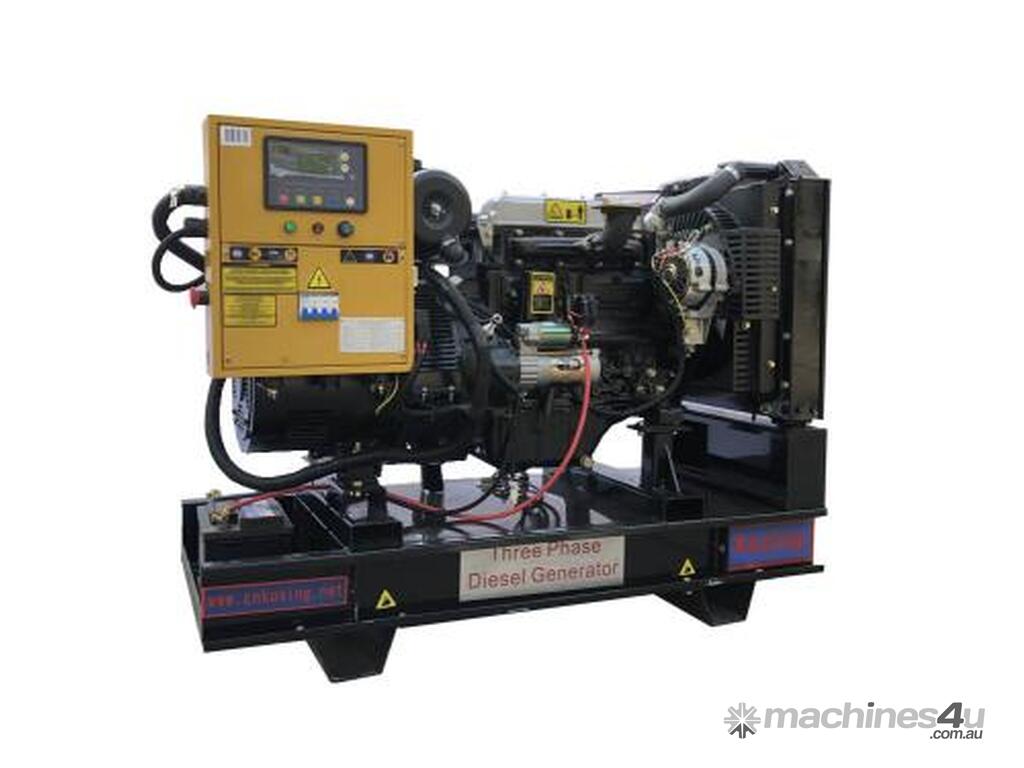

Silenced cabinet / Open frame
Engine: Cummins, Perkins, Yang Dong
Controller: Comap, Smartgen, Deepsea, Kusing
Alternator: Stamford, Leroy Somer, Kusing
Inbuilt ATS
3 Phase 32A – 50A outlets
Single phase 240V 15A outlets
Padlockable battery isolator
Custom large volume base fuel tank
Mine Spec


****PRE-ORDER TODAY 10-12 WEEK TURN AROUND ****
DELIVERY TIMES ARE JUST A GUIDE AS SHIPPING DELAYS CAN BE EXPECTED
